Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Lever & Shift Rod

17 part groups · 2 illustrations

Illustrations

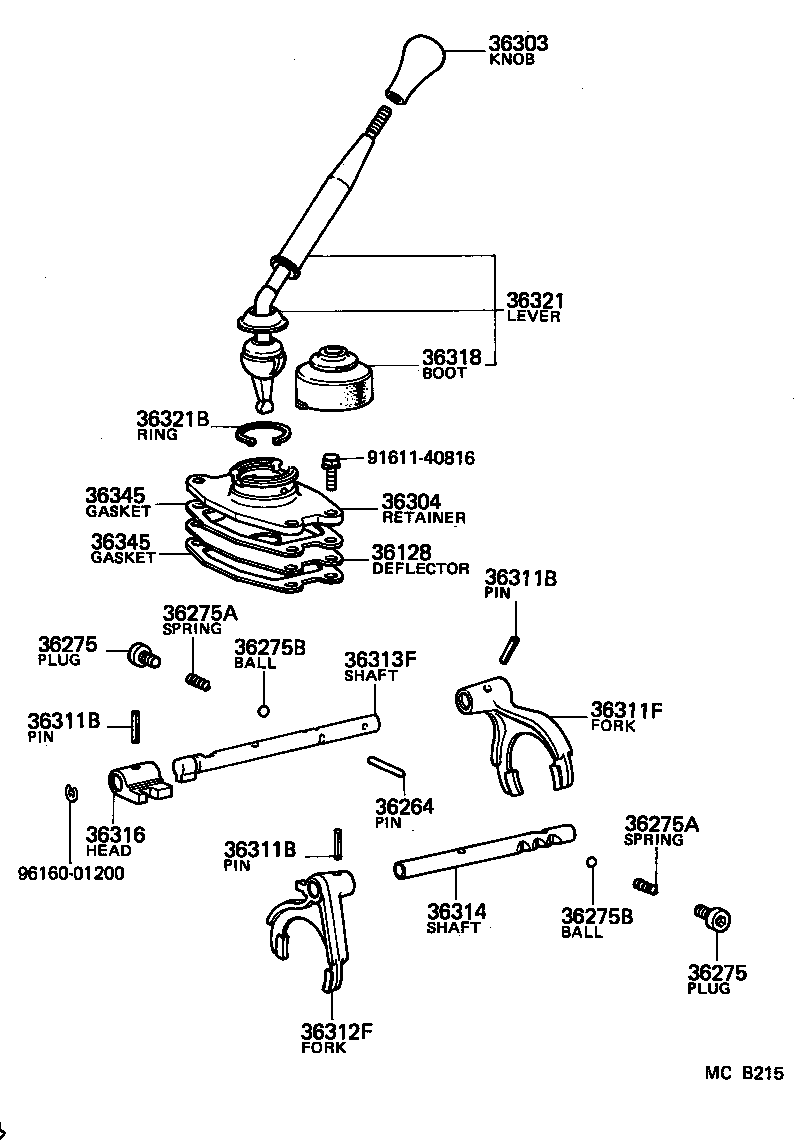

Figure MCA298D MCA298D 1983-08 → — Figure MCB215 MCB215 1987-12 → —

Part groups

PNCDescription
36128 Deflector, Breather Oil
36264 Pin OR Roller, Shift Inter-lock
36275 Plug, Shift Detent Ball Spring
36275A Spring, Compression (FOR SHIFT DETENT BALL)
36275B Ball, Shift Detent
36303 Knob Sub-assy, Shift Lever
36304 Retainer Sub-assy, Transfer Control Shift Lever
36311B Pin, Slotted Spring (FOR TRANSFER SHIFT FORK)
36311F Fork, Transfer Gear Shift, NO.1
36312F Fork, Transfer Gear Shift, NO.2
36313F Shaft, Transfer Front Drive Shift Fork
36314 Shaft, Transfer High And Low Shift Fork
36316 Head, Transfer Gear Shift, NO.2
36318 Boot, Transfer Front Drive Shift
36321 Lever, Transfer Front Drive Shift
36321B Ring, Hole Snap (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
36345 Gasket, Transfer Control Shift Lever Retainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
