Toyota Hilux
1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe
Discontinued model
Data version 1999-01

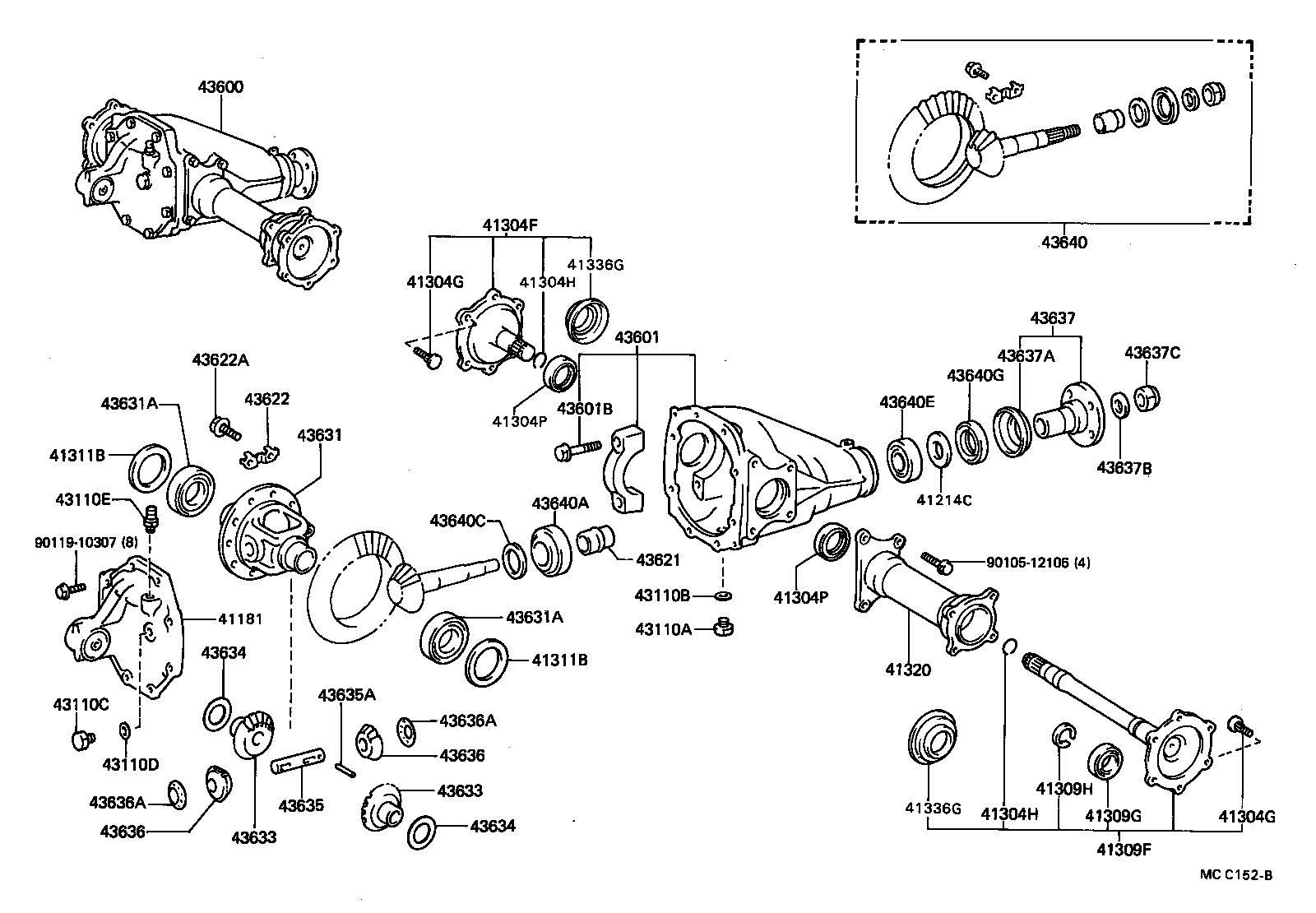

Front Axle Housing & Differential
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 41181 | Cover, Front Differential Carrier |
| 41214C | Slinger, Front Differential Drive Pinion Oil |
| 41304F | Shaft Sub-assy, Differential Side Gear, RH |
| 41304G | Bolt, Serration (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41304H | Ring, Hole Snap (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41304P | Seal, Oil (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41309F | Shaft Sub-assy, Differential Side Gear, LH |
| 41309G | Bearing (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41309H | Ring, Shaft Snap (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41311B | Washer, Plate (FOR FRONT DIFFERENTIAL CASE) |
| 41320 | Tube Assy, Front Differential |
| 41336G | Cover, Dust(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) |
| 43110 | Housing Assy, Front Axle |
| 43110A | Plug Sub-assy, Drain |
| 43110B | Gasket, Drain |
| 43110C | Plug (FOR FRONT AXLE HOUSING) |
| 43110D | Gasket (FOR FRONT AXLE HOUSING PLUG) |
| 43110E | Plug, Breather (FOR FRONT AXLE HOUSING) |
| 43411D | Seal, Type T Oil (FOR FRONT DRIVE SHAFT) |
| 43600 | Carrier Assy, Front Axle |
| 43600A | Bolt, Stud (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING) |
| 43601 | Carrier Sub-assy, Front Axle |
| 43601A | Lock, Front Axle Differential Adjust Nut |
| 43601B | Bolt, Front Axle Differential Bearing Cap |
| 43611 | Gasket, Front Axle Differential Carrier |
| 43621 | Spacer, Front Axle Differential Drive Pinion Bearing |
| 43622 | Plate, Front Axle Differential Ring Gear Set Bolt Lock |
| 43622A | Bolt (FOR FRONT AXLE DIFFERENTIAL RING GEAR SET PLATE) |
| 43631 | Case, Front Axle Differential |
| 43631A | Bearing, Front Axle Differential |
| 43632 | Nut, Front Axle Differential Bearing Adjust |
| 43633 | Gear, Front Axle Differential Side |
| 43634 | Washer, Front Axle Differential Side Gear Thrust |
| 43635 | Shaft, Front Axle Differential Pinion |
| 43635A | Pin, Front Axle Differential Pinion Shaft |
| 43636 | Pinion, Front Axle Differential |
| 43636A | Washer, Front Axle Differential Pinion Thrust |
| 43637 | Flange, Front Axle Drive Pinion, W/Deflector |
| 43637A | Deflector, Dust (FOR FRONT AXLE) |
| 43637B | Washer, Plate (FOR FRONT AXLE DRIVE PINION) |
| 43637C | Nut, Castle (FOR FRONT AXLE DRIVE PINION) |
| 43640 | Final Gear Set, Front Axle Differential |
| 43640A | Bearing, Front Axle Drive Pinion, Front |
| 43640C | Spacer OR Washer, Front Axle Drive Pinion Thrust |
| 43640E | Bearing, Front Axle Drive Pinion, Rear |
| 43640G | Seal, Type T Oil (FOR FRONT AXLE DIFFERENTIAL CARRIER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
