Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

57 part groups · 21 illustrations

Illustrations

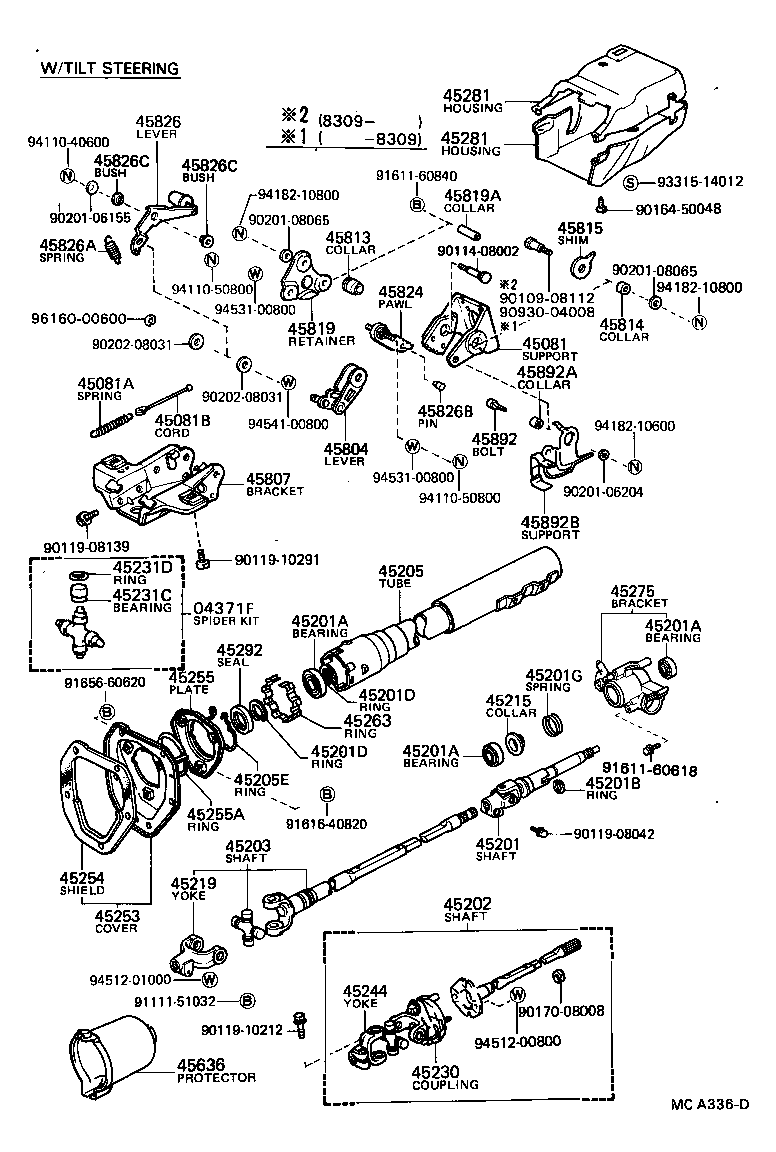

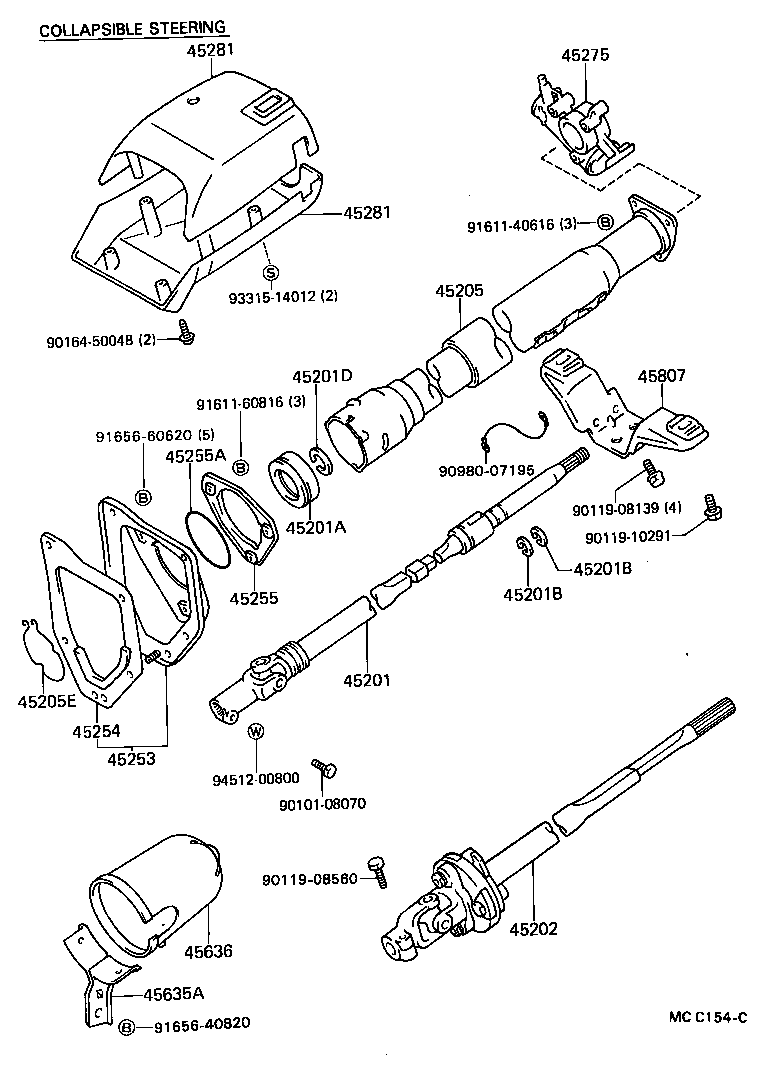

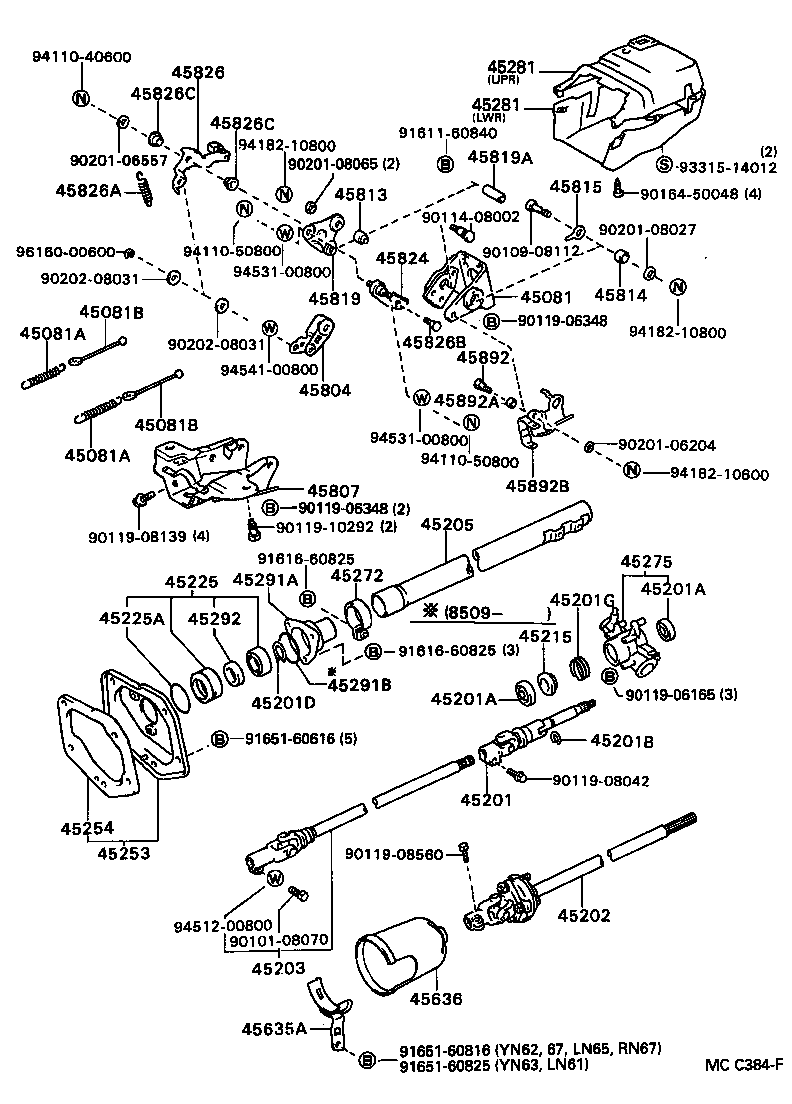

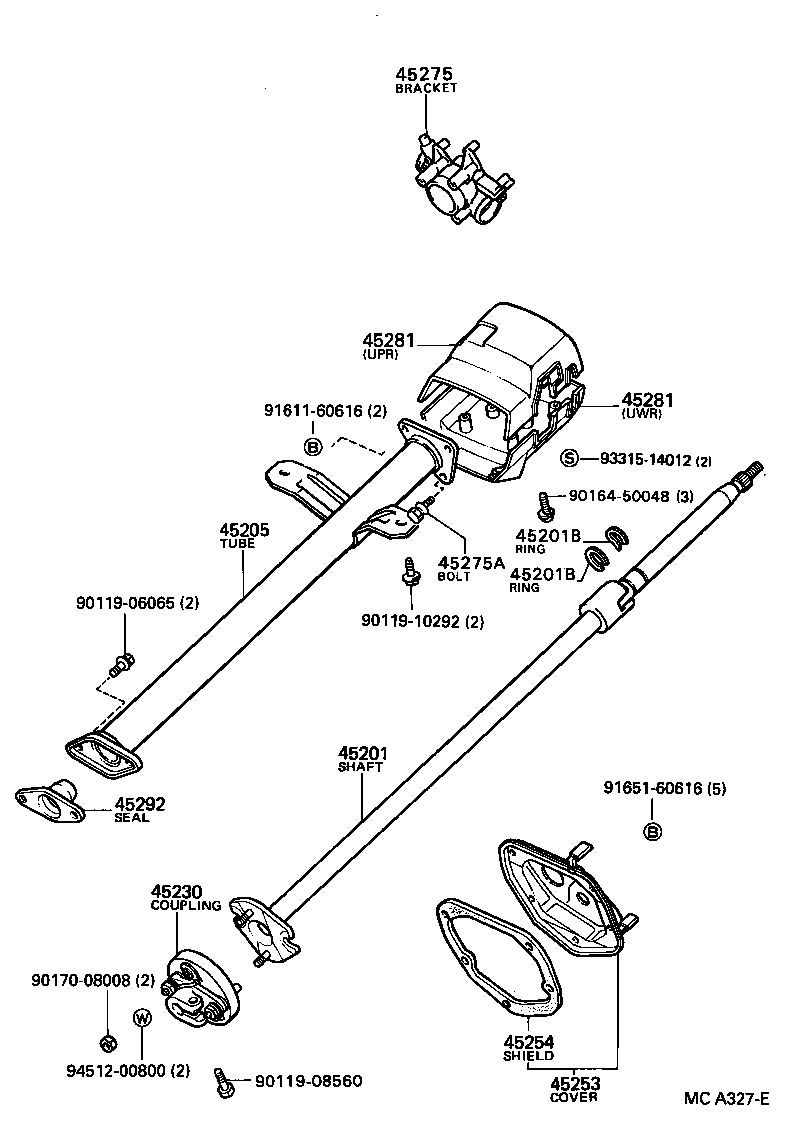

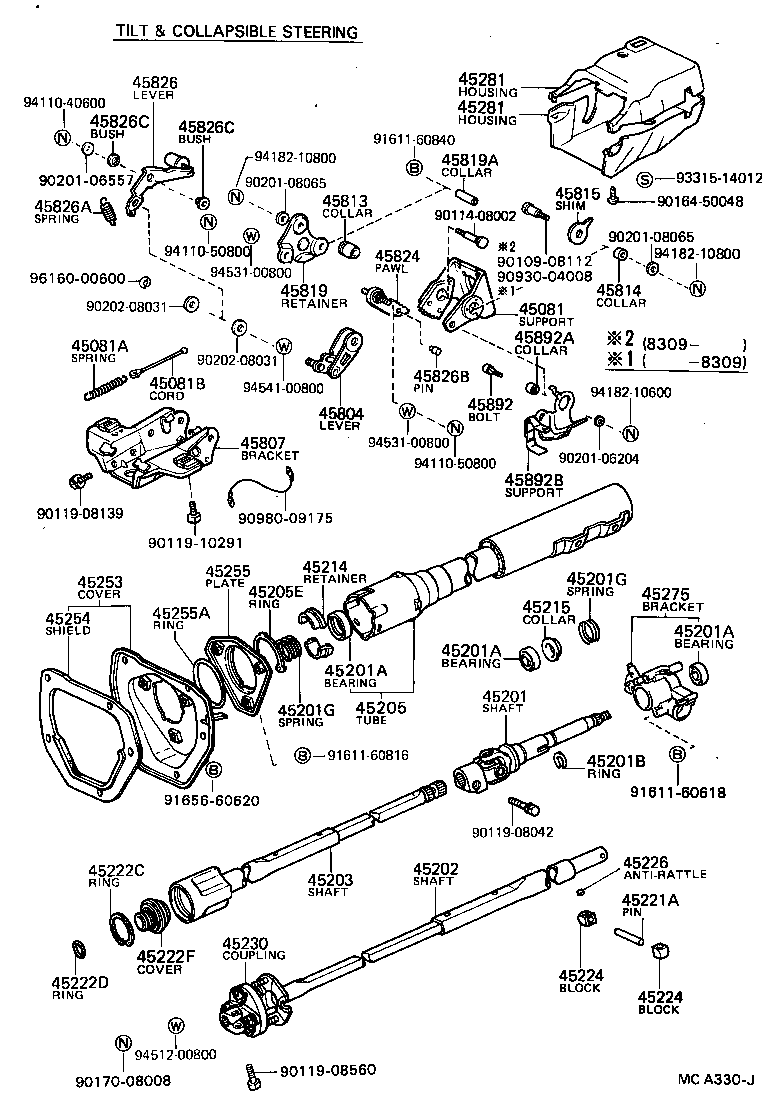

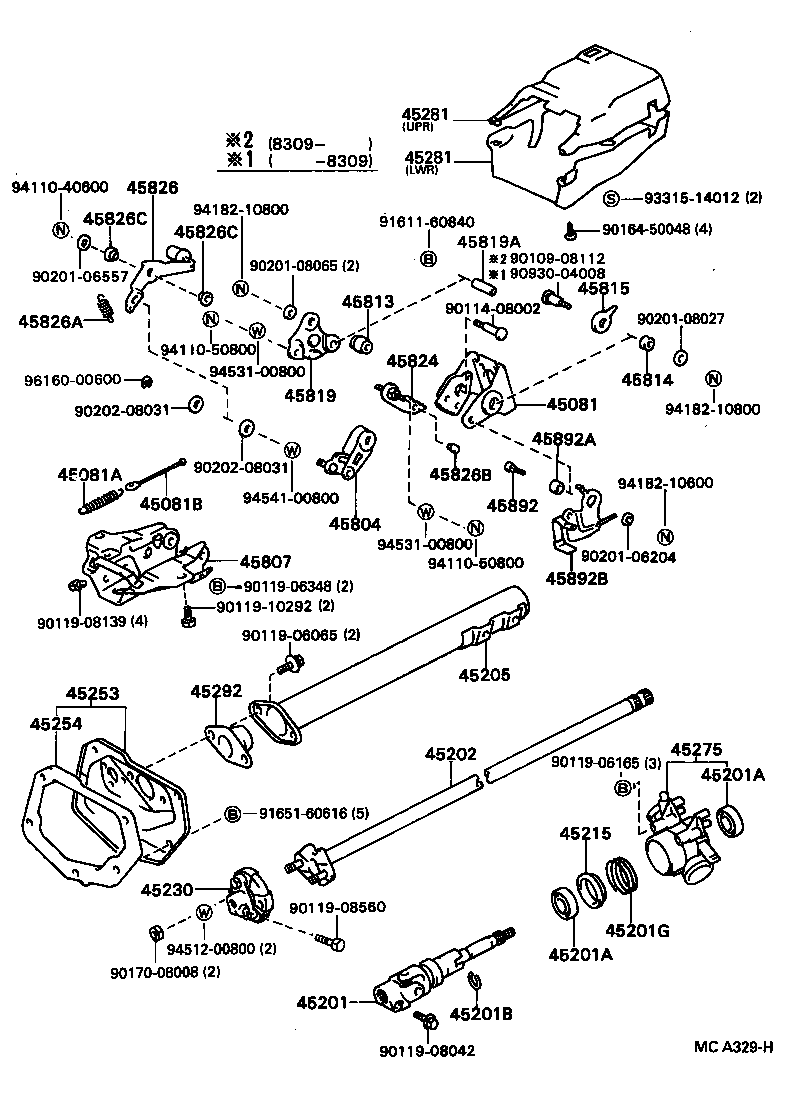

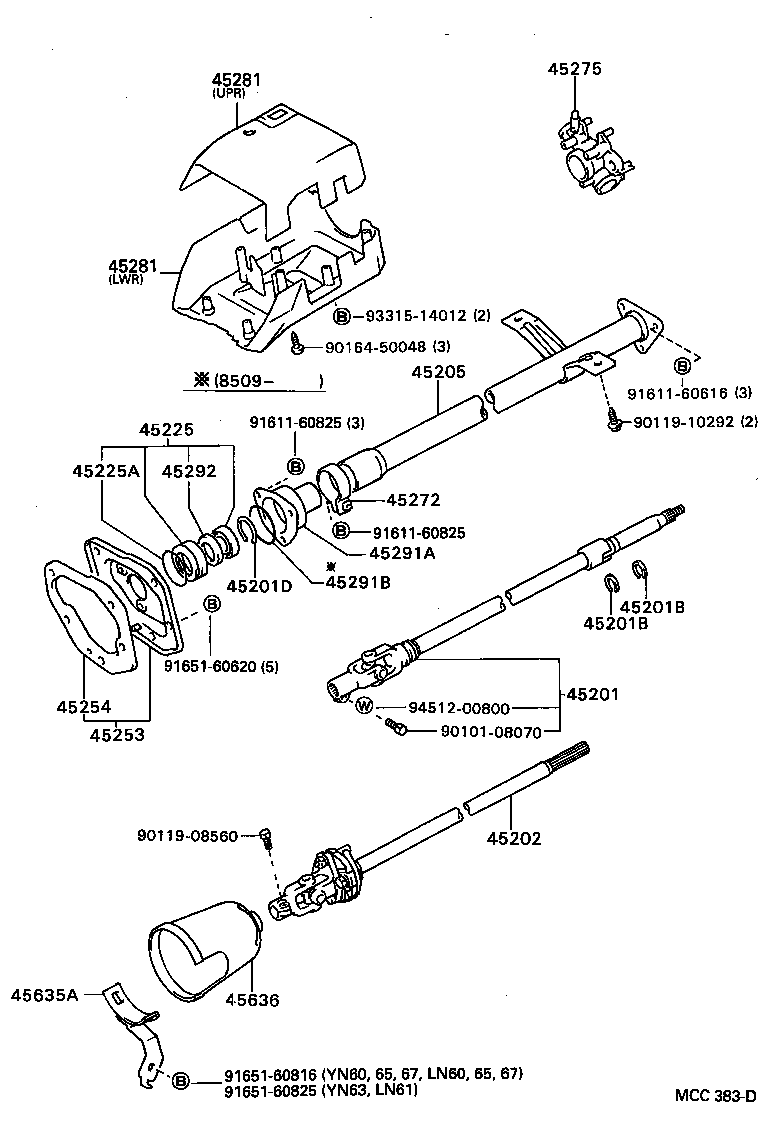

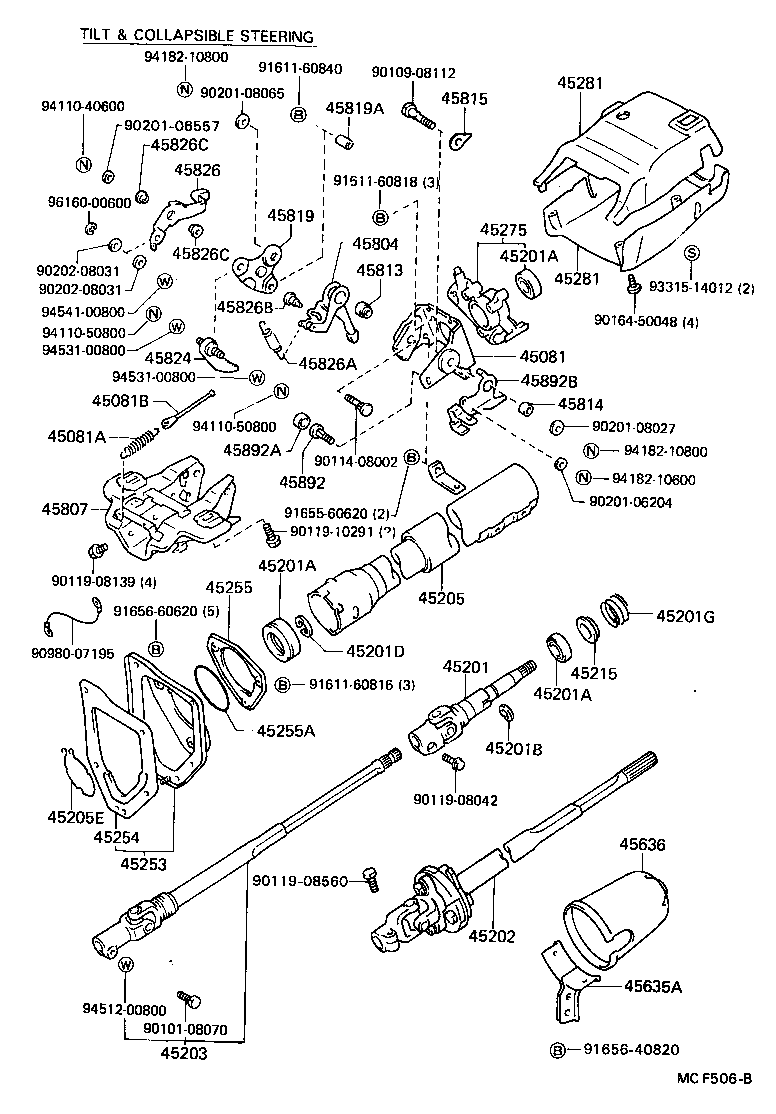

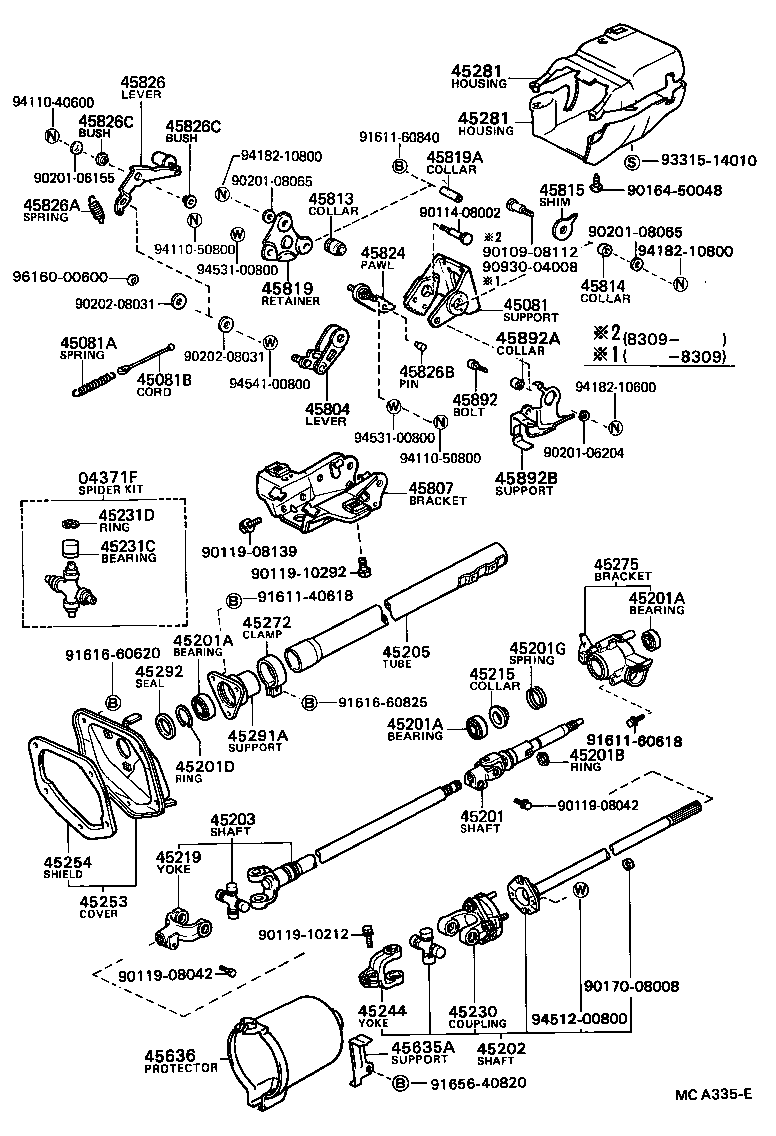

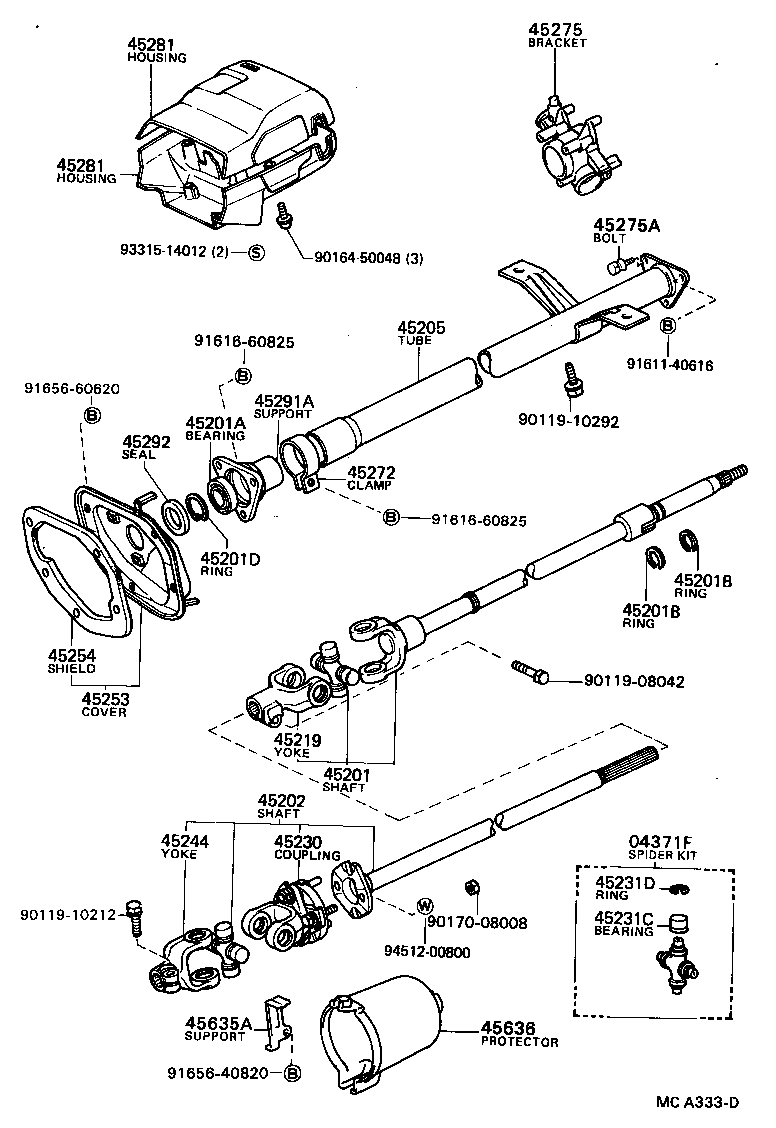

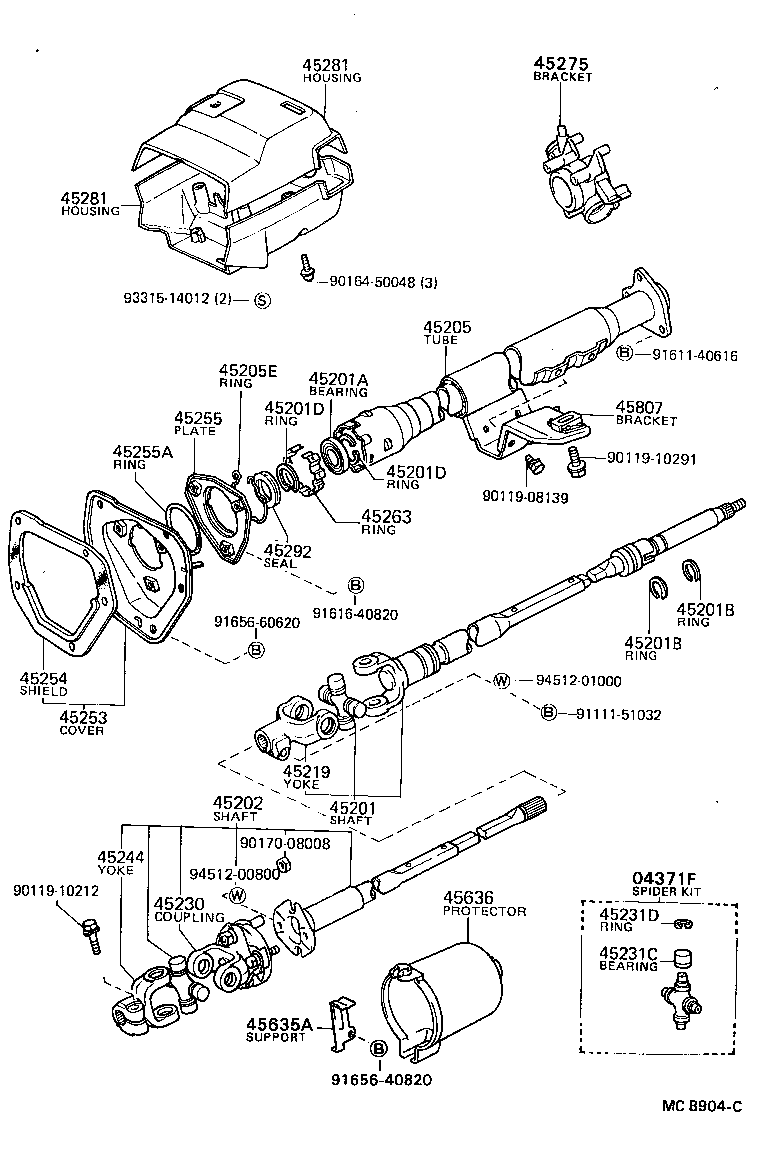

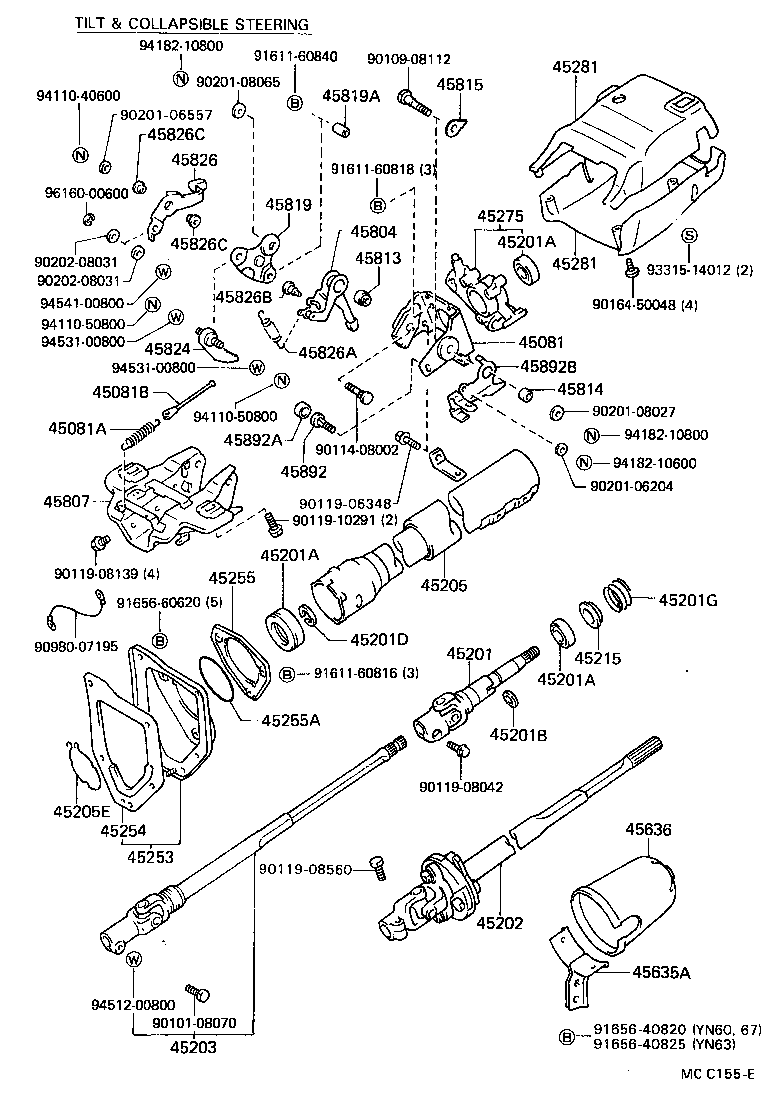

Figure MCA328I MCA328I 1983-08 → 1992-01 Figure MCA330J MCA330J 1983-08 → 1992-01 Figure MCB904C MCB904C 1983-08 → 1995-08 Figure MCF506B MCF506B 1987-12 → 1989-03 Figure MCA333D MCA333D 1983-08 → 1985-08 Figure MCC154C MCC154C 1985-08 → 1992-01 Figure MCA335E MCA335E 1983-08 → 1985-08 Figure MCA335E MCA335E 1984-07 → 1985-08 Figure MCA336D MCA336D 1983-08 → 1985-08 Figure MCC155E MCC155E 1985-08 → 1992-01 Figure MCA327E MCA327E 1983-08 → 1986-08 Figure MCA327E MCA327E 1986-08 → 1992-01 Figure MCA327E MCA327E 1992-01 → — Figure MCA329H MCA329H 1983-08 → 1992-01 Figure MCA329H MCA329H 1983-08 → 1992-01 Figure MCA329H MCA329H 1992-01 → — Figure MCC383D MCC383D 1985-08 → 1986-08 Figure MCC383D MCC383D 1986-08 → 1992-01 Figure MCC383D MCC383D 1992-01 → — Figure MCC384F MCC384F 1985-08 → 1992-01 Figure MCC384F MCC384F 1992-01 → —

Part groups

PNCDescription
04371F Spider Kit, Universal Joint(FOR STEERING MAIN SHAFT)
45081 Support Sub-assy, Tilt Steering
45081A Spring, Tension(FOR TILT STEERING)
45081B Cord(FOR TILT STEERING)
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45205 Tube Sub-assy, Steering Column
45205E Ring, Snap(FOR STEERING COLUMN TUBE)
45214 Retainer, Main Shaft Spring
45215 Collar, Main Shaft Bearing Thrust
45219 Yoke, Steering Sliding
45221A Pin(FOR STEERING INTERMEDIATE SHAFT)
45222C Ring, Hole Snap(FOR DUST COVER)
45222D Ring, O(FOR DUST COVER)
45222F Cover, Dust
45224 Block, Bearing(FOR STEERING FLEXIBLE COUPLING)
45225 Block, Bearing
45225A Ring, O(FOR BEARING BLOCK)
45226 Anti-rattle(FOR STEERING FLEXIBLE COUPLING)
45230 Coupling Assy, Flexible
45231C Bearing, Universal Joint Spider(FOR STEERING MAIN SHAFT)
45231D Ring, Hole Snap(FOR STEERING MAIN SHAFT)
45244 Yoke, Steering Worm
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45255A Grommet OR Ring, O(FOR STEERING COLUMN CLAMP)
45263 Ring, Steering Column, NO.1
45272 Clamp, Steering Column, Lower
45275 Bracket, Steering Column, Upper
45275A Bolt, Hexagon(FOR STEERING COLUMN BRACKET)
45281 Housing, Steering Column
45291A Support, Steering Column Tube
45291B Ring, O(FOR STEERING COLUMN TUBE SUPPORT)
45292 Seal, Main Shaft Lower Dust
45635A Support, Inter Link Joint Protector
45636 Protector, Intermediate Link Joint, Upper
45804 Lever Sub-assy, Steering Tilt
45807 Bracket Sub-assy, Steering Column Upper Support
45813 Collar, Tilt Steering Support, NO.1
45814 Collar, Tilt Steering Support, NO.2
45815 Shim, Tilt Steering Support
45819 Retainer, Tilt Lever
45819A Collar(FOR TILT LEVER RETAINER)
45824 Pawl, Tilt Steering
45826 Lever, Steering Tilt
45826A Spring, Tension(FOR STEERING TILT LEVER)
45826B Pin(FOR STEERING TILT LEVER)
45826C Bush(FOR STEERING TILT LEVER)
45892 Bolt, Tilt Steering Support Stopper
45892A Cover, Tilt Steering Support Stopper
45892B Support, Tilt Steering Column Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
