Vane Pump & Reservoir (POWER STEERING)

44 part groups · 11 illustrations

Illustrations

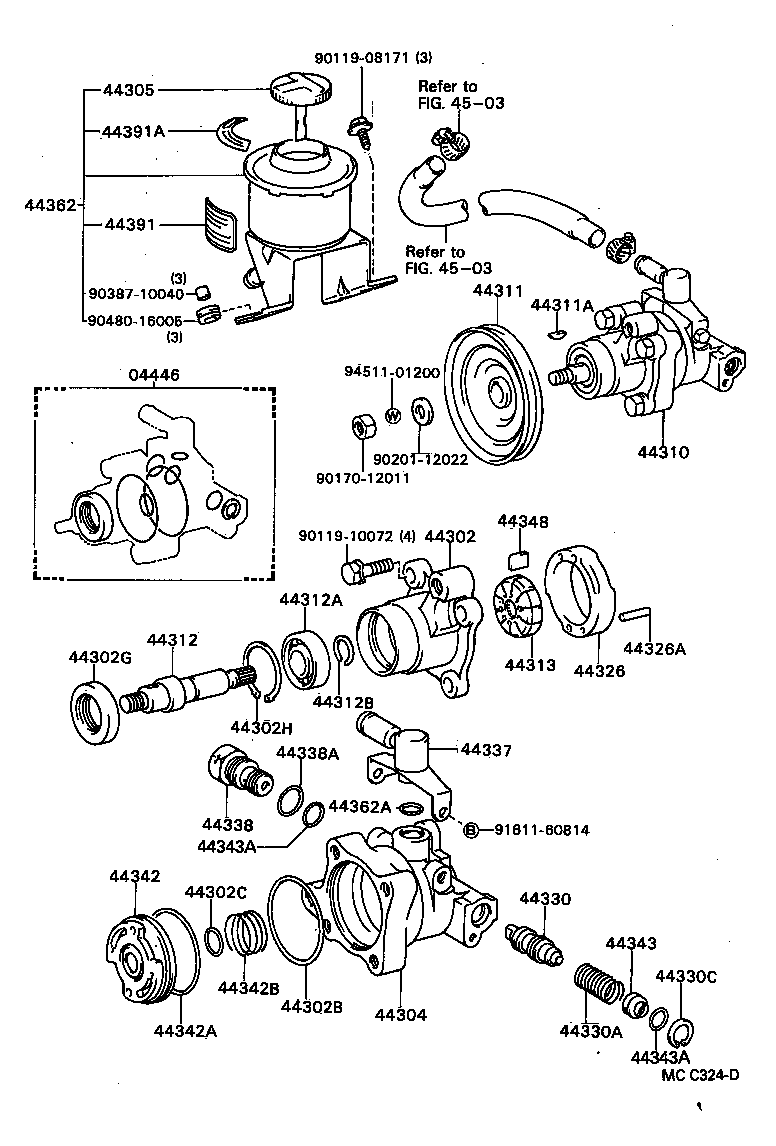

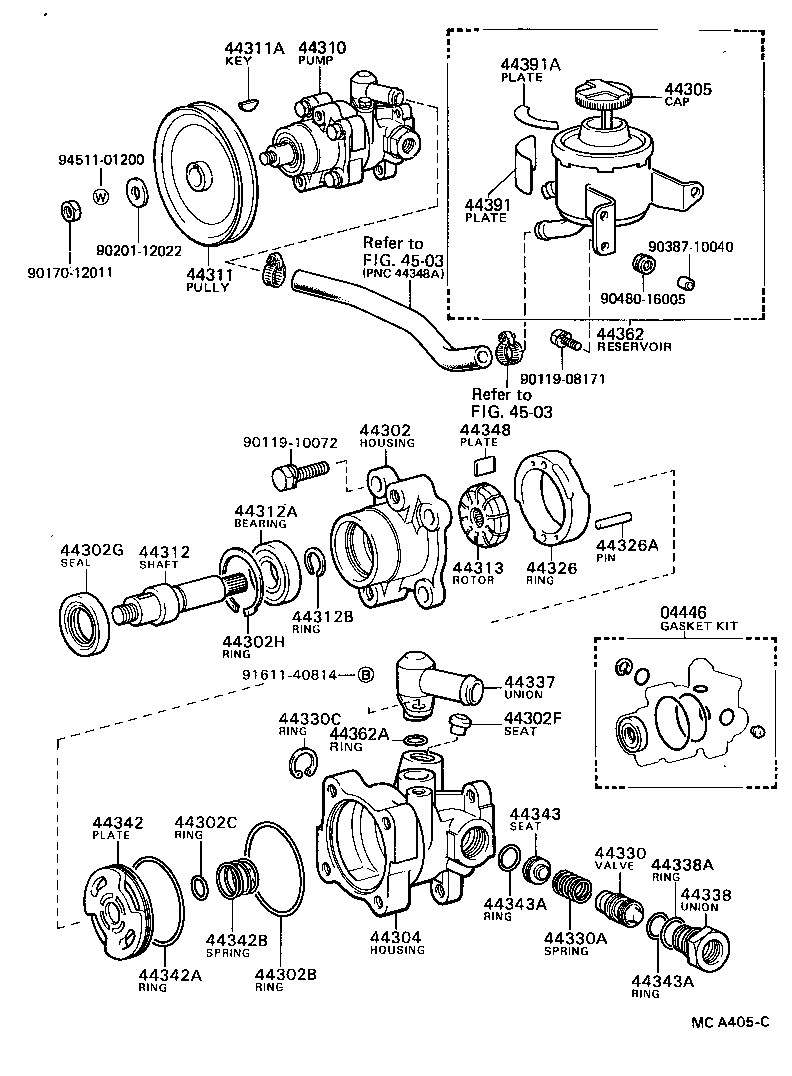

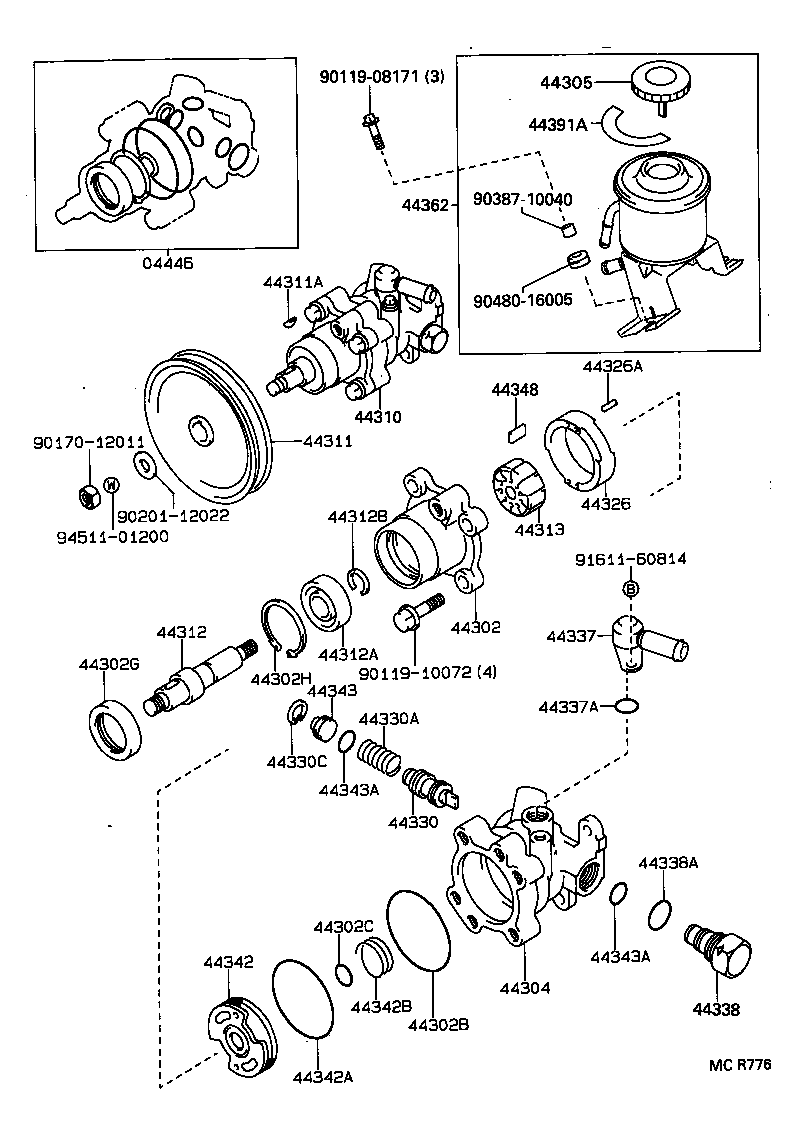

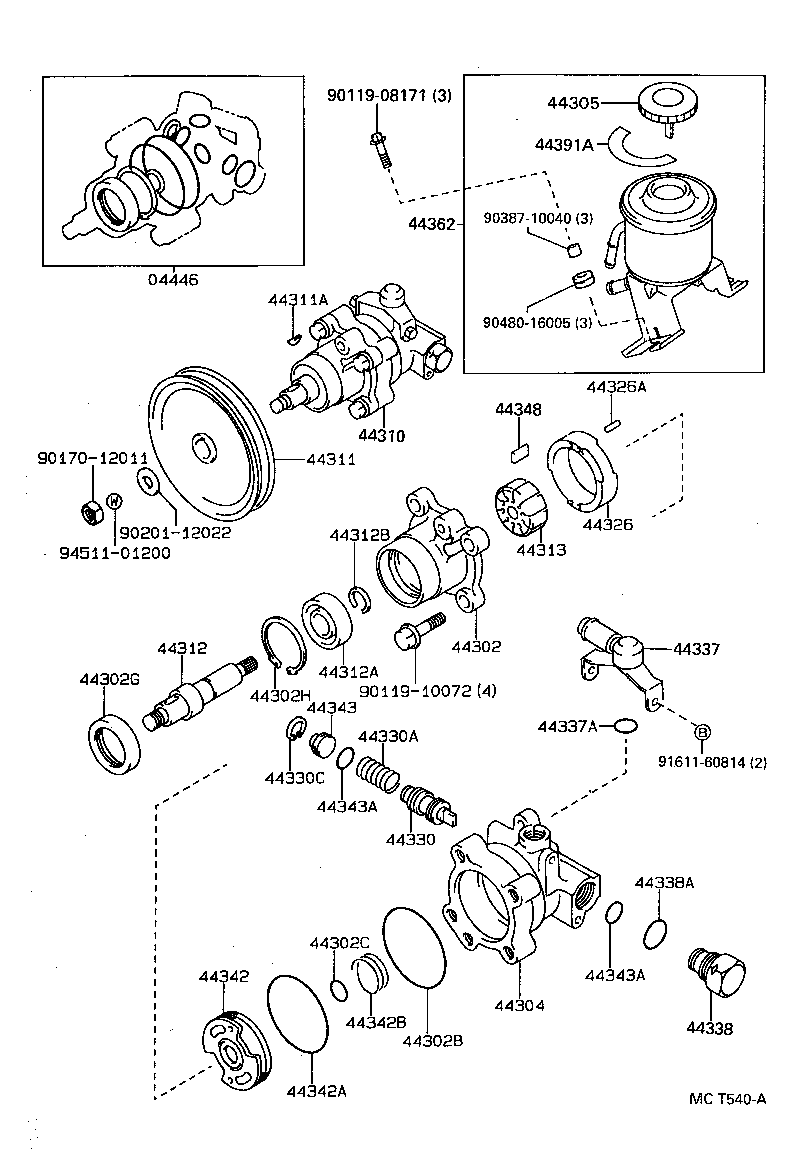

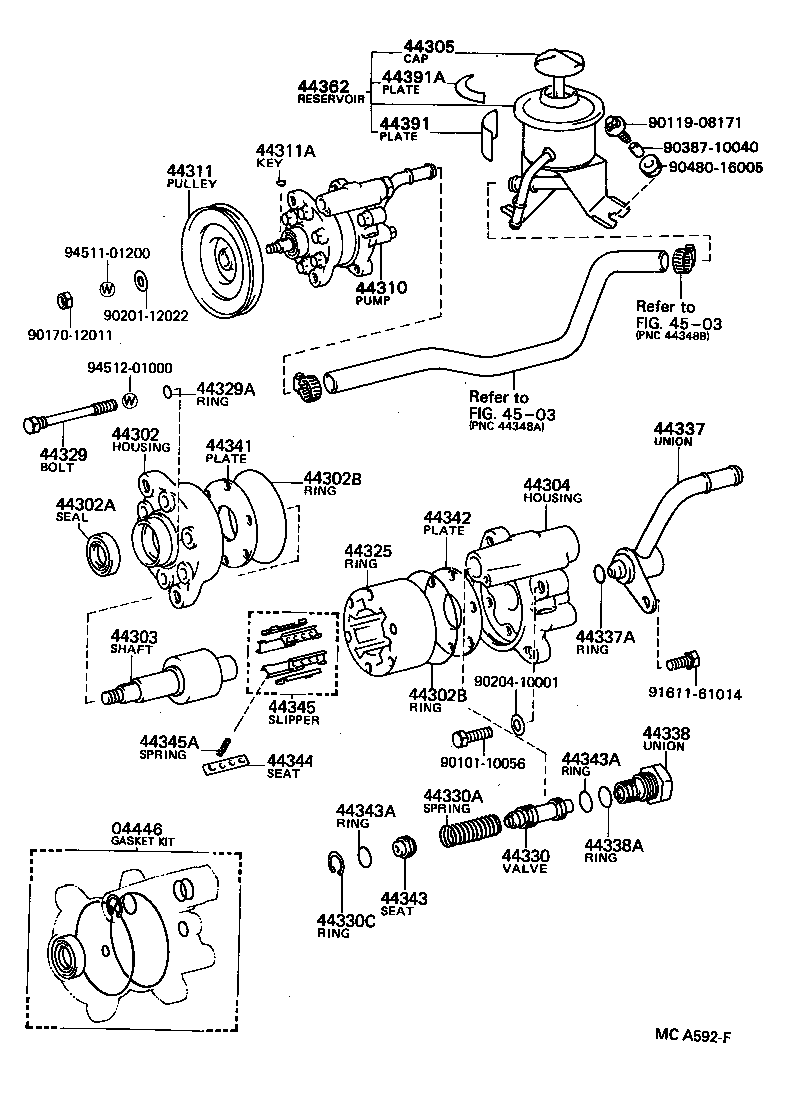

Figure MCA340E MCA340E 1983-08 → 1985-08 Figure MCA340E MCA340E 1983-09 → 1988-08 Figure MCA340E MCA340E 1985-08 → 1988-08 Figure MCA340E MCA340E 1985-08 → 1994-07 Figure MCA340E MCA340E 1985-08 → 1994-07 Figure MCA592F MCA592F 1984-03 → 1985-08 Figure MCC324D MCC324D 1985-08 → 1988-08 Figure MCC324D MCC324D 1985-08 → 1995-08 Figure MCA405C MCA405C 1987-12 → 1989-03 Figure MCR776 MCR776 1994-07 → — Figure MCT540A MCT540A 1995-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44302 Housing Sub-assy, Vane Pump, Front
44302A Seal, Oil, NO.1(FOR VANE PUMP HOUSING)
44302B Ring, O, NO.1(FOR VANE PUMP HOUSING)
44302C Ring, O, NO.2(FOR VANE PUMP HOUSING)
44302F Seat, Union(FOR VANE PUMP HOUSING)
44302G Seal, Oil, NO.2(FOR VANE PUMP HOUSING)
44302H Ring, Snap, NO.1(FOR VANE PUMP HOUSING)
44303 Shaft Sub-assy, W/Rotor
44304 Housing Sub-assy, Vane Pump, Rear
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44310 Pump Assy, Vane
44311 Pulley, Vane Pump
44311A Key, Vane Pump Pulley
44312 Shaft, Vane Pump
44312A Bearing(FOR VANE PUMP SHAFT)
44312B Ring, Snap, NO.1(FOR VANE PUMP SHAFT)
44313 Rotor, Vane Pump
44325 Ring, Fixed(FOR VANE PUMP)
44326 Ring, Cam(FOR VANE PUMP)
44326A Pin, Straight(FOR VANE PUMP CAM RING)
44329 Bolt, Vane Pump Front Housing & Rear Housing Set
44329A Ring, O(FOR VANE PUMP HOUSING SET BOLT)
44330 Valve Assy, Flow Control
44330A Spring, Compression(FOR FLOW CONTROL VALVE)
44330C Ring, Snap(FOR FLOW CONTROL VALVE)
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338 Union, Pressure Port
44338A Ring, O(FOR PRESSURE PORT UNION)
44341 Plate, Vane Pump Side, Front
44342 Plate, Vane Pump Side, Rear
44342A Ring, O(FOR VANE PUMP SIDE PLATE REAR)
44342B Spring, Compression(FOR VANE PUMP SIDE PLATE REAR)
44343 Seat, Flow Control Spring
44343A Ring, O(FOR FLOW CONTROL SPRING SEAT)
44344 Seat, Spring(FOR VANE PUMP)
44345 Slipper, Vane Pump
44345A Spring, Compression(FOR VANE PUMP SLIPPER)
44348 Plate, Vane Pump
44362 Reservoir, Oil(FOR VANE PUMP)
44362A Ring, O(FOR VANE PUMP OIL RESERVOIR)
44391 Plate, Power Steering Oil Reservoir Caution
44391A Plate, Oil Reservoir Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
