Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

24 part groups · 11 illustrations

Illustrations

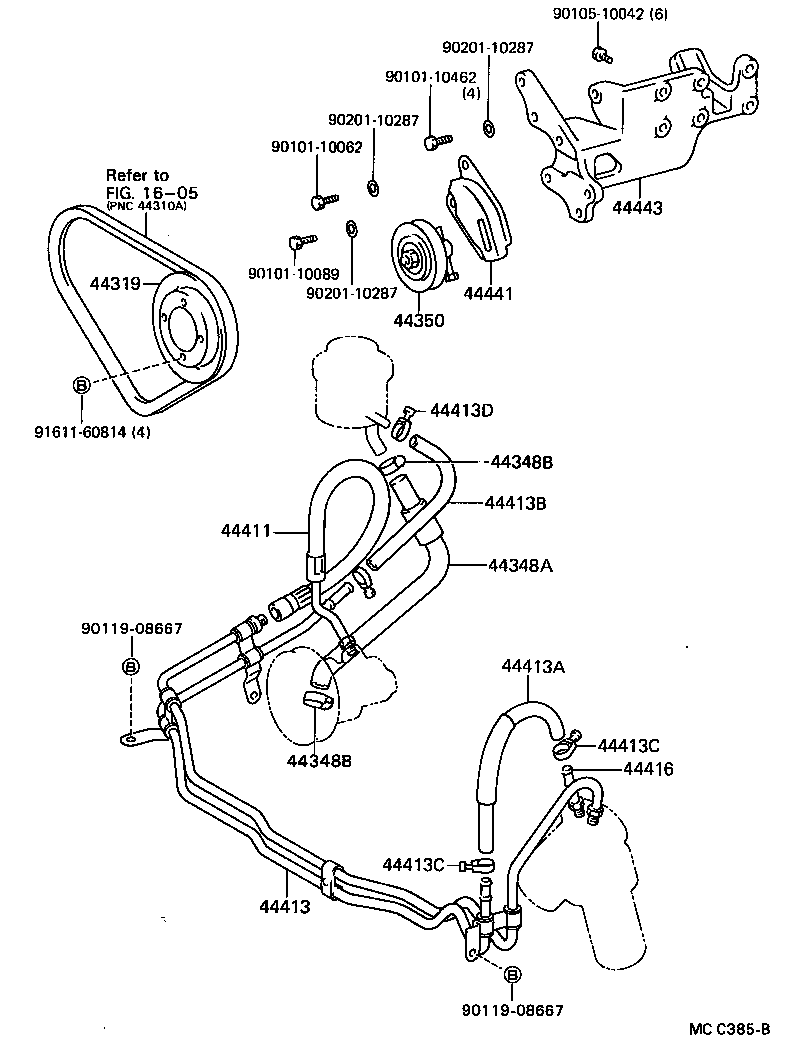

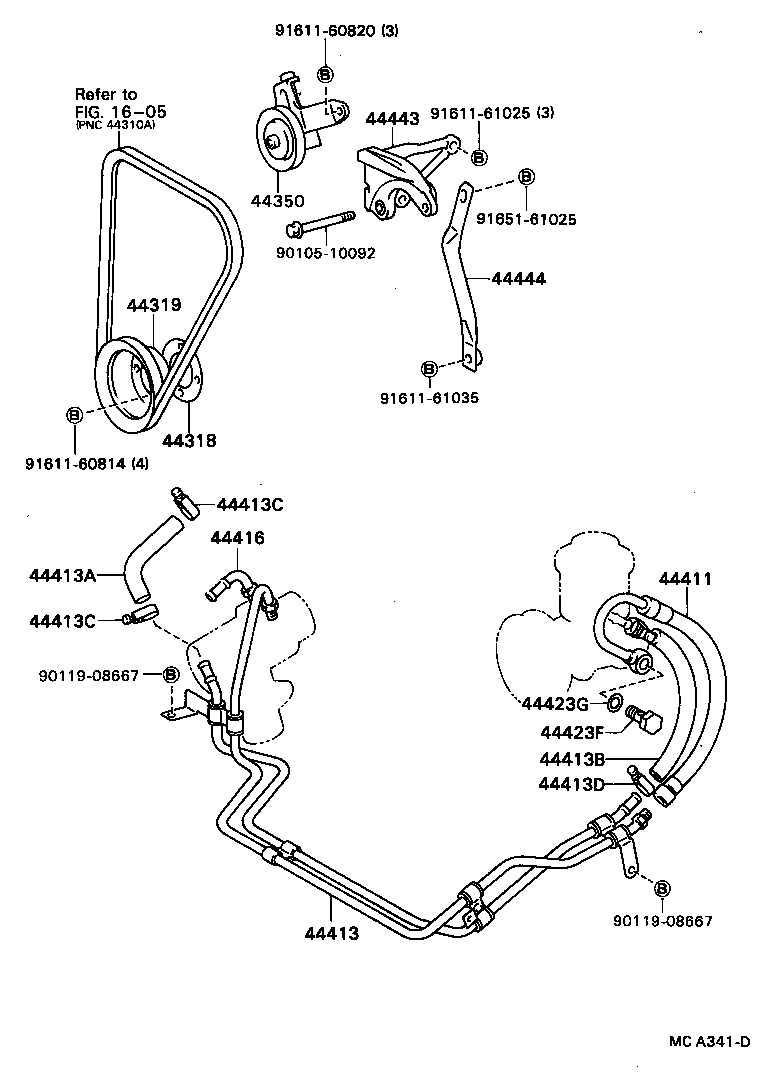

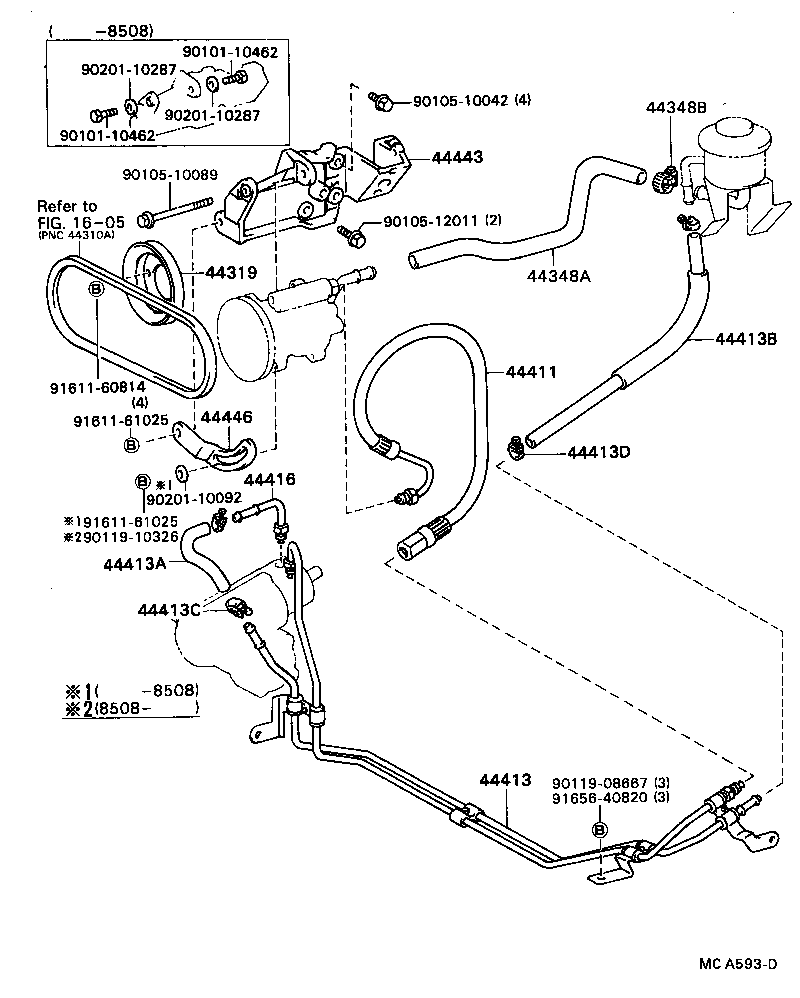

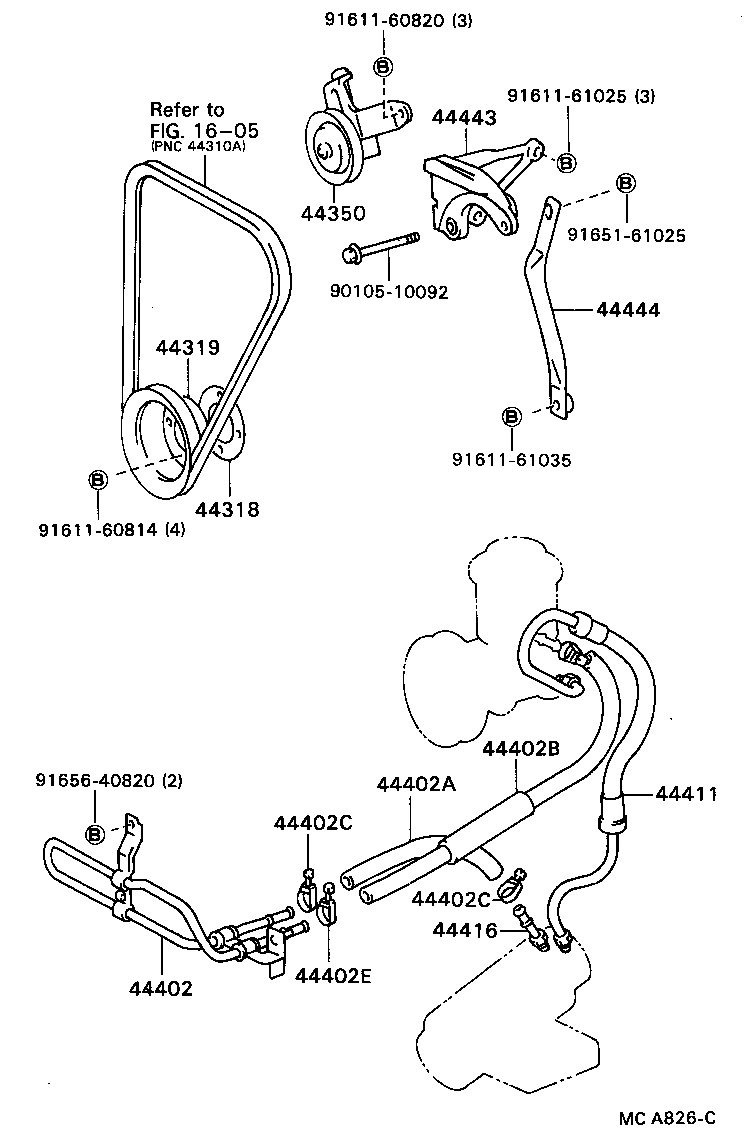

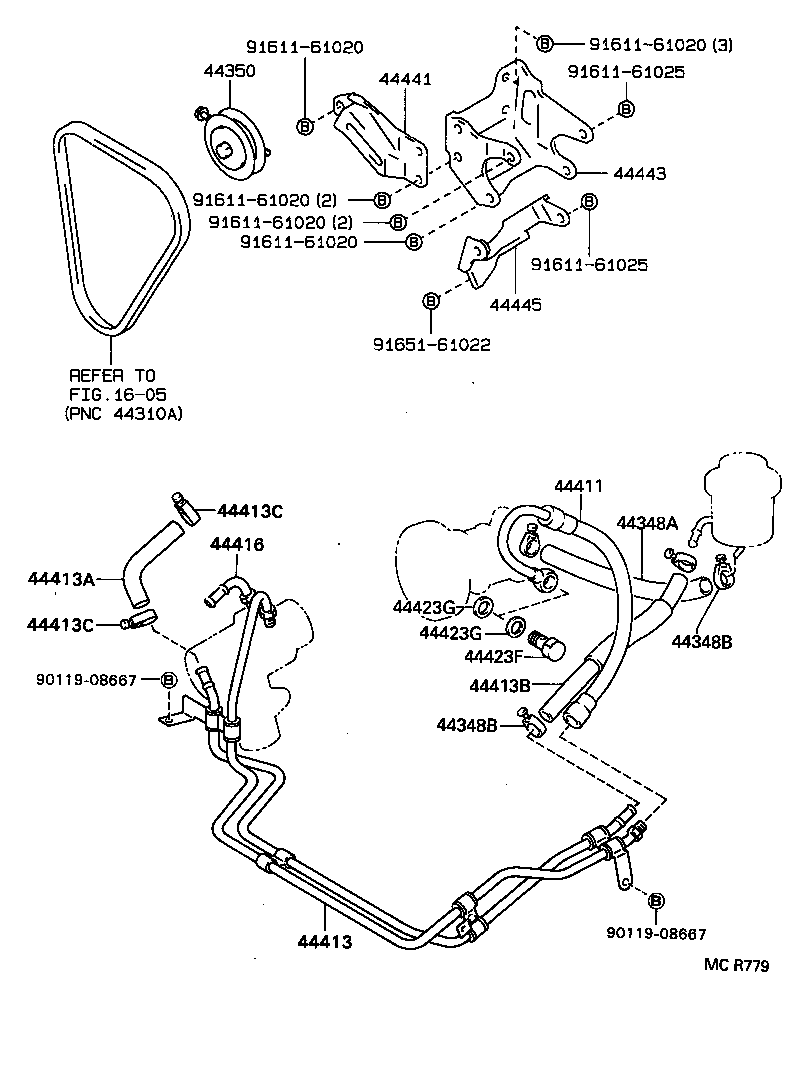

Figure MCF507 MCF507 1987-12 → 1989-03 Figure MCR779 MCR779 1994-07 → — Figure MCA341D MCA341D 1983-08 → 1985-08 Figure MCA341D MCA341D 1983-09 → — Figure MCA341D MCA341D 1985-08 → — Figure MCA826C MCA826C 1984-03 → 1985-08 Figure MCA826C MCA826C 1985-08 → — Figure MCA593D MCA593D 1984-03 → 1985-08 Figure MCA593D MCA593D 1985-08 → — Figure MCA593D MCA593D 1995-08 → — Figure MCC385B MCC385B 1985-08 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44411 Hose, Pressure Feed
44413 Tube, Pressure Feed, NO.1
44413A Hose(FOR RETURN TUBE OUTLET)
44413B Hose(FOR RESERVOIR TANK INLET)
44413C Clamp(FOR RETURN TUBE OUTLET HOSE)
44413D Clamp(FOR RESERVOIR TANK INLET HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44423F Bolt, Union
44423G Gasket, Union Bolt
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
44445 Bracket, Pump, Lower
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
