Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

17 part groups · 7 illustrations

Illustrations

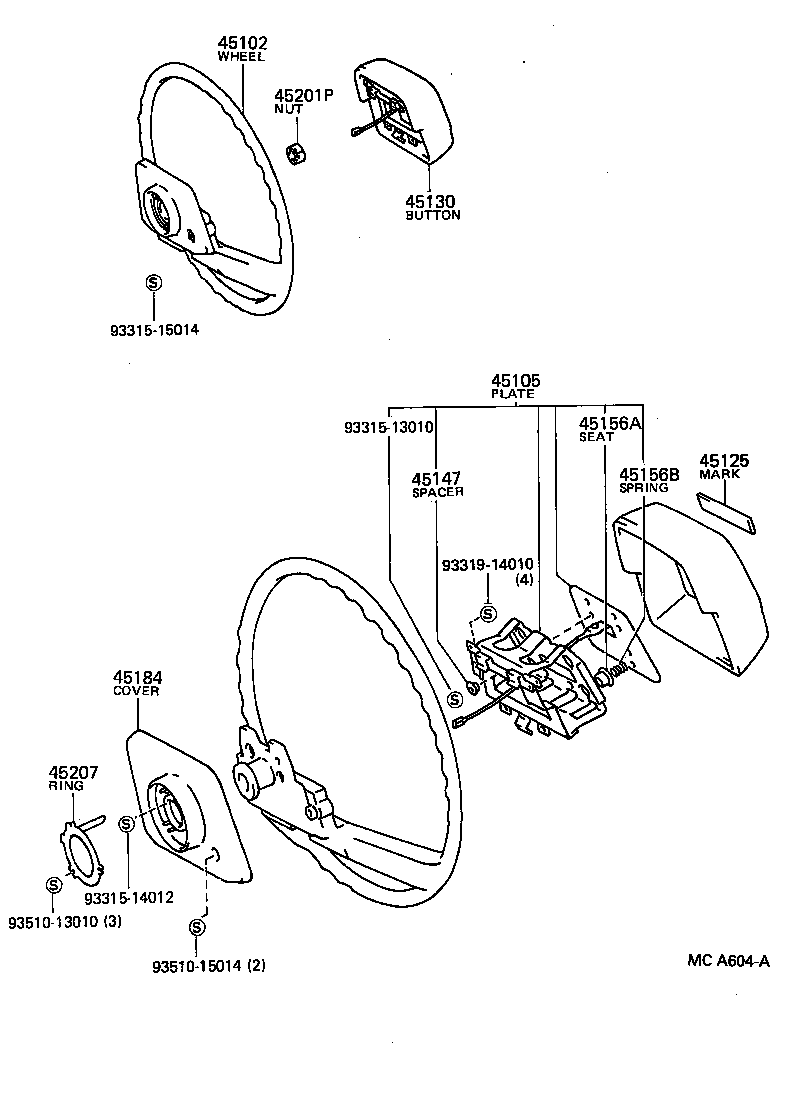

Figure MCA408 MCA408 1983-08 → 1986-08 Figure MCA409A MCA409A 1983-08 → 1984-04 Figure MCA409A MCA409A 1983-08 → 1986-08 Figure MCA342B MCA342B 1983-08 → — Figure MCA343C MCA343C 1983-08 → — Figure MCA604A MCA604A 1986-01 → 1986-08 Figure MCA604A MCA604A 1986-08 → —

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45147 Spacer, Horn Button
45156A Seat, Horn Contact Spring Set
45156B Spring(FOR HORN CONTACT SPRING SET SEAT)
45159 Retainer, Steering Wheel Pad Set
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
