Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

56 part groups · 6 illustrations

Illustrations

MCH669 1983-08 → —

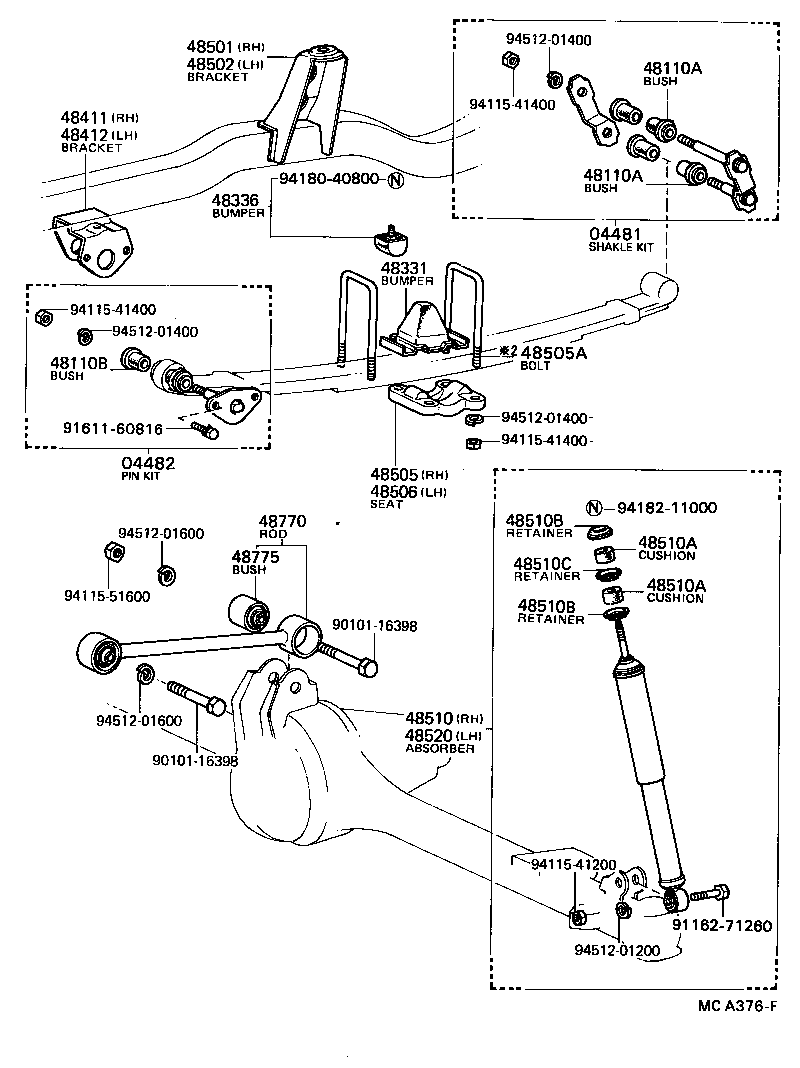

MCA376F 1983-08 → 1996-01

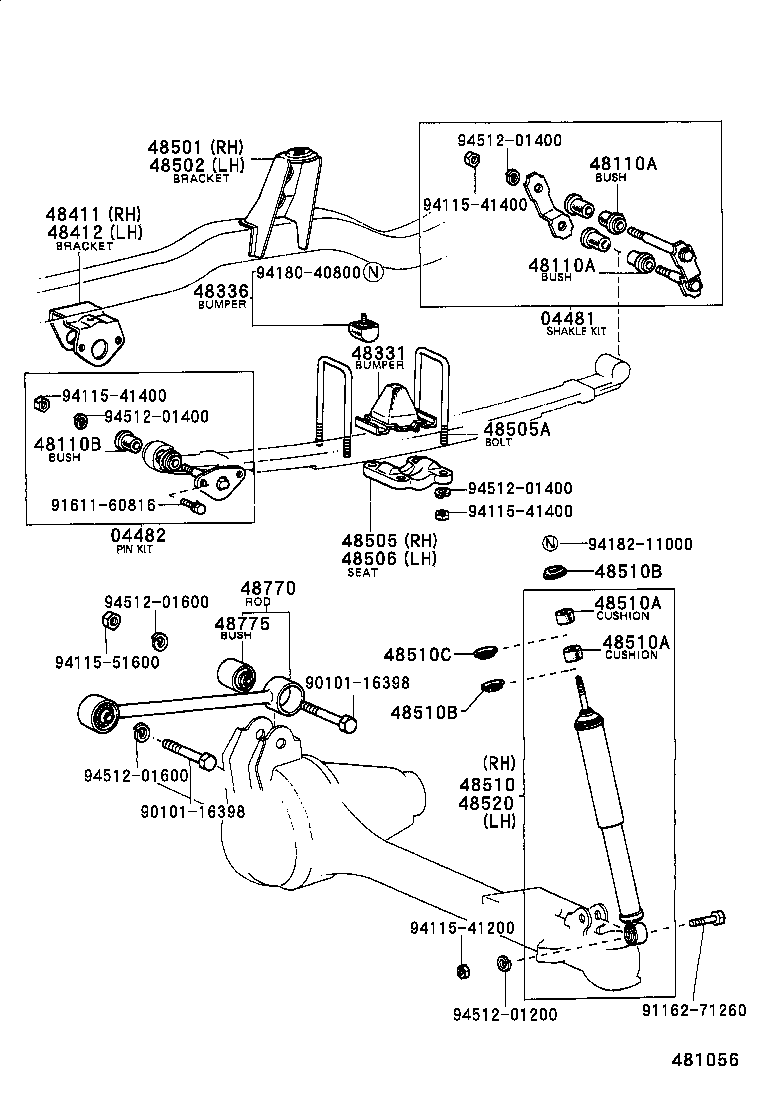

481056 1996-01 → —

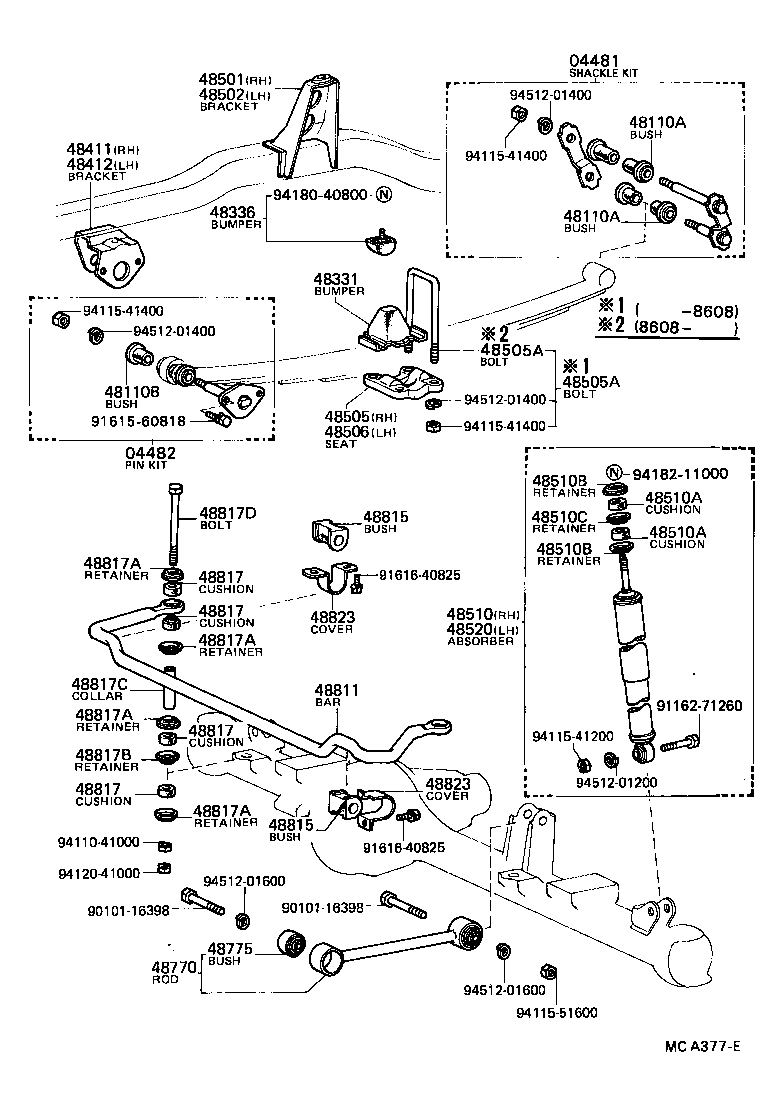

MCA377E 1983-08 → 1992-01

MCC059A 1983-08 → —

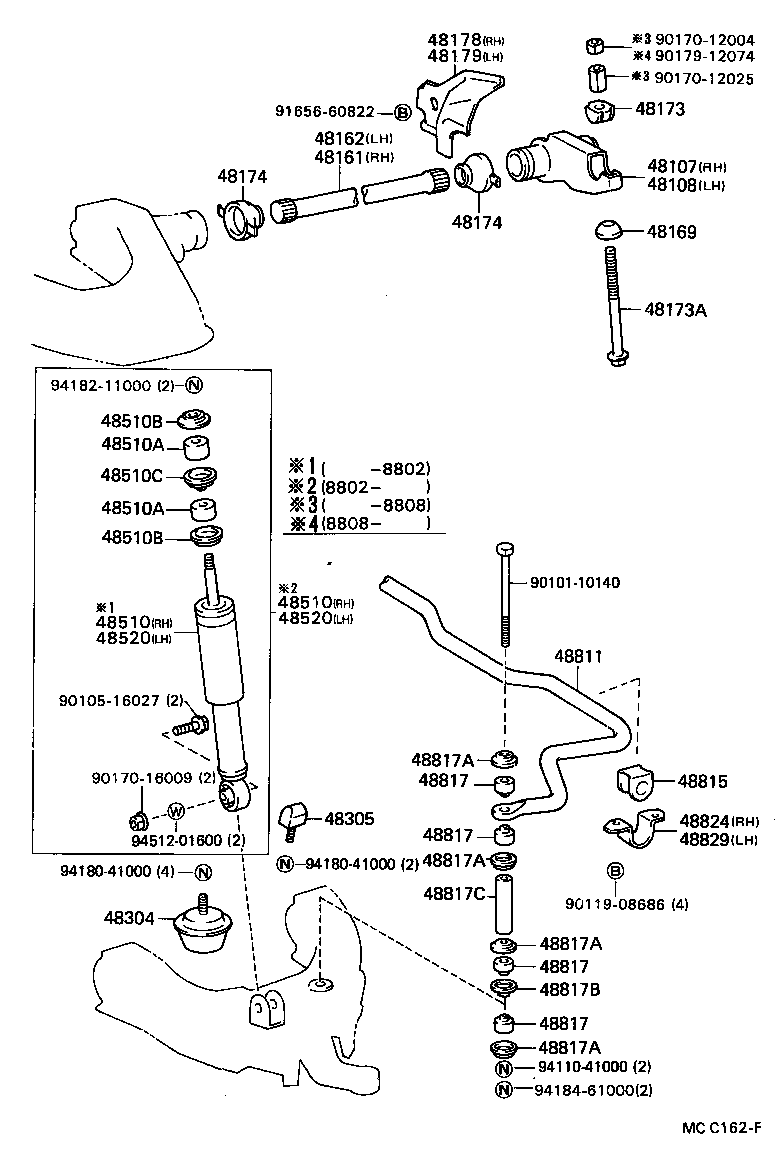

MCC162F 1985-08 → 1989-03

Part groups

PNC	Description
04481	Shackle Kit, Front Spring
04482	Pin Kit, Front Spring
48107	Arm Sub-assy, Anchor, RH
48108	Arm Sub-assy, Anchor, LH
48110	Spring Assy, Front, RH
48110A	Bush(FOR FRONT SPRING SHACKLE)
48110B	Bush(FOR FRONT SPRING PIN)
48111	Leaf, Front Spring, NO.1
48112	Leaf, Front Spring, NO.2
48113	Leaf, Front Spring, NO.3
48114	Leaf, Front Spring, NO.4
48120	Spring Assy, Front, LH
48147	Bolt, Front Spring, Center
48153	Spacer, Front Leaf Spring, NO.1
48161	Spring, Torsion Bar, RH
48162	Spring, Torsion Bar, LH
48169	Swivel, Anchor Arm
48173	Seat, Anchor Arm Adjuster
48173A	Bolt, Hexagon(FOR ANCHOR ARM ADJUSTING)
48174	Cover, Torsion Bar Dust
48178	Protector, Torsion Bar Dust Cover, RH
48179	Protector, Torsion Bar Dust Cover, LH
48304	Bumper Sub-assy, Front Spring, NO.1
48305	Bumper Sub-assy, Front Spring, NO.2
48331	Bumper, Front Spring, NO.1
48336	Bumper, Front Spring, NO.2
48411	Bracket, Front Spring(FOR FRONT RH)
48412	Bracket, Front Spring(FOR FRONT LH)
48501	Bracket Sub-assy, Front Shock Absorber, Upper RH
48502	Bracket Sub-assy, Front Shock Absorber, Upper LH
48505	Seat, Front Spring, RH
48505A	Bolt, U(FOR FRONT SPRING)
48506	Seat, Front Spring, LH
48510	Absorber Assy, Shock, Front RH
48510A	Cushion, Front Shock Absorber
48510B	Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C	Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48520	Absorber Assy, Shock, Front LH
48660	Bar Assy, Strut, RH
48667	Retainer, Strut Bar
48670	Bar Assy, Strut, LH
48674	Cushion, Strut Bar
48674A	Retainer, Cushion(FOR STRUT BAR CUSHION)
48674B	Collar(FOR STRUT BAR CUSHION)
48770	Rod Sub-assy, Torque
48775	Bush, Torque Rod
48811	Bar, Stabilizer, Front
48815	Bush, Front Stabilizer Bar, NO.1
48817	Cushion, Front Stabilizer
48817A	Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B	Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48817C	Collar(FOR STABILIZER BAR)
48817D	Bolt(FOR FRONT STABILIZER)
48823	Cover, Stabilizer Link(FOR FRONT)
48824	Bracket, Stabilizer, Front
48829	Bracket, Stabilizer

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
