Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

43 part groups · 8 illustrations

Illustrations

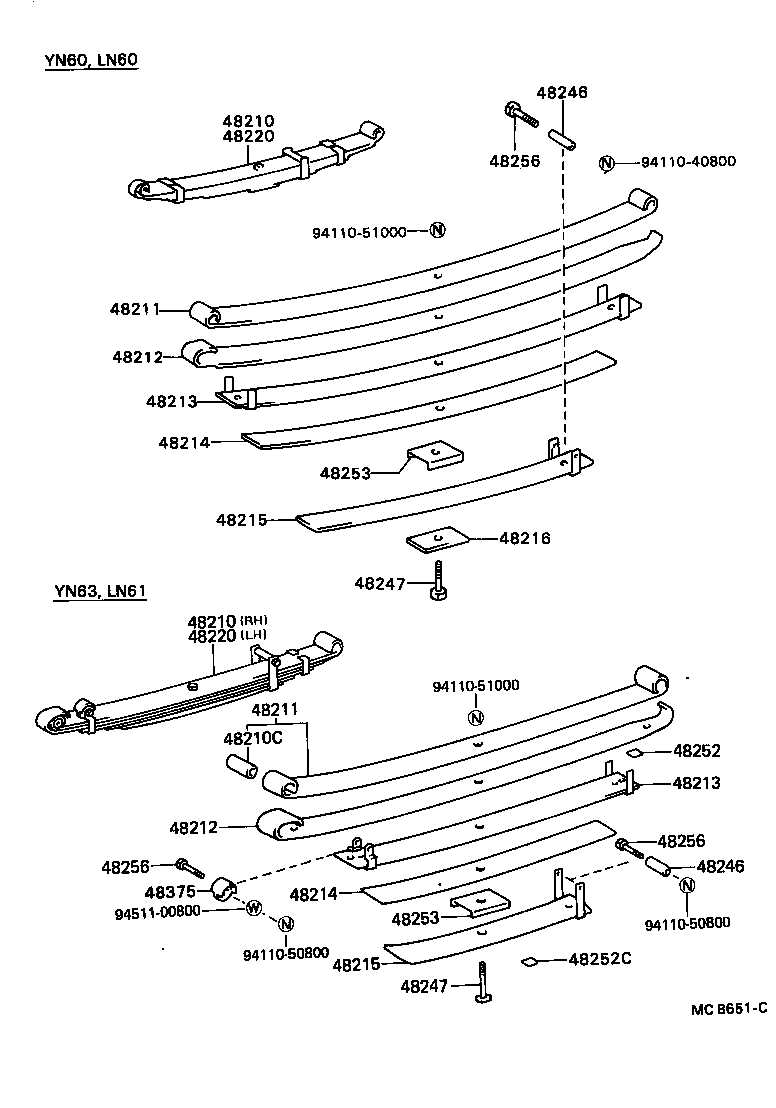

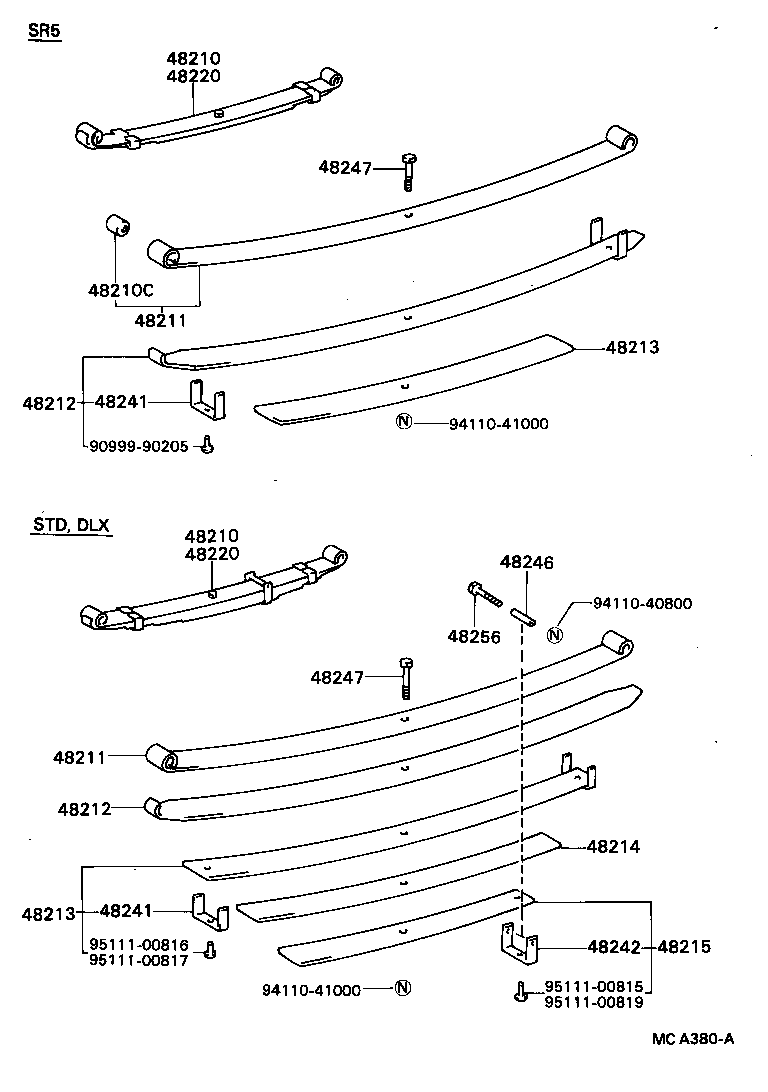

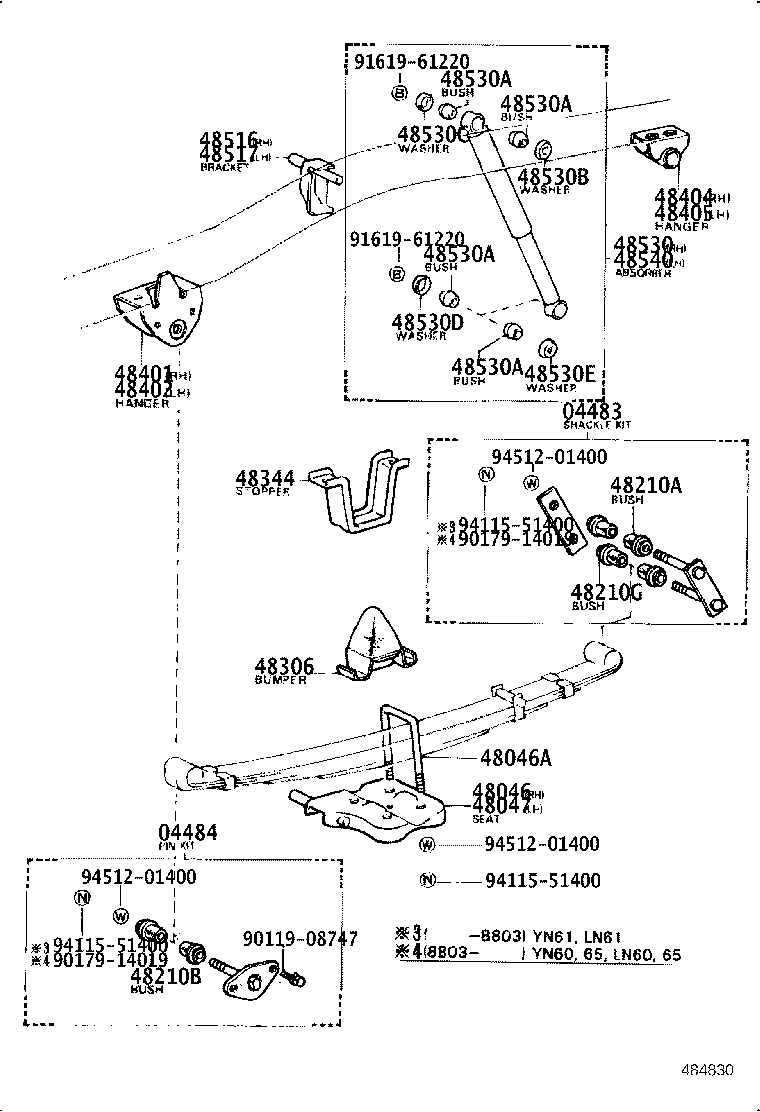

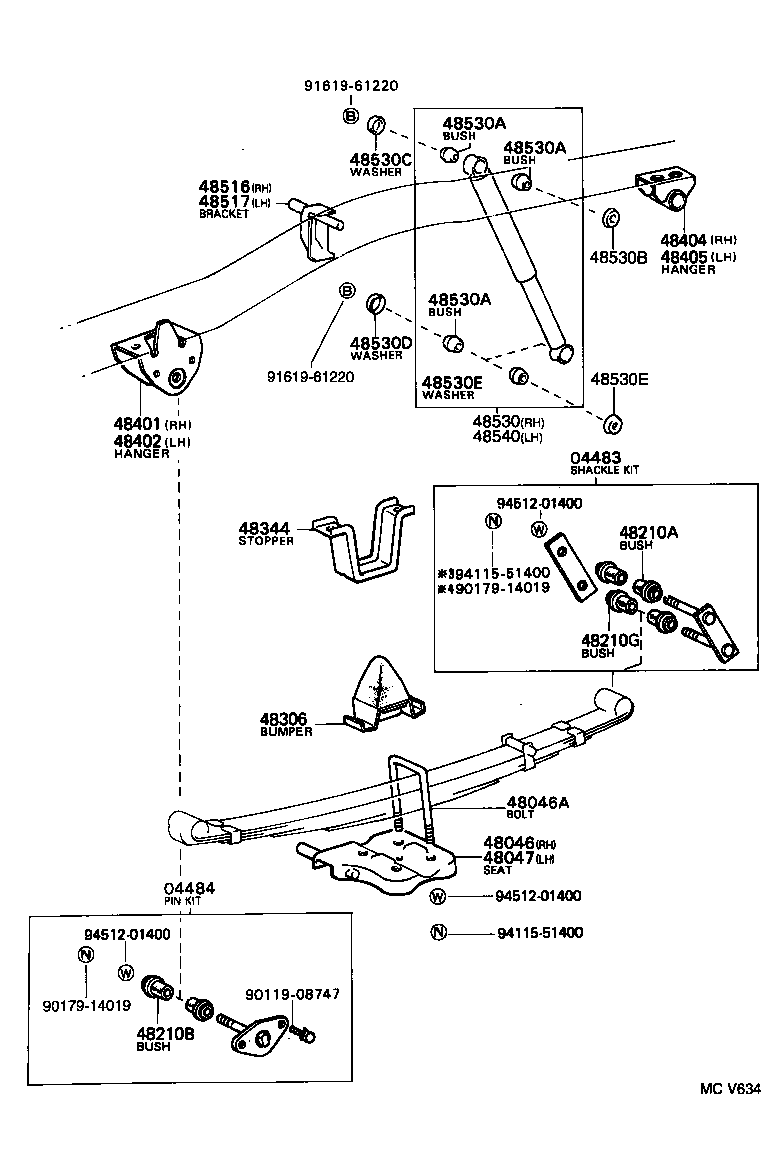

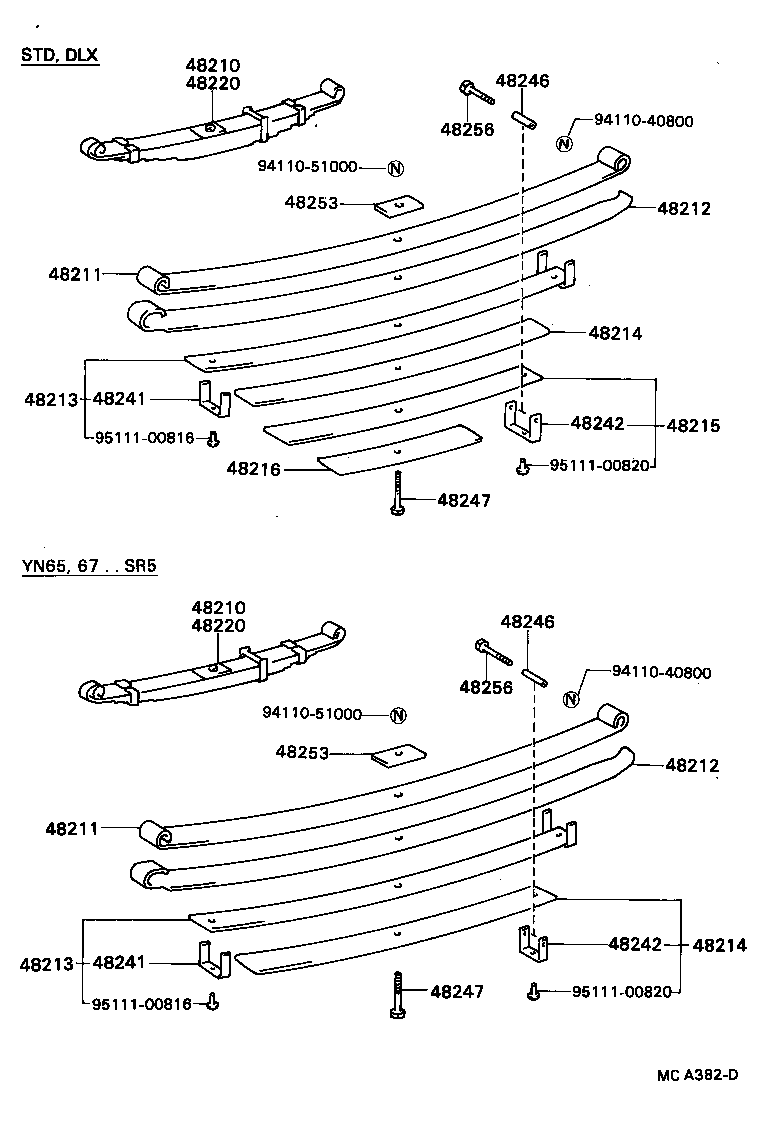

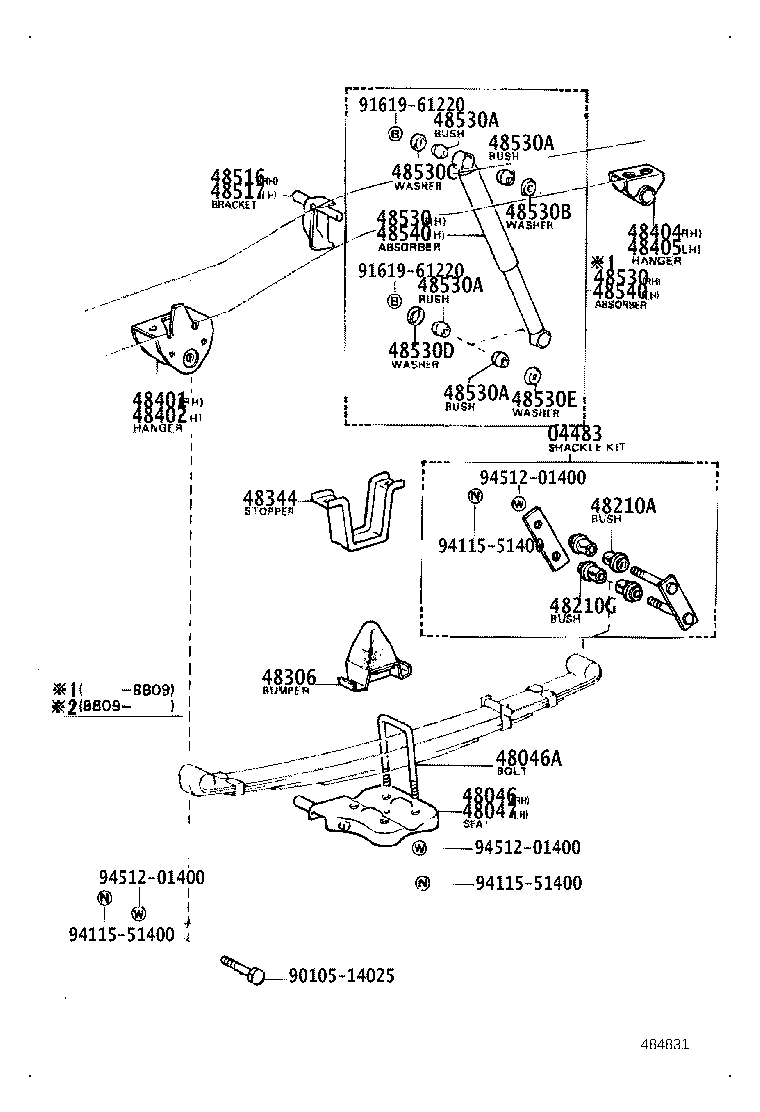

Figure MCA379C MCA379C 1983-08 → — Figure MCA380A MCA380A 1983-08 → — Figure 484831 484831 1987-12 → 1989-03 Figure MCF510A MCF510A 1987-12 → 1989-03 Figure 484830 484830 1983-08 → 1996-01 Figure MCV634 MCV634 1996-01 → — Figure MCA382D MCA382D 1983-08 → — Figure MCB651C MCB651C 1984-03 → 1992-01

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48220 Spring Assy, Rear LH
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48252C Silencer, Rear Spring, NO.2
48253 Spacer, Rear Spring, NO.1
48254 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48306 Bumper Sub-assy, Rear Spring
48344 Stopper, Bumper, Rear
48375 Damper, Leaf Spring Dynamic
48382 Spacer, Bumper Block
48401 Bracket Sub-assy, Rear Spring, Front RH
48402 Bracket Sub-assy, Rear Spring, Front LH
48404 Bracket Sub-assy, Rear Spring, Rear RH
48405 Bracket Sub-assy, Rear Spring, Rear LH
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
