Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 3 illustrations

Illustrations

Figure MBF523E

MBF523E 1983-08 → 1986-08

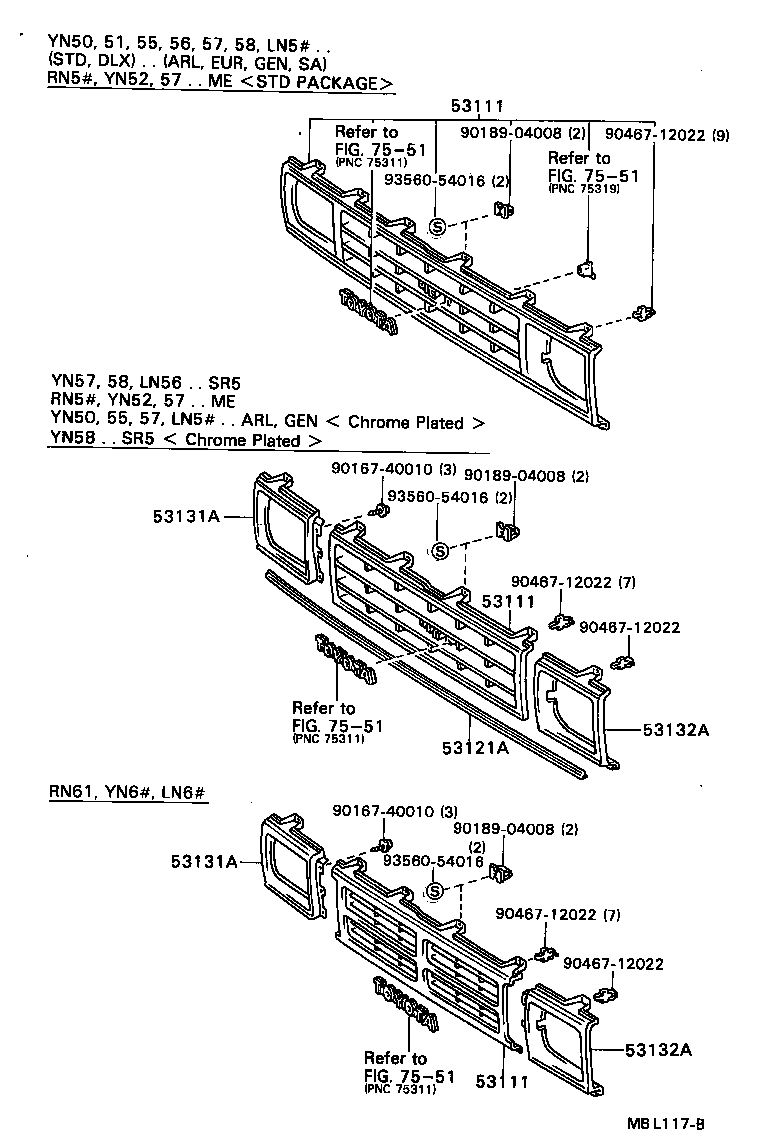

Figure MBL117B

MBL117B 1986-08 → 1994-07

Figure MBY271

MBY271 1994-07 → —

Part groups

PNC	Description
53111	Grille, Radiator
53121A	Moulding, Radiator Grille
53131A	Door, Headlamp, RH
53132A	Door, Headlamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
