Toyota Hilux
1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe
Discontinued model
Data version 1999-01

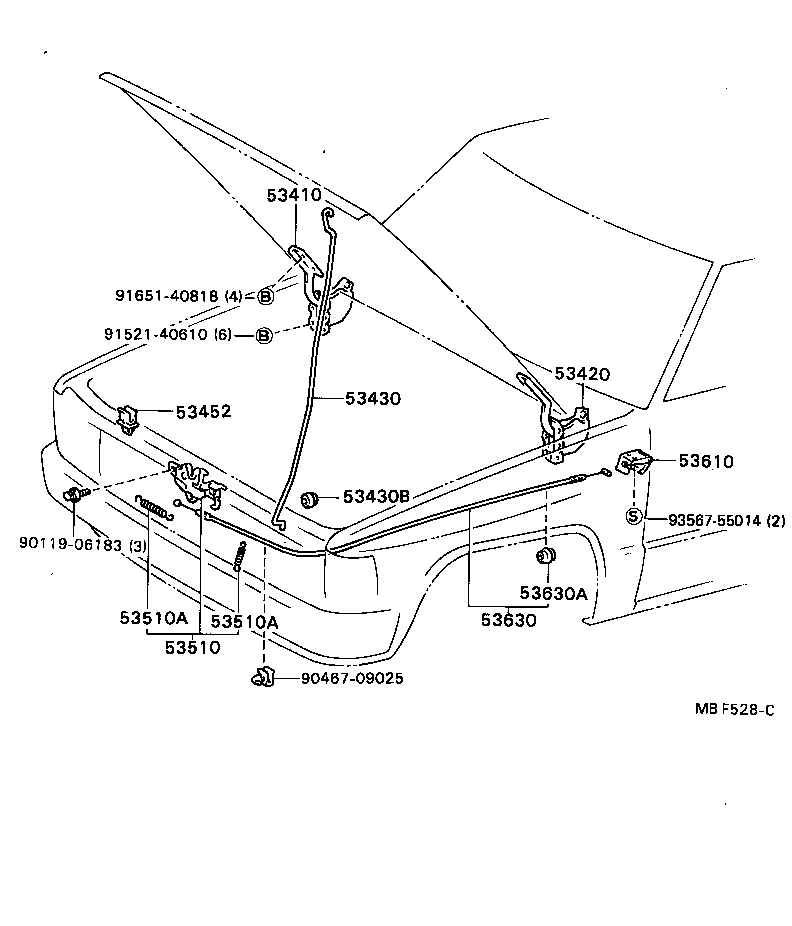

Hood Lock & Hinge
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53430 | Support Assy, Hood |
| 53430B | Grommet(FOR HOOD SUPPORT) |
| 53452 | Holder, Hood Stay |
| 53510 | Lock Assy, Hood |
| 53510A | Spring, Tension(FOR HOOD LOCK) |
| 53610 | Lever Assy, Hood Lock Release |
| 53630 | Cable Assy, Hood Lock Control |
| 53630A | Grommet(FOR HOOD LOCK CONTROL CABLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
