Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

14 part groups · 3 illustrations

Illustrations

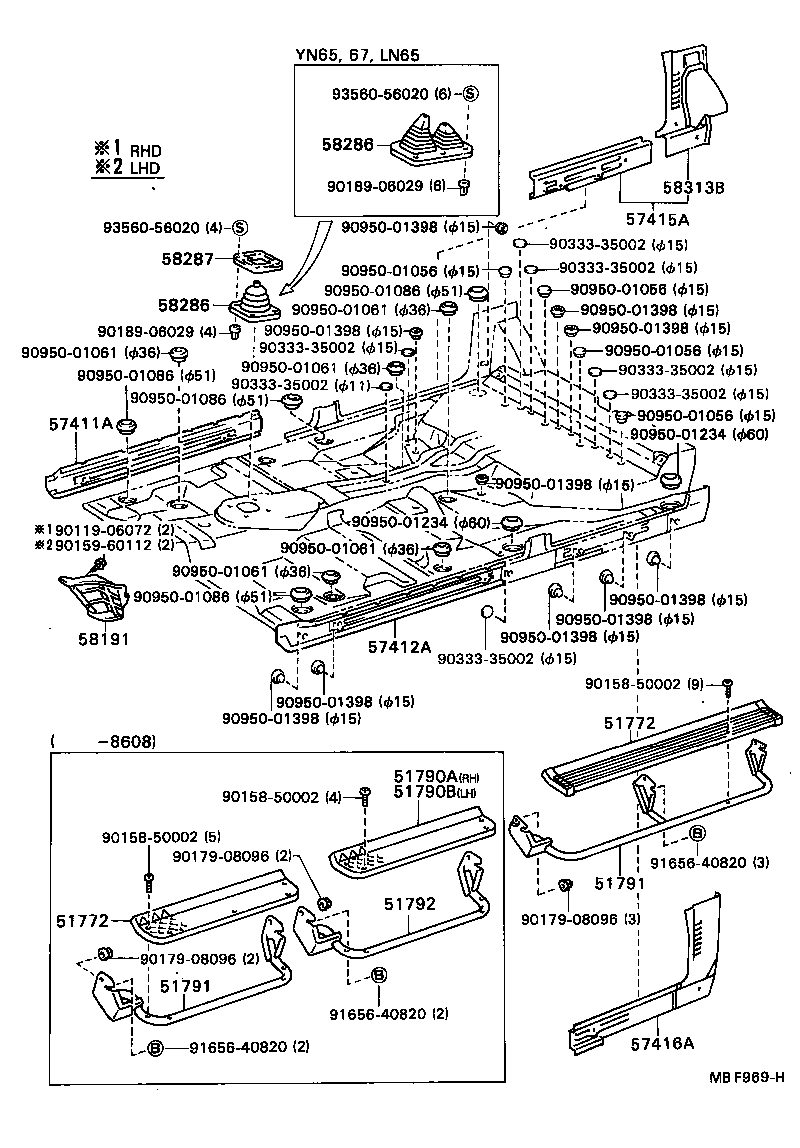

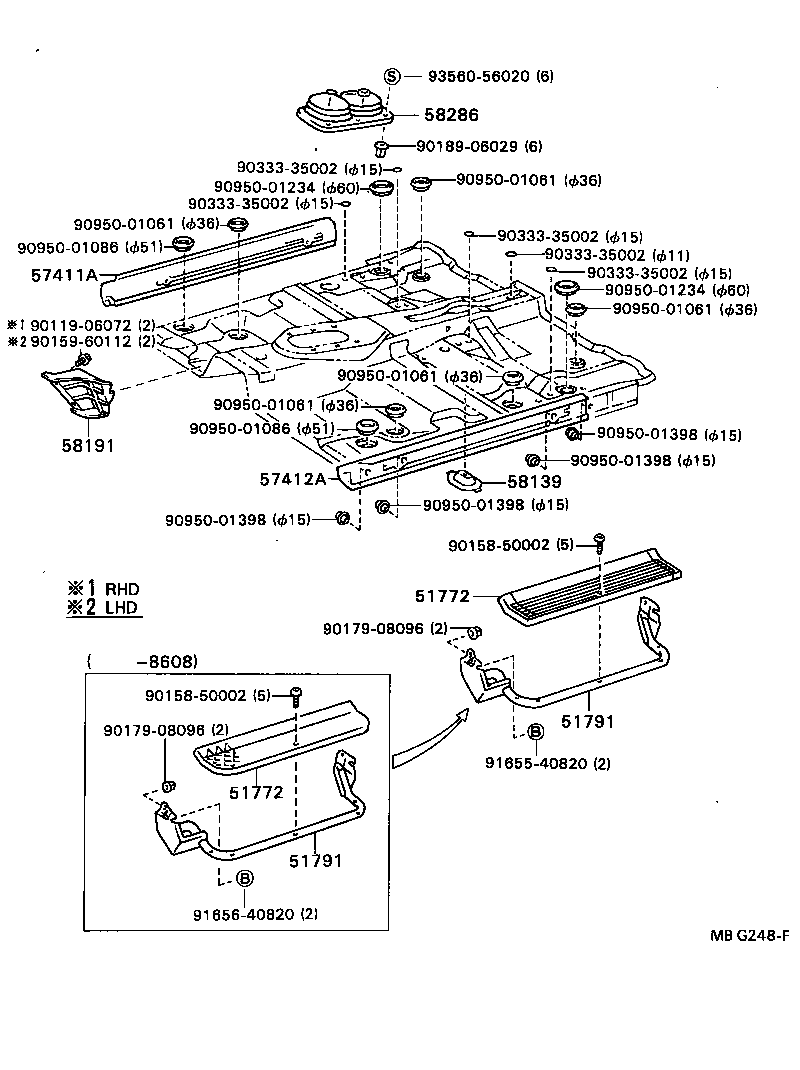

Figure MBF541H MBF541H 1983-08 → — Figure MBF969H MBF969H 1983-12 → — Figure MBG248F MBG248F 1984-03 → 1989-03

Part groups

PNCDescription
51772 Plate, Step
51790A Plate Sub-assy, Rear Step, RH
51790B Plate Sub-assy, Rear Step, LH
51791 Stay, Step
51792 Stay, Step Plate, NO.2
57411A Member, Floor Side, Inner RH
57412A Member, Floor Side, Inner LH
57415A Rail Sub-assy, Floor Side, Rear RH
57416A Rail Sub-assy, Floor Side, Rear LH
58139 Cover, Front Floor Side, Rear
58191 Footrest, Front Floor
58286 Boot, Shift & Select Lever, NO.1
58287 Retainer, Shift Lever Boot
58313B Panel, Rear Floor Side, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
