Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

21 part groups · 6 illustrations

Illustrations

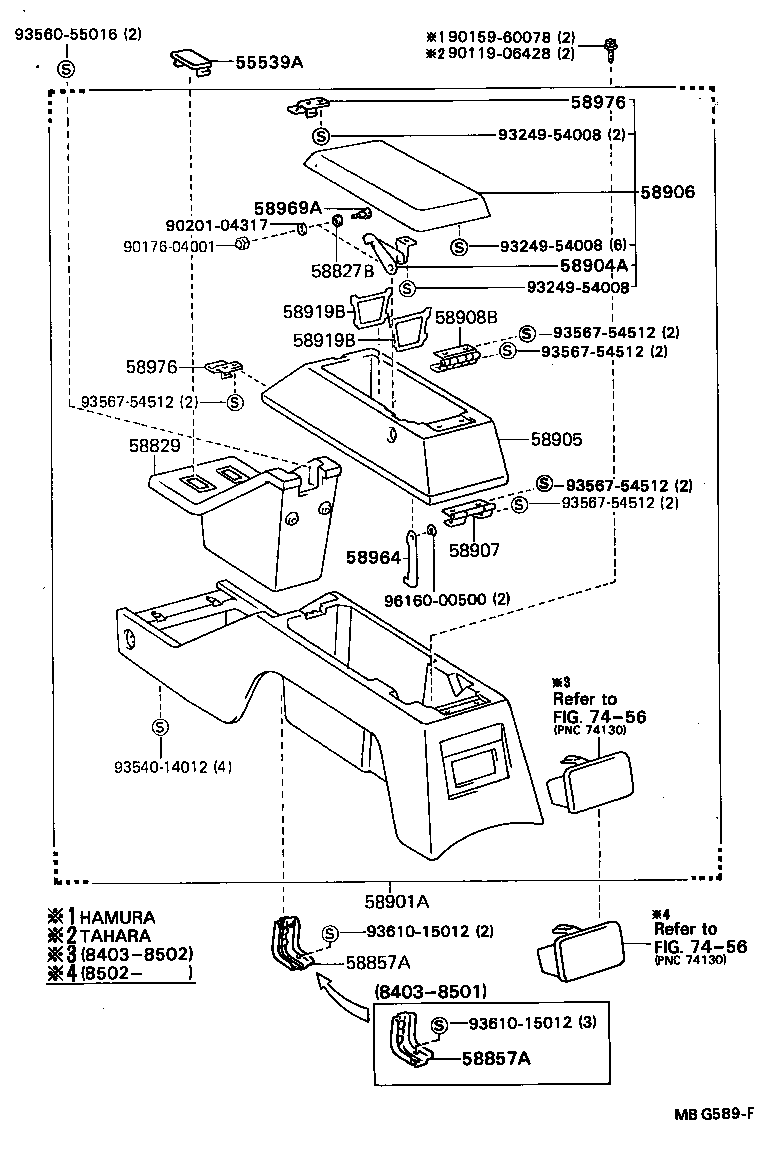

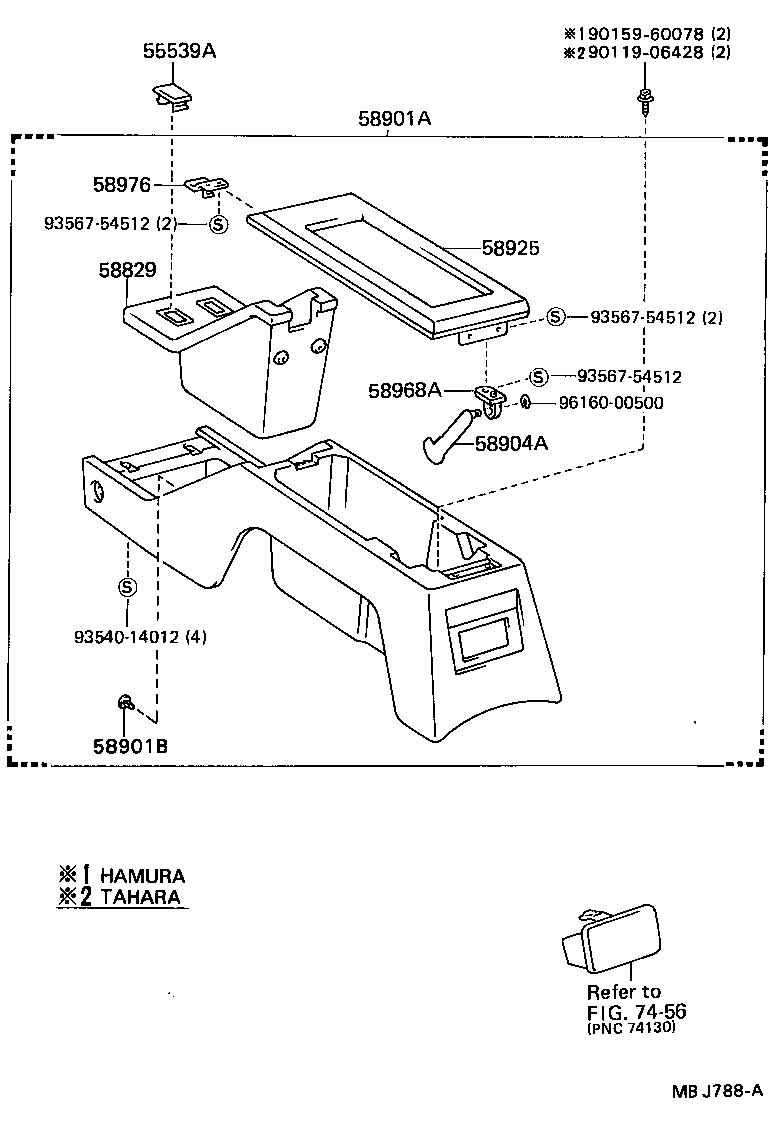

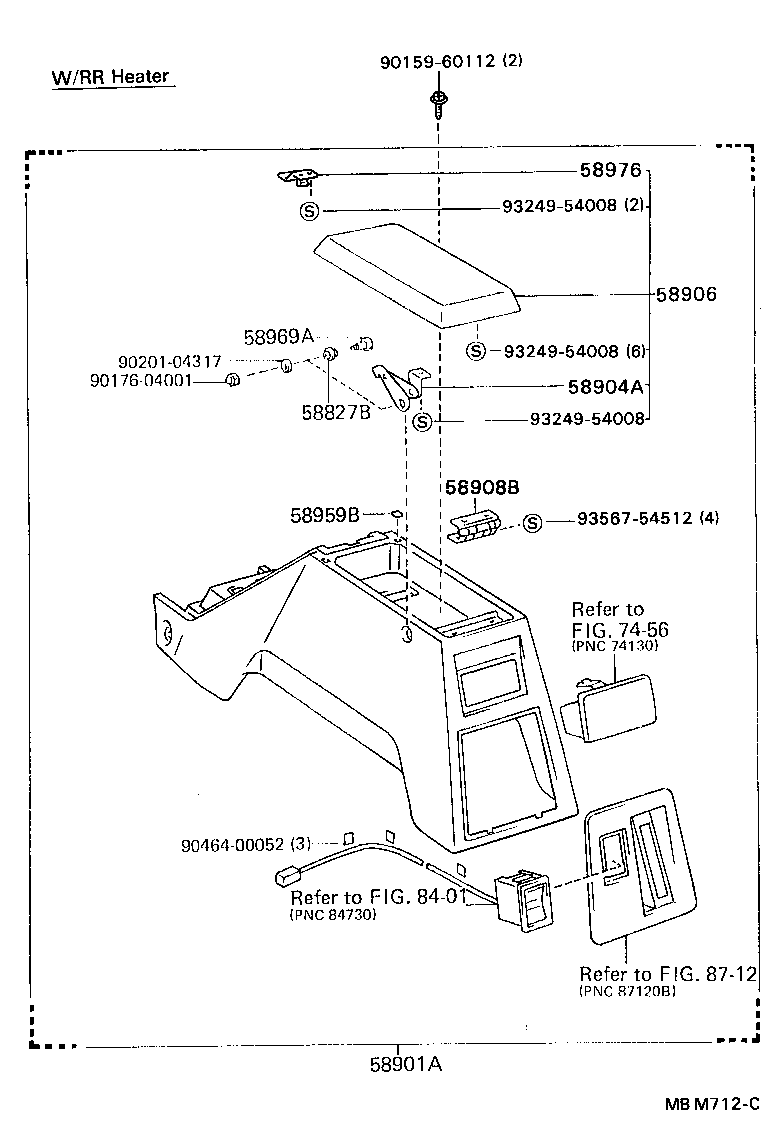

Figure MBF547F MBF547F 1983-08 → — Figure MBF548H MBF548H 1983-08 → — Figure MBF548H MBF548H 1987-08 → 1988-08 Figure MBG589F MBG589F 1984-03 → 1989-03 Figure MBJ788A MBJ788A 1985-08 → 1989-03 Figure MBM712C MBM712C 1987-12 → 1989-03

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58827B Spacer, Console Compartment Door Stopper
58829 Pocket, Console Box
58857A Bracket, Console Support, Upper NO.1
58901A Box Sub-assy, Console, Rear
58901B Plug, Hole(FOR REAR CONSOLE BOX)
58904A Stopper Sub-assy, Console Compartment Door
58905 Door Sub-assy, Console Compartment
58906 Door Sub-assy, Upper Console
58907 Hinge Sub-assy, Console Compartment Door
58908B Hinge Sub-assy, Rear Console Armrest
58919B Plate, Console Box
58925 Lid, Rear Console Armrest
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58968A Bracket, Console Door Stopper
58969A Retainer, Console Compartment Door Stopper
58976 Striker, Console Compartment Door Lock
58991 Bracket, Console Box Mounting, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
