Toyota Hilux
1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe
Discontinued model
Data version 1999-01

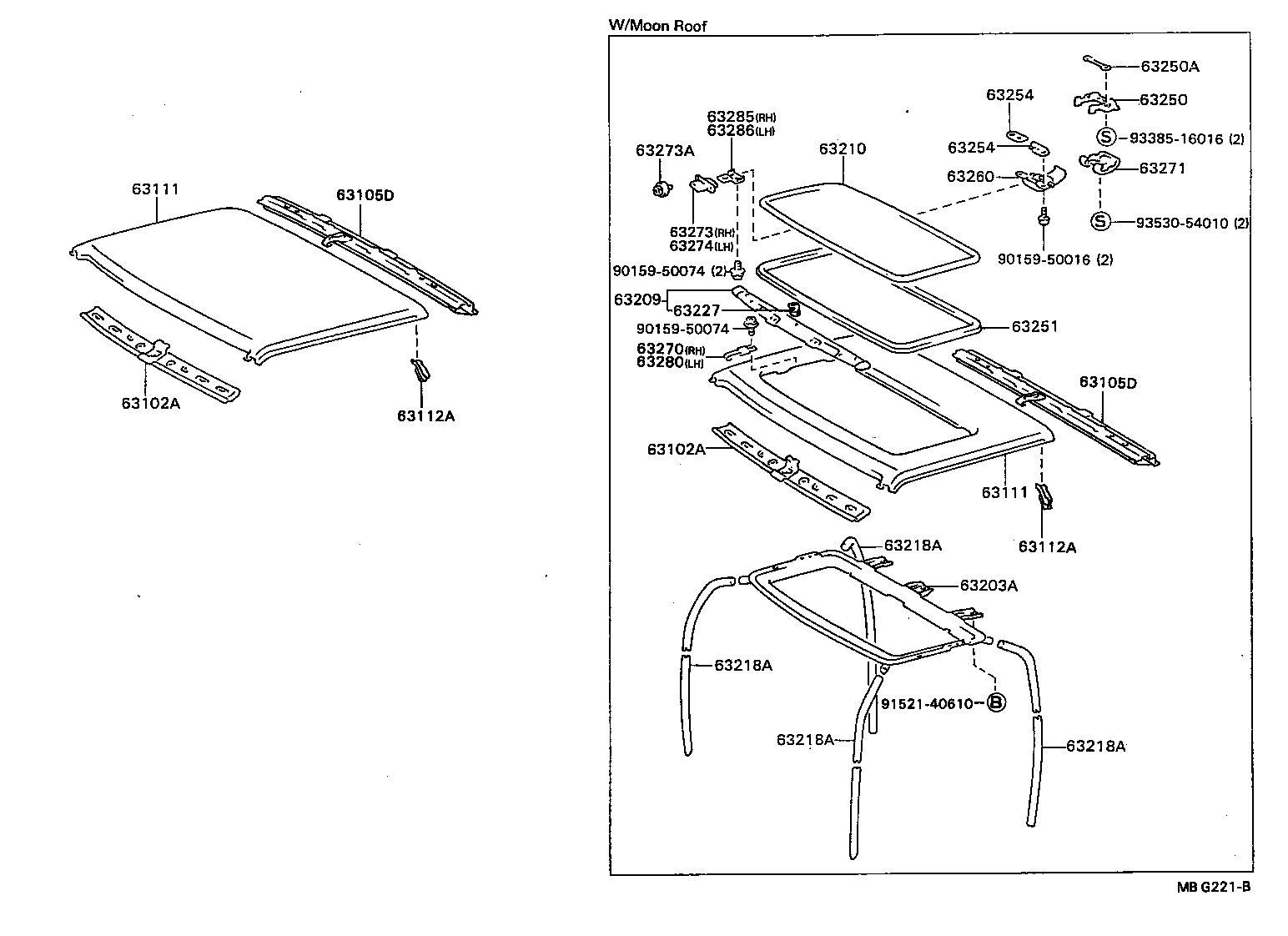

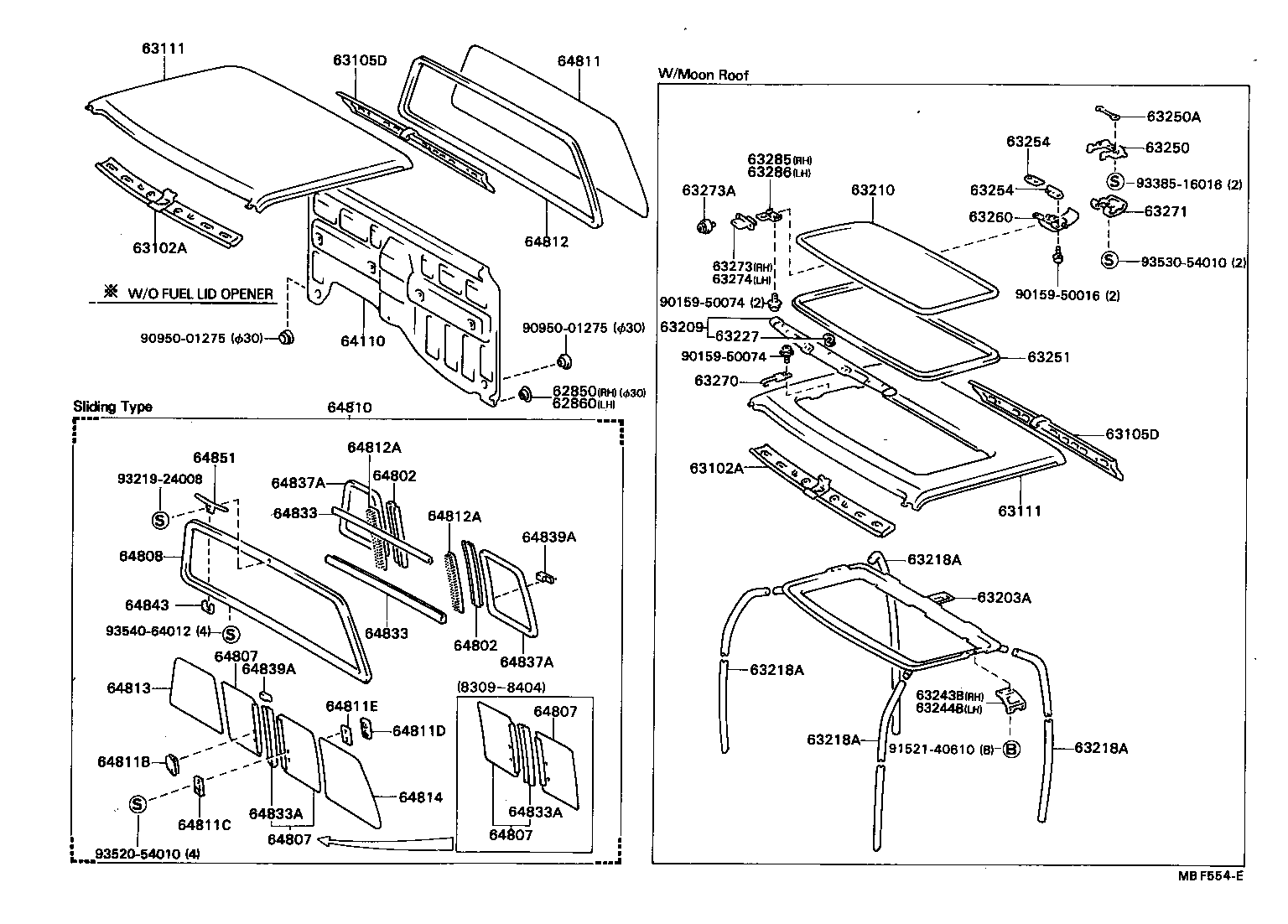

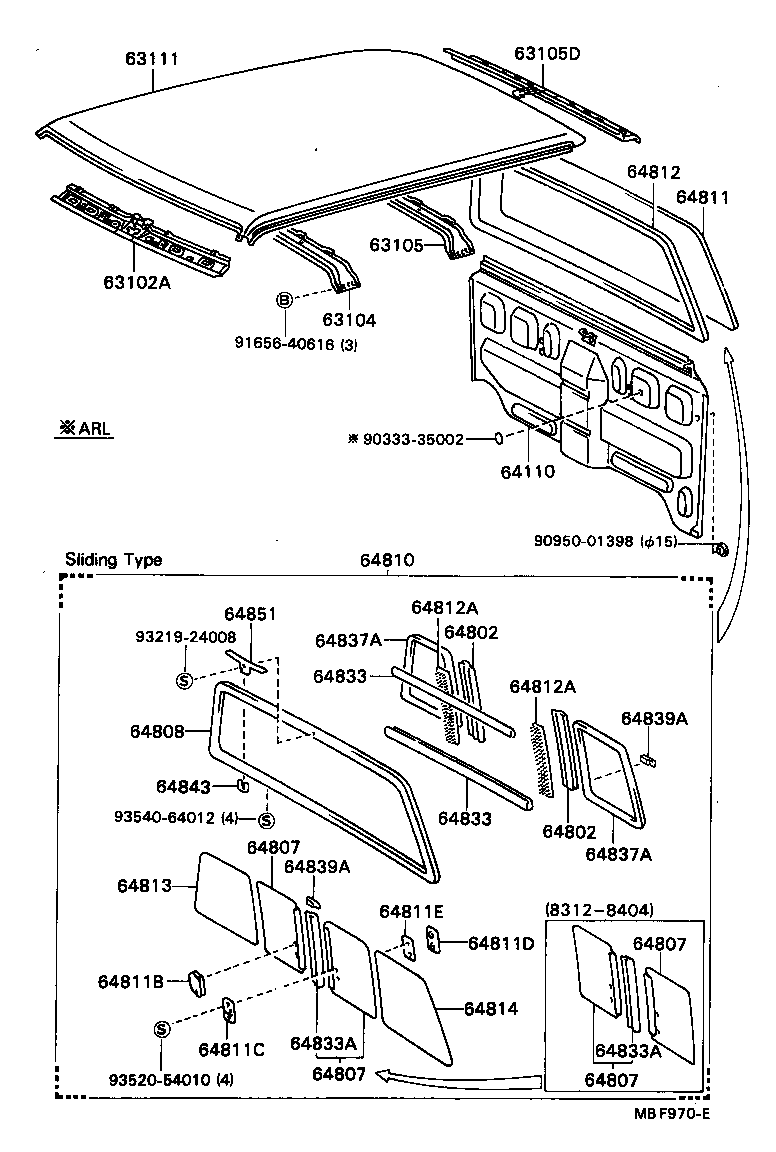

Roof Panel & Back Panel
48 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62850 | Valve Assy, Room Pressure Relief, RH |
| 62860 | Valve Assy, Room Pressure Relief, LH |
| 63102A | Panel Sub-assy, Windshield Header |
| 63104 | Reinforcement Sub-assy, Roof Panel, Center |
| 63105 | Reinforcement Sub-assy, Roof Panel, Rear |
| 63105D | Frame Sub-assy, Back Window, Upper |
| 63111 | Panel, Roof |
| 63112A | Panel, Roof, NO.2 |
| 63203A | Housing Sub-assy, Sliding Roof OR Removable Roof |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63210 | Glass Sub-assy, Sliding Roof OR Removable Roof |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63227 | Clip, Roof Wind Deflector Panel |
| 63243B | Bracket, Removable Roof Housing Side Mounting, RH |
| 63244B | Bracket, Removable Roof Housing Side Mounting, LH |
| 63250 | Base Assy, Removable Roof Lock |
| 63250A | Spacer, Removable Roof Lock Base |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63254 | Holder, Removable Roof Glass, Inner Rear |
| 63260 | Handle Assy, Removable Roof Lock |
| 63270 | Catch Assy, Removable Roof Auxiliary, RH |
| 63271 | Garnish, Removable Roof Lock |
| 63273 | Case, Removable Roof Hinge, RH |
| 63273A | Bolt, Removable Roof Hinge Case |
| 63274 | Case, Removable Roof Hinge, LH |
| 63280 | Catch Assy, Removable Roof Auxiliary, LH |
| 63285 | Hinge, Removable Roof, RH |
| 63286 | Hinge, Removable Roof, LH |
| 64110 | Panel Assy, Front Body Back |
| 64802 | Frame Sub-assy, Back Window Fix |
| 64807 | Glass Sub-assy, Back Window Slide |
| 64808 | Channel Sub-assy, Back Window Slide Glass |
| 64810 | Window Assy, Back |
| 64811 | Glass, Back Window |
| 64811B | Lock Assy, Back Window |
| 64811C | Catch, Back Window Lock |
| 64811D | Retainer, Back Window |
| 64811E | Packing, Back Window Lock |
| 64812 | Weatherstrip, Back Window Glass, NO.1 |
| 64812A | Weatherstrip, Back Window Glass, NO.2 |
| 64813 | Glass, Back Window Corner, RH |
| 64814 | Glass, Back Window Corner, LH |
| 64833 | Weatherstrip, Back Window Channel |
| 64833A | Weatherstrip, Back Window Center Channel |
| 64837A | Weatherstrip, Back Window Corner |
| 64839A | Packing, Back Window |
| 64843 | Weatherstrip, Back Window Channel |
| 64851 | Stop, Back Window Slide Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
