Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01

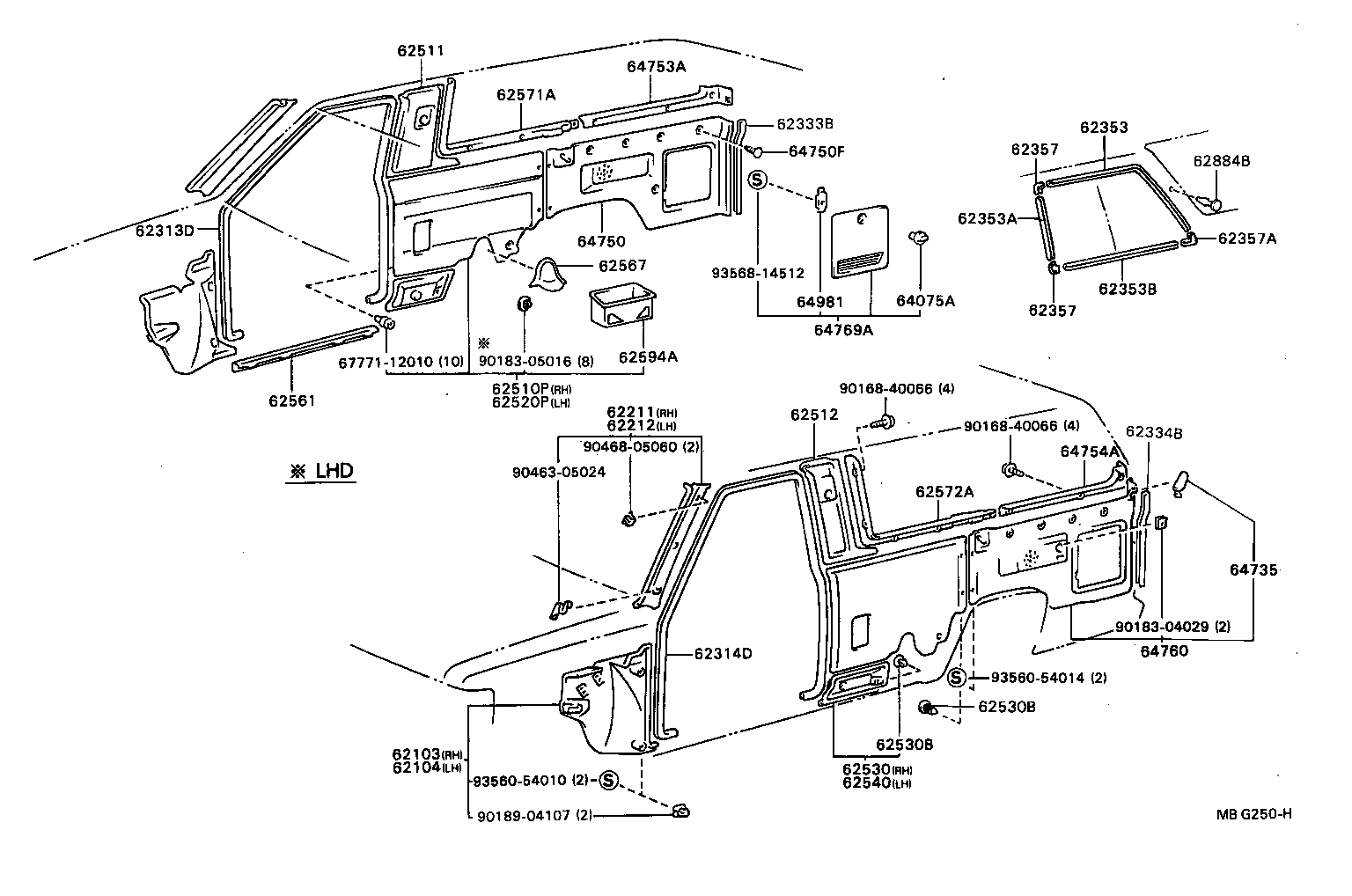

Inside Trim Board

39 part groups · 3 illustrations

PNC	Description
62103	Board Sub-assy, Cowl Side Trim, RH
62104	Board Sub-assy, Cowl Side Trim, LH
62211	Garnish, Front Pillar, RH
62212	Garnish, Front Pillar, LH
62313D	Trim, Front Door Opening, RH
62314D	Trim, Front Door Opening, LH
62333A	Trim, Rear Door Opening, RH
62333B	Trim, Back Door Opening, RH
62334A	Trim, Rear Door Opening, LH
62334B	Trim, Back Door Opening, LH
62353	Trim, Quarter Window Inside, NO.1
62353A	Trim, Quarter Window Inside, NO.2
62353B	Trim, Quarter Window Inside, NO.3
62357	Cover, Quarter Window Inside Trim, NO.1
62357A	Cover, Quarter Window Inside Trim, NO.2
62510P	Panel Assy, Quarter Trim, Front RH
62511	Board, Quarter Inside Trim, RH
62512	Board, Quarter Inside Trim, LH
62520P	Panel Assy, Quarter Trim, Front LH
62530	Panel Assy, Quarter Trim, Lower RH
62530B	Clip, Quarter Trim NO.1
62540	Panel Assy, Quarter Trim, Lower LH
62561	Protector, Rocker Panel, Inner Front
62567	Cover, Quarter Trim, Rear Lower RH
62571A	Garnish, Roof Side, Inner Lower RH
62572A	Garnish, Roof Side Inner Lower LH
62884B	Clip, Quarter Window Guard
64075A	Knob, Deck Trim Washer Cover
64271C	Trim, Back Panel
64271D	Clip(FOR BACK PANEL TRIM)
64273A	Pocket, Back Panel Trim
64735	Cover, Deck Trim Side Service Hole
64750	Panel Assy, Deck Side Trim, RH
64750F	Clip(FOR DECK SIDE TRIM PANEL)
64753A	Garnish, Deck Side, Rear, RH
64754A	Garnish, Deck Side, Rear, LH
64760	Panel Assy, Deck Side Trim, LH
64769A	Cover Assy, Side Trim Tool Bag
64981	Stopper, Washer Tank Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
