Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

31 part groups · 3 illustrations

Illustrations

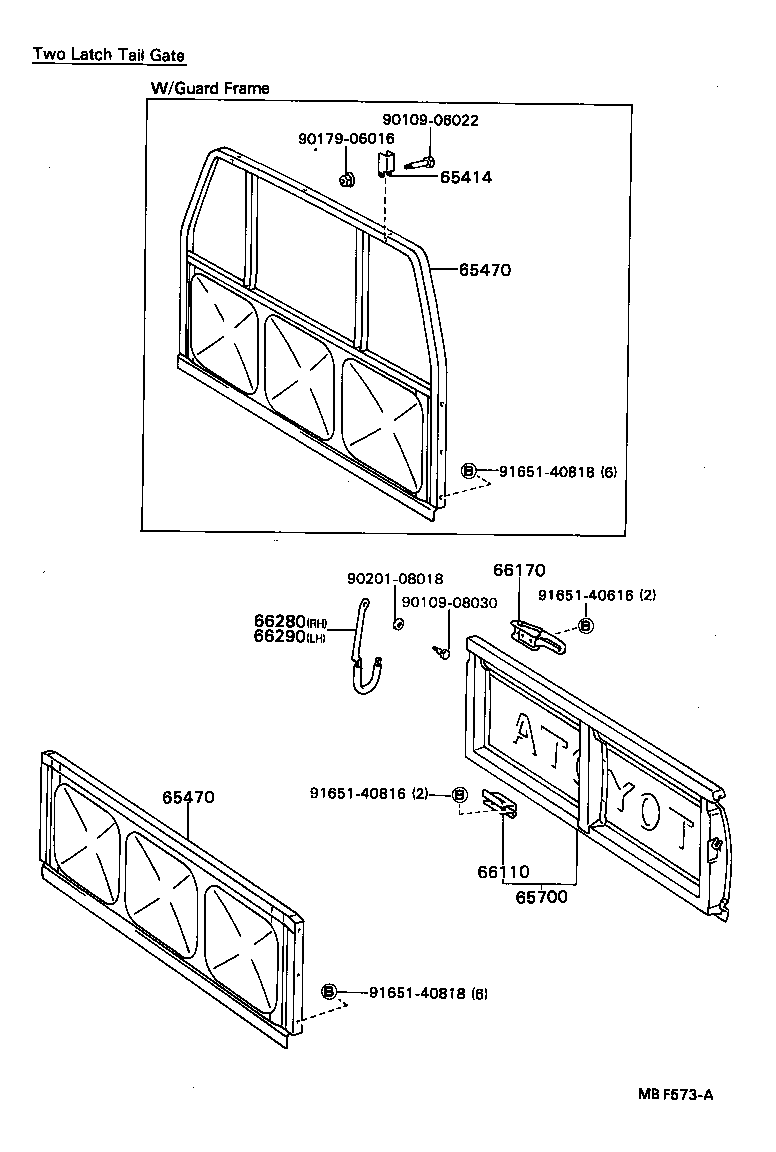

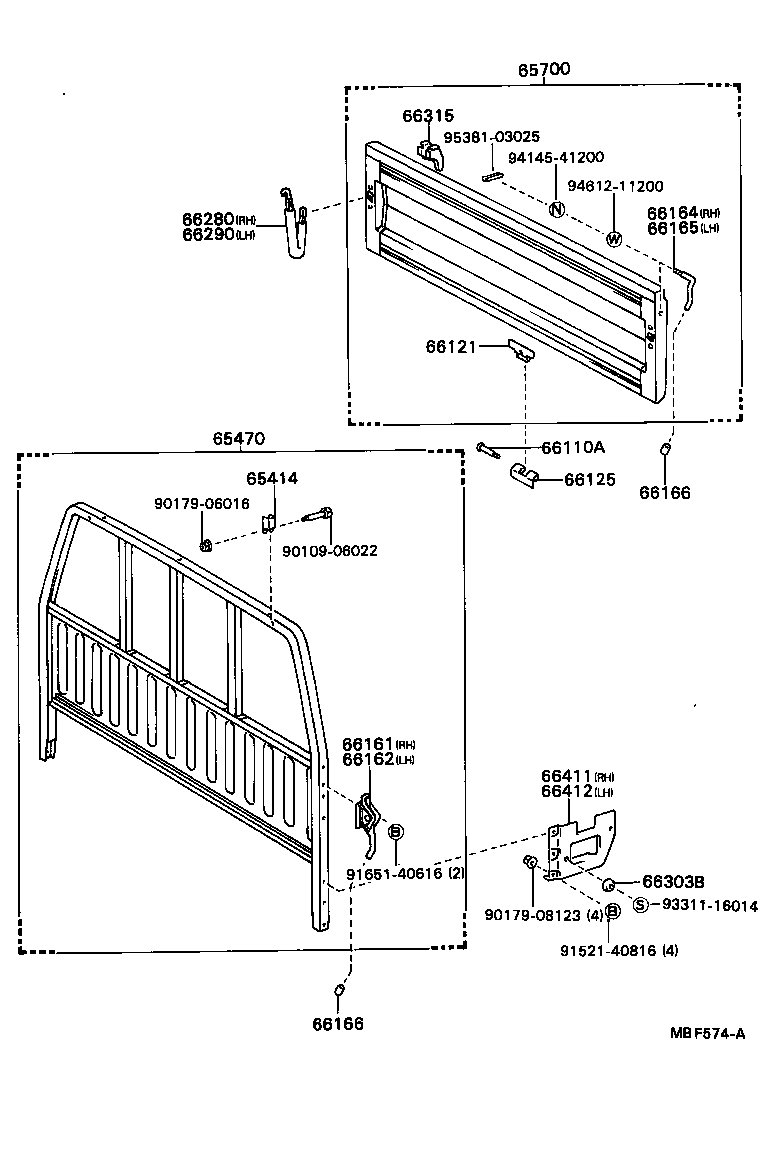

Figure MBF572D MBF572D 1983-08 → — Figure MBF573A MBF573A 1983-08 → — Figure MBF574A MBF574A 1983-08 → —

Part groups

PNCDescription
65414 Stopper, Guard Frame
65470 Board Assy, Header
65700 Gate Assy, Rear Body Tail
65737 Stop, Tail Gate
65759 Cover, Tail Gate Service Hole
65768A Striker, Tail Gate Lock
65770A Stay Assy, Tail Gate
65778 Stopper, Tail Gate Stay
65780A Lock Assy, Tail Gate, RH
65790A Lock Assy, Tail Gate, LH
65865A Pin, Cover Top Guide
66110 Hinge Assy, Tail Gate
66110A Pin, Tail Gate Hinge
66121 Hinge, Tail Gate, Male
66125 Hinge, Tail Gate, Female
66161 Handle, Side Gate Latch, RH
66162 Handle, Side Gate Latch, LH
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66166 Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66280 Chain Assy, Tail Gate, RH
66290 Chain Assy, Tail Gate, LH
66303B Cushion Sub-assy, Rubber
66315 Hook, Rope
66321A Bumper, Gate Rubber
66411 Bracket, Guard Frame, RH
66412 Bracket, Guard Frame, LH
69250 Handle Assy, Tail Gate Lock
69759D Silencer, Tail Gate Lock Link
69759E Snap, Tail Gate Lock Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
