Toyota Hilux
1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe
Discontinued model
Data version 1999-01

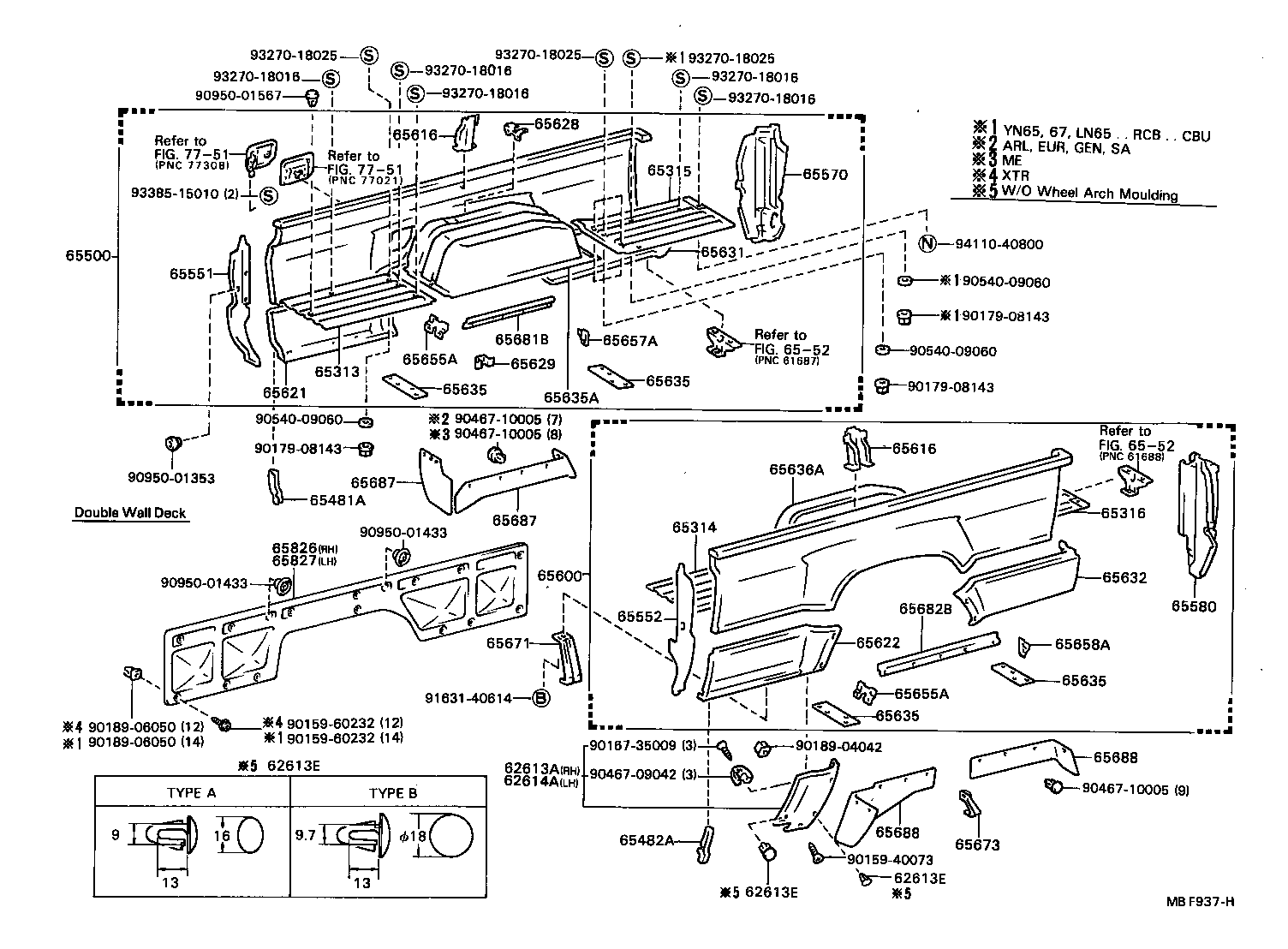

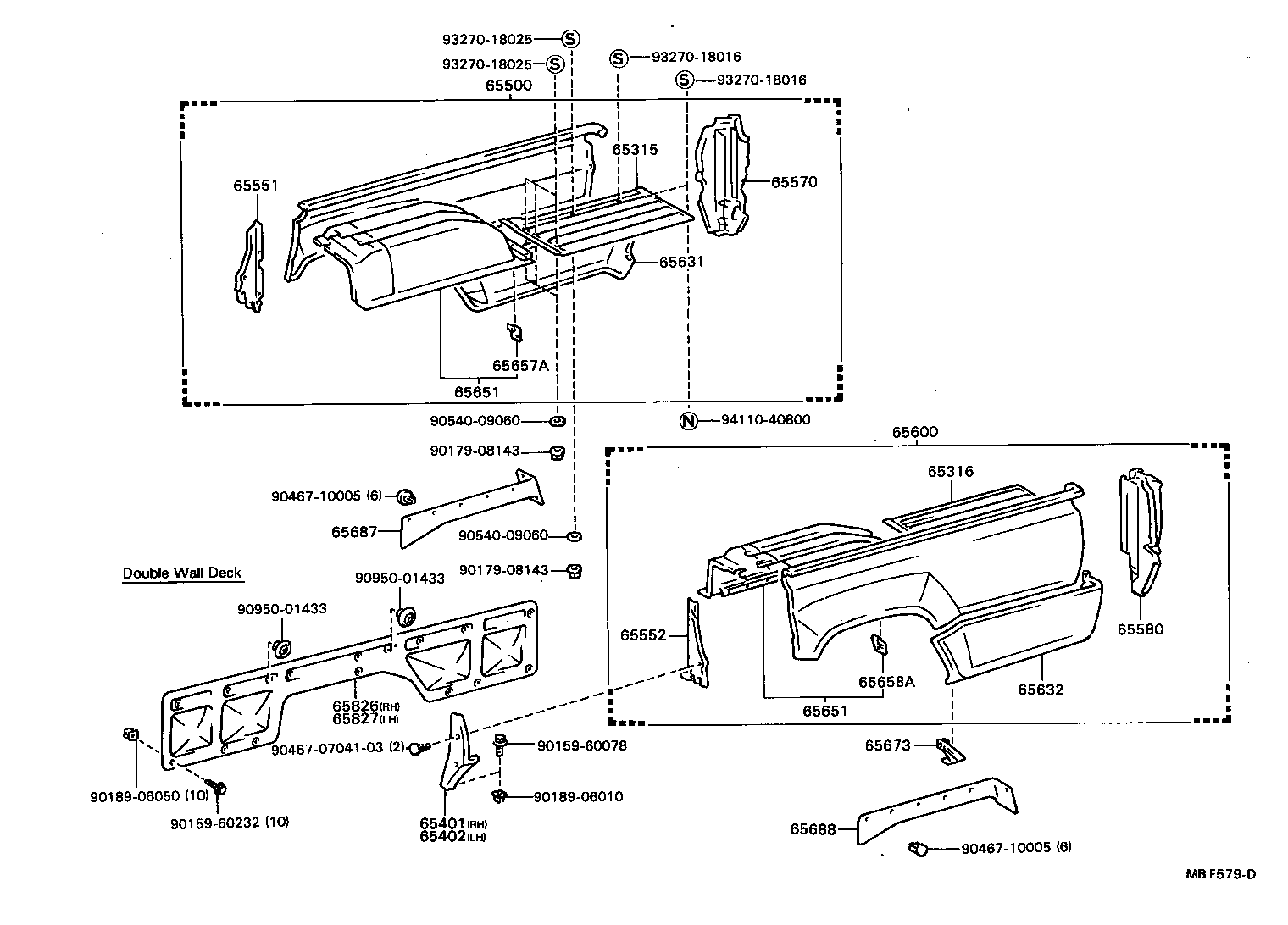

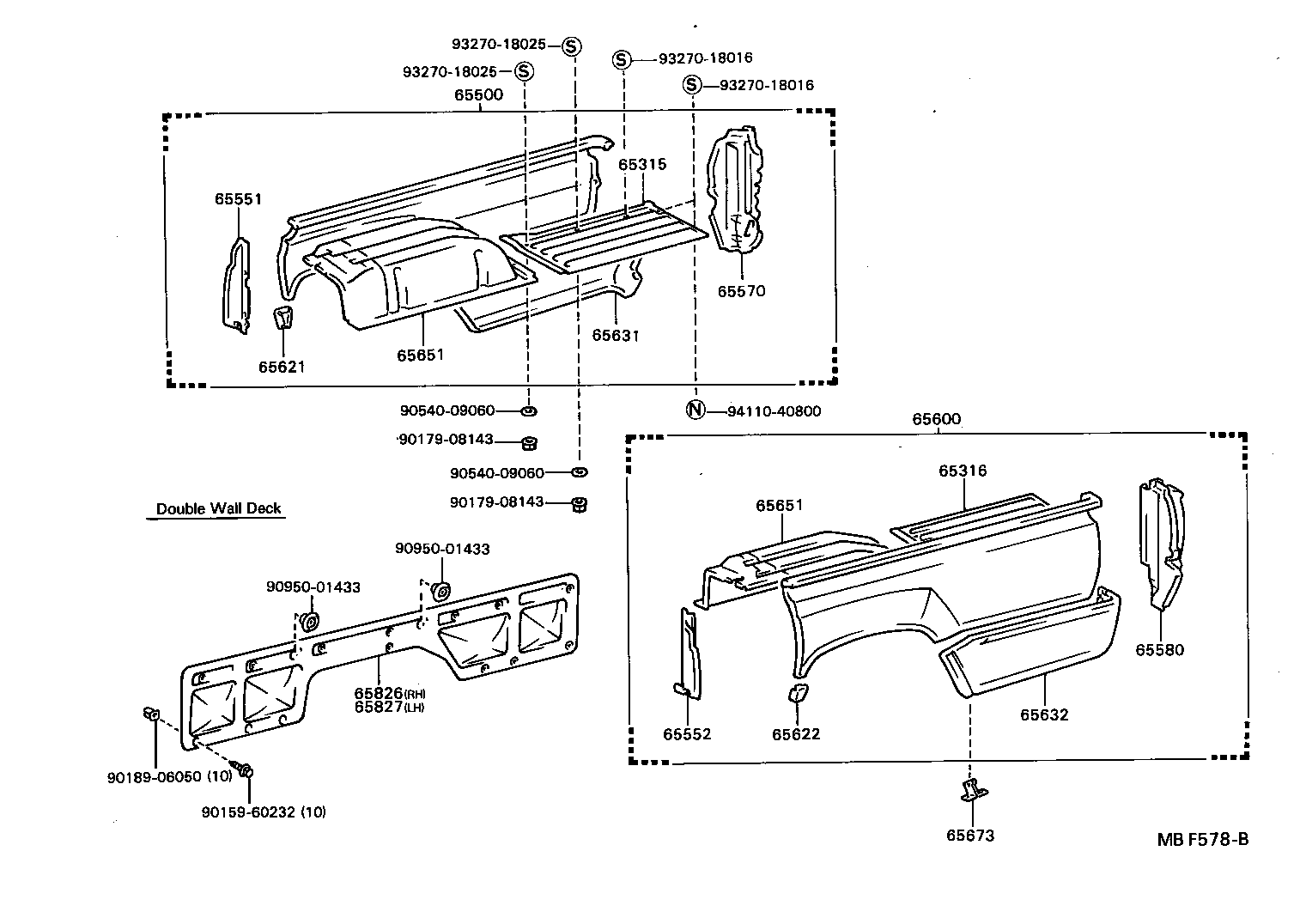

Rear Body Side Panel
48 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 62613A | Cover, Quarter Wheel House, RH |
| 62613E | Clip (FOR QUARTER WHEEL HOUSE COVER) |
| 62614A | Cover, Quarter Wheel House, LH |
| 65313 | Panel, Floor Front Corner, RH |
| 65314 | Panel, Floor Front Corner, LH |
| 65315 | Panel, Floor Rear Corner, RH |
| 65316 | Panel, Floor Rear Corner, LH |
| 65401 | Protector, Front Corner, RH |
| 65402 | Protector, Front Corner, LH |
| 65481A | Protector, Front Corner, RH |
| 65482A | Protector, Front Corner, LH |
| 65500 | Panel Assy, Rear Body Side, RH |
| 65551 | Panel, Front End Post Inner, RH |
| 65552 | Panel, Front End Post Inner, LH |
| 65570 | Post Assy, Side Panel Rear End, RH |
| 65580 | Post Assy, Side Panel Rear End, LH |
| 65600 | Panel Assy, Rear Body Side, LH |
| 65616 | Reinforcement, Side Panel |
| 65621 | Skirt, Side Panel, Front RH |
| 65622 | Skirt, Side Panel, Front LH |
| 65628 | Bracket, Fuel Inlet Hose Protector, Upper |
| 65629 | Bracket, Fuel Inlet Hose Protector, Side |
| 65631 | Skirt, Side Panel, Rear RH |
| 65632 | Skirt, Side Panel, Rear, LH |
| 65635 | Plate, Rear Wheel House |
| 65635A | Panel, Wheel House, Rear RH |
| 65636A | Panel, Wheel House, Rear LH |
| 65651 | Panel, Wheel House |
| 65655A | Bracket, Wheel House Seal, Front |
| 65657A | Bracket, Wheel House Seal, Rear RH |
| 65658A | Bracket, Wheel House Seal, Rear LH |
| 65671 | Brace, Side Panel Skirt, Front |
| 65673 | Brace, Side Panel Skirt, Rear |
| 65681B | Bracket, Wheel House Seal, Side, RH |
| 65682B | Bracket, Wheel House Seal, Side, LH |
| 65687 | Mudguard, Wheel House, RH |
| 65688 | Mudguard, Wheel House, LH |
| 65826 | Panel, Rear Body Side, Inner RH |
| 65827 | Panel, Rear Body Side, Inner LH |

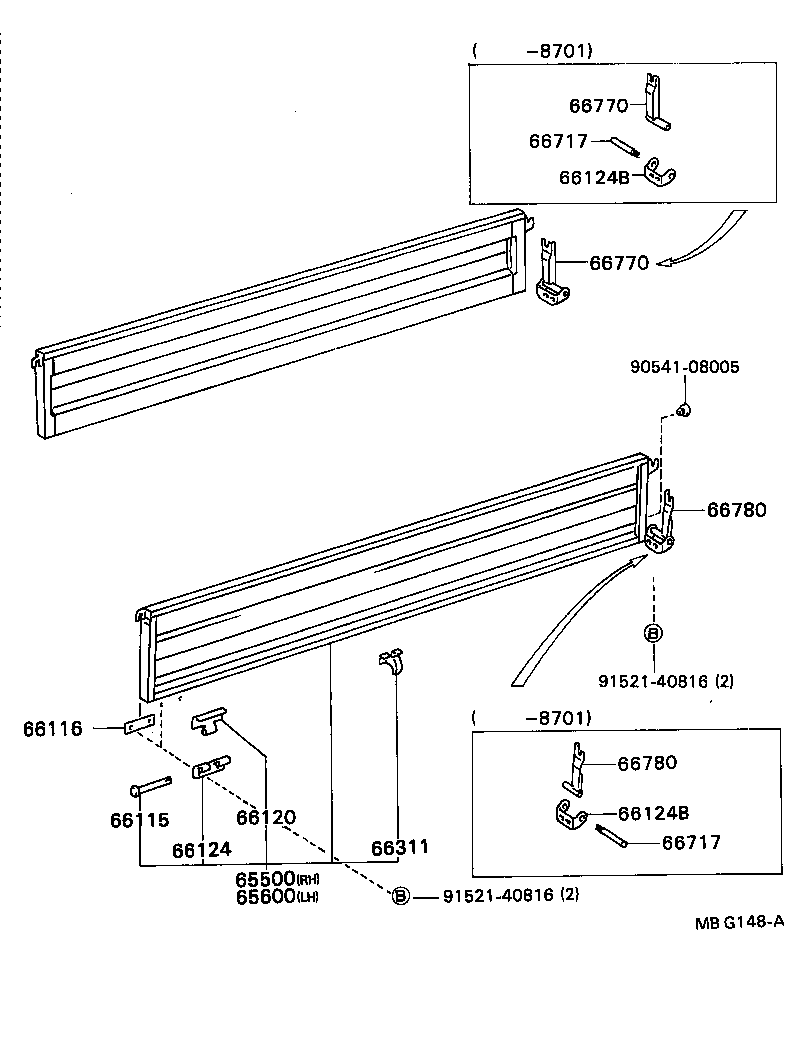

| 66115 | Pin, Gate Hinge |
| 66116 | Retainer, Gate Hinge, Lower |
| 66120 | Hinge Assy, Side Gate |
| 66124 | Hinge, Side Gate, Female |
| 66124B | Hinge, Side Gate, Female |
| 66311 | Hook, Rope |
| 66717 | Pin, Side Gate Holder |
| 66770 | Support Sub-assy, Side Gate, RH |
| 66780 | Support Sub-assy, Side Gate, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
