Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

14 part groups · 2 illustrations

Illustrations

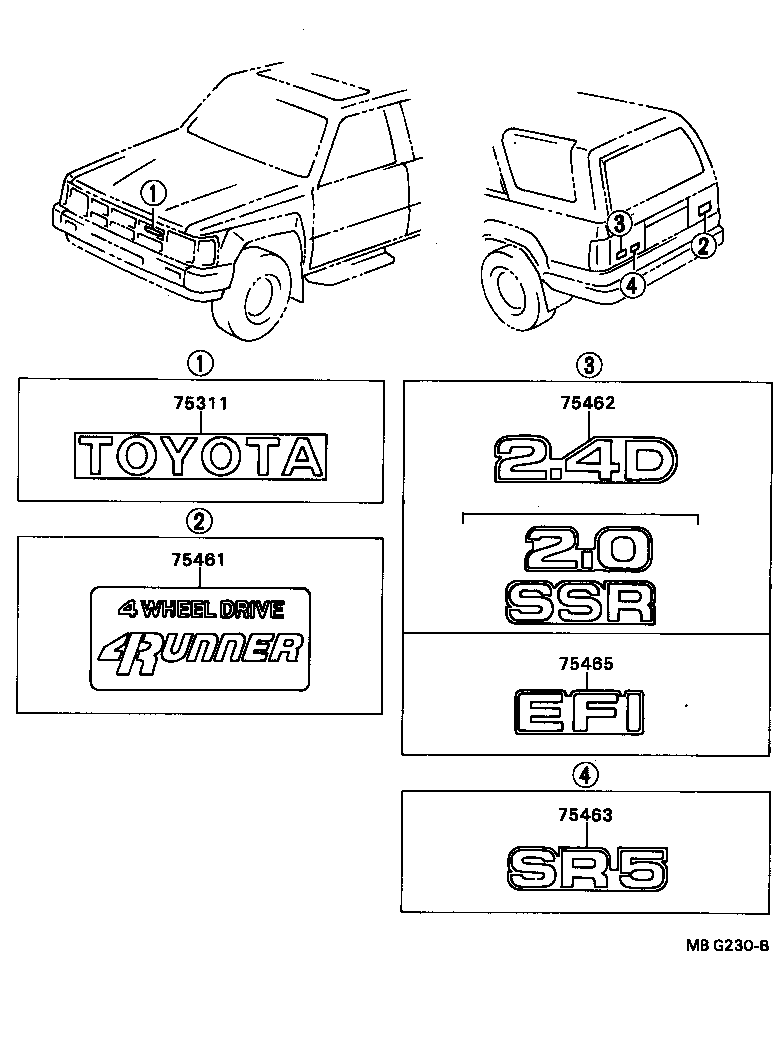

Figure MBF605J MBF605J 1983-08 → — Figure MBG230B MBG230B 1984-03 → 1989-03

Part groups

PNCDescription
75305 Emblem, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75317 Plate, Radiator Grille Ornament
75319 Retainer, Radiator Grille (OR FRONT PANEL) Name
75345 Pad, Hood Ornament, NO.1
75351 Plate, Rear Name, NO.6 (MAXIMUM LOAD)
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75367 Plate, Front Fender Name, NO.3 (DISPLACEMENT)
75368 Plate, Front Fender Name, NO.4 (LOADING CAPACITY MARK)
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75462 Plate, Rear Name, NO.3 (DISPLACEMENT)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
75475 Plate, Tail Gate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
