Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

19 part groups · 14 illustrations

Illustrations

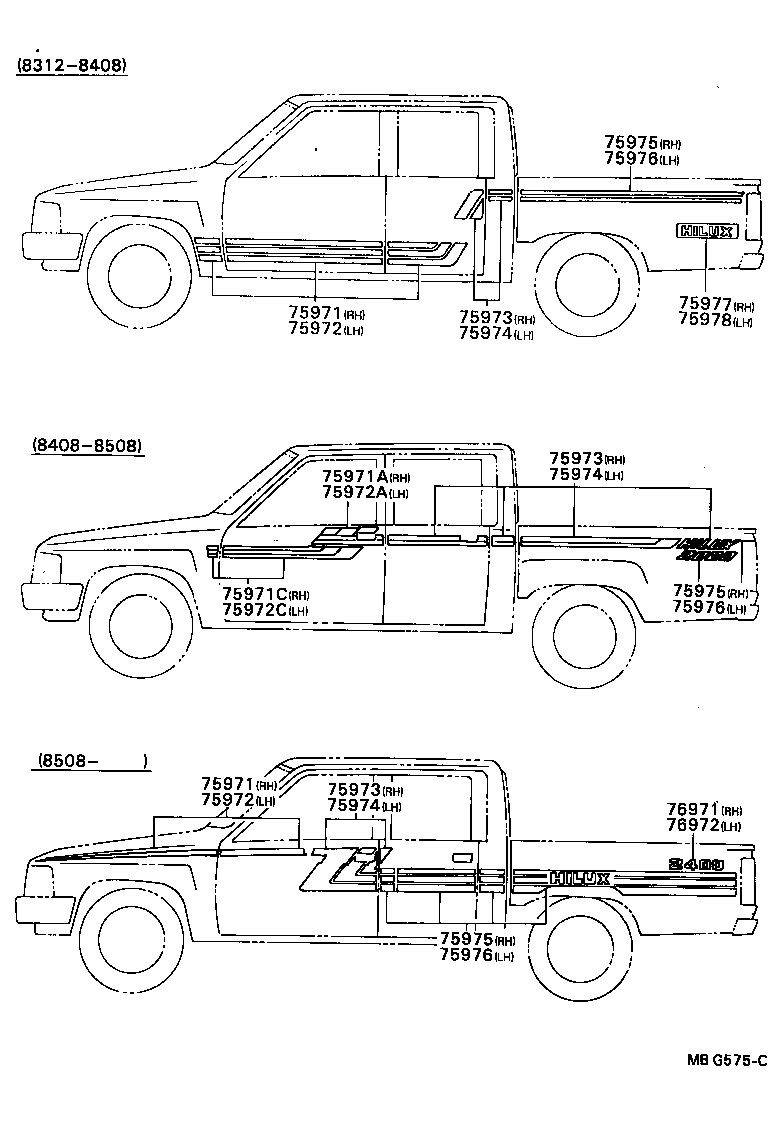

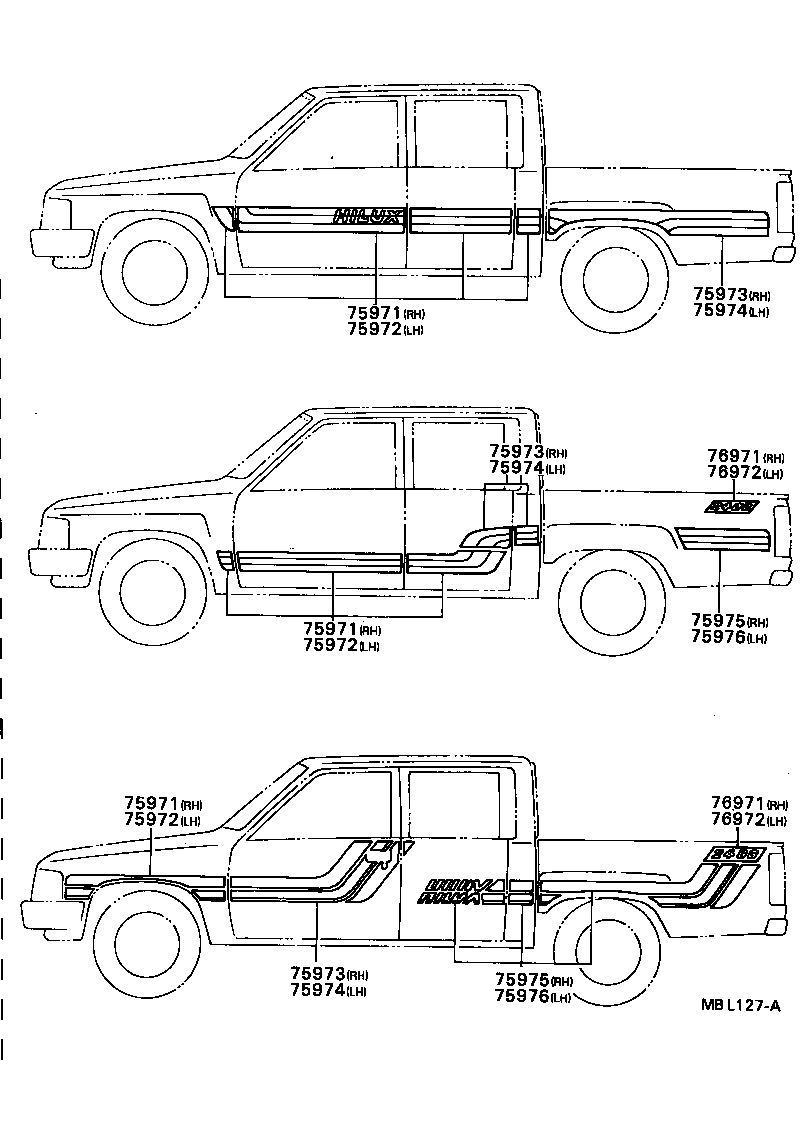

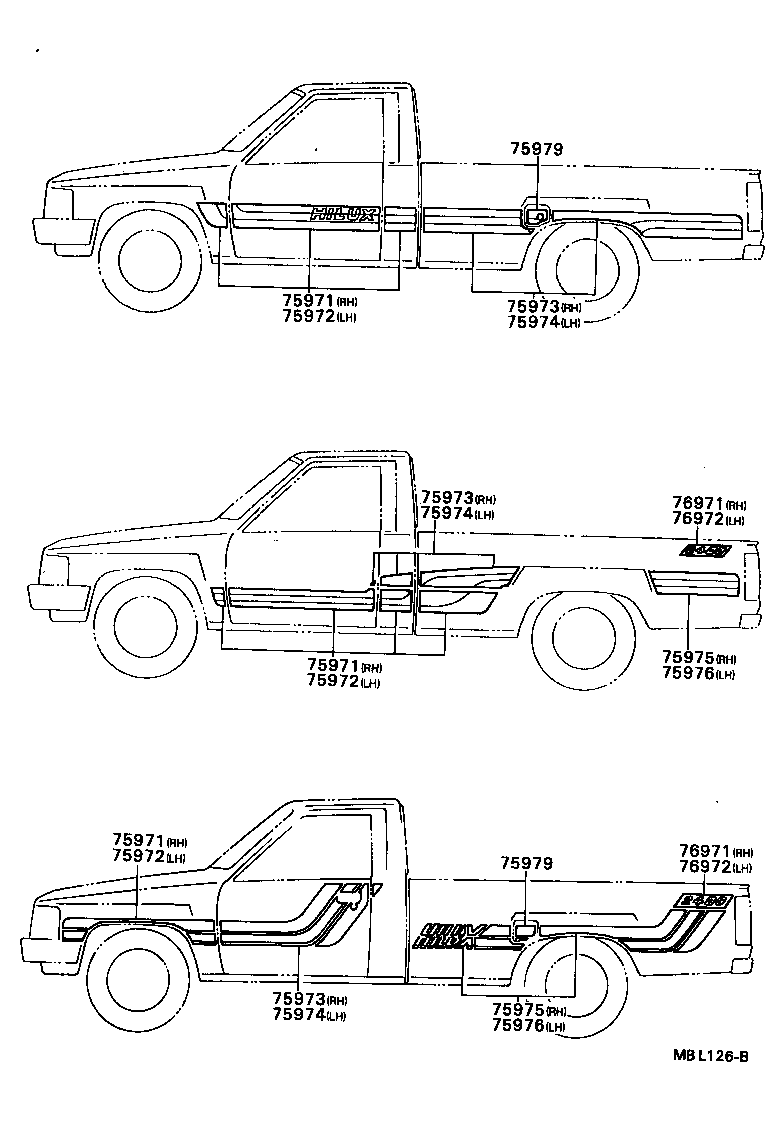

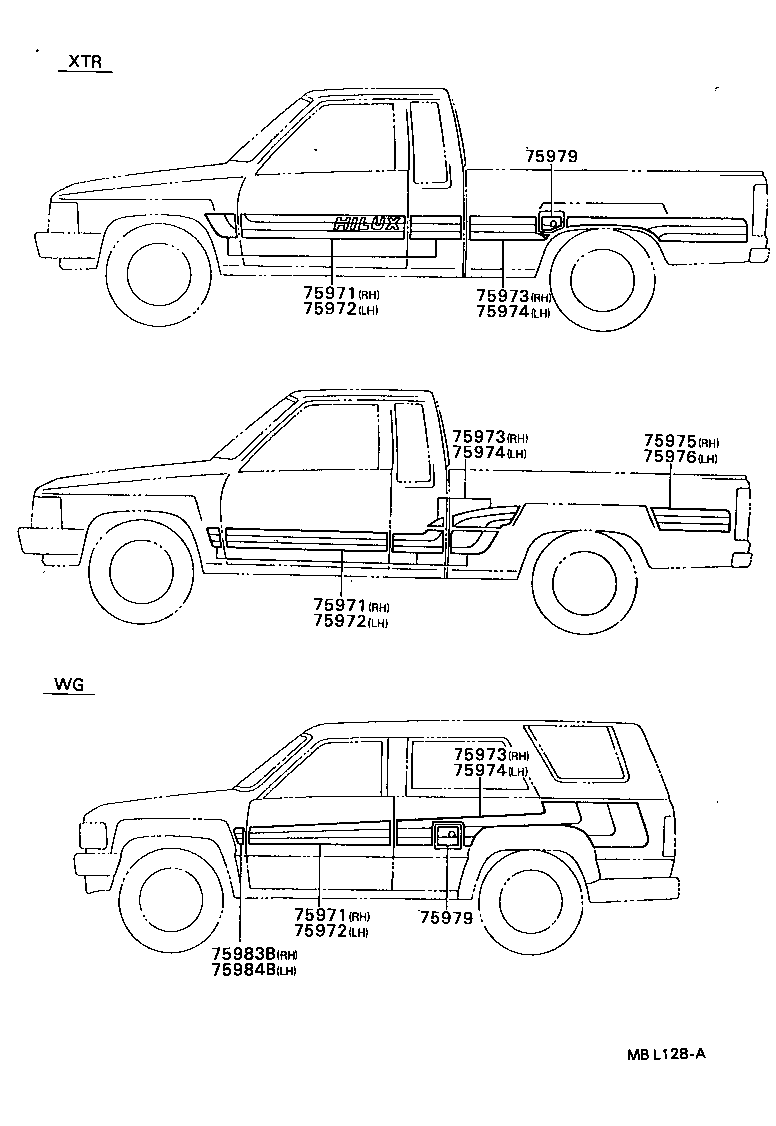

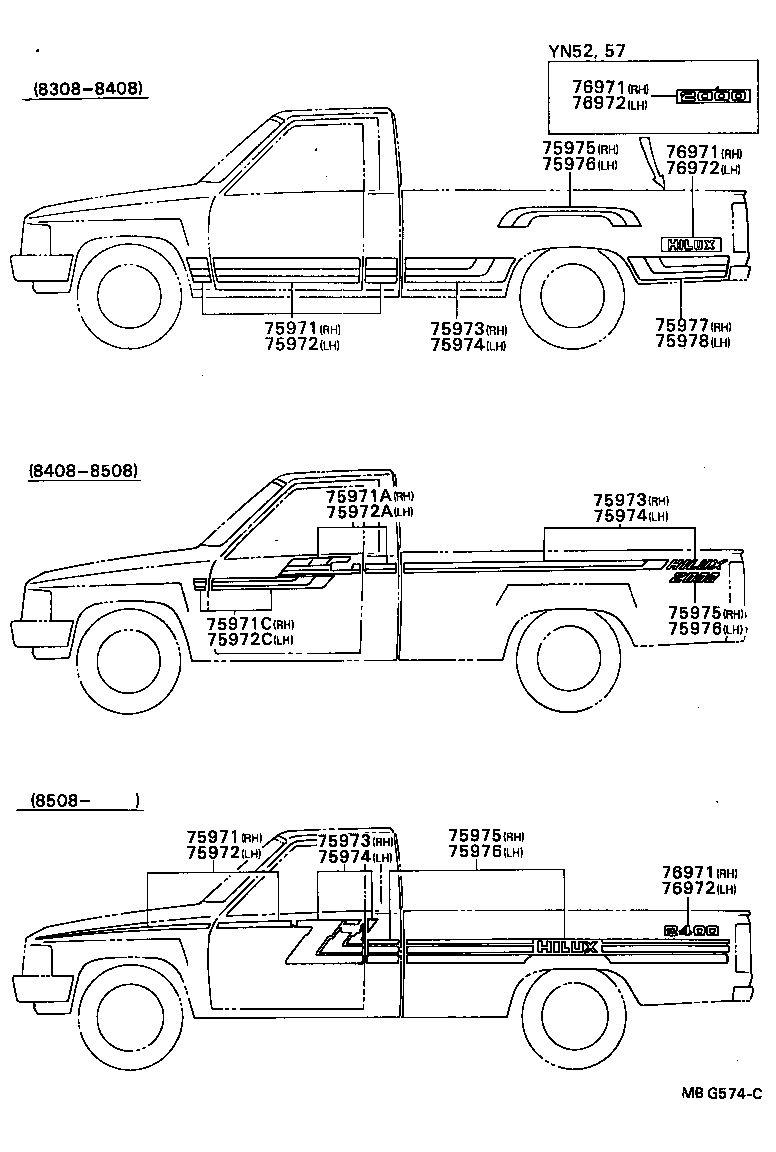

Figure MBF610B MBF610B 1983-08 → 1986-08 Figure MBG574C MBG574C 1983-08 → 1986-08 Figure MBF612 MBF612 1983-08 → 1986-08 Figure MBF973B MBF973B 1983-12 → 1986-08 Figure MBJ789 MBJ789 1983-12 → 1986-08 Figure MBG575C MBG575C 1983-12 → 1986-08 Figure MBJ790 MBJ790 1984-12 → 1986-08 Figure MBL126B MBL126B 1986-08 → 1987-08 Figure MBL126B MBL126B 1987-08 → — Figure MBM095A MBM095A 1987-08 → 1988-08 Figure MBL127A MBL127A 1986-08 → — Figure MBL127A MBL127A 1987-08 → — Figure MBM096A MBM096A 1987-08 → 1988-08 Figure MBL128A MBL128A 1986-08 → 1989-03

Part groups

PNCDescription
75971 Stripe, Side, RH NO.1
75971A Stripe, Side, RH NO.1 (FOR UPPER)
75971C Stripe, Side, RH NO.1 (FOR LOWER)
75972 Stripe, Side, LH NO.1
75972A Stripe, Side, LH NO.1 (FOR UPPER)
75972C Stripe, Side, LH NO.1 (FOR LOWER)
75973 Stripe, Side, RH NO.2
75973A Stripe, Side, RH NO.2 (FOR UPPER)
75974 Stripe, Center Pillar, LH NO.2
75974A Stripe, Side, LH NO.2(FOR UPPER)
75975 Stripe, Side, RH Upr NO.3
75976 Stripe, Side, LH Upr
75977 Stripe, Side, RH NO.4
75978 Stripe, Side, LH NO.4
75979 Stripe, Fuel Filler Opening Lid
75983B Stripe, Front Fender, Rear RH
75984B Stripe, Front Fender, Rear LH
76971 Stripe, Side, RH NO.5
76972 Stripe, Quarter, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
