Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

57 part groups · 15 illustrations

Illustrations

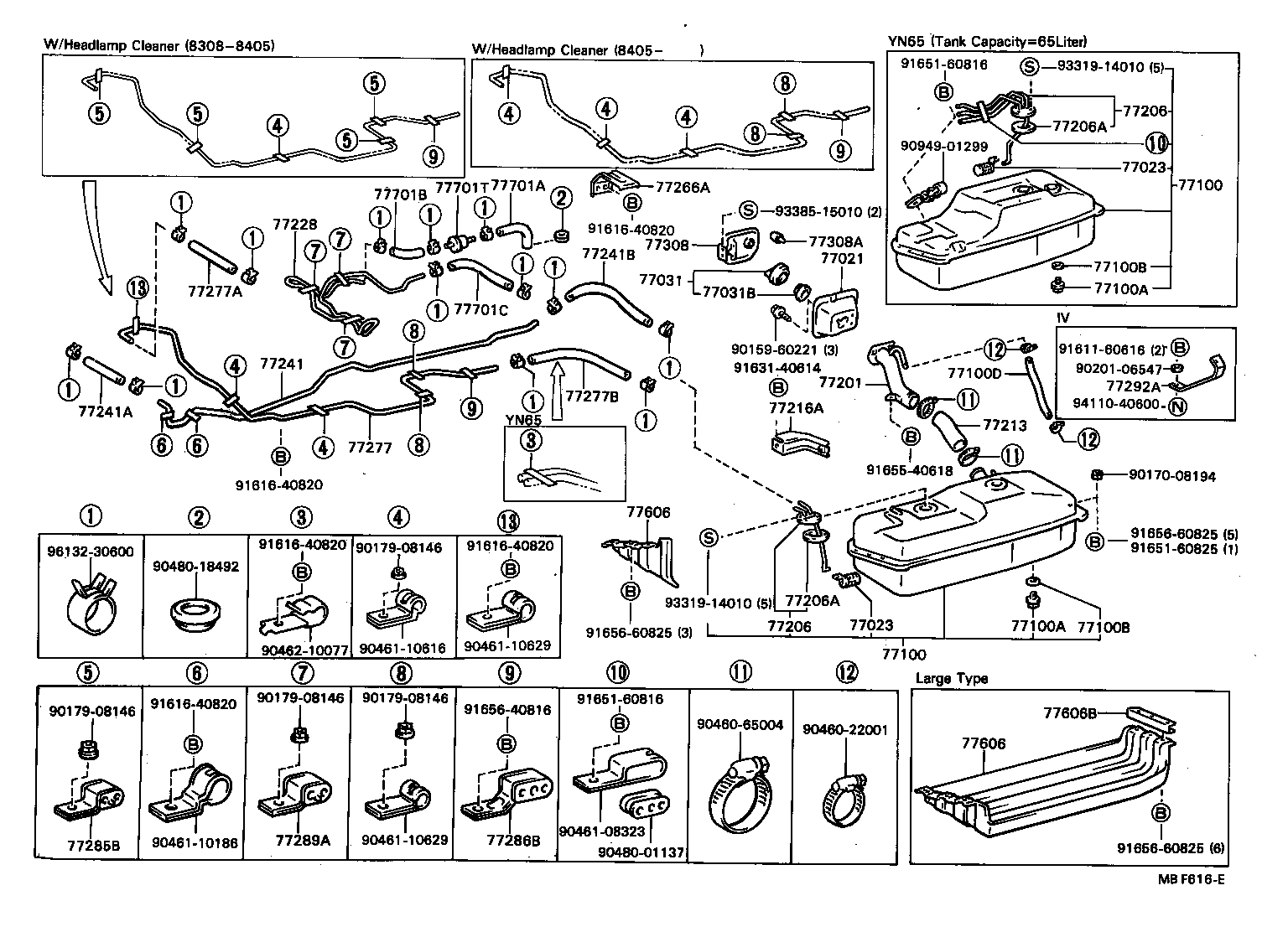

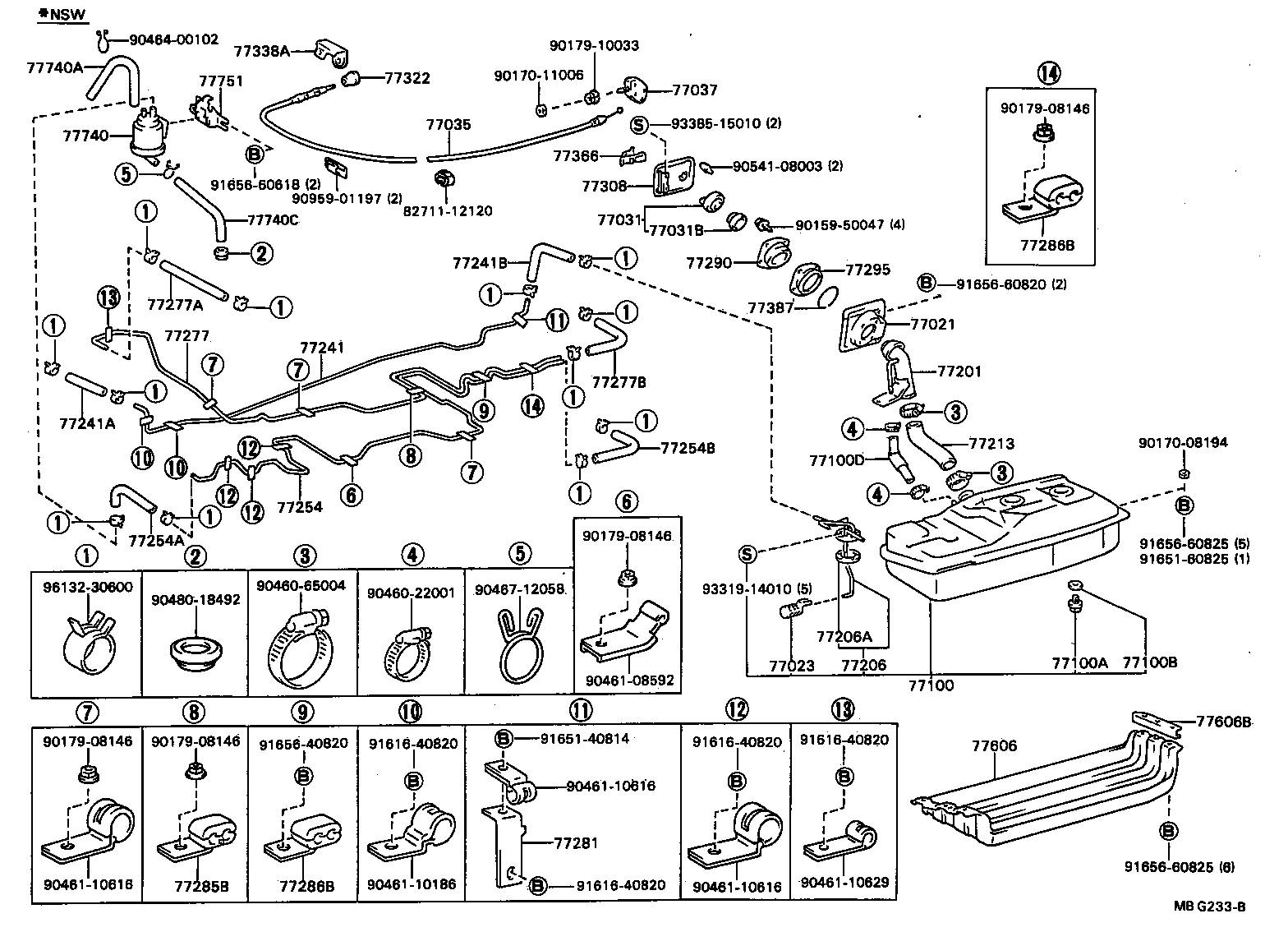

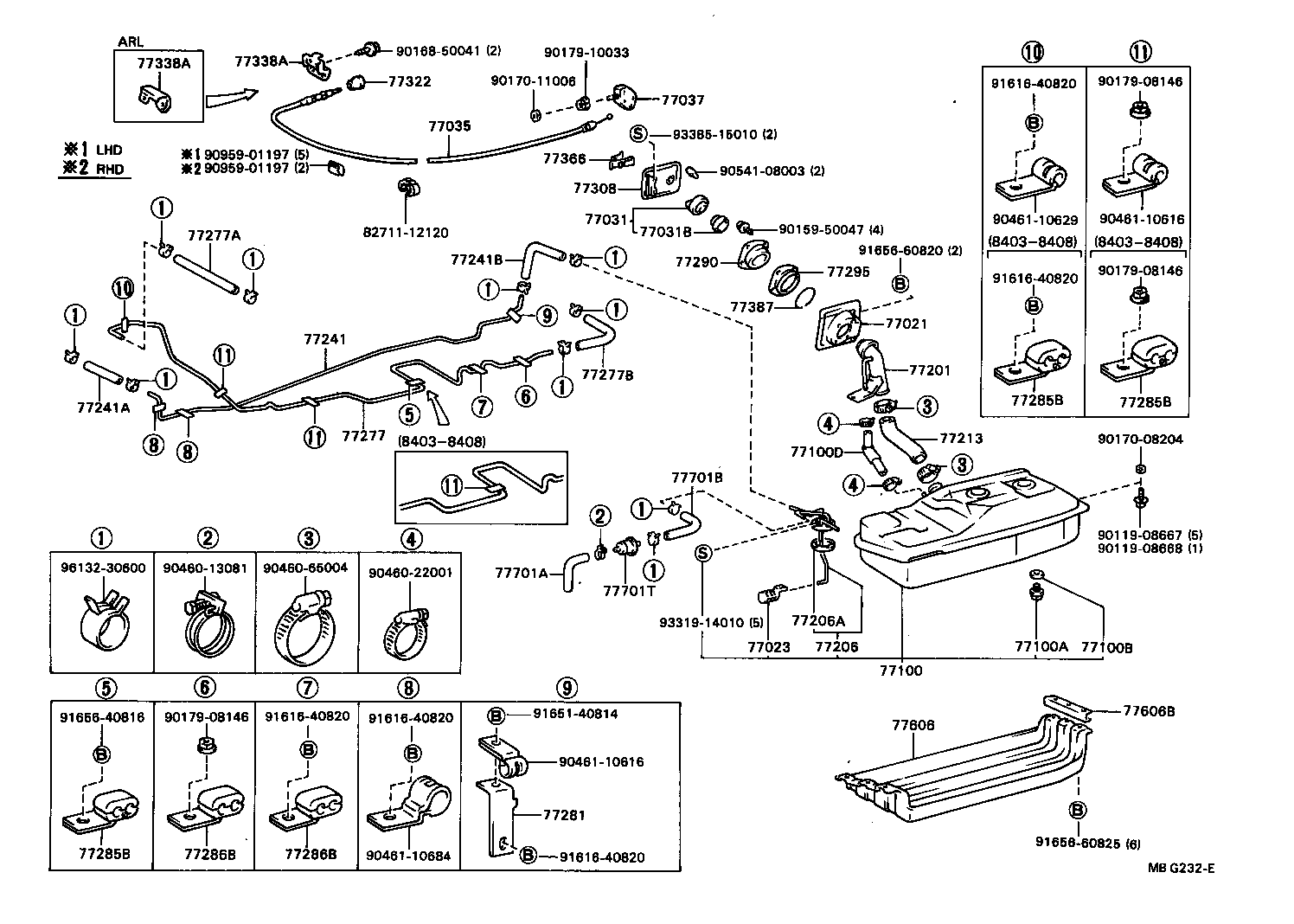

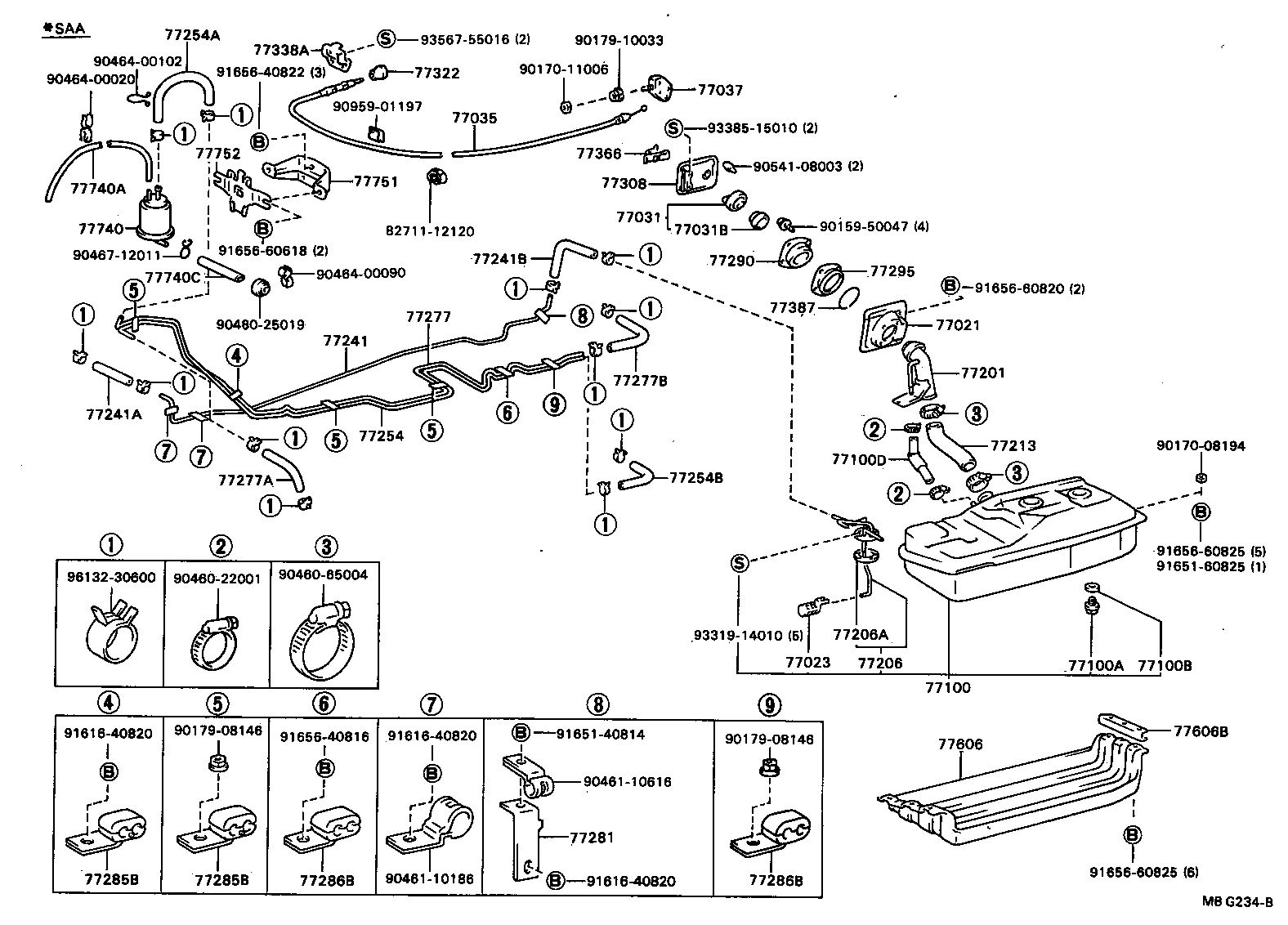

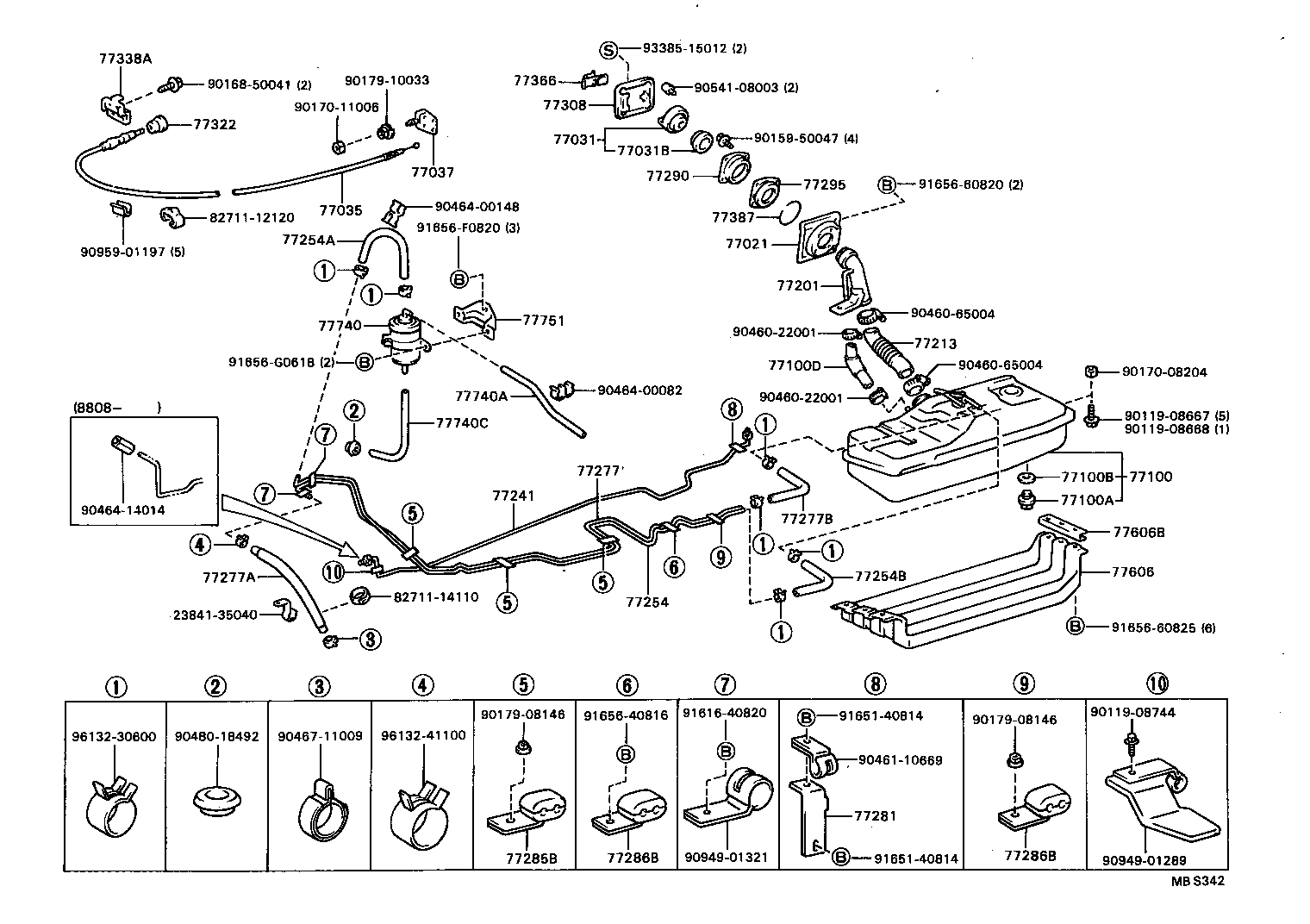

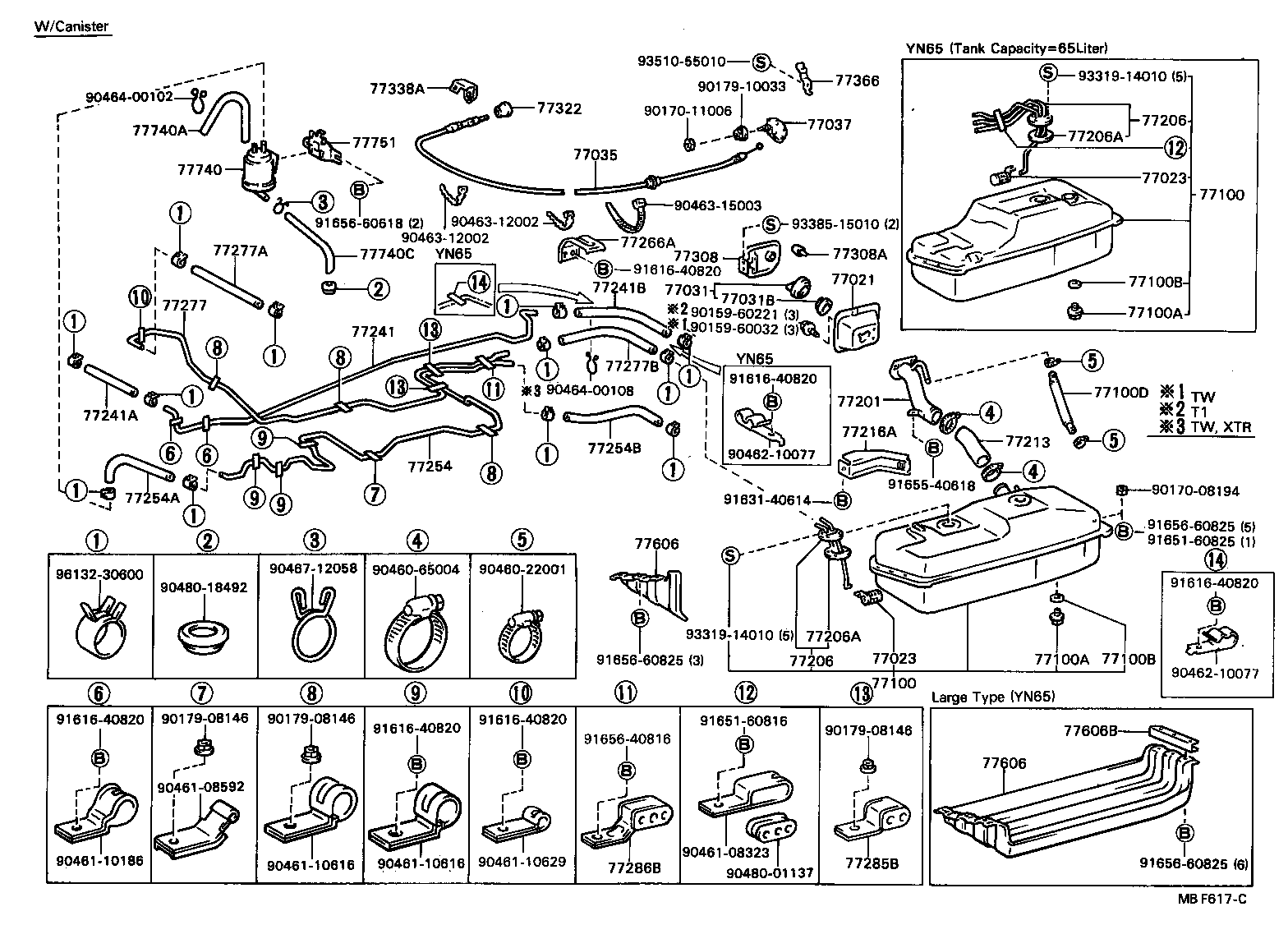

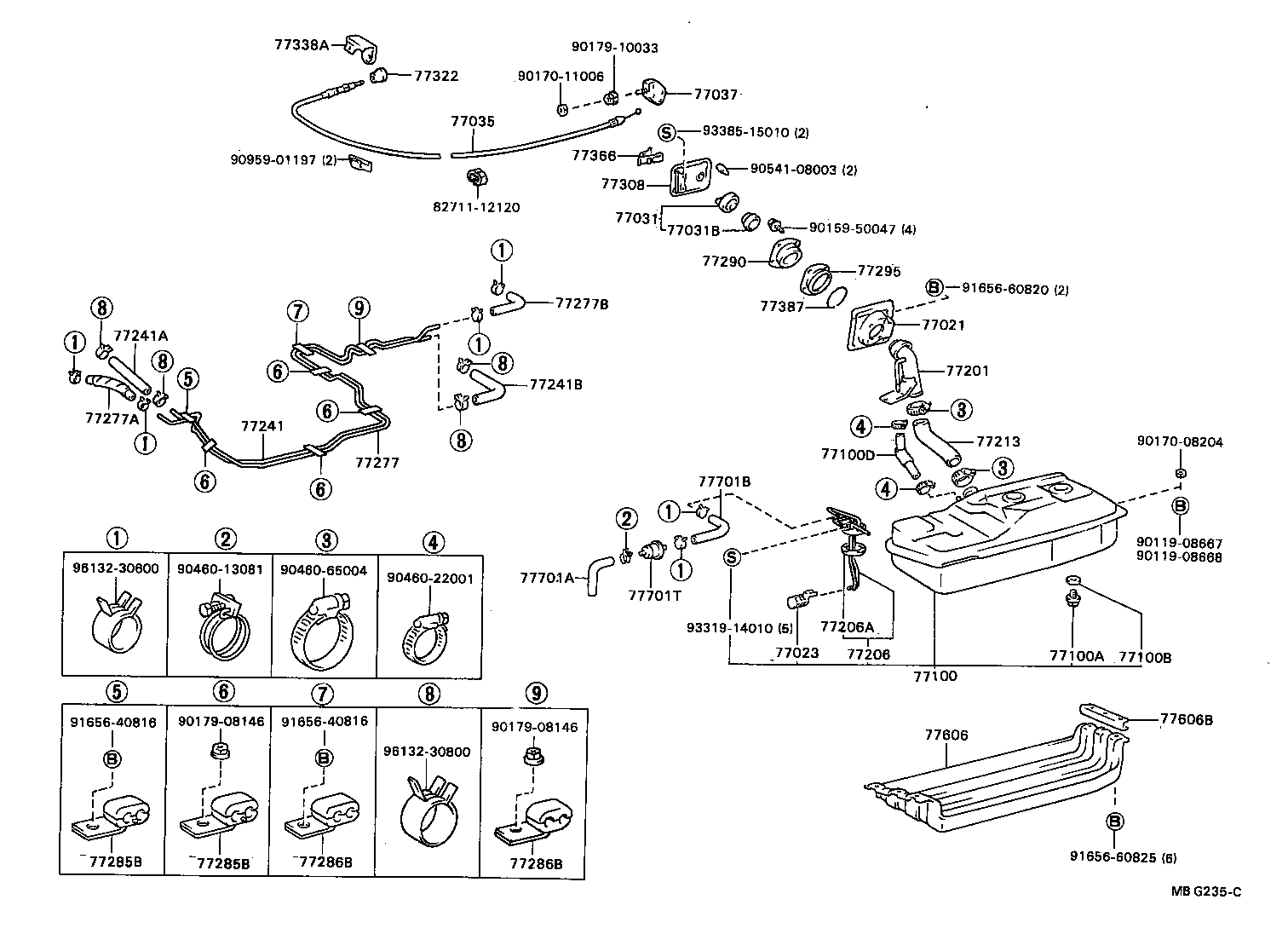

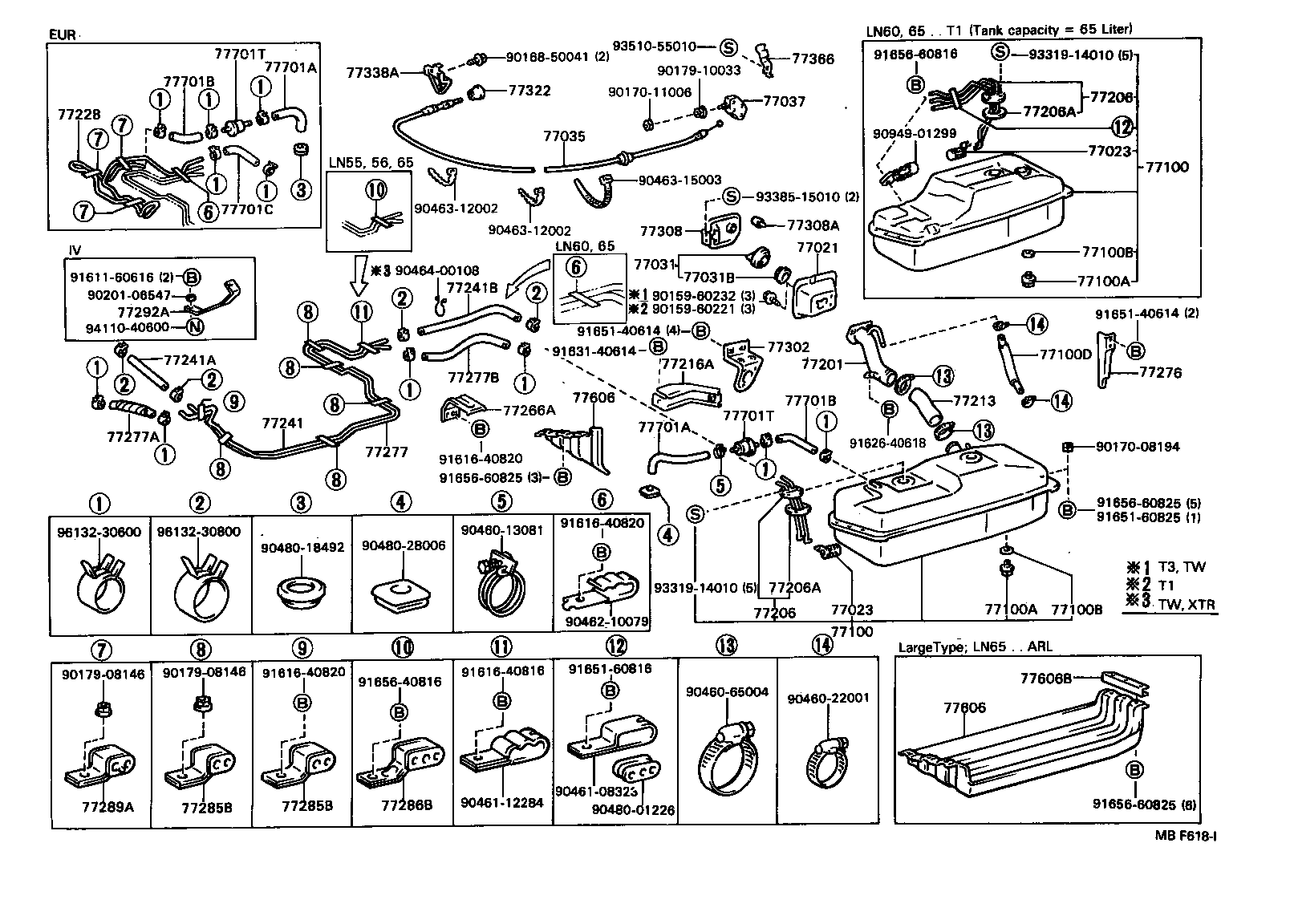

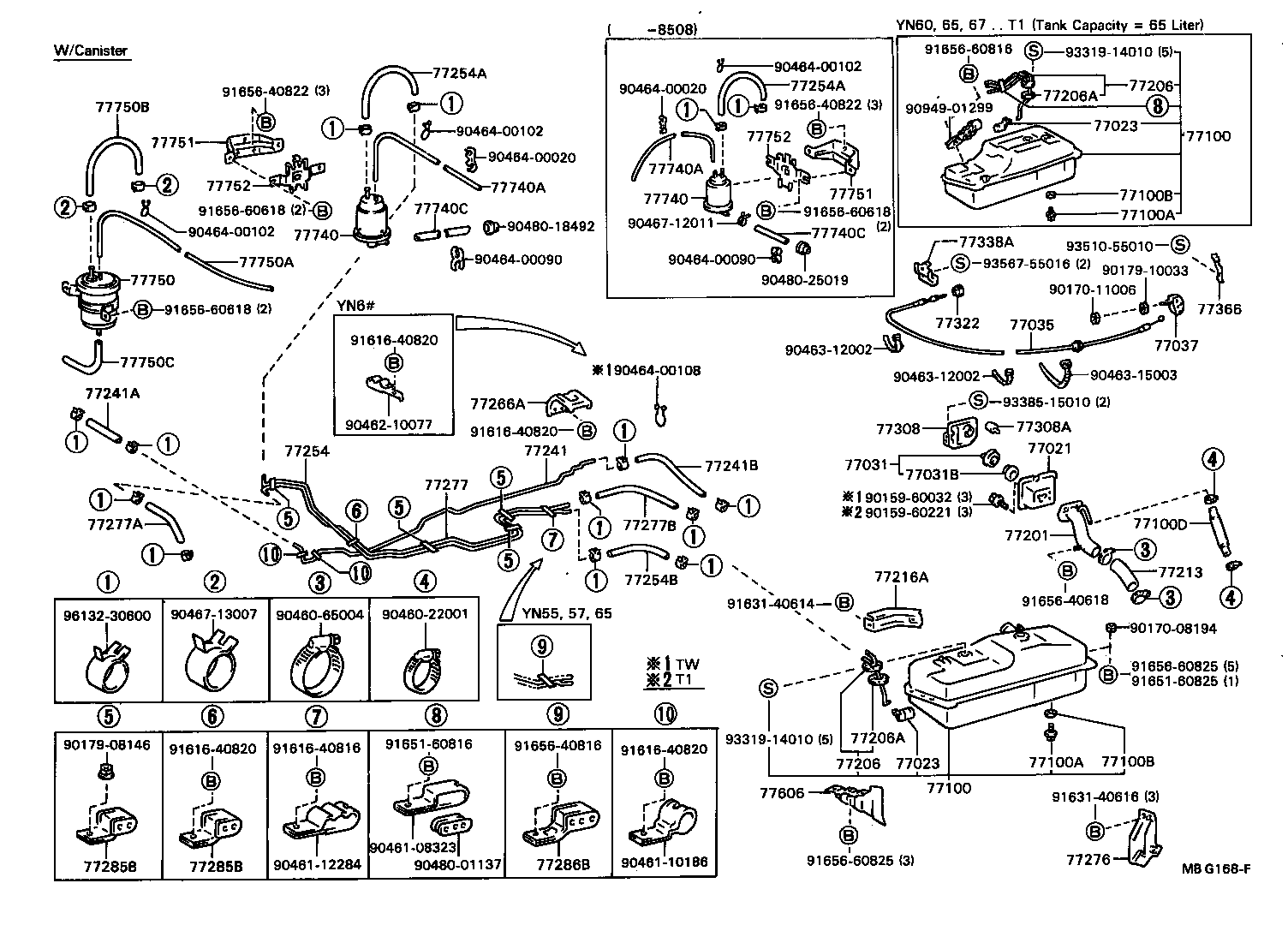

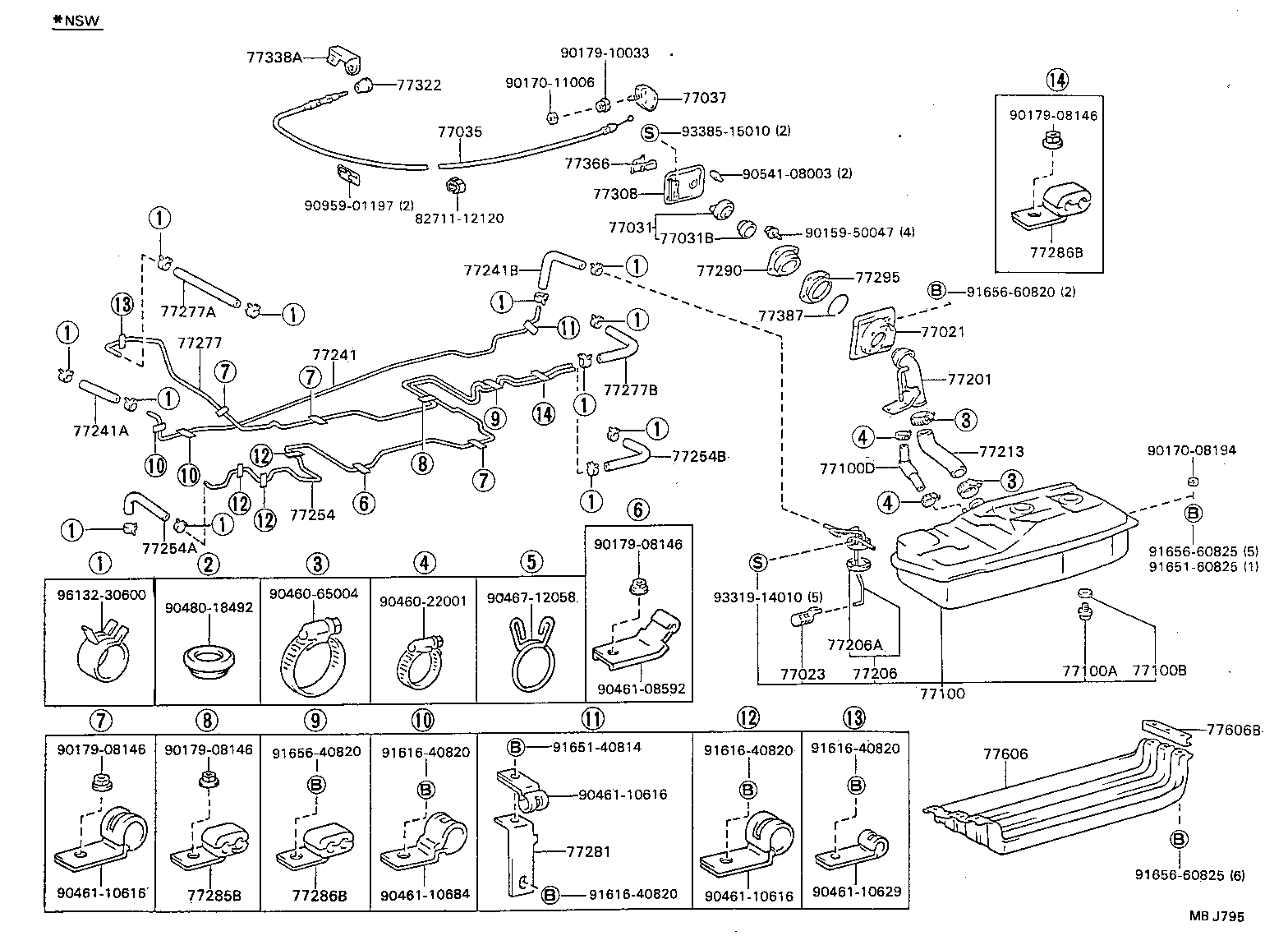

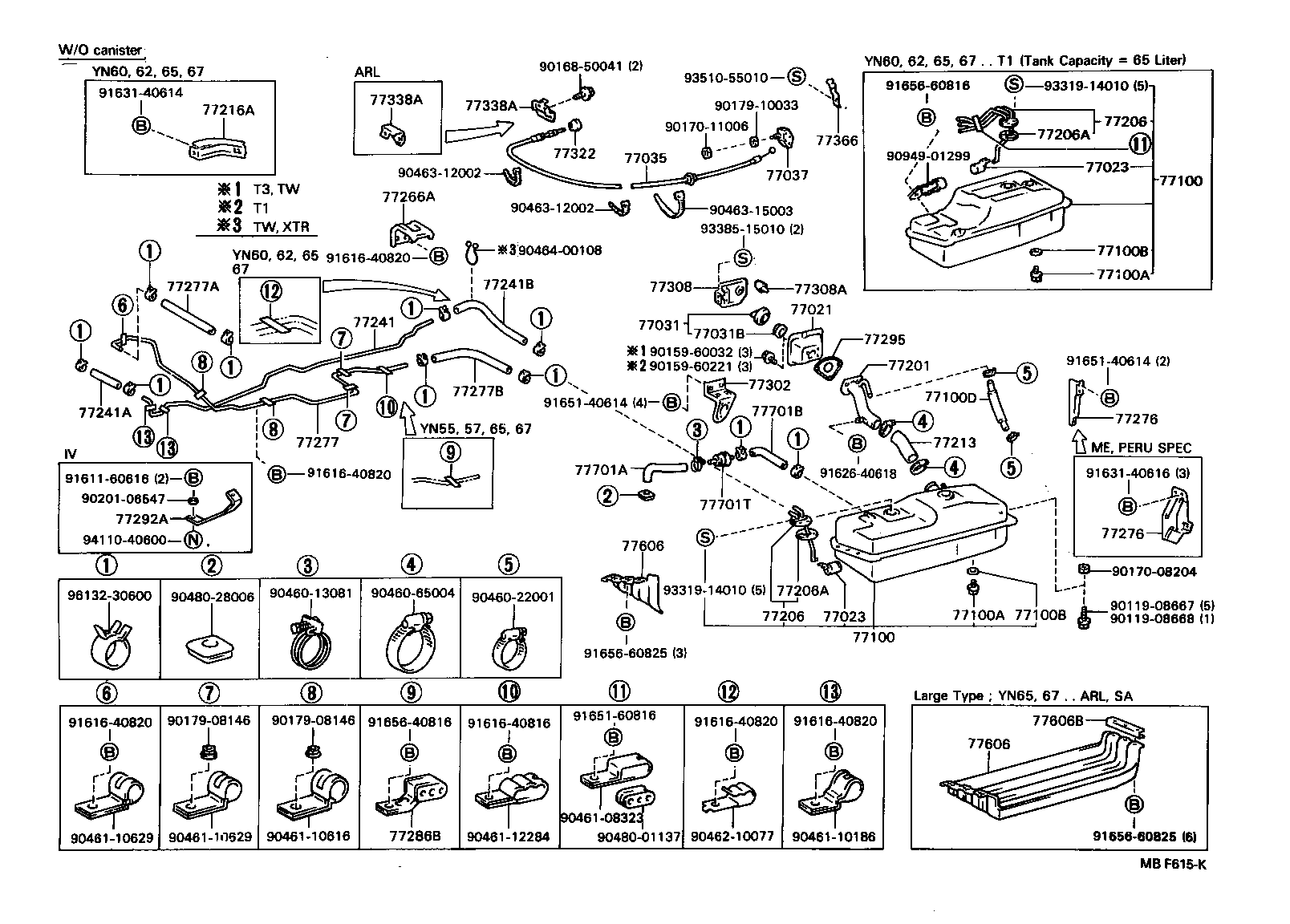

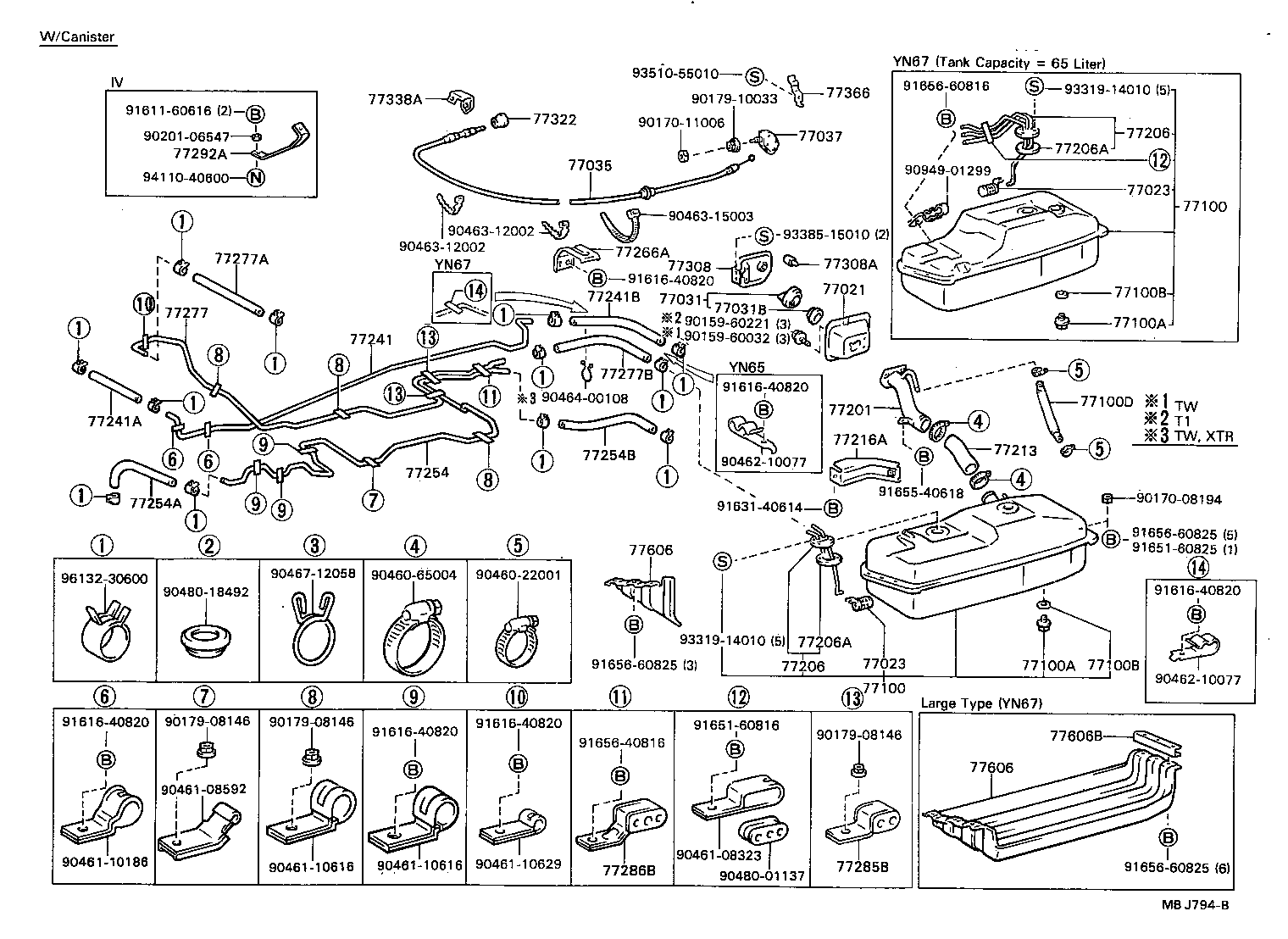

Figure MBK566A MBK566A 1986-01 → 1988-08 Figure MBF615K MBF615K 1983-08 → 1987-08 Figure MBF615K MBF615K 1983-08 → — Figure MBF616E MBF616E 1983-08 → 1988-08 Figure MBF617C MBF617C 1983-08 → 1985-08 Figure MBJ794B MBJ794B 1985-08 → 1988-08 Figure MBG168F MBG168F 1984-01 → 1988-08 Figure MBG232E MBG232E 1984-03 → 1989-03 Figure MBG233B MBG233B 1984-03 → 1985-08 Figure MBJ795 MBJ795 1985-08 → 1989-03 Figure MBG234B MBG234B 1984-03 → 1984-08 Figure MBJ796B MBJ796B 1985-08 → 1989-03 Figure MBF618I MBF618I 1983-08 → — Figure MBG235C MBG235C 1984-03 → 1989-03 Figure MBS342 MBS342 1987-12 → 1989-03

Part groups

PNCDescription
77021 Box Assy, Fuel Tank Inlet
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77201 Pipe Sub-assy, Fuel Tank Inlet
77206 Tube Sub-assy, Fuel Tank Suction
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77213 Hose, Fuel Tank Sub Inlet
77216A Support, Fuel Tank Filler Pipe, NO.1
77228 Tube, Fuel Tank Evaporation Vent, NO.2
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
77266A Protector, Fuel Tube, NO.1
77276 Protector, Fuel Hose
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77281 Bracket, Fuel Main Tube, NO.1
77285B Clamp, Fuel Tube W/Grommet, NO.1
77286B Clamp, Fuel Tube W/Grommet, NO.2
77289A Clamp, Fuel Tube W/Grommet, NO.3
77290 Shield Assy, Fuel Tank Filler Pipe
77292A Stay, Fuel Tank Fillar Upper Pipe
77295 Shield, Fuel Filler Pipe
77302 Retainer, Fuel Tank Cap
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77322 Knob, Fuel Tank Cap
77338A Bracket, Fuel Tank Cap Lock Control Rod
77366 Spring, Fuel Filler Opening Lid Hinge
77387 Ring, Fuel Inlet Box
77606 Protector Sub-assy, Fuel Tank, NO.1
77606B Bracket, Fuel Tank Protector, Side
77701A Hose, Fuel, NO.1 (FOR BREATHER VALVE)
77701B Hose, Fuel, NO.2 (FOR BREATHER VALVE)
77701C Hose, Fuel, NO.3 (FOR BREATHER VALVE)
77701T Valve, Check (FOR MAIN FUEL TANK)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740B Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77750 Canister Assy, Charcoal
77750A Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
77750B Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
77750C Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77752 Bracket, Charcoal Canister Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
