Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

35 part groups · 8 illustrations

Illustrations

Figure MEH145D

MEH145D 1986-01 → —

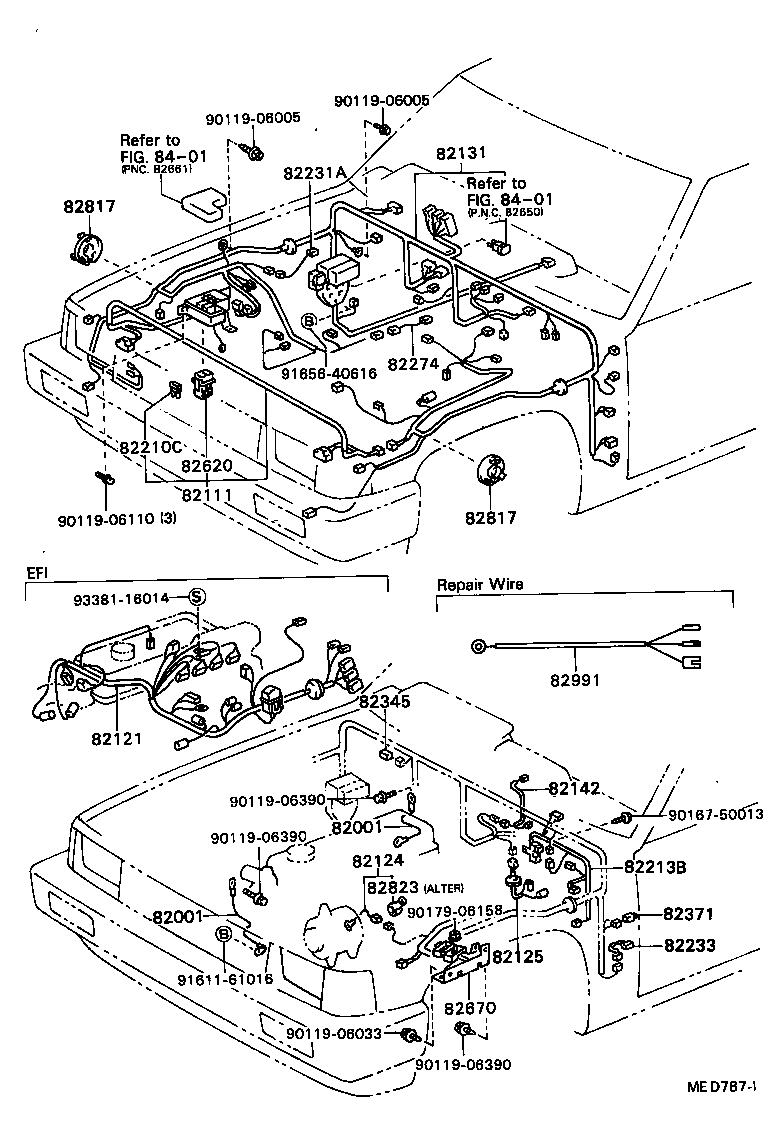

Figure MED787I

MED787I 1983-08 → —

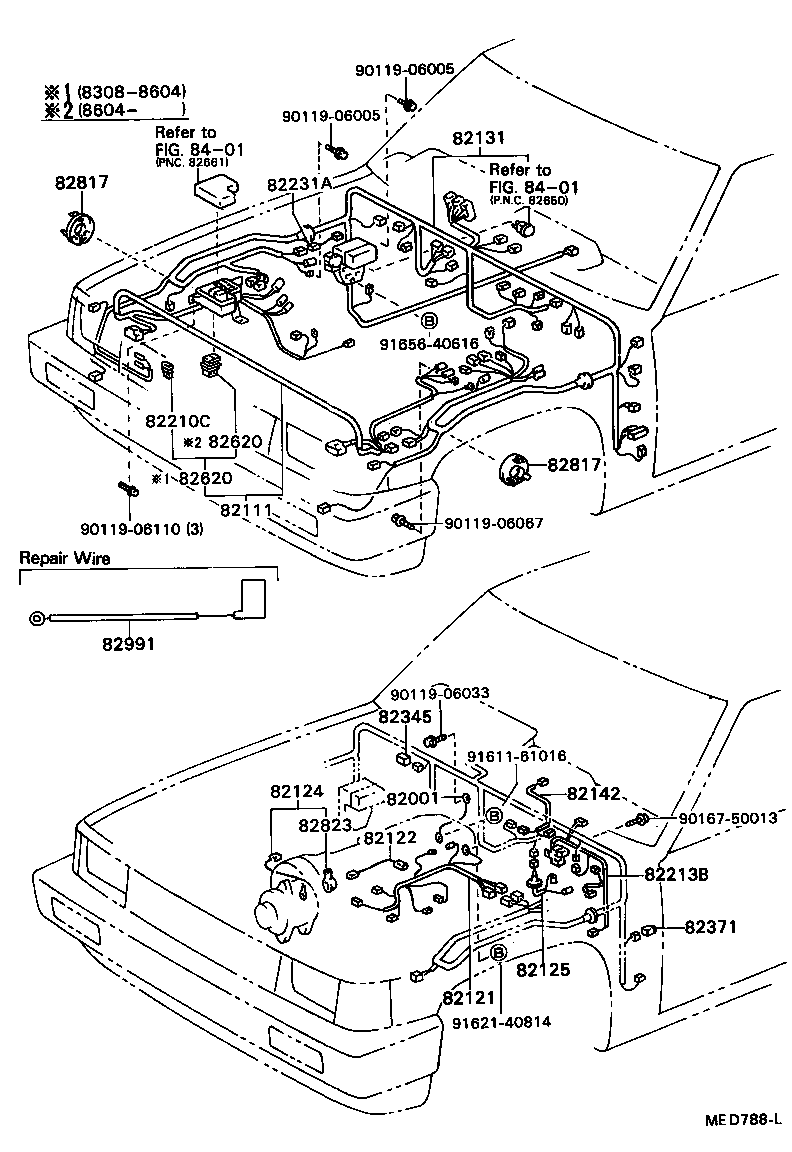

Figure MED788L

MED788L 1983-08 → —

Figure MED789A

MED789A 1983-08 → —

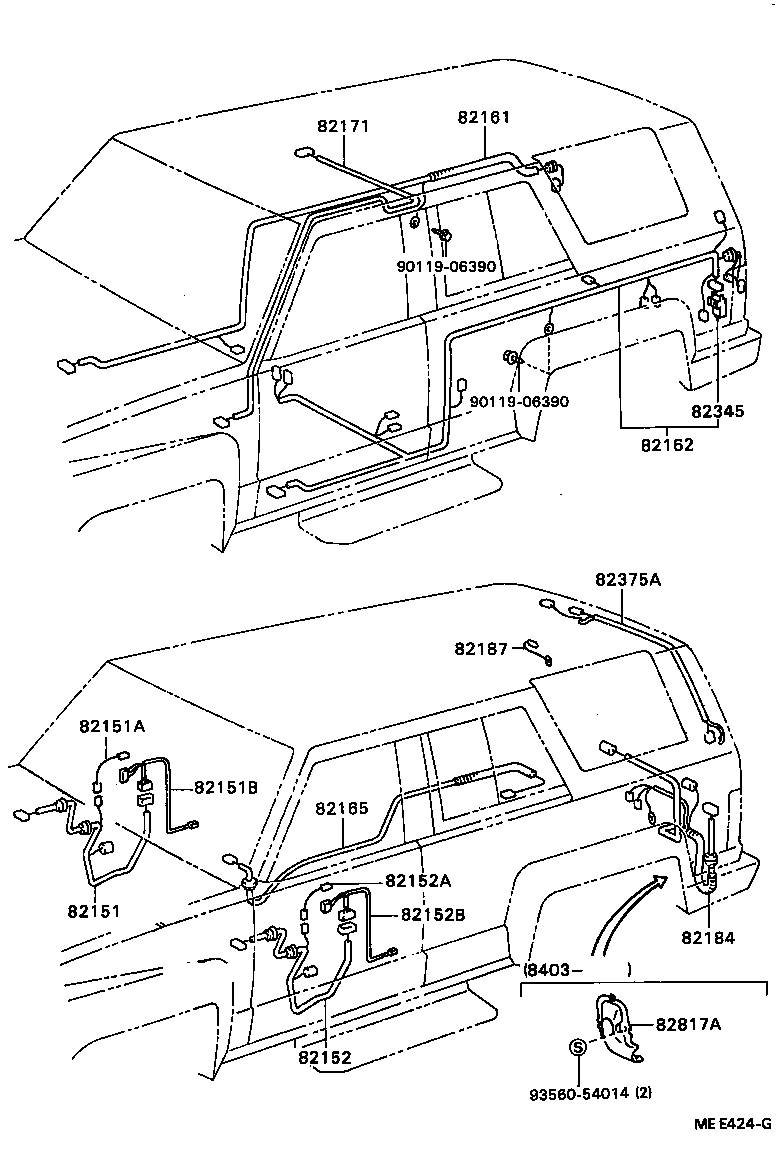

Figure MEE424G

MEE424G 1984-03 → 1989-03

Figure MED739B

MED739B 1983-08 → —

Figure MED869J

MED869J 1983-08 → —

Figure MEH724E

MEH724E 1983-08 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82111	Wire, Engine Room Main
82121	Wire, Engine
82122	Wire, Engine, NO.2
82124	Wire, Engine, NO.4
82125	Wire, Transmission
82131	Wire, Cowl
82142	Wire, Instrument Panel, NO.2
82151	Wire, Front Door, RH
82151A	Wire, Front Door, NO.2, RH
82151B	Wire, Front Door, NO.3, RH
82152	Wire, Front Door, LH
82152A	Wire, Front Door, NO.2, LH
82152B	Wire, Front Door, NO.3, LH
82161	Wire, Floor
82162	Wire, Floor, NO.2
82164	Wire, Frame
82165	Wire, Frame, NO.2
82171	Wire, Roof, NO.1
82184	Wire, Back Door, NO.1
82187	Wire, Rear Window, NO.2
82210C	Fusible Link
82213B	Wire, Heater
82231A	Wire, Brake Warning Switch
82233	Wire, Computer
82274	Wire, TO Starter Magnet
82345	Diode
82371	Wire, Wiper Relay
82375A	Wire, Wiper Motor
82620	Block Assy, Fusible Link
82670	Block Assy, Junction, NO.1
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82823	Cap, Terminal, NO.1
82991	Wire, Fusible Link Repair

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
