Toyota Hilux
1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe
Discontinued model
Data version 1999-01
Meter
27 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

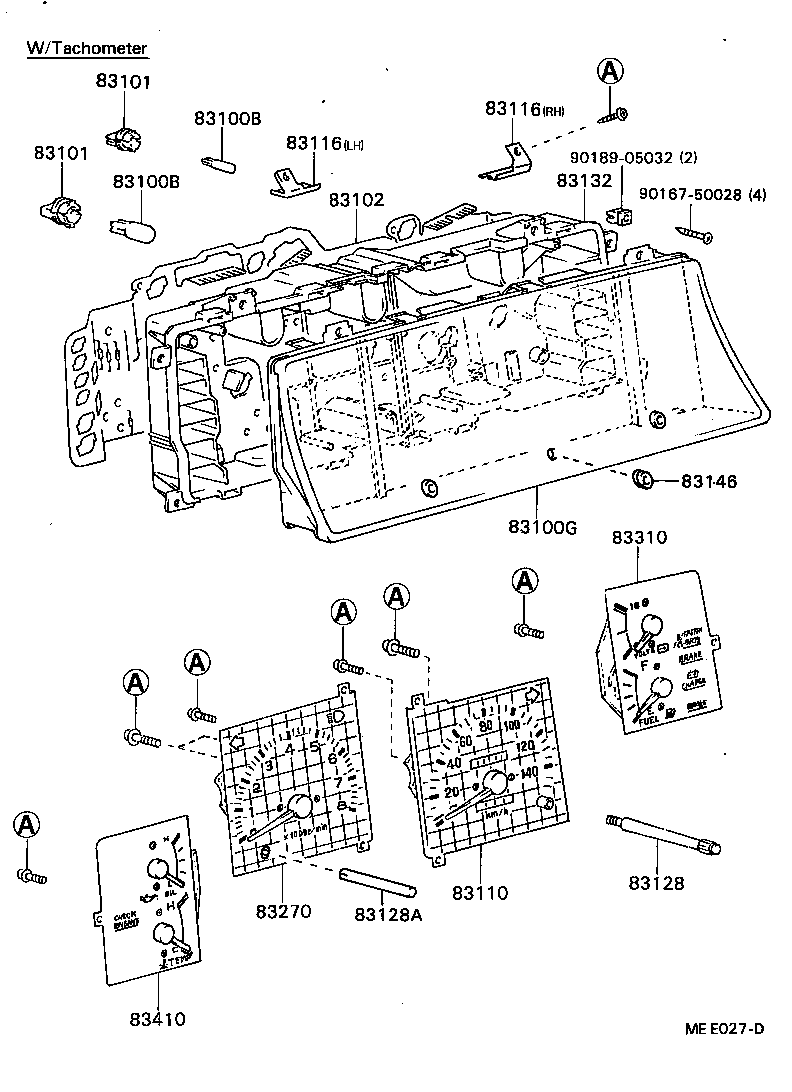

| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83116 | Bracket, Speedometer |
| 83128 | Knob, Trip Counter |
| 83128A | Knob, Meter |
| 83132 | Case, Combination Meter |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83145J | Adapter, Meter Bulb Socket |
| 83146 | Grommet, Meter Glass |
| 83180 | Detector Assy, Revolution |
| 83189 | Bracket, Meter |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |

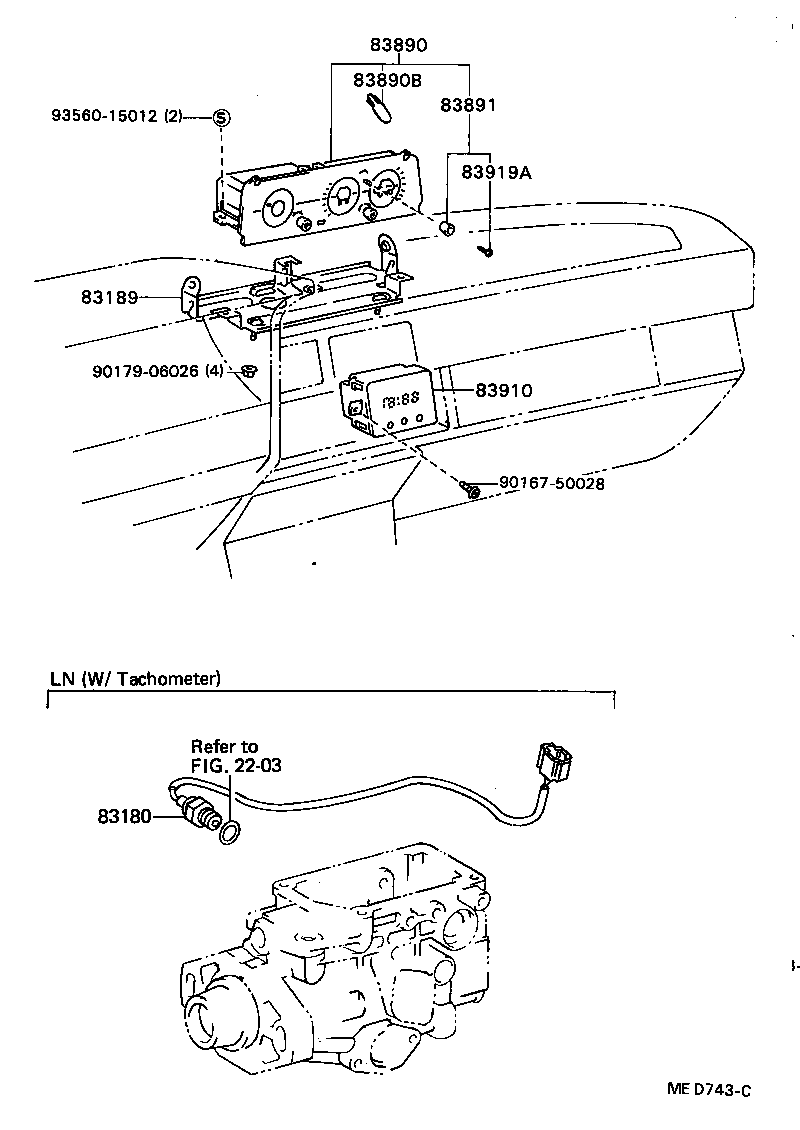

| 83890 | Clinometer Assy |
| 83890B | Bulb, Clinometer |
| 83891 | Knob, Clinometer |
| 83910 | Clock Assy |
| 83919A | Screw (FOR CLINOMETER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
