Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

16 part groups · 3 illustrations

Illustrations

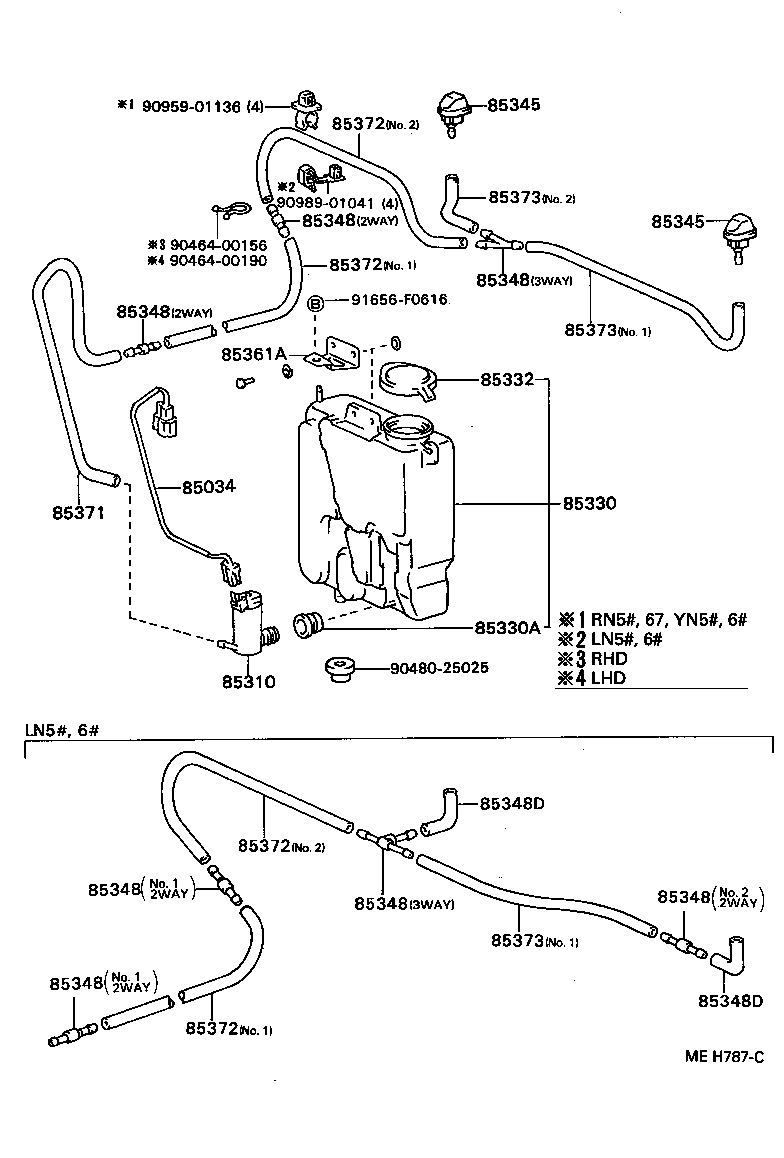

Figure MED797G MED797G 1983-08 → 1986-08 Figure MEH787C MEH787C 1986-08 → — Figure MEK584B MEK584B 1987-12 → 1989-03

Part groups

PNCDescription
85034 Wire, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85333A Filter, Windshield Washer Jar, NO.2
85342 Holder, Washer Nozzle
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85349 Joint, Windshield Washer Hose, NO.1
85361A Bracket, Windshield Washer, NO.1
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
