Heating & Air Conditioning - Cooler Unit

15 part groups · 3 illustrations

Illustrations

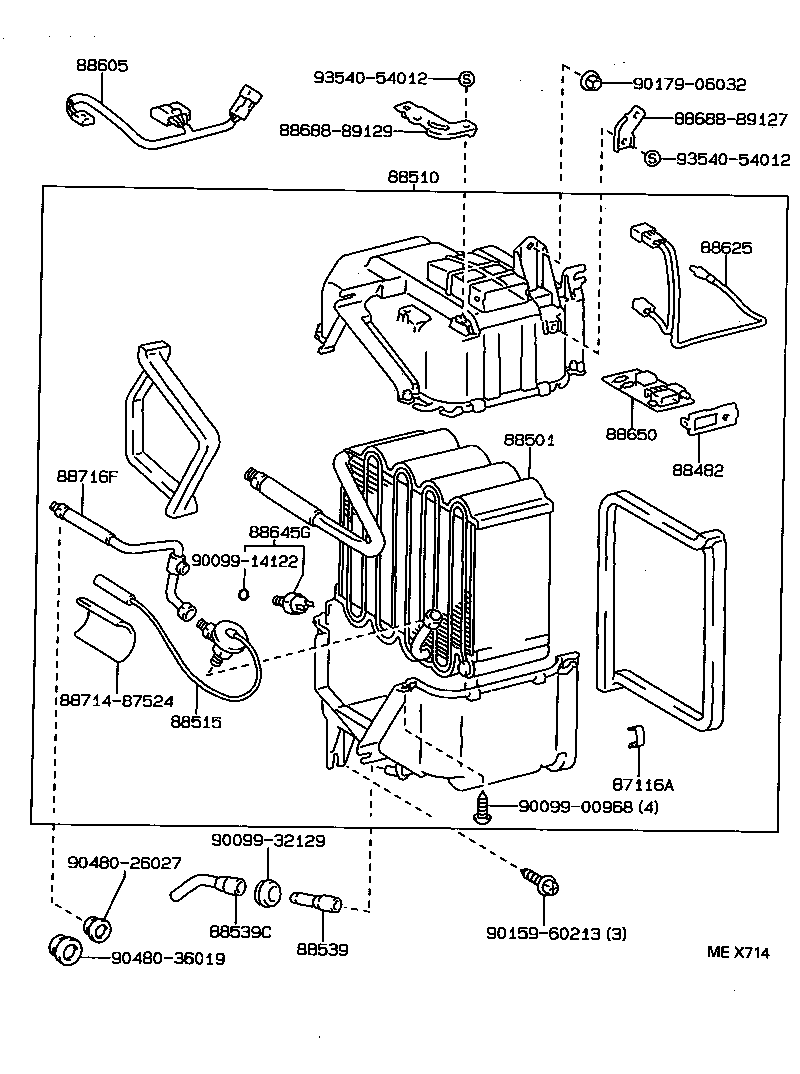

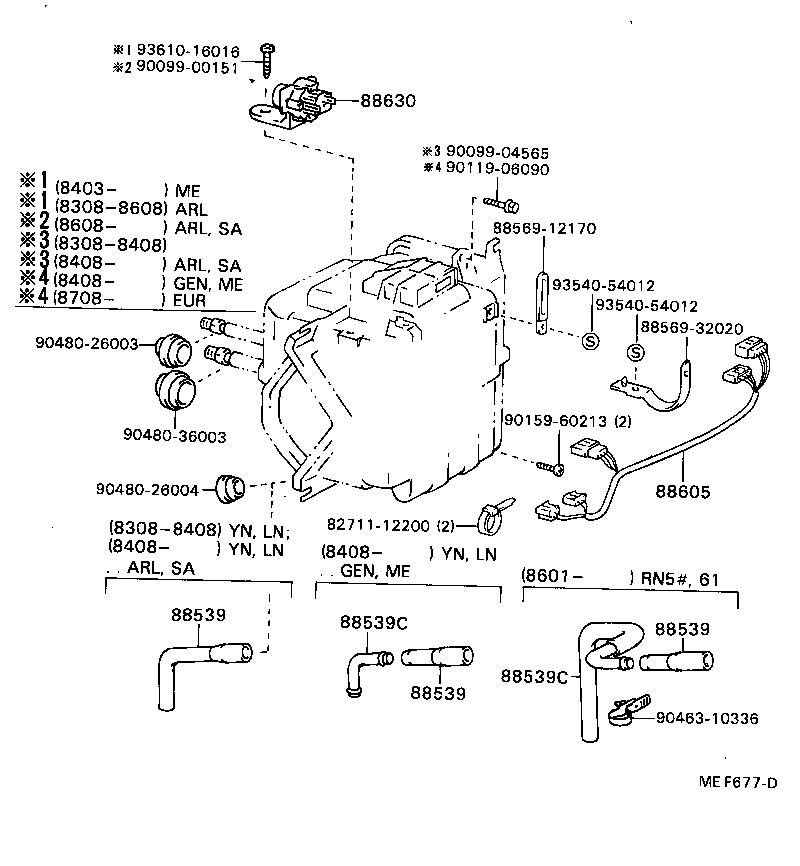

Figure MEE127F MEE127F 1986-01 → — Figure MEF677D MEF677D 1986-01 → — Figure MEX714 MEX714 1994-07 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88521 Case, Cooler Unit
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
