Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

23 part groups · 8 illustrations

Illustrations

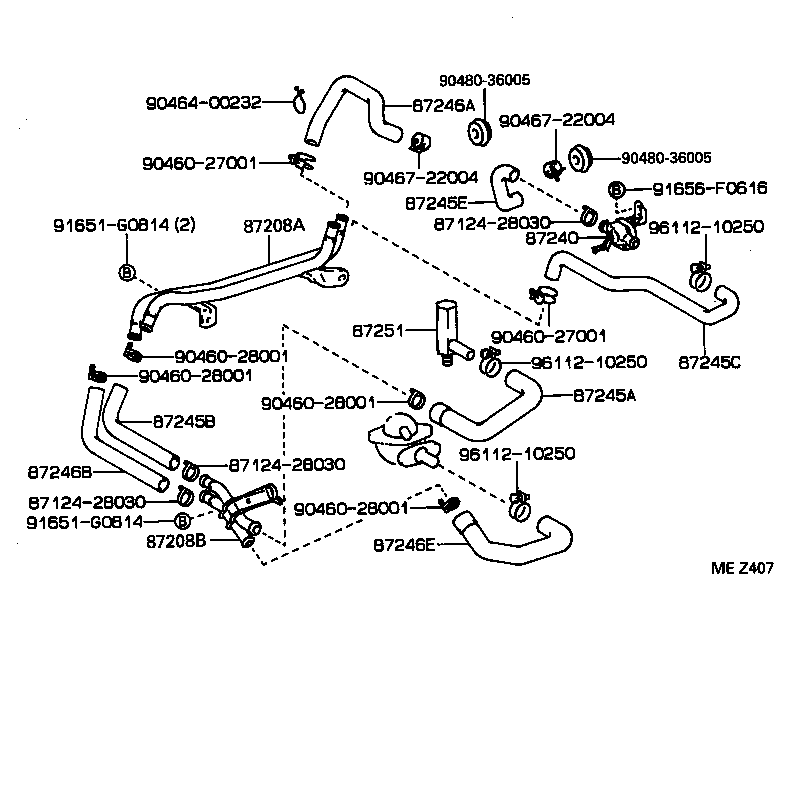

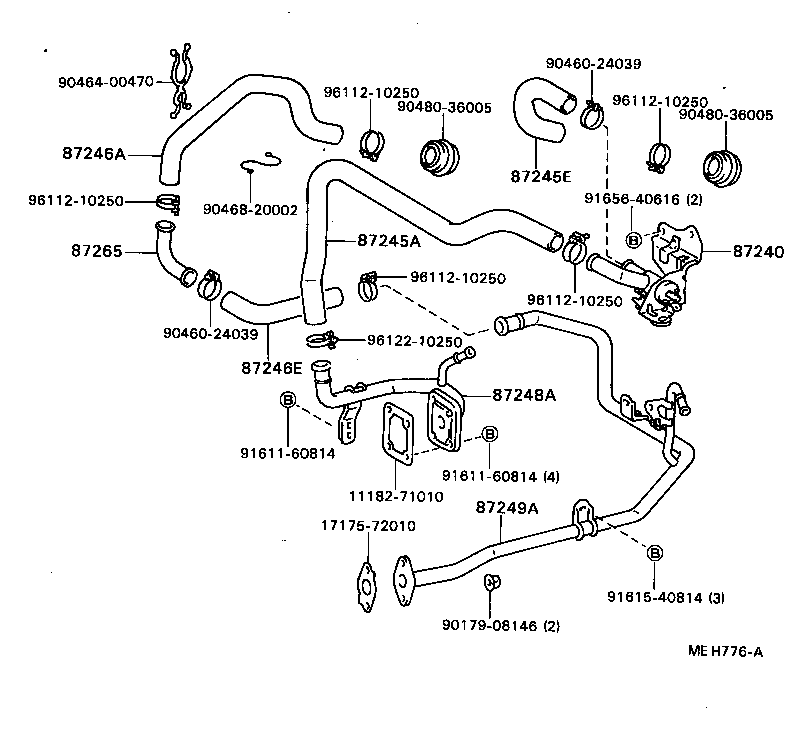

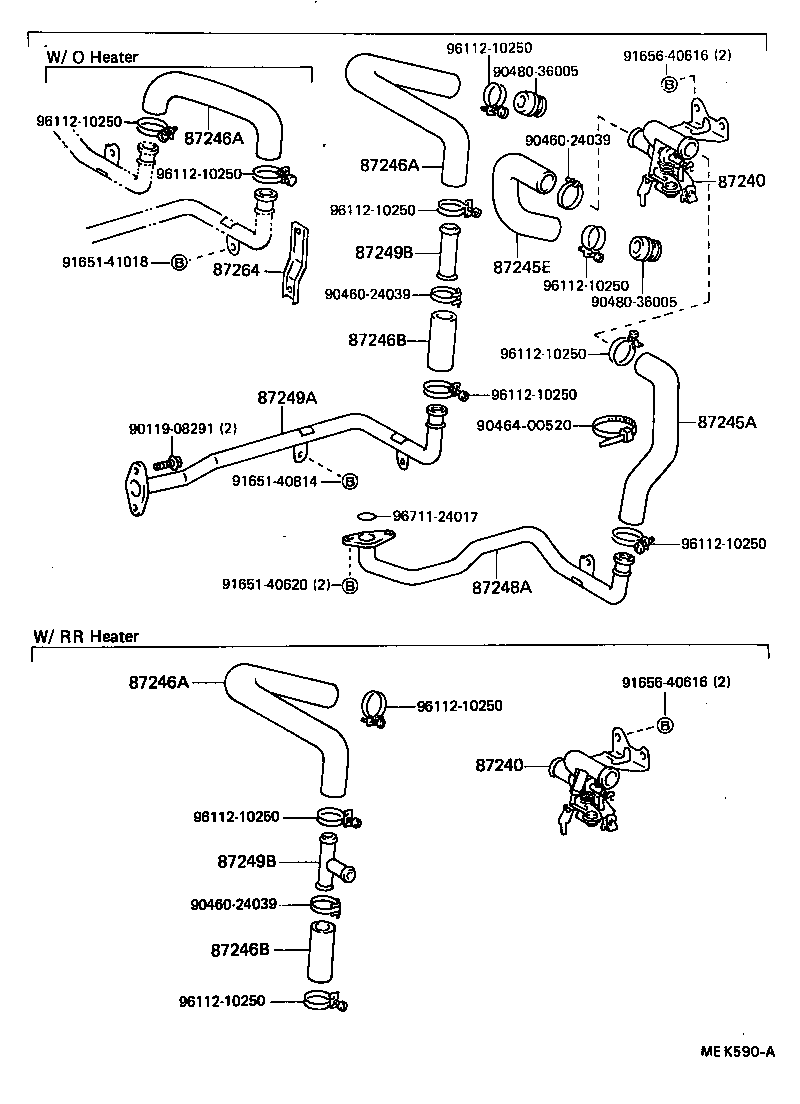

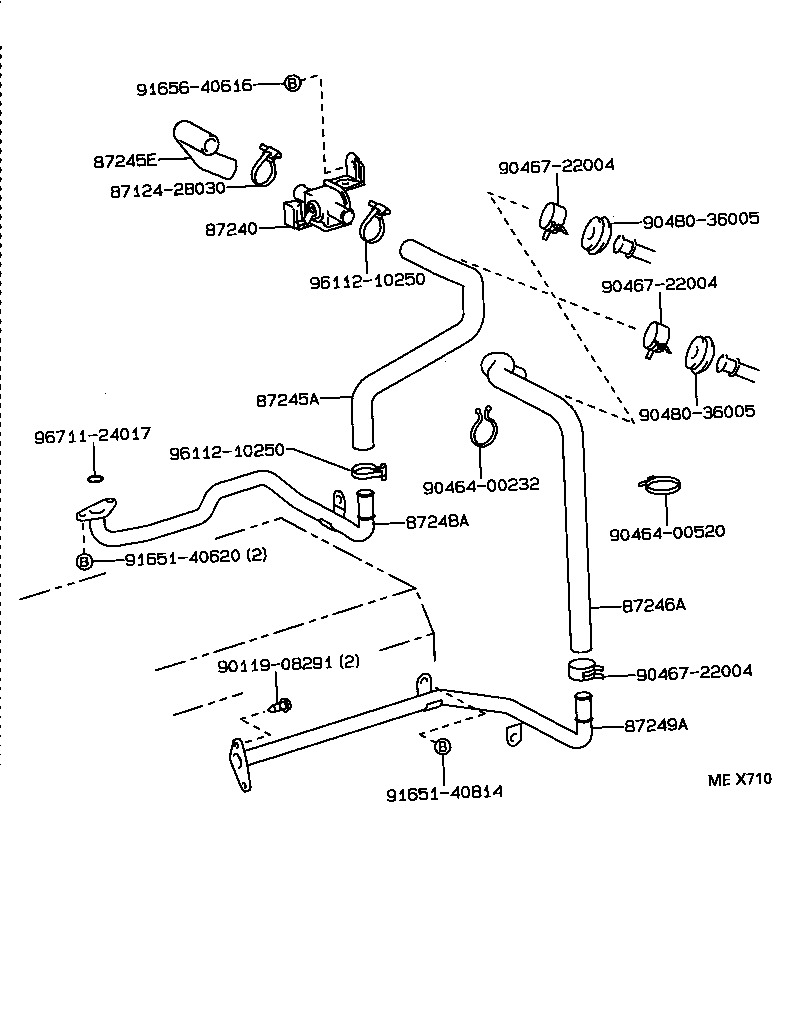

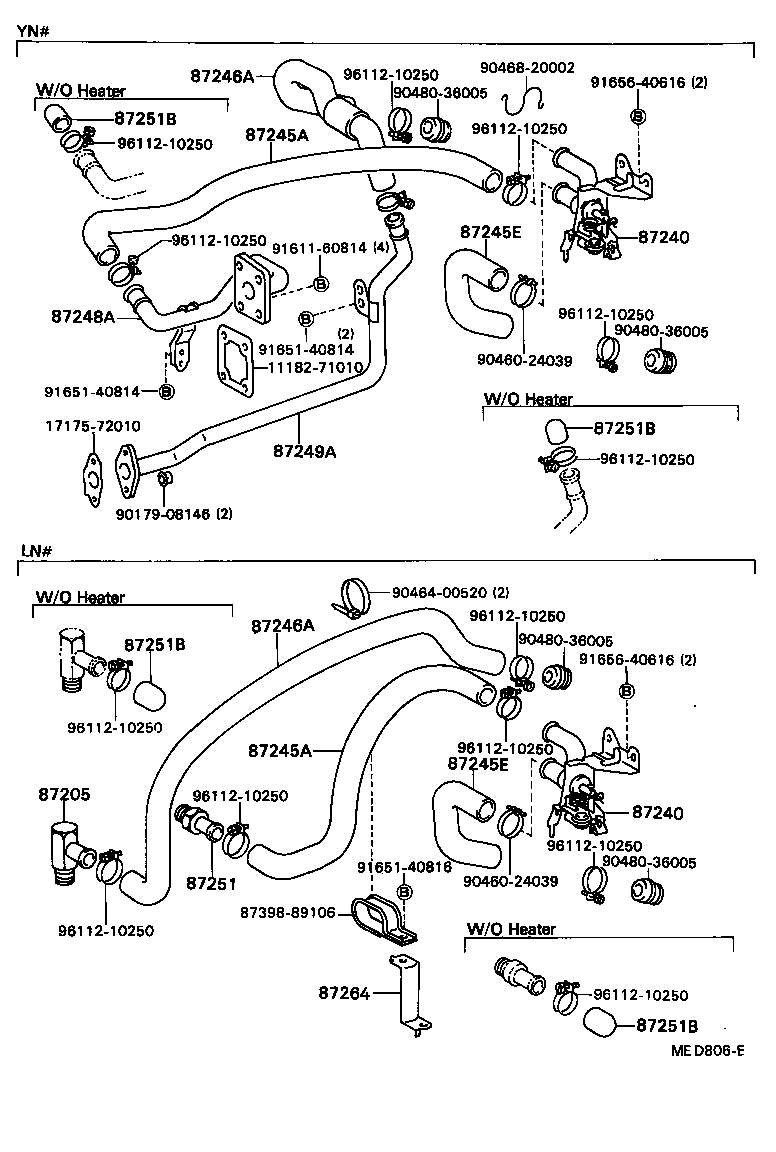

Figure MED805F MED805F 1983-08 → — Figure MEZ406 MEZ406 1983-08 → 1994-07 Figure MEZ407 MEZ407 1994-07 → — Figure MEH776A MEH776A 1986-08 → 1989-03 Figure MEX710 MEX710 1994-07 → — Figure MED806E MED806E 1983-08 → — Figure MEK590A MEK590A 1986-01 → 1989-03 Figure MEE372A MEE372A 1987-12 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87251 Joint OR Union, Water Hose Through
87251B Plug, Heater Water
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87264 Bracket, Heater Water Hose
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
