Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

9 part groups · 11 illustrations

Illustrations

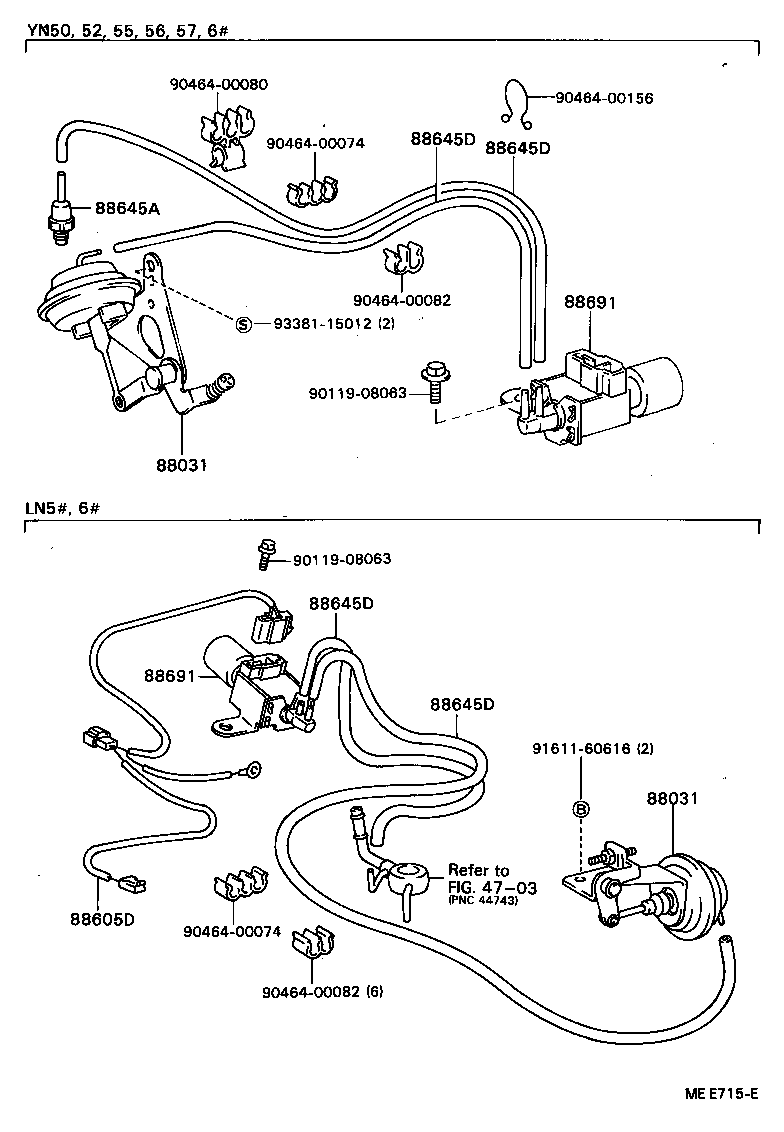

Figure MED807E MED807E 1983-08 → 1984-08 Figure MED807E MED807E 1984-03 → 1984-08 Figure MED807E MED807E 1984-08 → 1986-08 Figure MED807E MED807E 1986-08 → 1988-08 Figure MED807E MED807E 1986-08 → 1989-03 Figure MEE715E MEE715E 1984-03 → 1984-08 Figure MEE715E MEE715E 1984-08 → — Figure MEE715E MEE715E 1987-08 → 1988-08 Figure MEH733B MEH733B 1986-08 → 1989-03 Figure MEH733B MEH733B 1987-12 → 1989-03 Figure MEX715 MEX715 1986-01 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88605D Wire, Air Conditioner
88645A Union (FOR IDLE UP DEVICE)
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88645D Hose (FOR IDLE UP DEVICE)
88689 Hose, Damper Control Diaphragm Vacuum
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
