Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

26 part groups · 22 illustrations

Illustrations

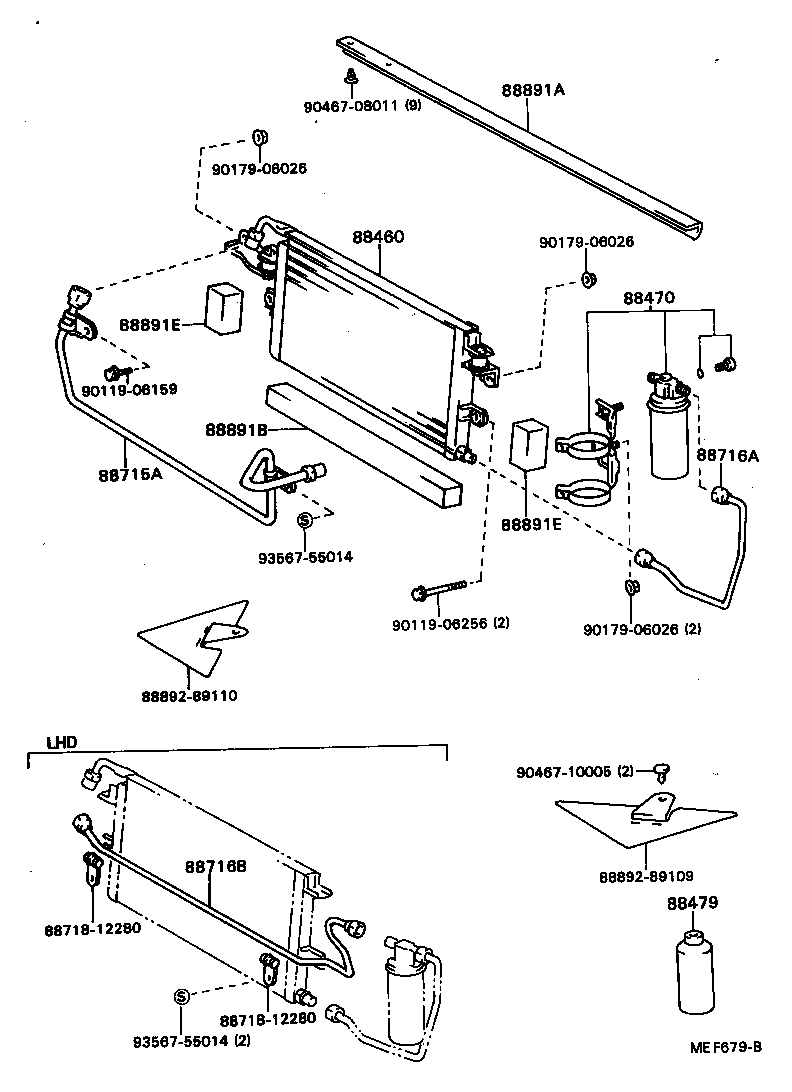

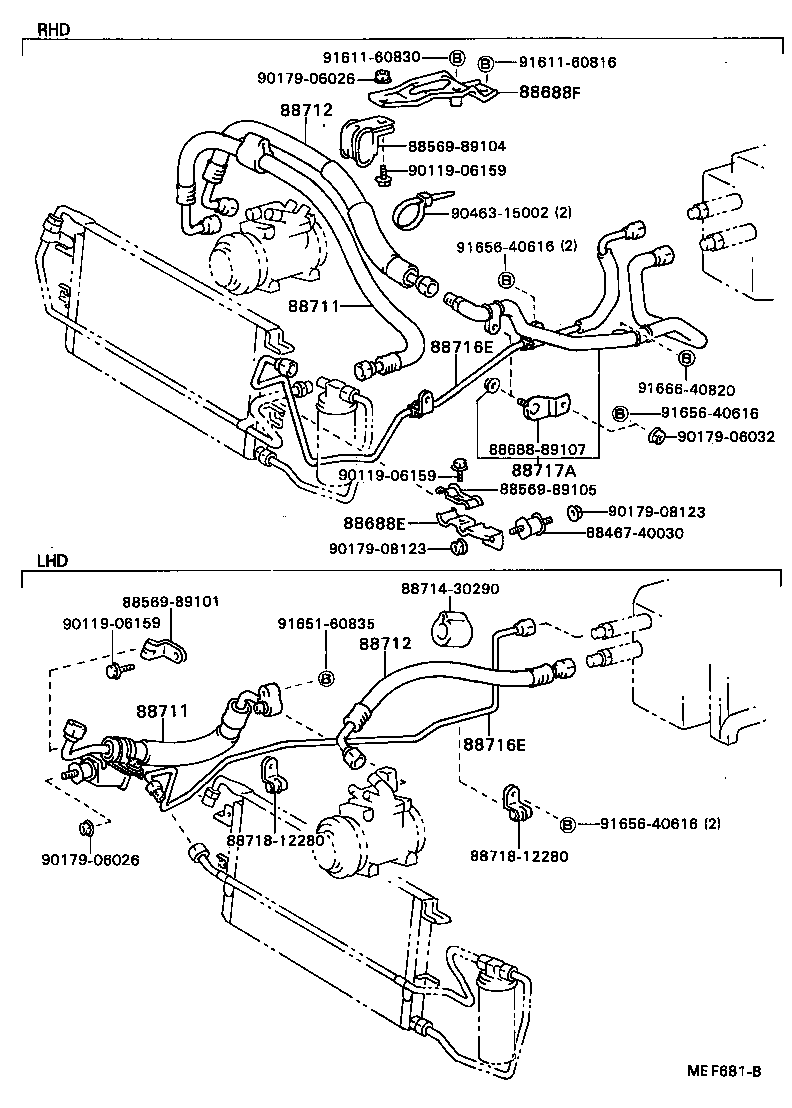

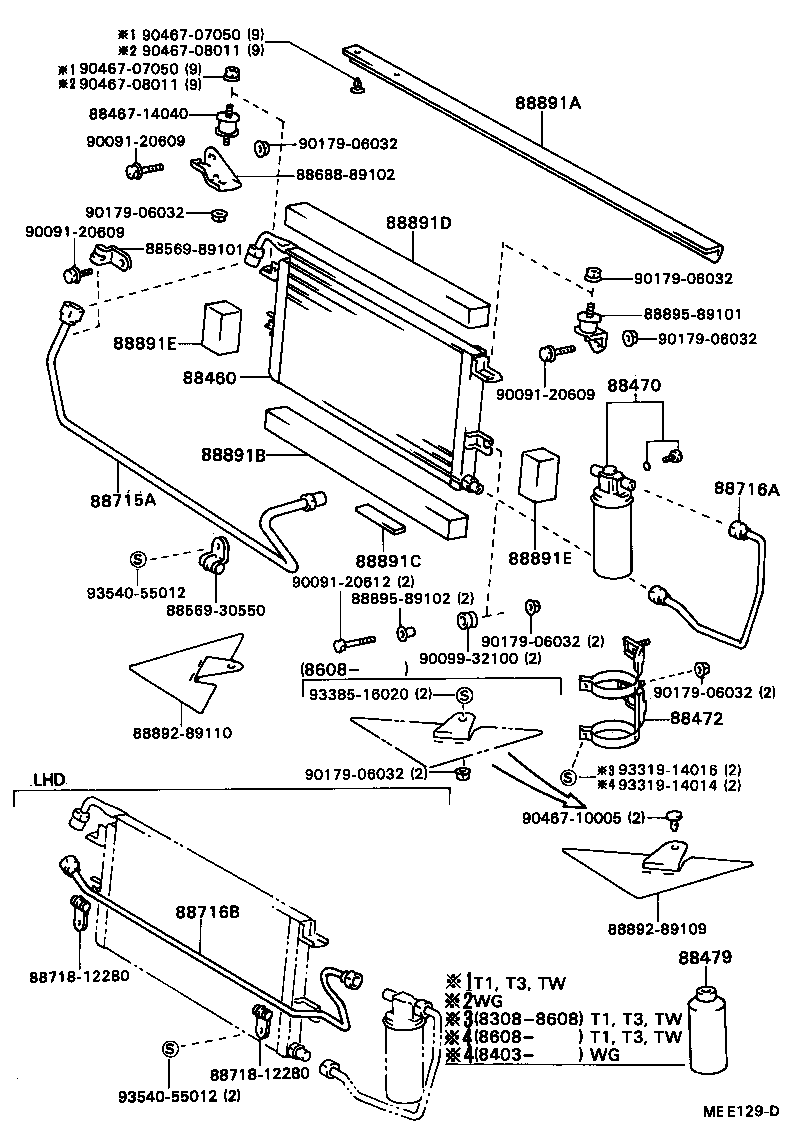

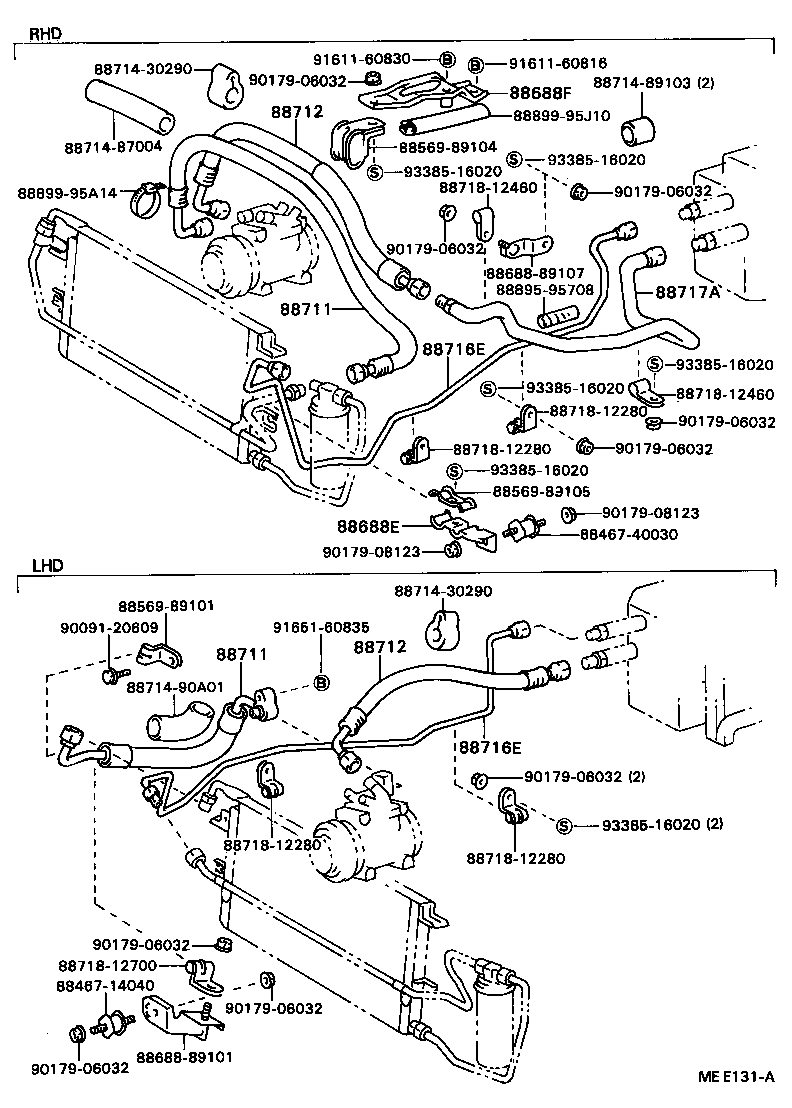

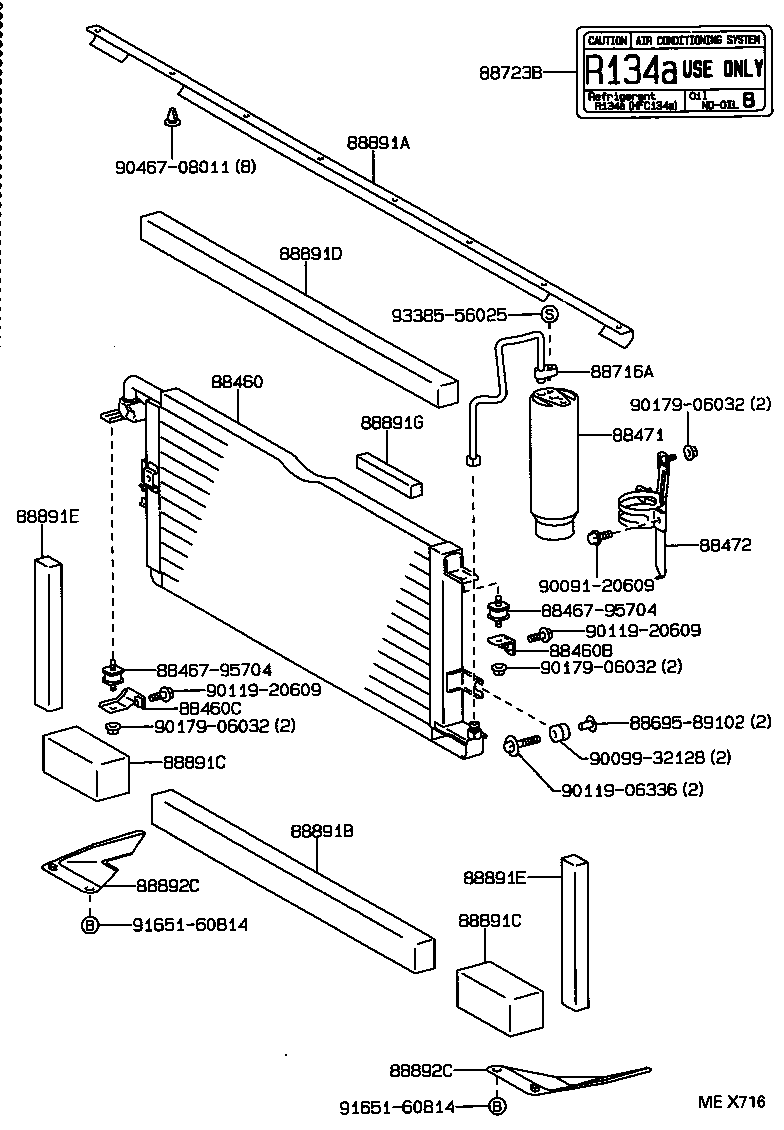

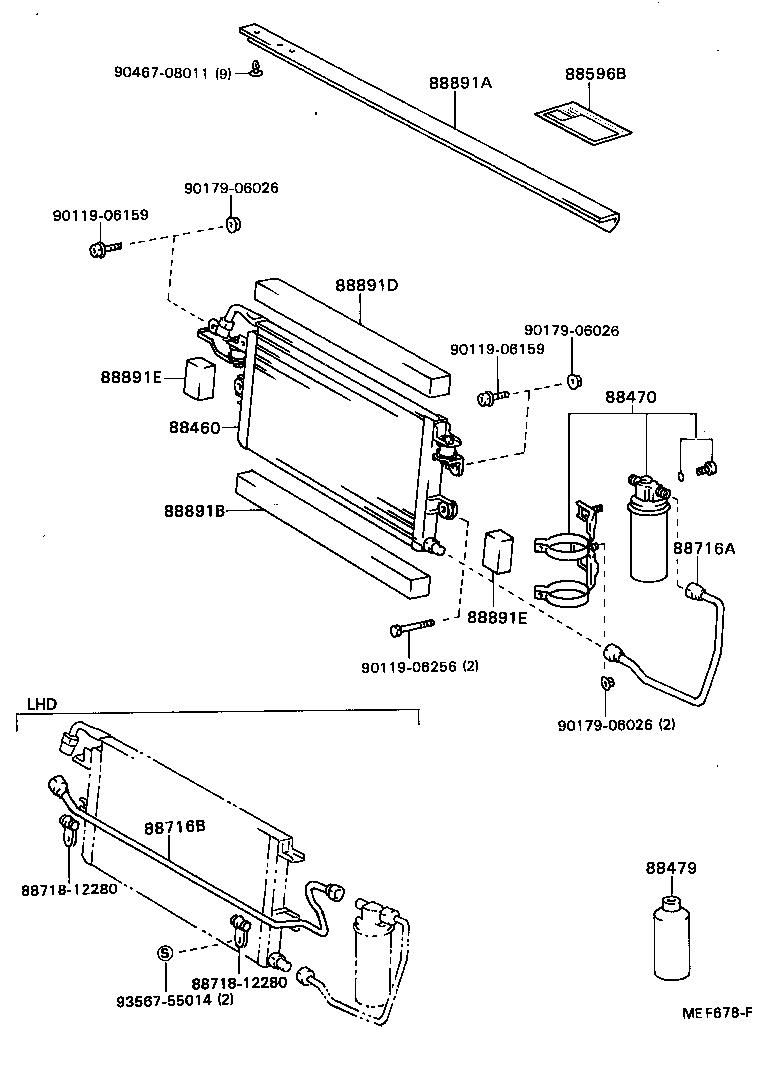

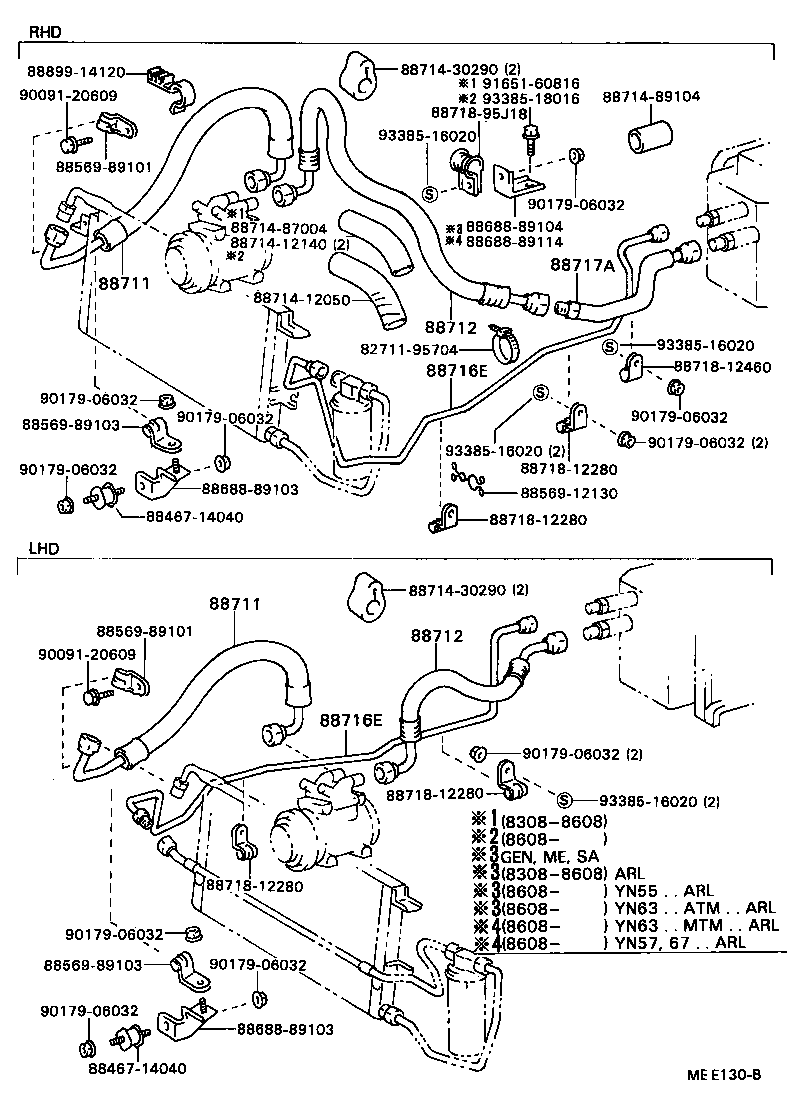

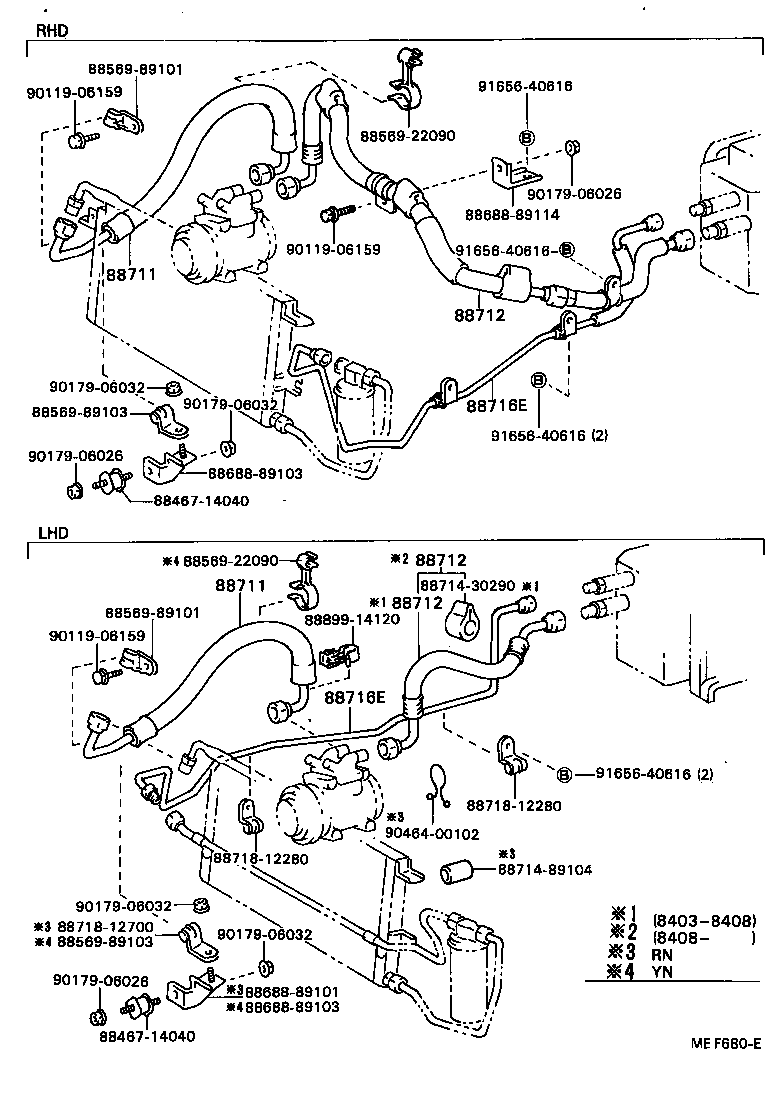

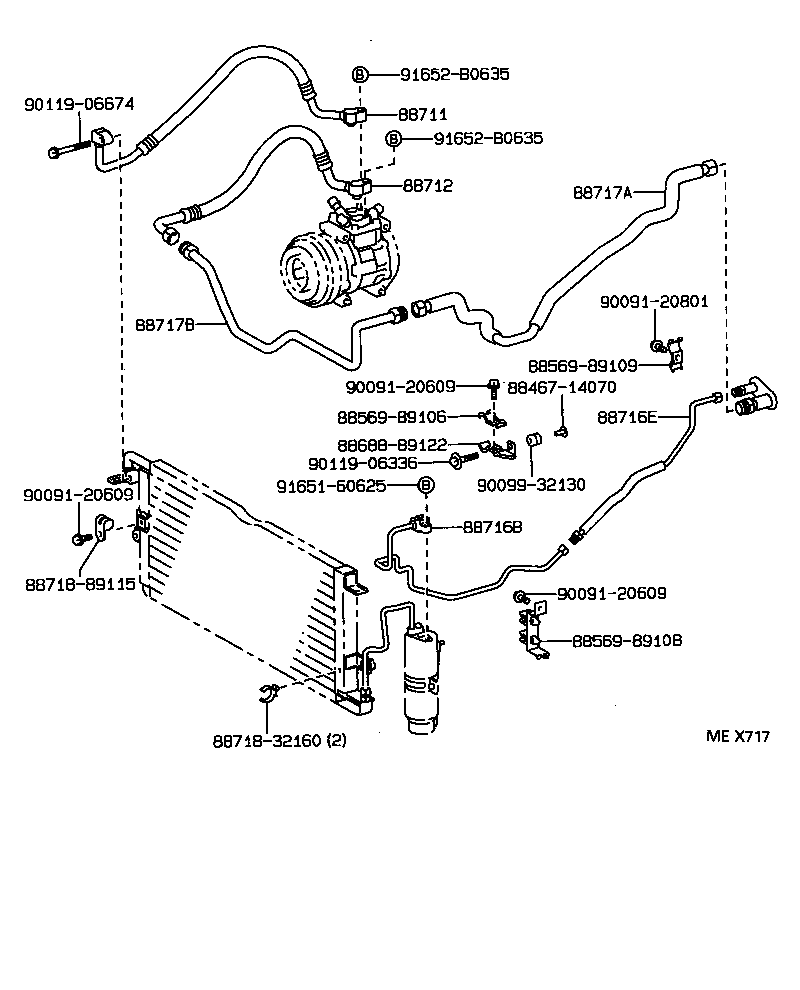

Figure MEE128D MEE128D 1983-08 → 1984-08 Figure MEE128D MEE128D 1984-03 → 1984-08 Figure MEE128D MEE128D 1984-08 → — Figure MEF678F MEF678F 1984-03 → 1984-08 Figure MEF678F MEF678F 1984-08 → — Figure MEF678F MEF678F 1987-08 → 1988-08 Figure MEX716 MEX716 1994-07 → — Figure MEE129D MEE129D 1983-08 → 1984-08 Figure MEE129D MEE129D 1984-08 → — Figure MEF679B MEF679B 1984-08 → — Figure MEF679B MEF679B 1987-08 → 1988-08 Figure MEE130B MEE130B 1983-08 → 1984-08 Figure MEE130B MEE130B 1984-03 → 1984-08 Figure MEE130B MEE130B 1984-08 → — Figure MEF680E MEF680E 1984-03 → 1984-08 Figure MEF680E MEF680E 1984-08 → — Figure MEF680E MEF680E 1987-08 → 1988-08 Figure MEX717 MEX717 1994-07 → — Figure MEE131A MEE131A 1983-08 → 1984-08 Figure MEE131A MEE131A 1984-08 → — Figure MEF681B MEF681B 1984-08 → — Figure MEF681B MEF681B 1987-08 → 1988-08

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88470 Receiver & Dryer Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88596B Plate, Caution, NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88723B Label, Cooler Service Caution
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88891E Packing E (FOR COOLER)
88891G Packing G (FOR COOLER)
88892C Plate, Condenser, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
