Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 5 illustrations

Illustrations

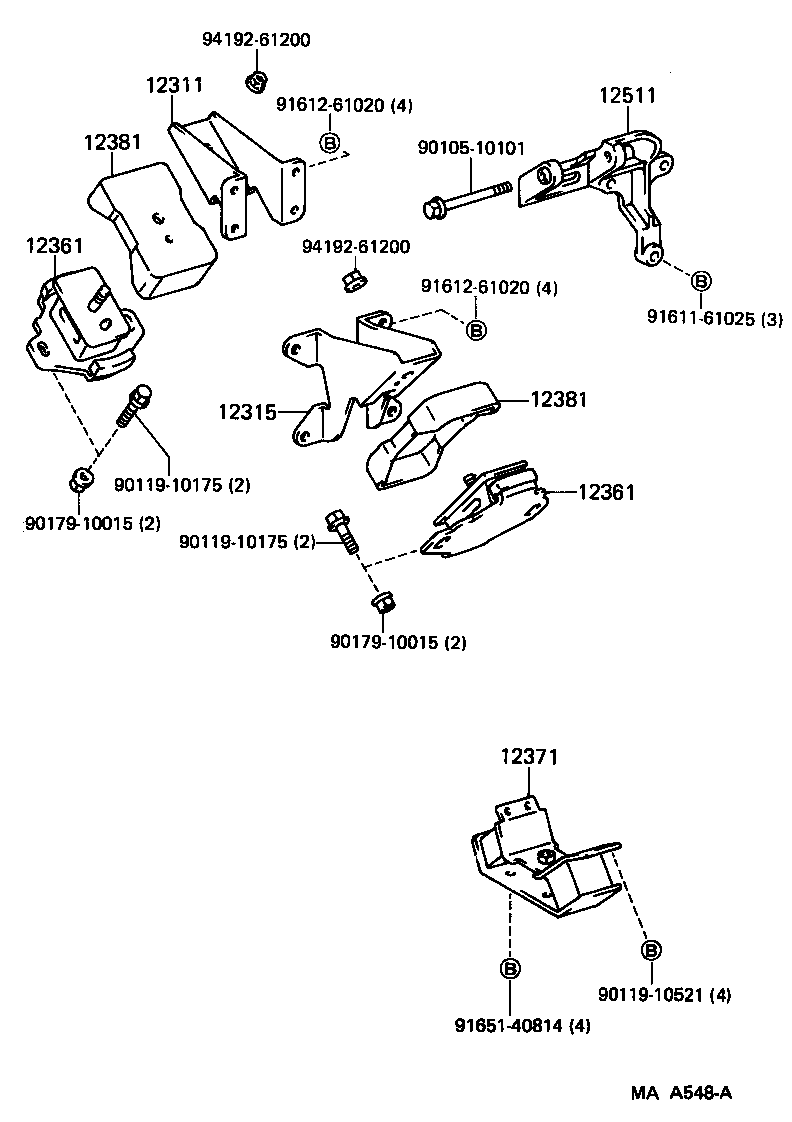

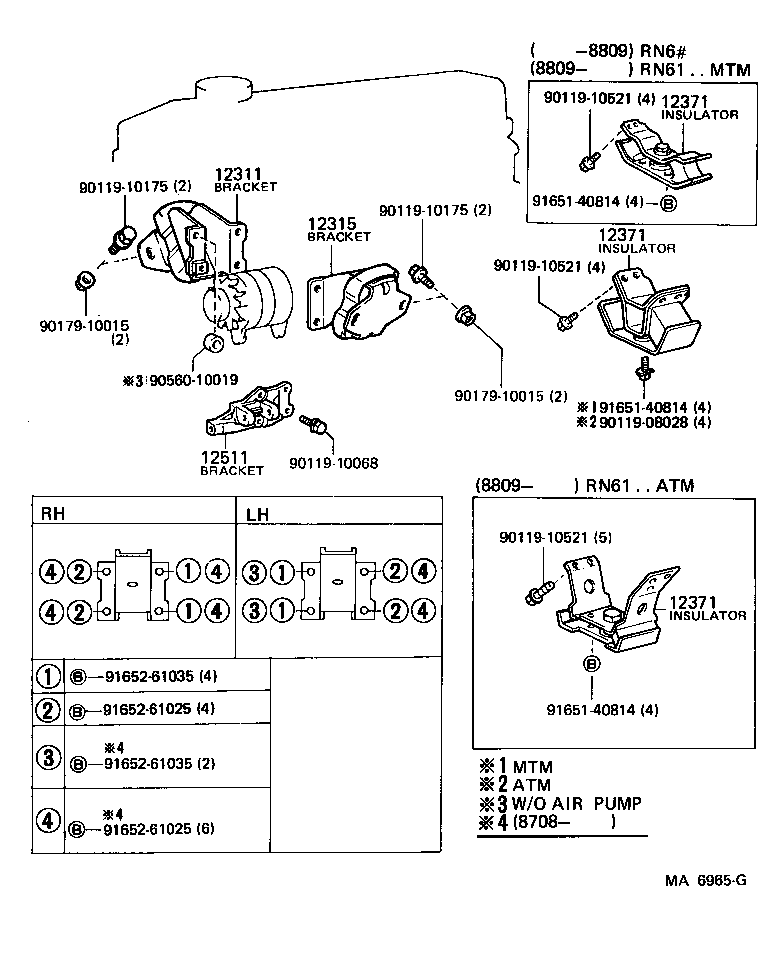

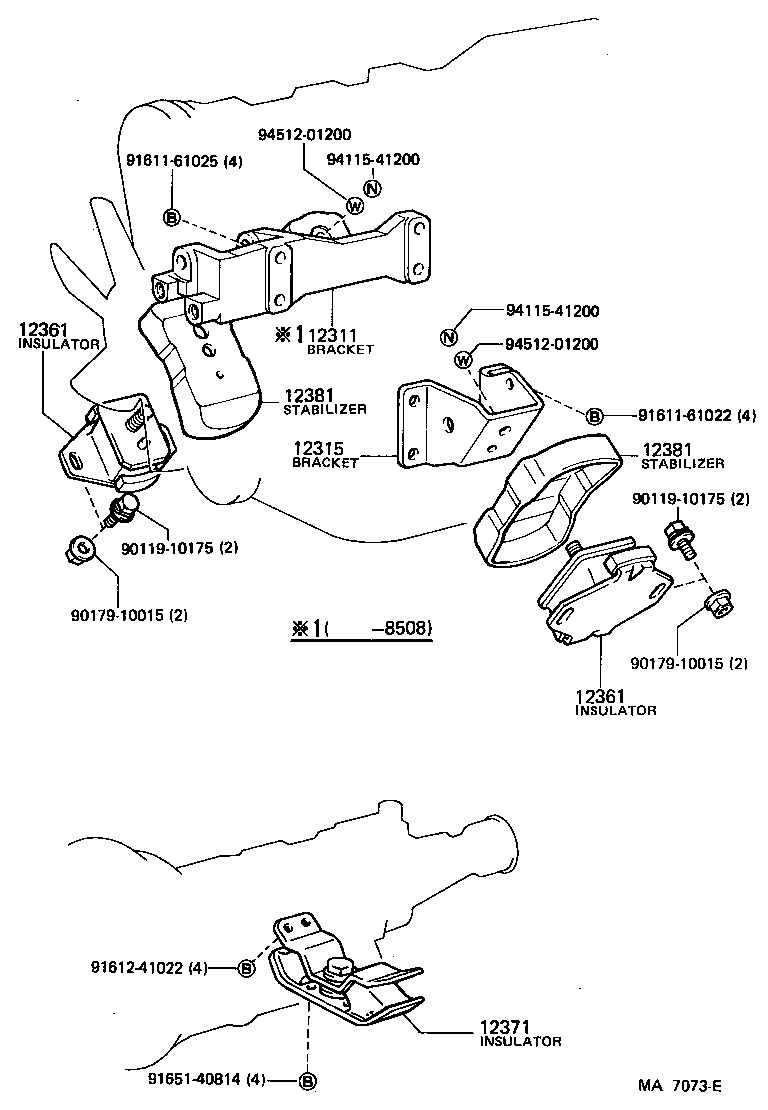

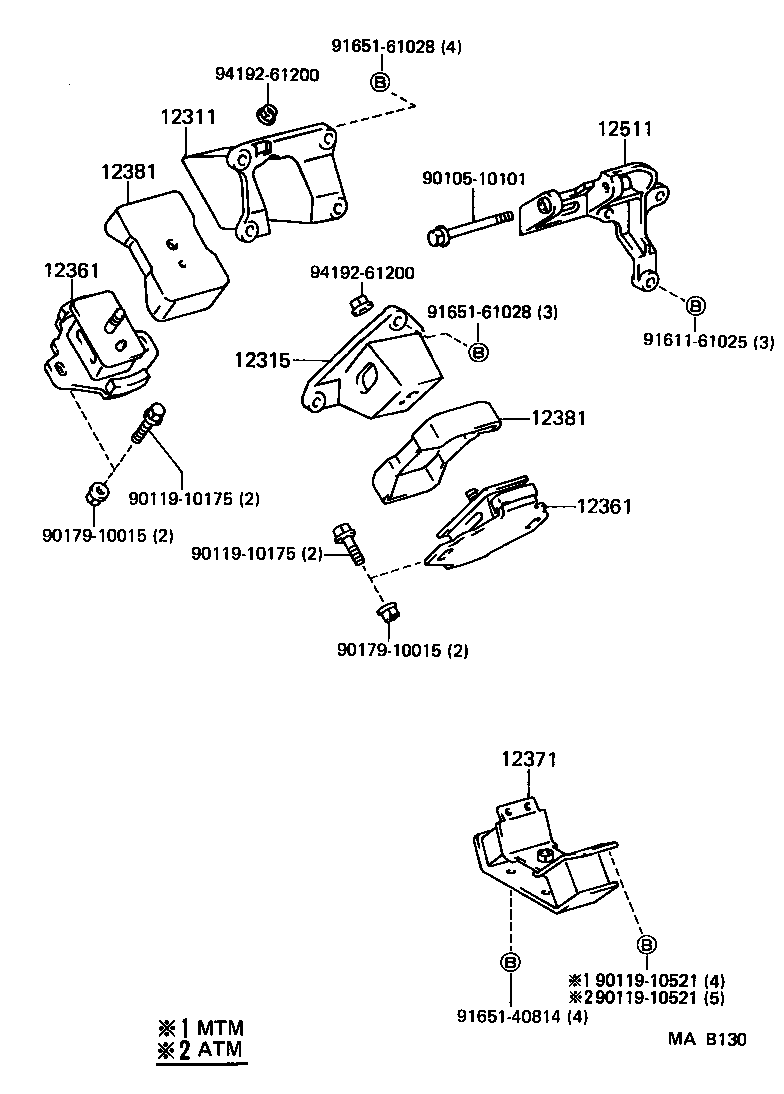

Figure MA7072E MA7072E 1983-08 → 1987-08 Figure MA7073E MA7073E 1983-08 → 1987-08 Figure MA6965G MA6965G 1983-08 → — Figure MAA548A MAA548A 1987-11 → 1988-08 Figure MAB130 MAB130 1988-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12312 Bracket, Engine Mounting, Front NO.2
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12385 Absorber, Engine Mounting, NO.1
12385A Retainer, Shock Absorber Cushion
12385C Cushion, Shock Absorber
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
