Toyota 4-Runner Truck
1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe
Discontinued model
Data version 1989-05

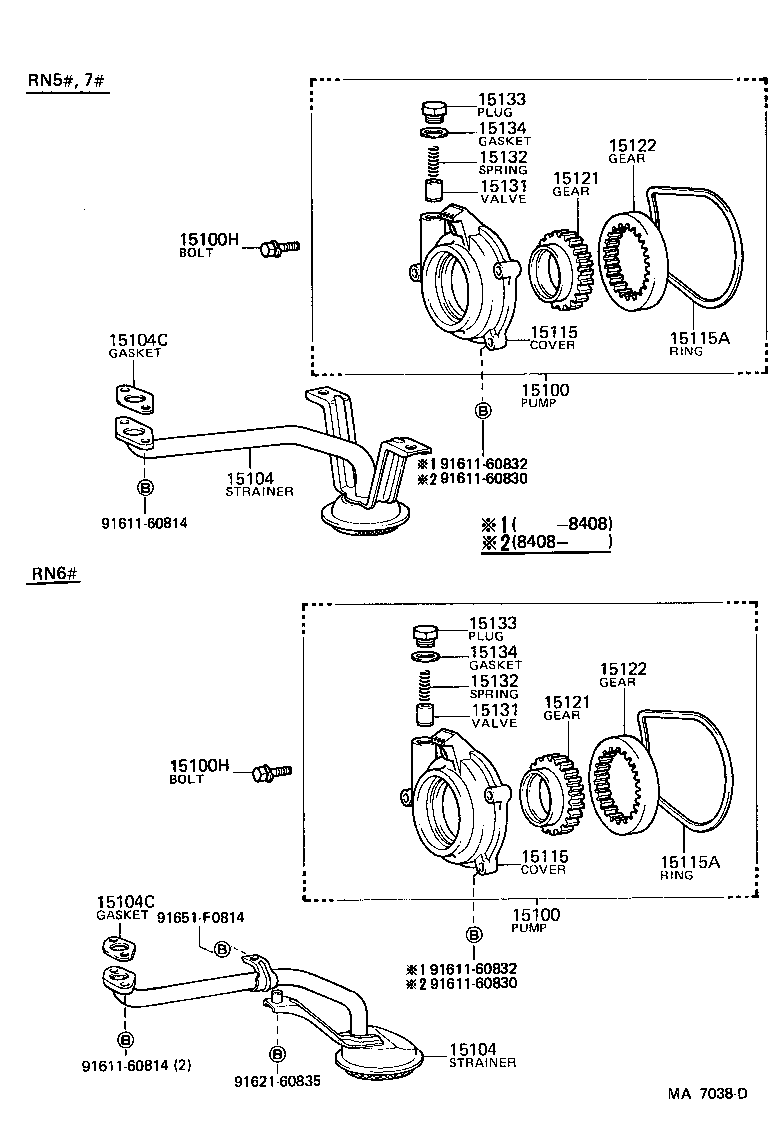

Engine Oil Pump
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 15100 | Pump Assy, Oil |
| 15100C | Seal(FOR OIL PUMP) |
| 15100H | Bolt, Seal |
| 15102 | Rotor Set, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15104C | Gasket(FOR OIL STRAINER) |
| 15104E | Bolt, Stud(FOR OIL STRAINER) |
| 15115 | Cover, Oil Pump |
| 15115A | Ring, O(FOR OIL PUMP COVER) |
| 15121 | Gear, Oil Pump Drive |
| 15122 | Gear, Oil Pump Driven |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15134 | Gasket, Oil Pump Relief Valve |
| 15135 | Retainer, Oil Pump Relief Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
