Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

11 part groups · 6 illustrations

Illustrations

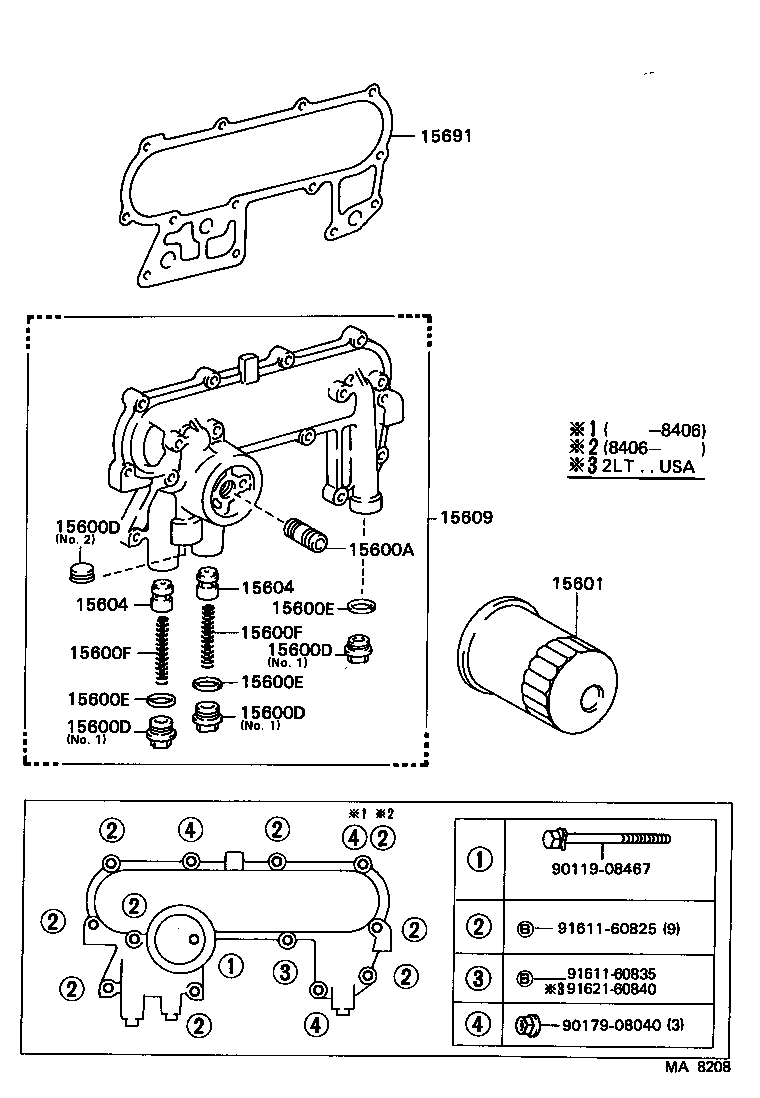

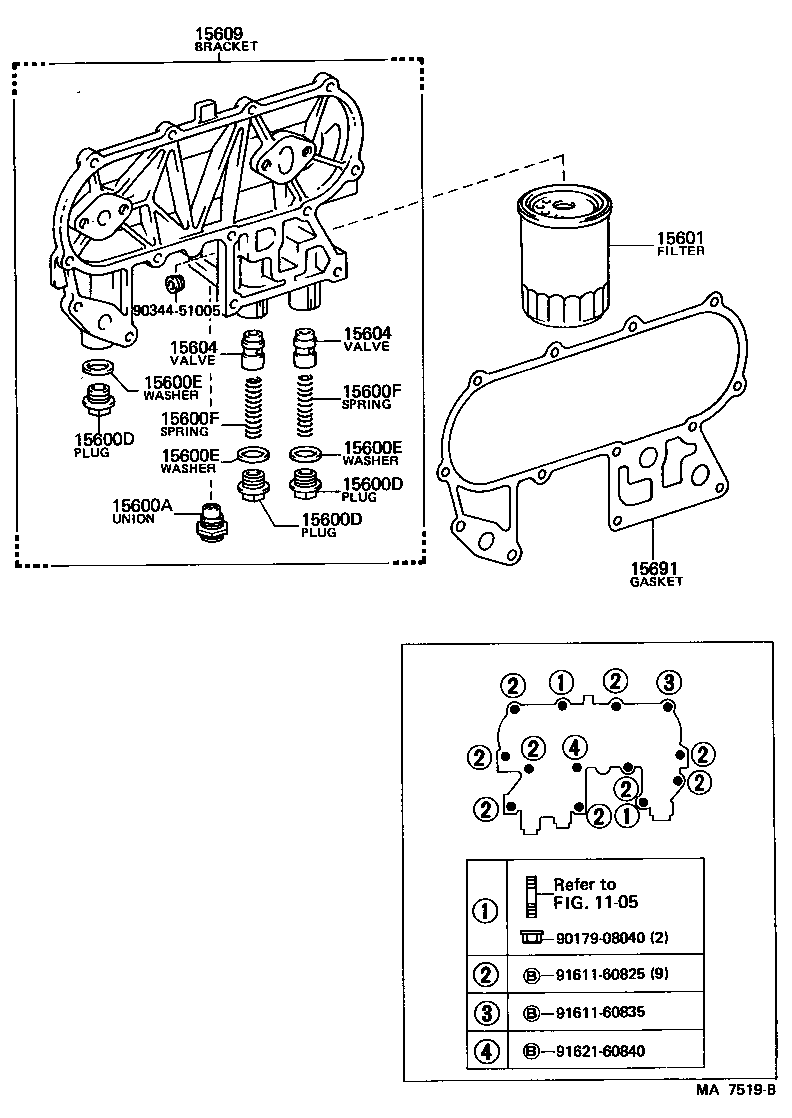

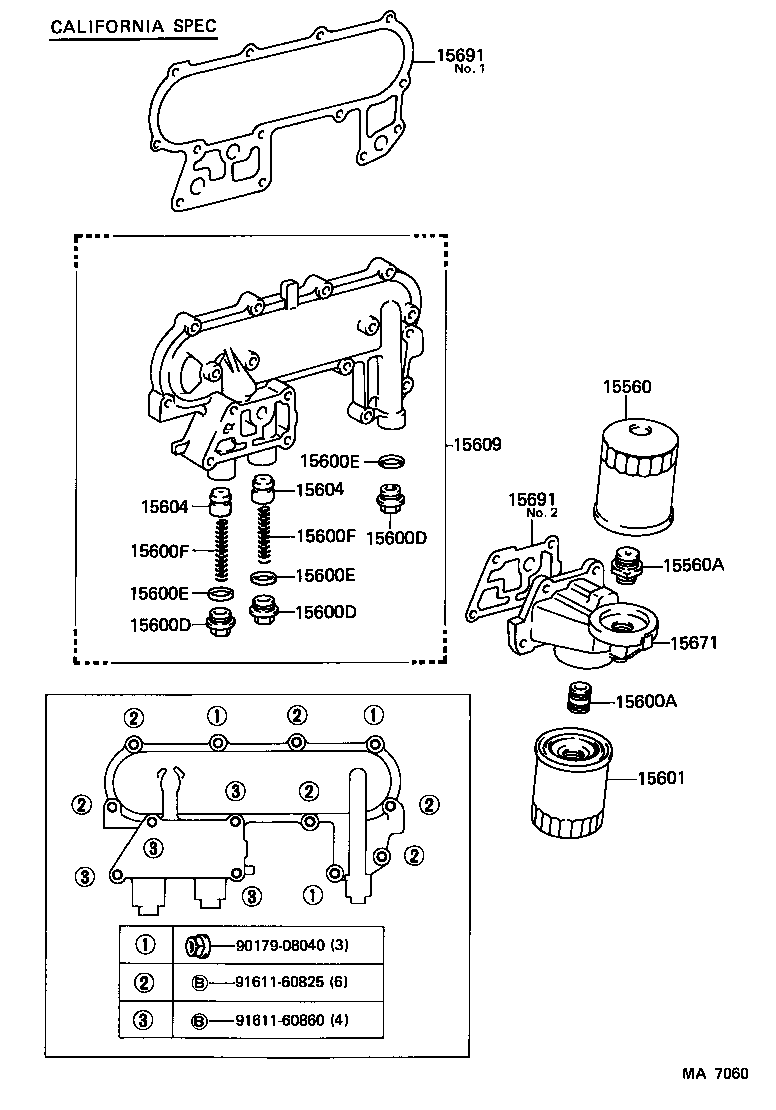

Figure MA6839B MA6839B 1983-08 → 1987-08 Figure MA7519B MA7519B 1984-08 → 1985-08 Figure MA8208 MA8208 1983-08 → 1987-08 Figure MA7060 MA7060 1983-08 → 1984-08 Figure MA8124A MA8124A 1983-08 → — Figure MA8124A MA8124A 1983-08 → —

Part groups

PNCDescription
15560 Filter Assy, By-pass Flow Oil
15560A Union(FOR BY-PASS FLOW OIL FILTER)
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15671 Bracket, Oil Filter
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
