Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Pump

5 part groups · 3 illustrations

Illustrations

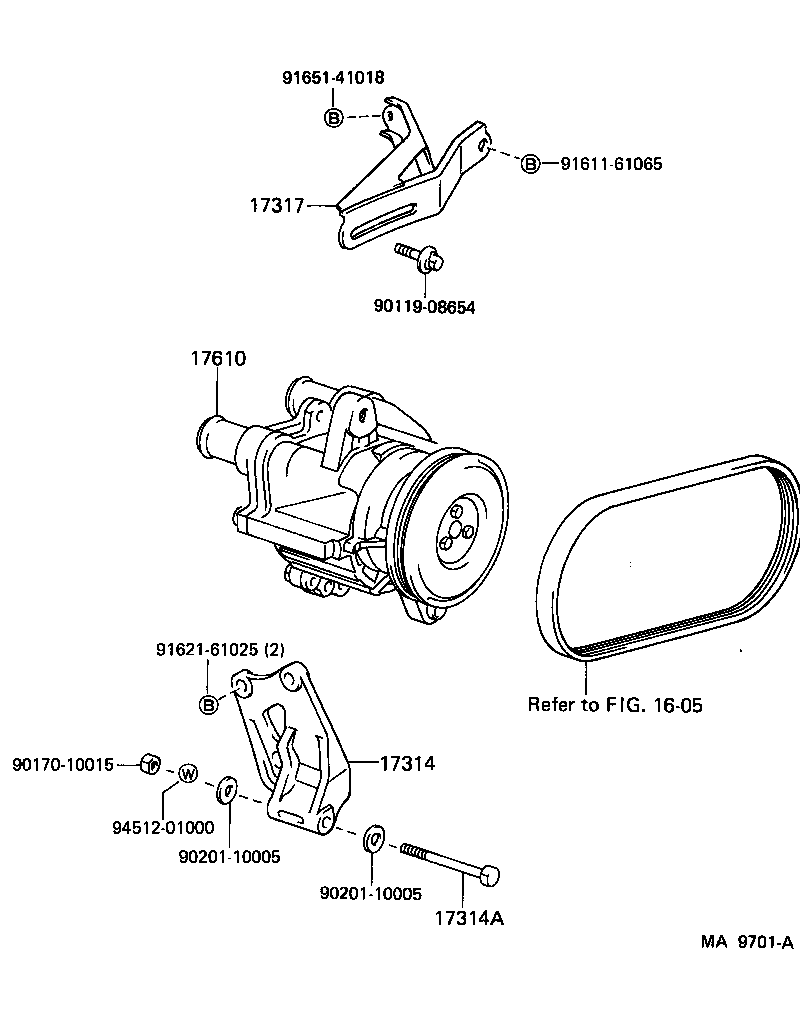

Figure MA7040C MA7040C 1983-08 → 1984-08 Figure MA7040C MA7040C 1984-03 → 1984-08 Figure MA9701A MA9701A 1987-08 → 1988-08

Part groups

PNCDescription
17314 Bracket, Air Pump
17314A Bolt, Hexagon(FOR AIR PUMP BRACKET SETTING)
17317 Bar, Air Pump Adjusting, NO.1
17610 Pump Assy, Air
17615 Pulley(FOR AIR PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
