Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

23 part groups · 9 illustrations

Illustrations

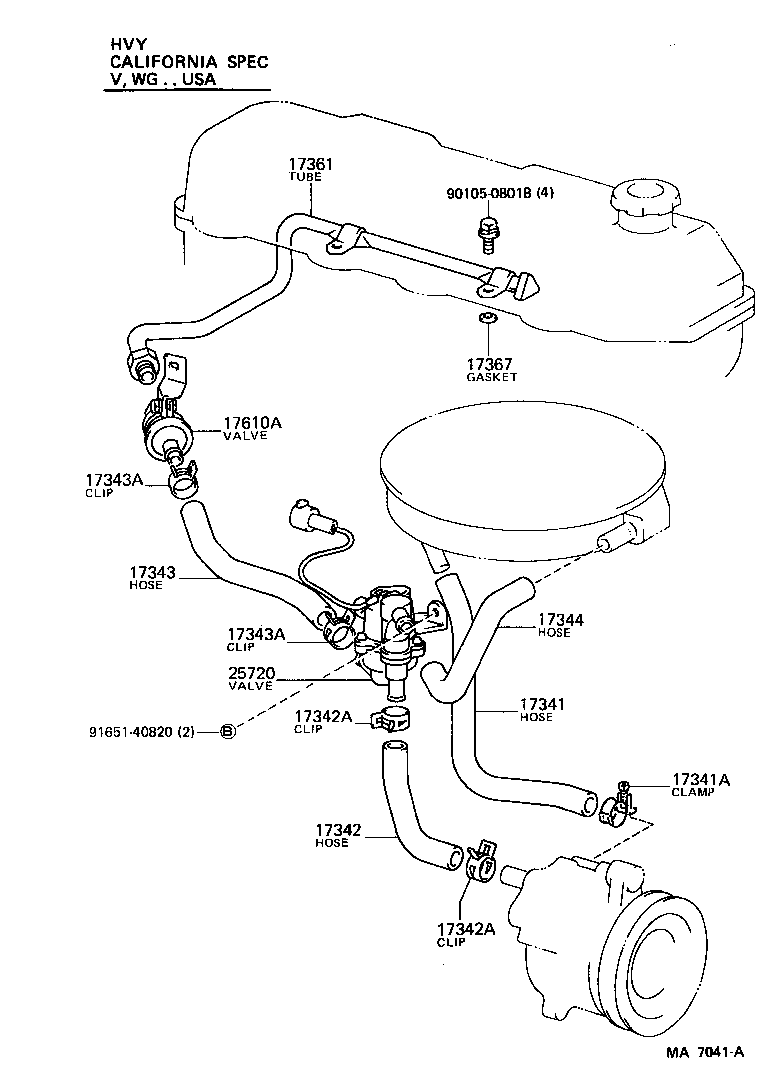

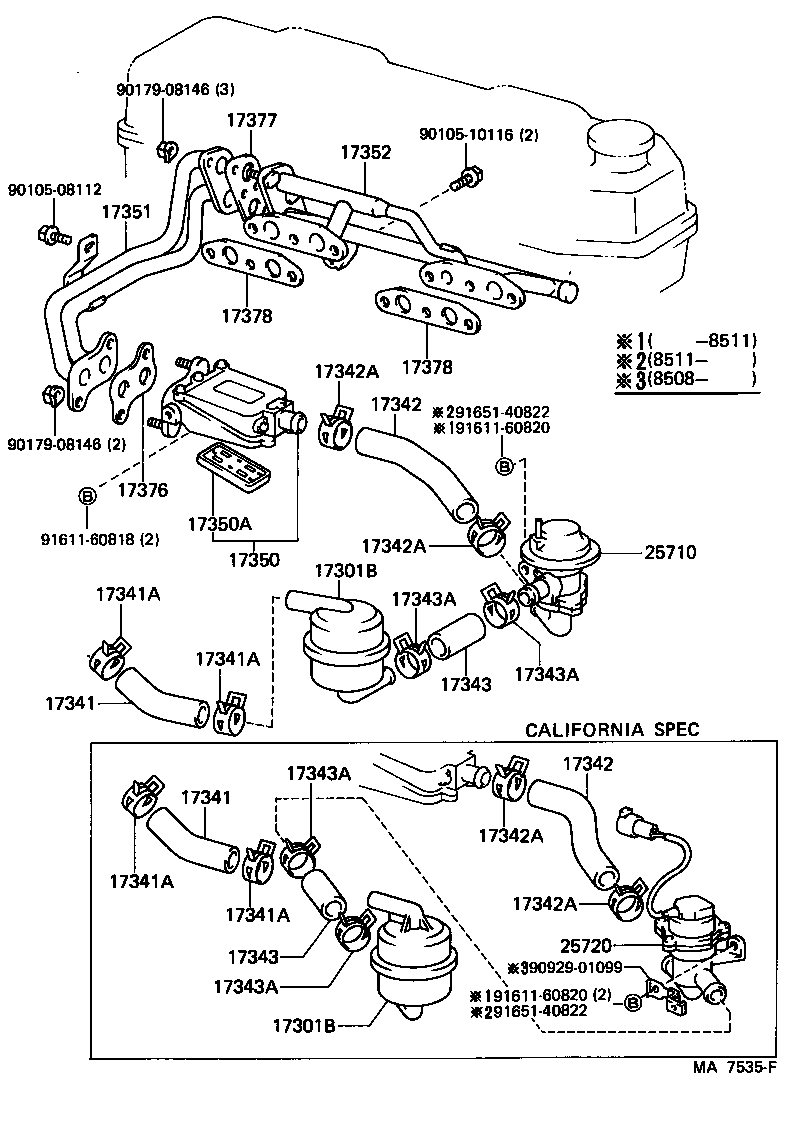

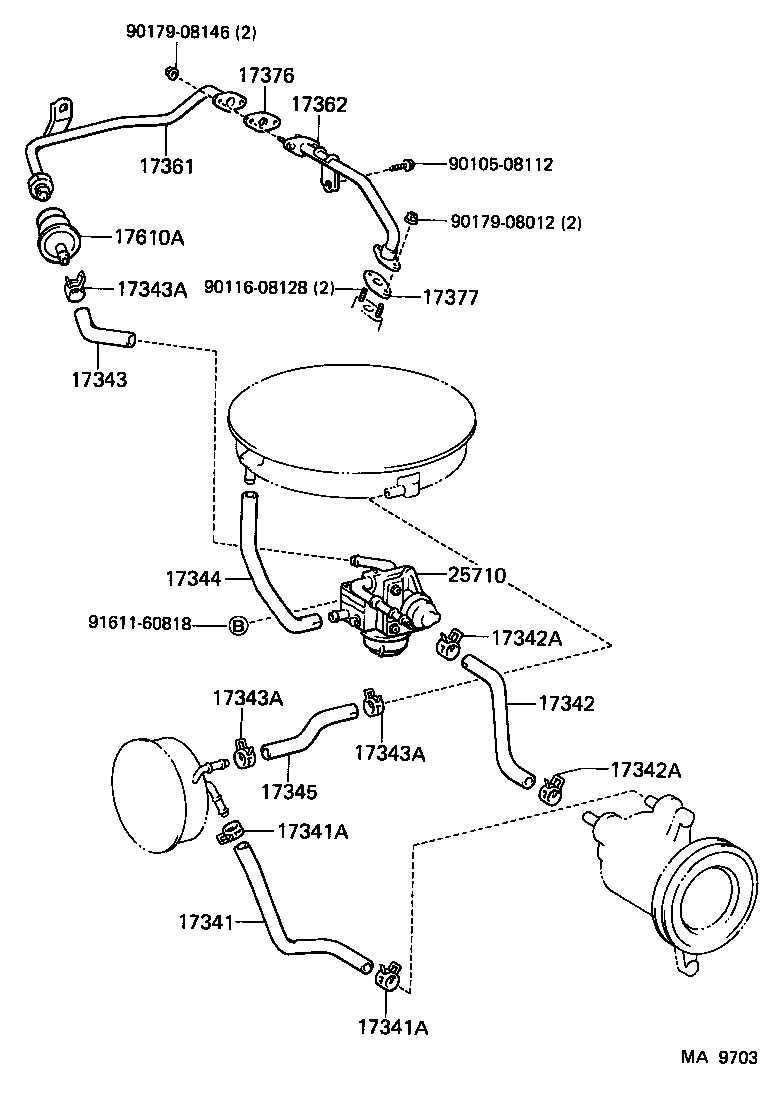

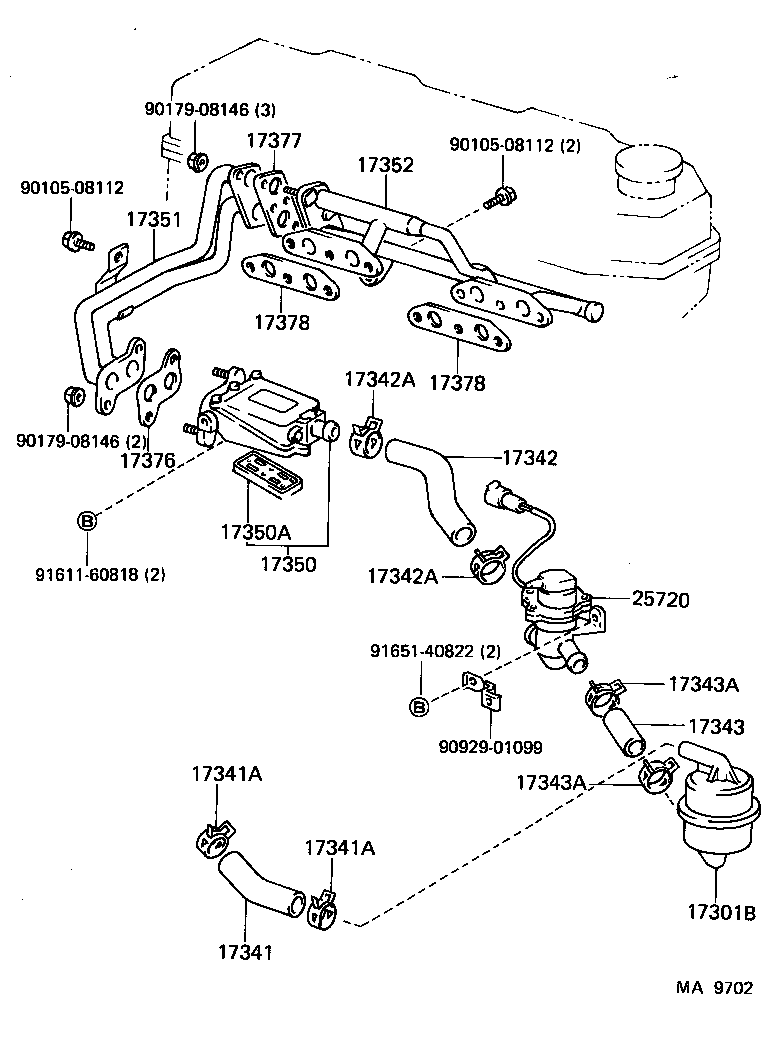

Figure MA6168 MA6168 1983-08 → 1984-08 Figure MA6168 MA6168 1984-03 → 1984-08 Figure MA7041A MA7041A 1983-08 → 1984-08 Figure MA7041A MA7041A 1984-03 → 1984-08 Figure MA7535F MA7535F 1984-08 → 1987-08 Figure MA9702 MA9702 1987-08 → 1988-08 Figure MA9703 MA9703 1987-08 → 1988-08 Figure MA9704B MA9704B 1987-08 → — Figure MAA558 MAA558 1987-11 → —

Part groups

PNCDescription
17301B Silencer Sub-assy, Air Suction
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17345 Hose, NO.5(FOR AIR INJECTION SYSTEM)
17350 Valve Assy, Reed
17350A Valve Sub-assy, Reed
17351 Manifold, Air Injection
17352 Manifold, Air Injection, NO.2
17361 Tube, Air
17362 Tube, Air, NO.2
17367 Gasket, Air Tube
17376 Gasket, Air Tube, NO.1
17377 Gasket, Air Tube, NO.2
17378 Gasket Air Tube, NO.3
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
17802 Bracket Sub-assy, Resonator
25710 Valve Assy, Air Switching
25720 Valve Assy, Electric Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
