Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

28 part groups · 32 illustrations

Illustrations

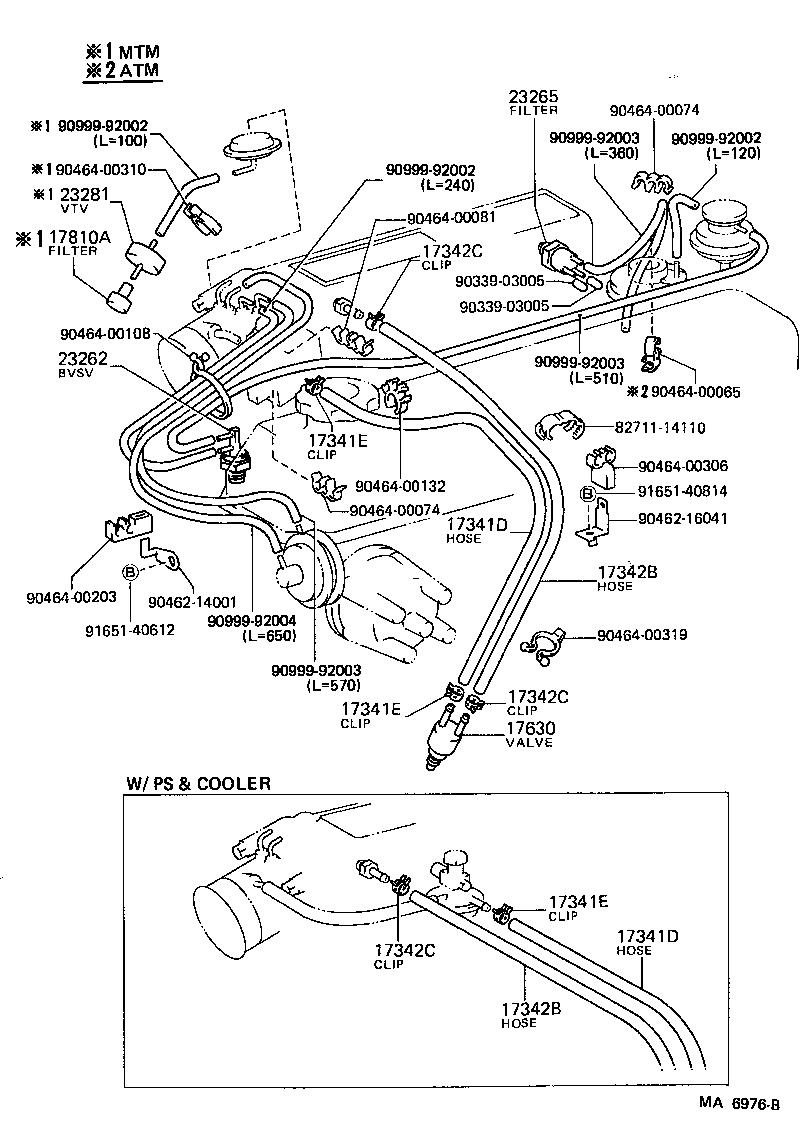

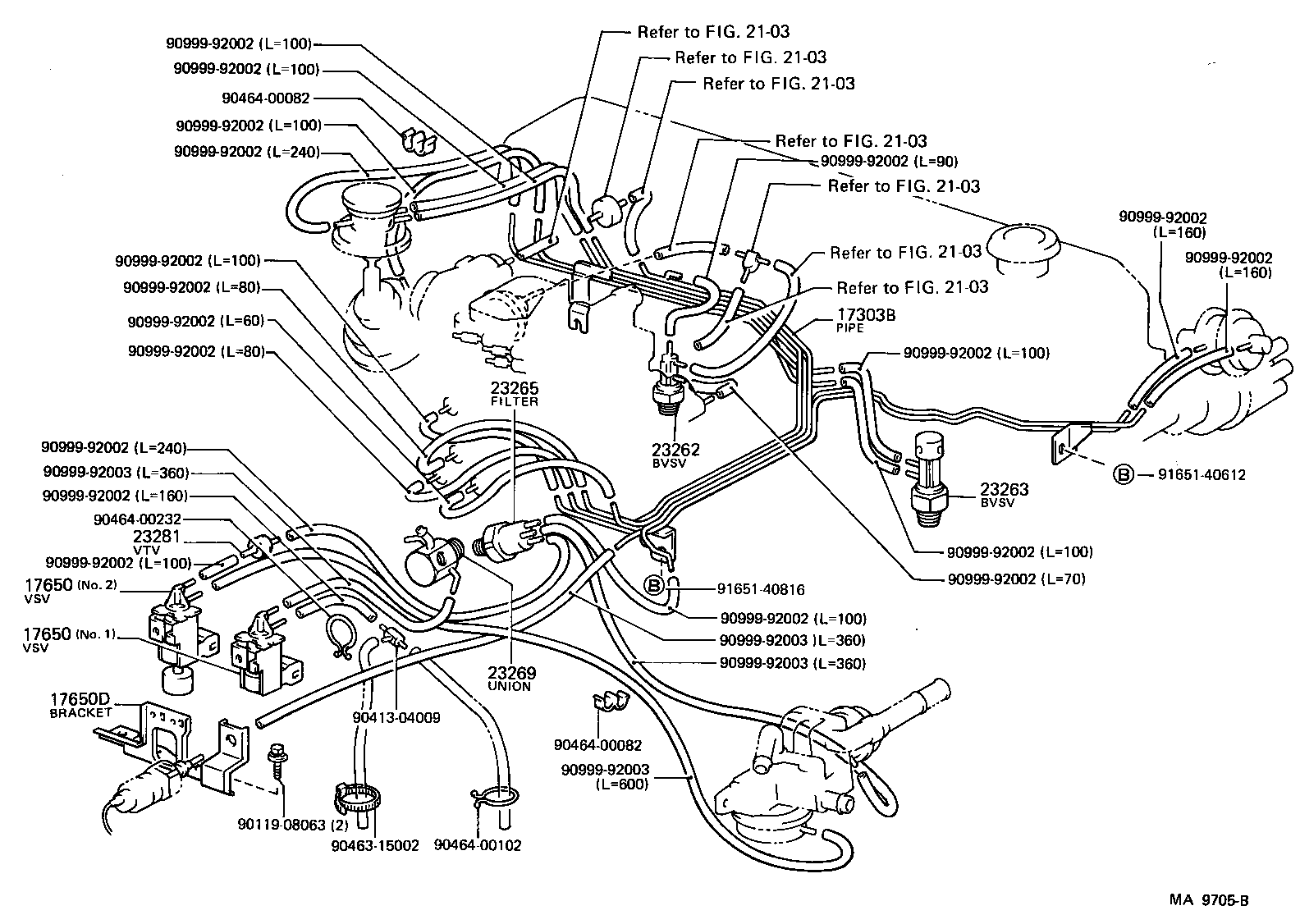

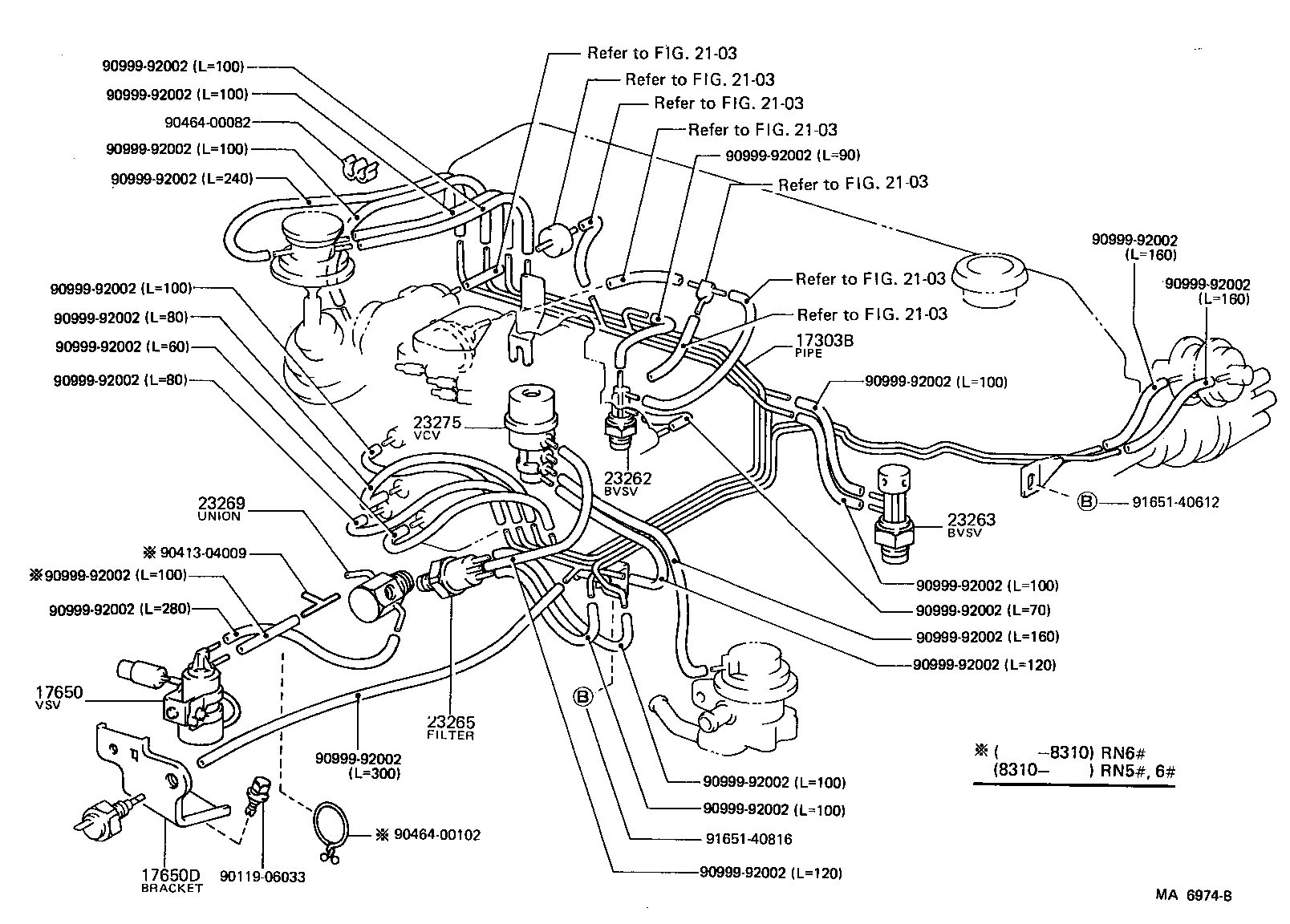

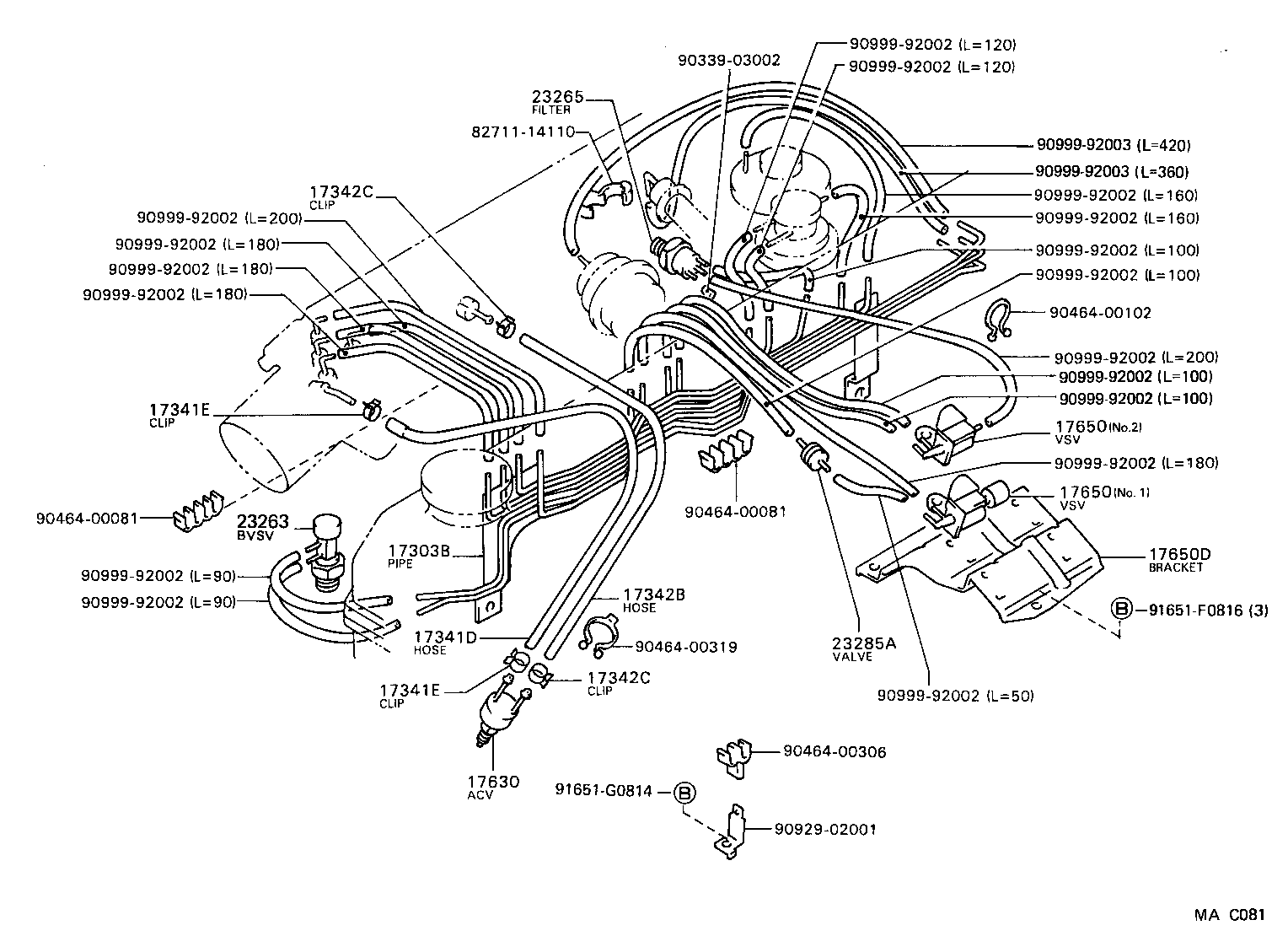

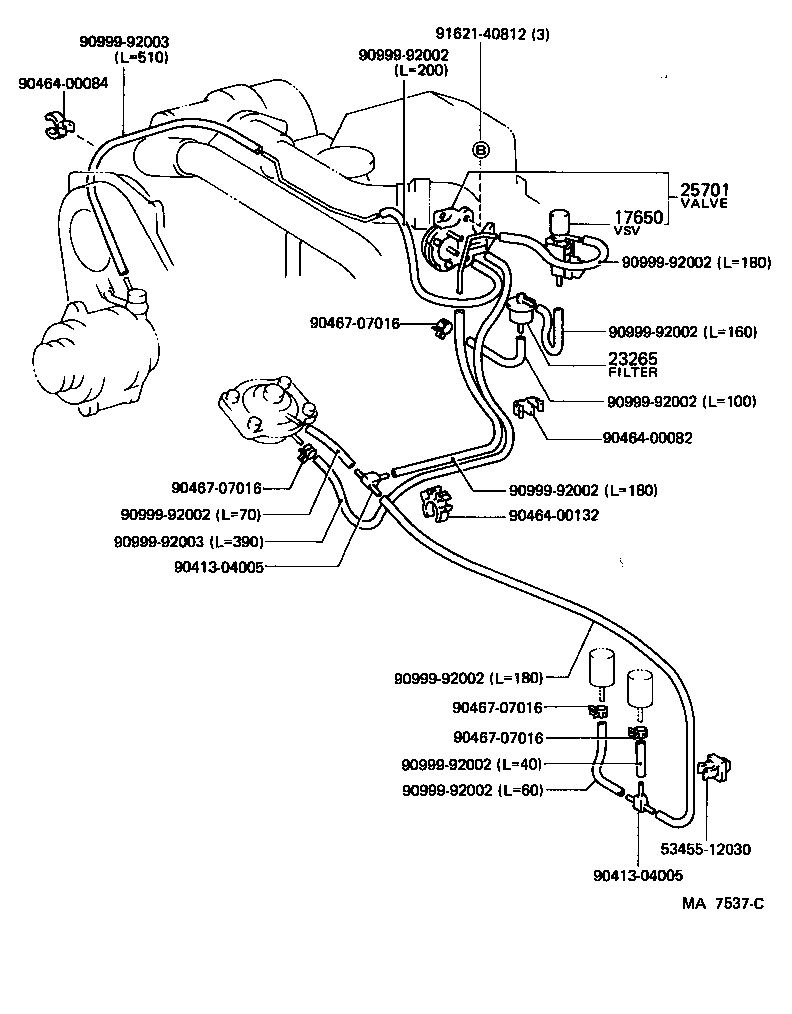

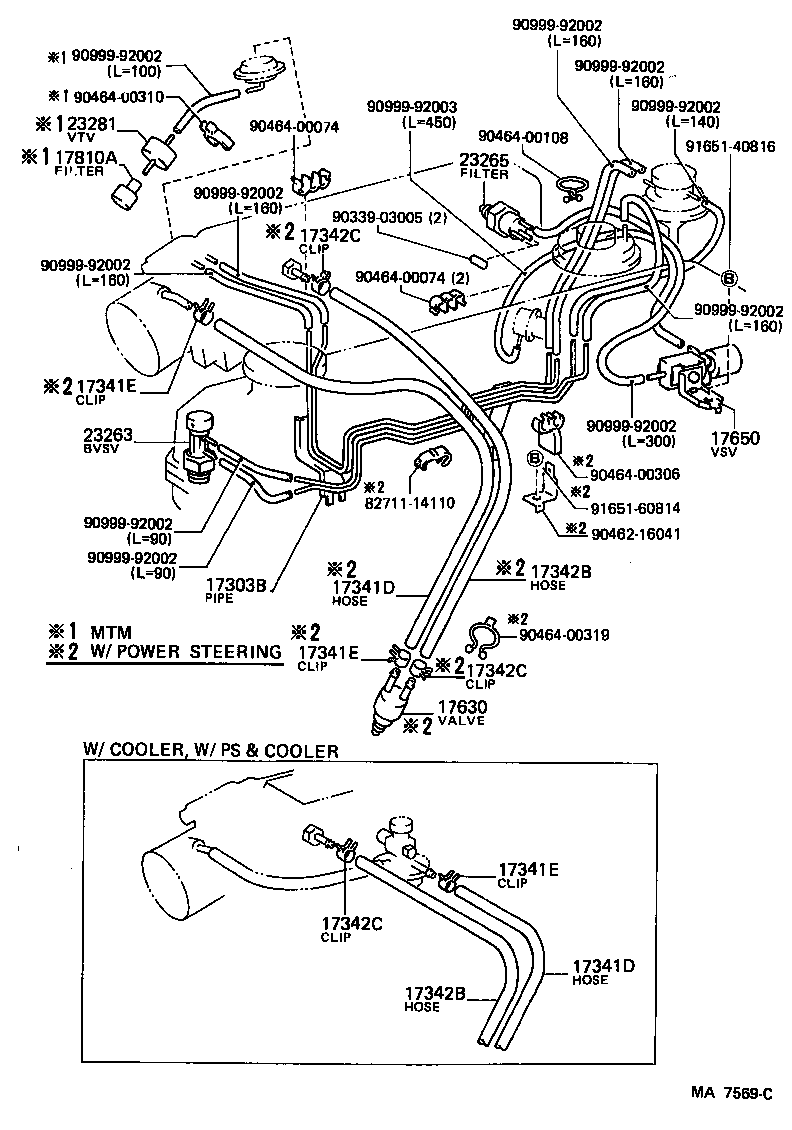

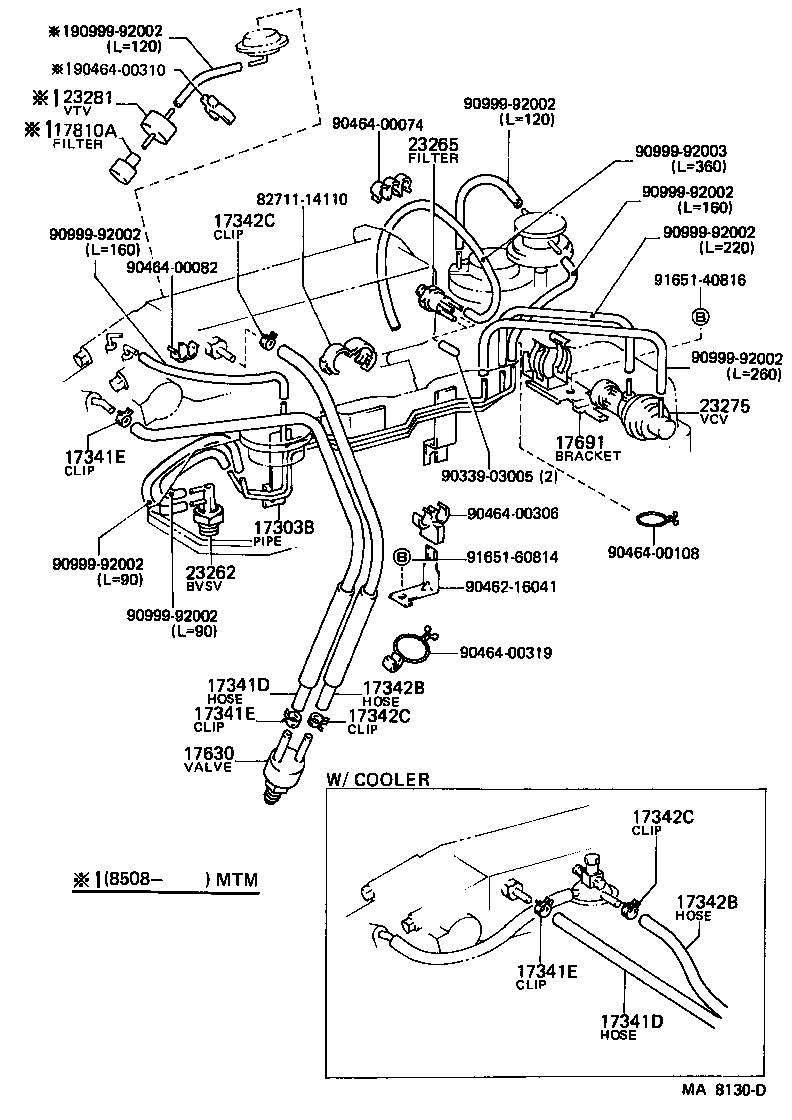

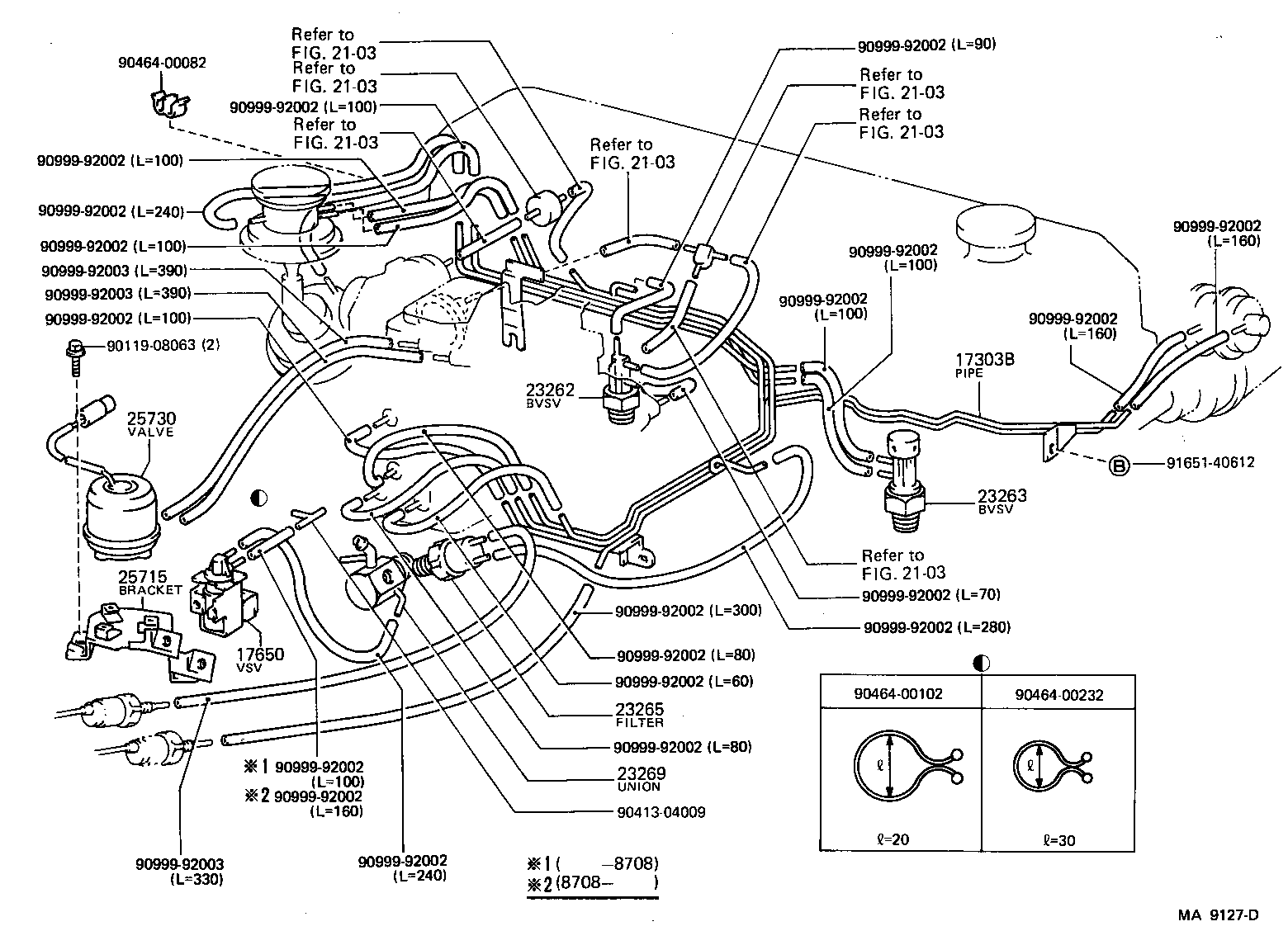

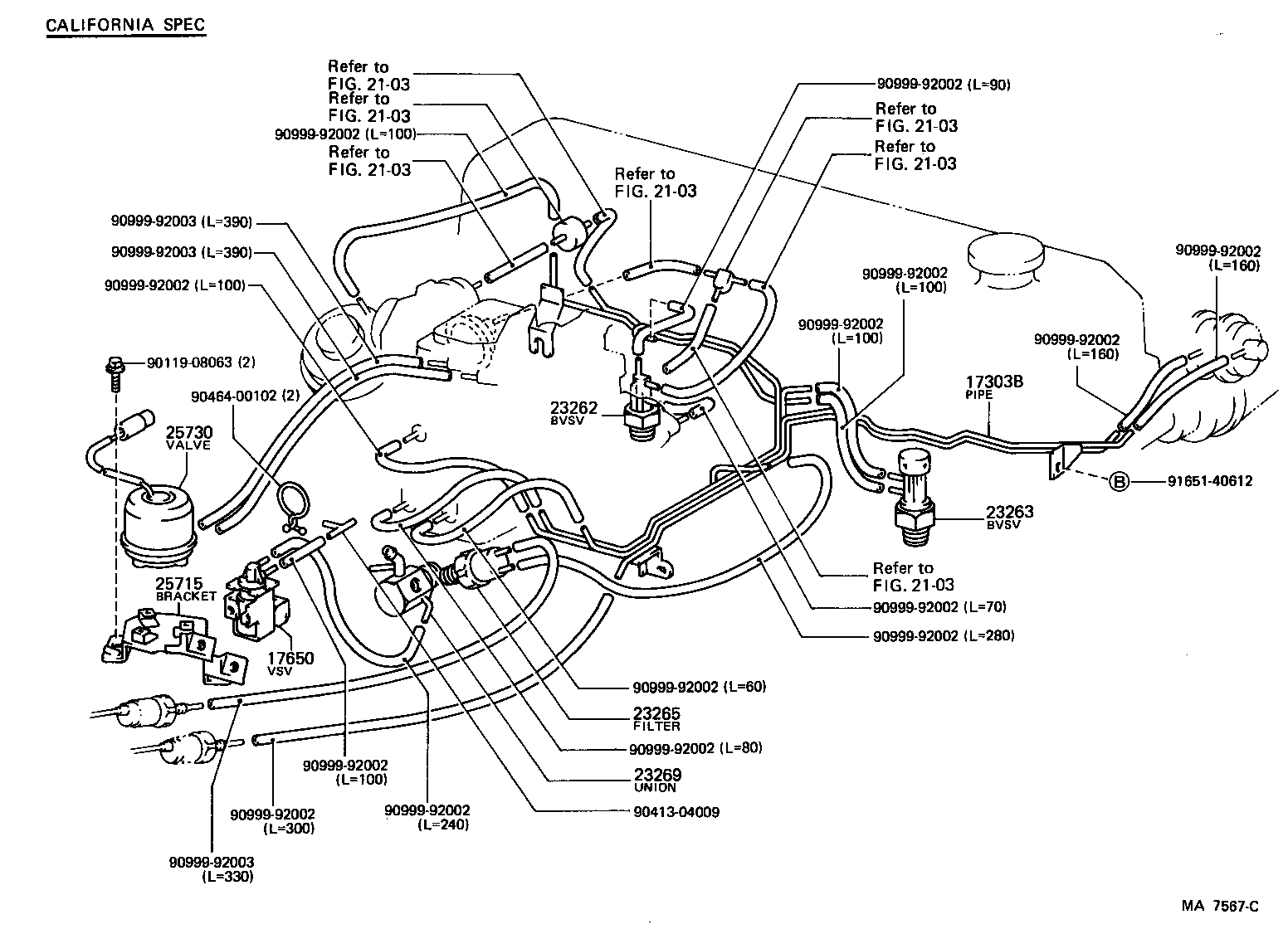

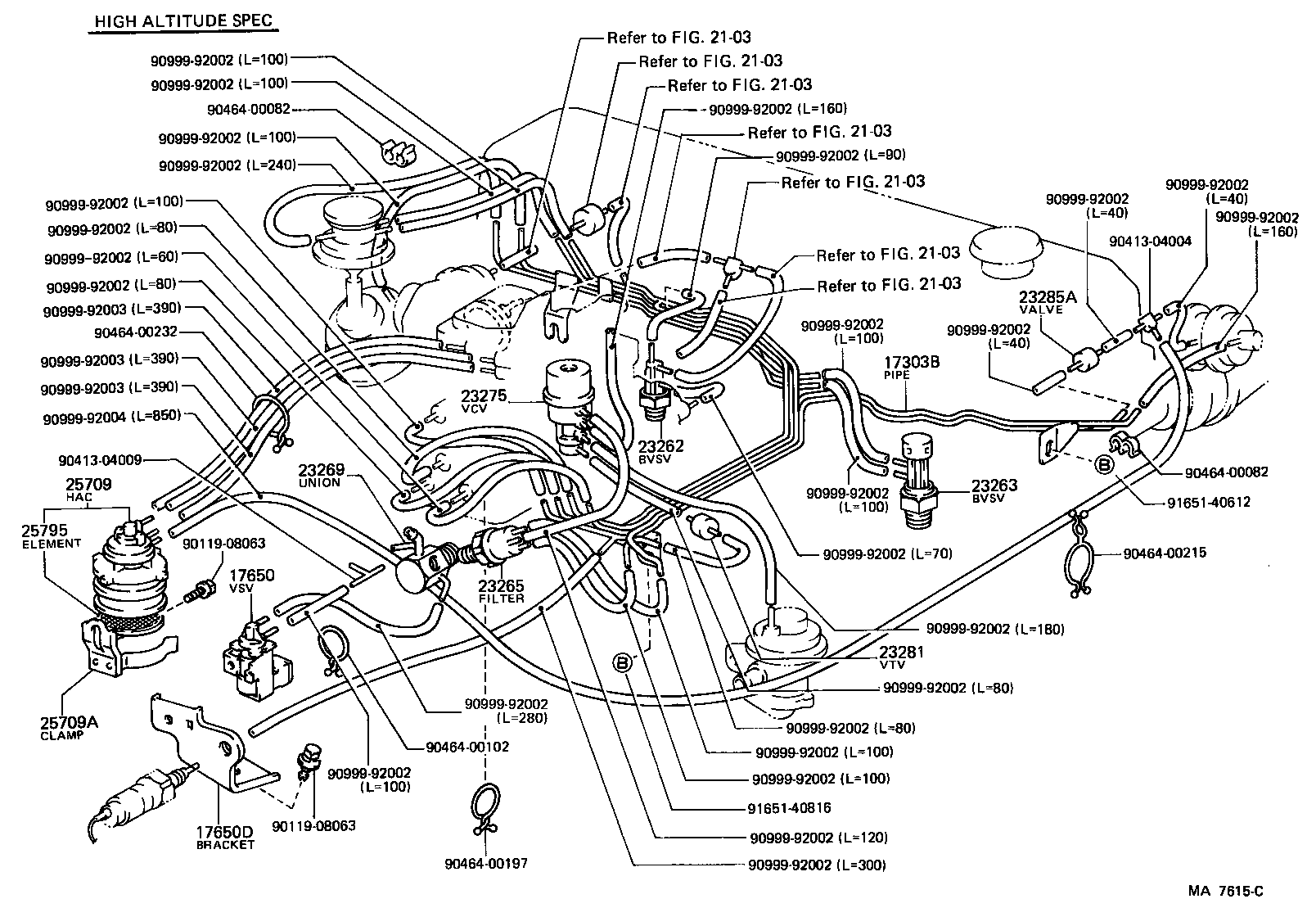

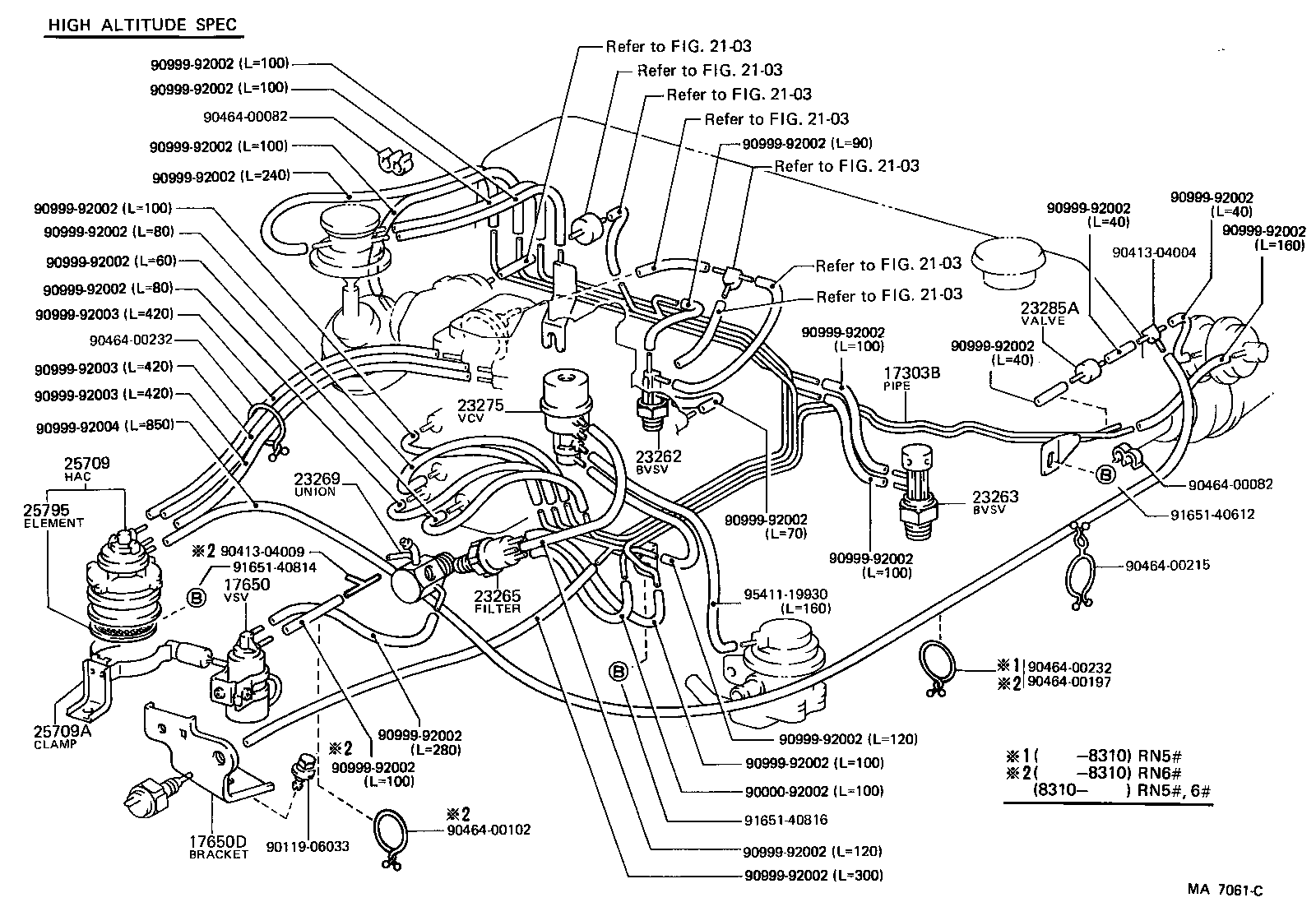

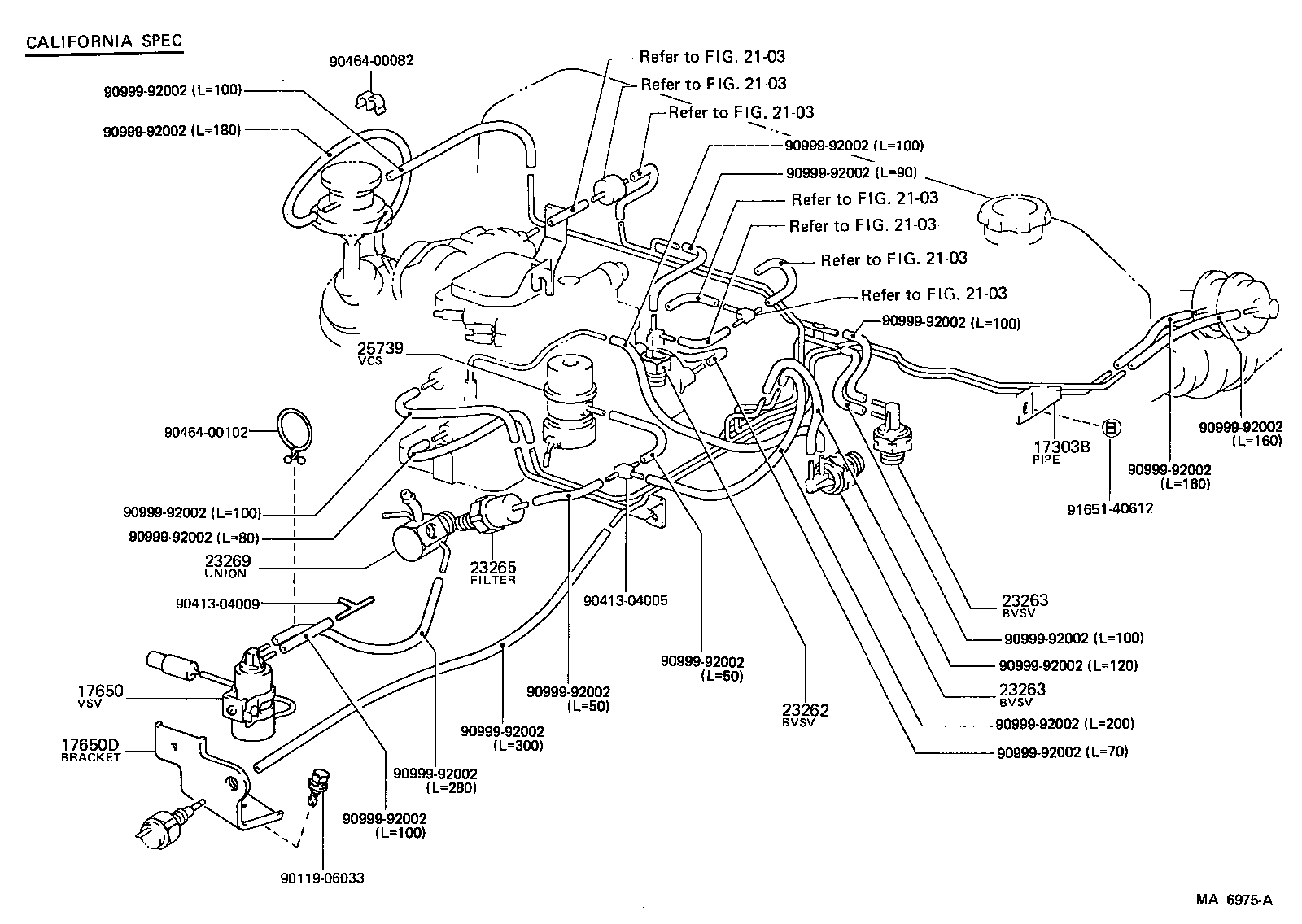

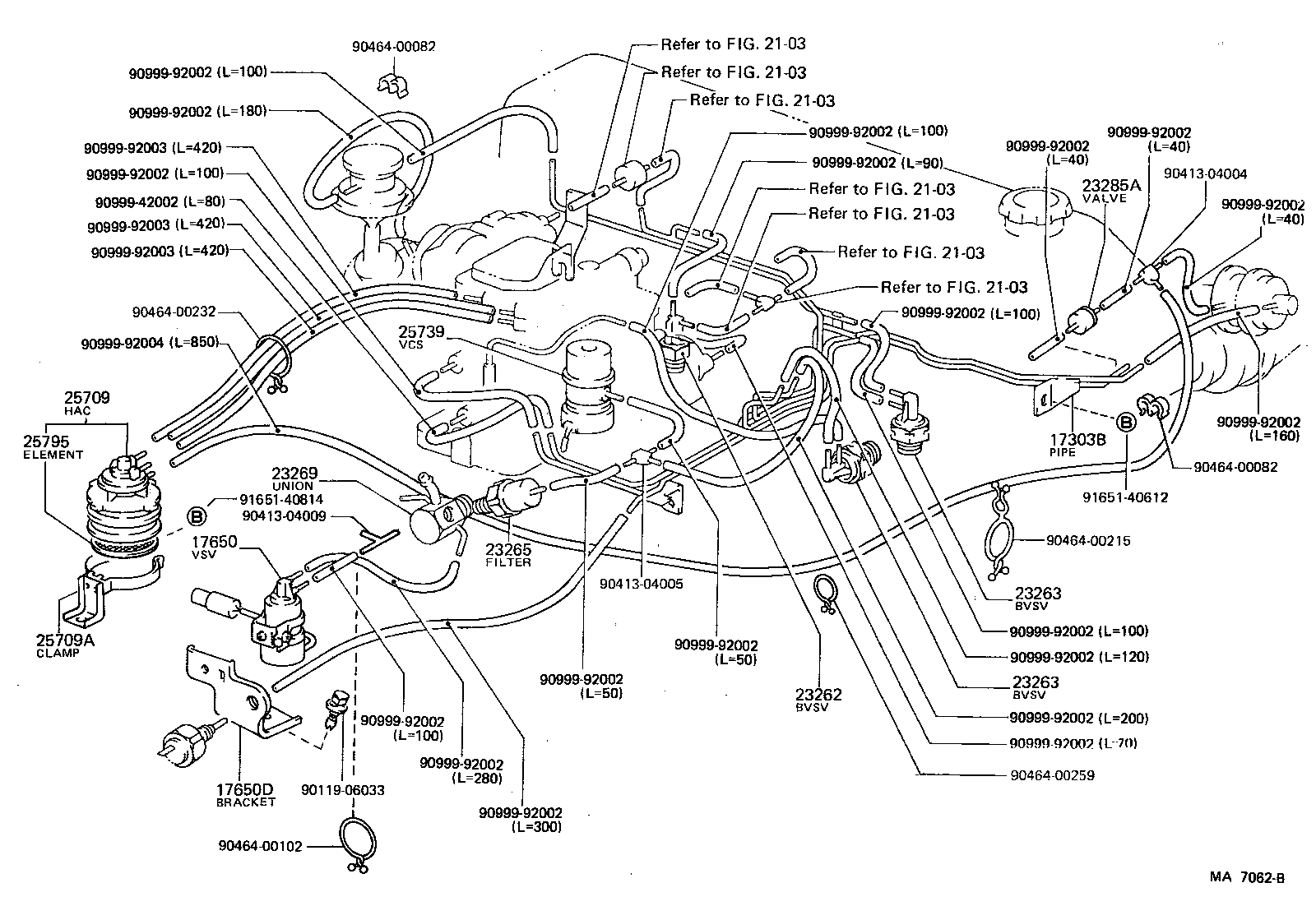

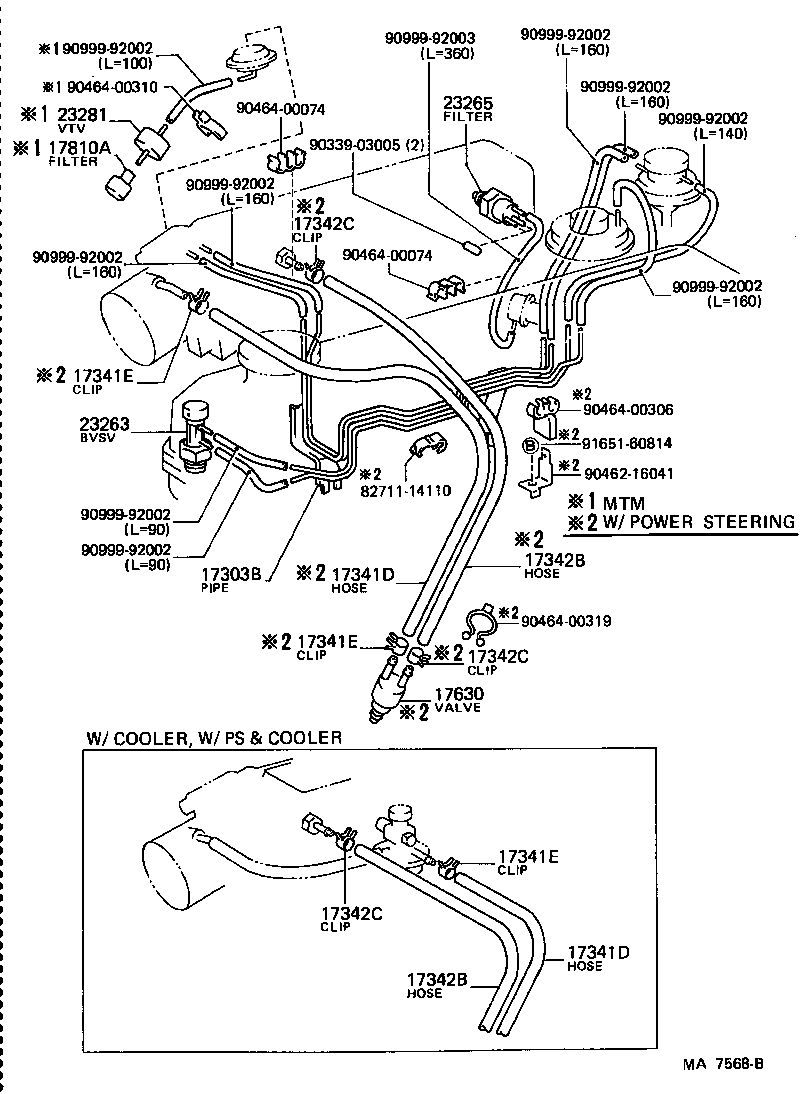

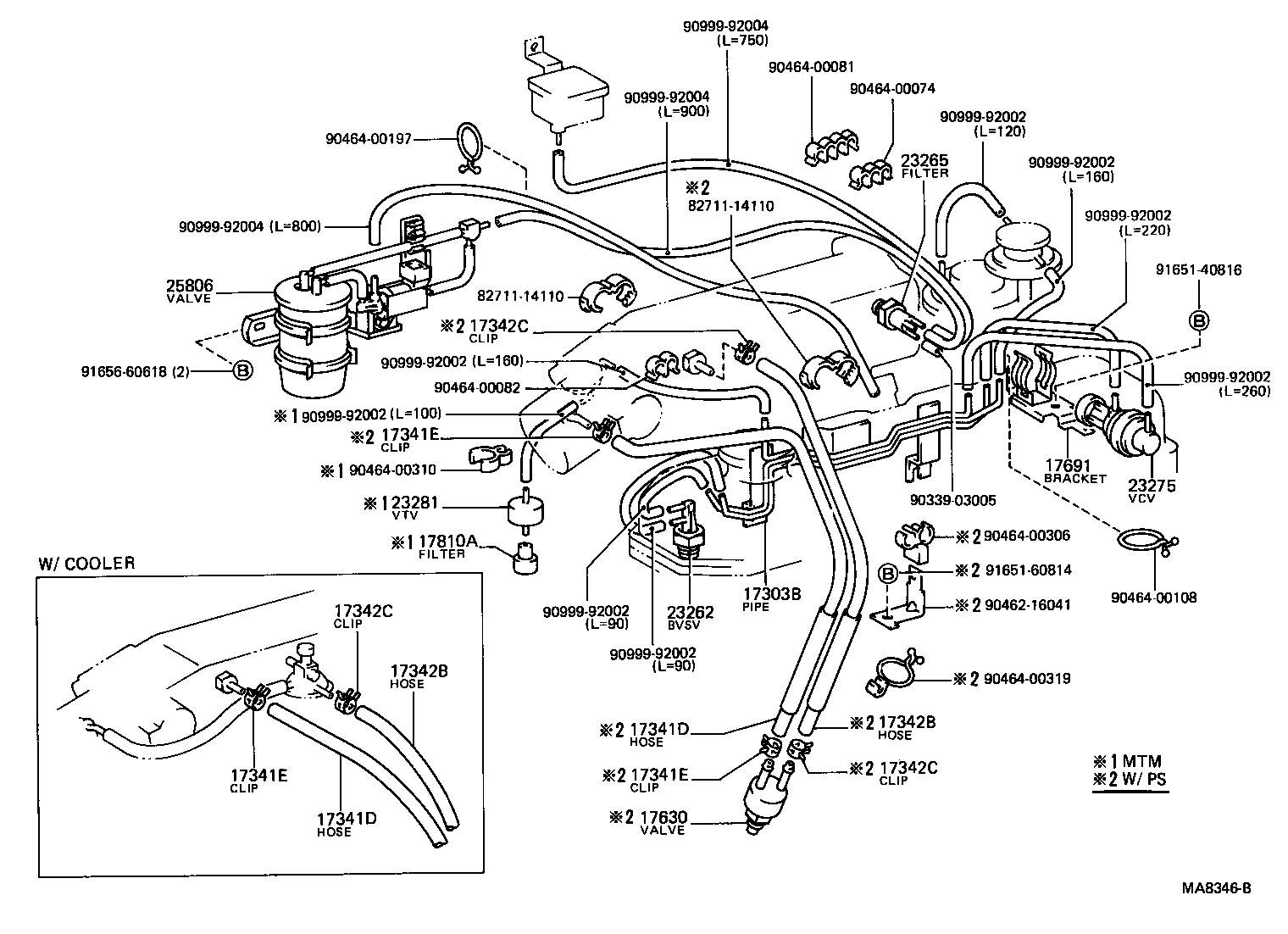

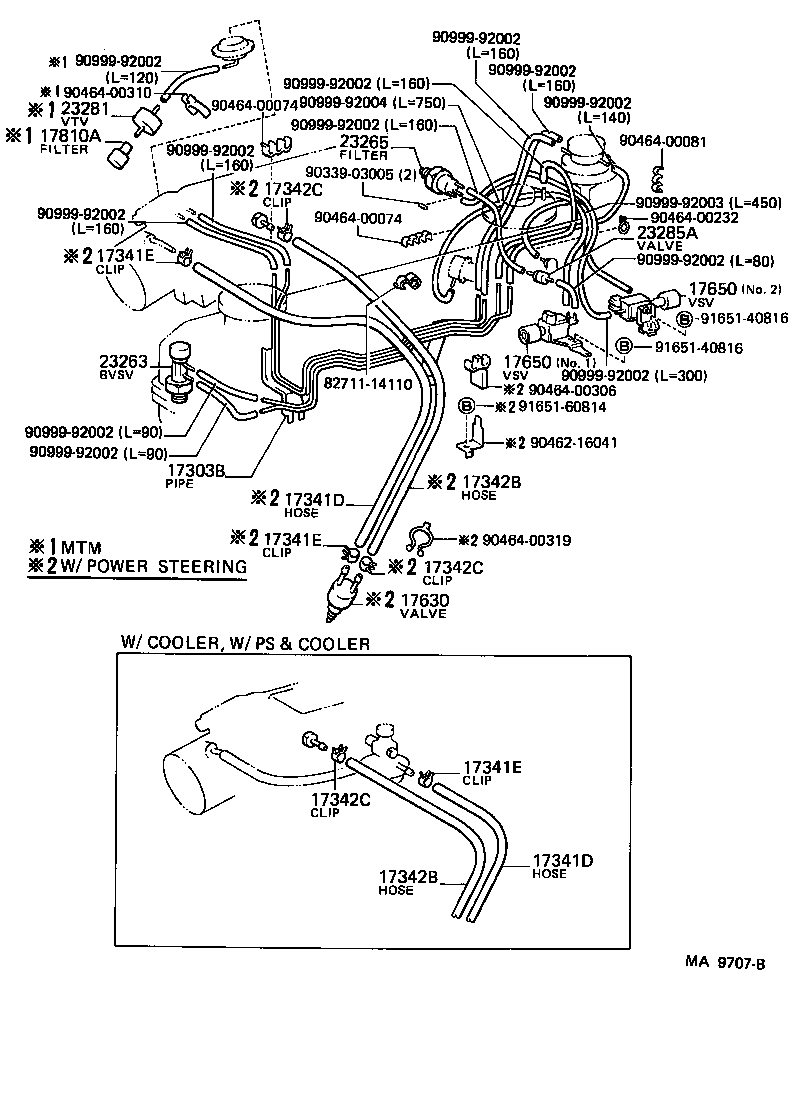

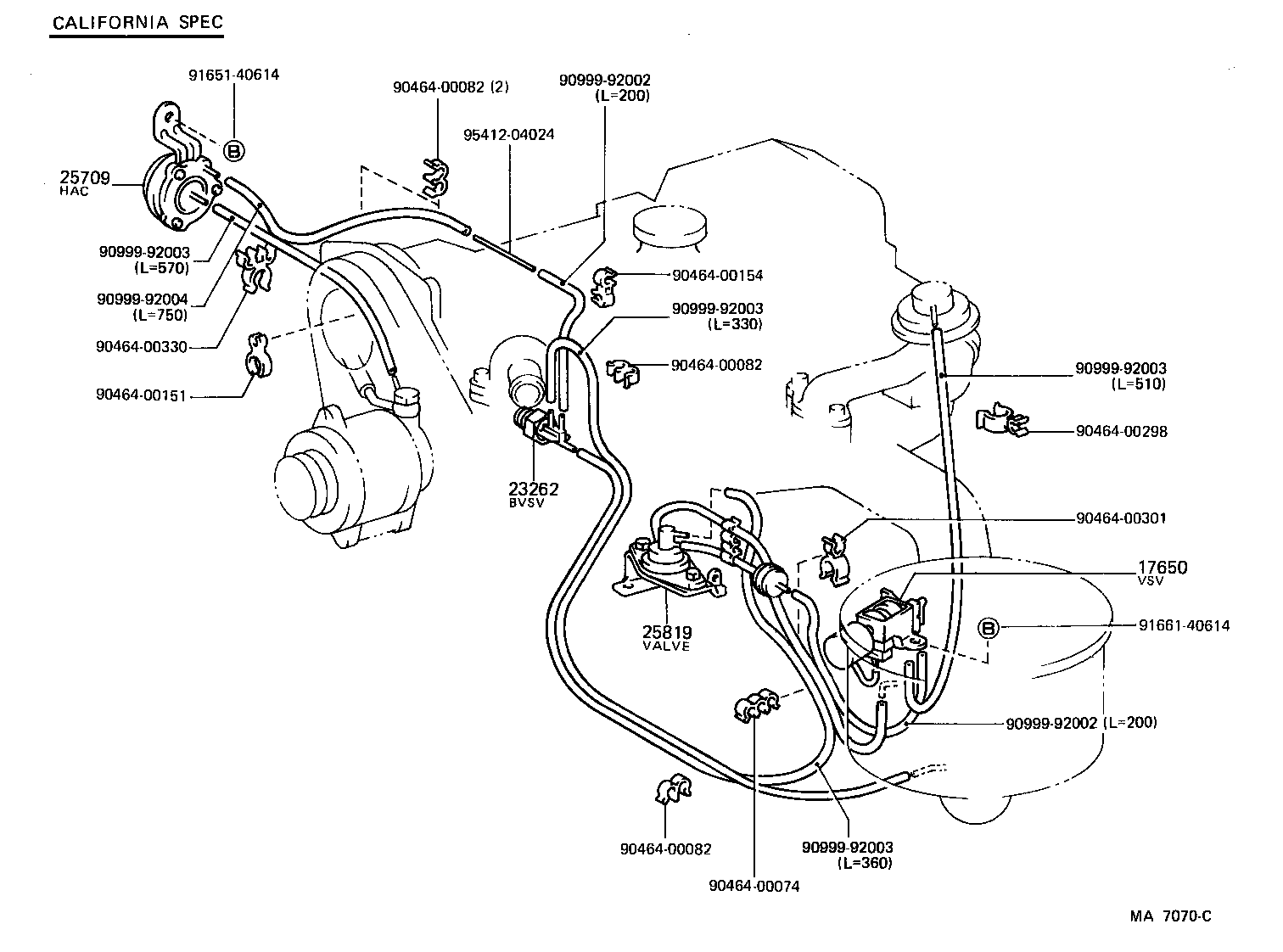

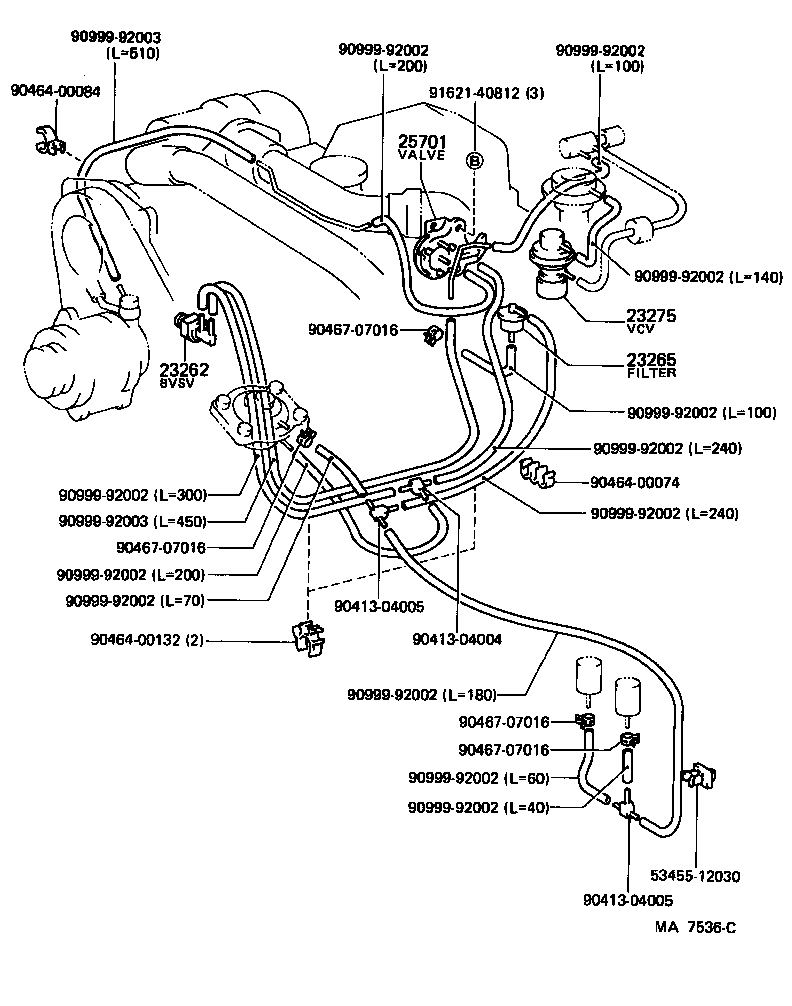

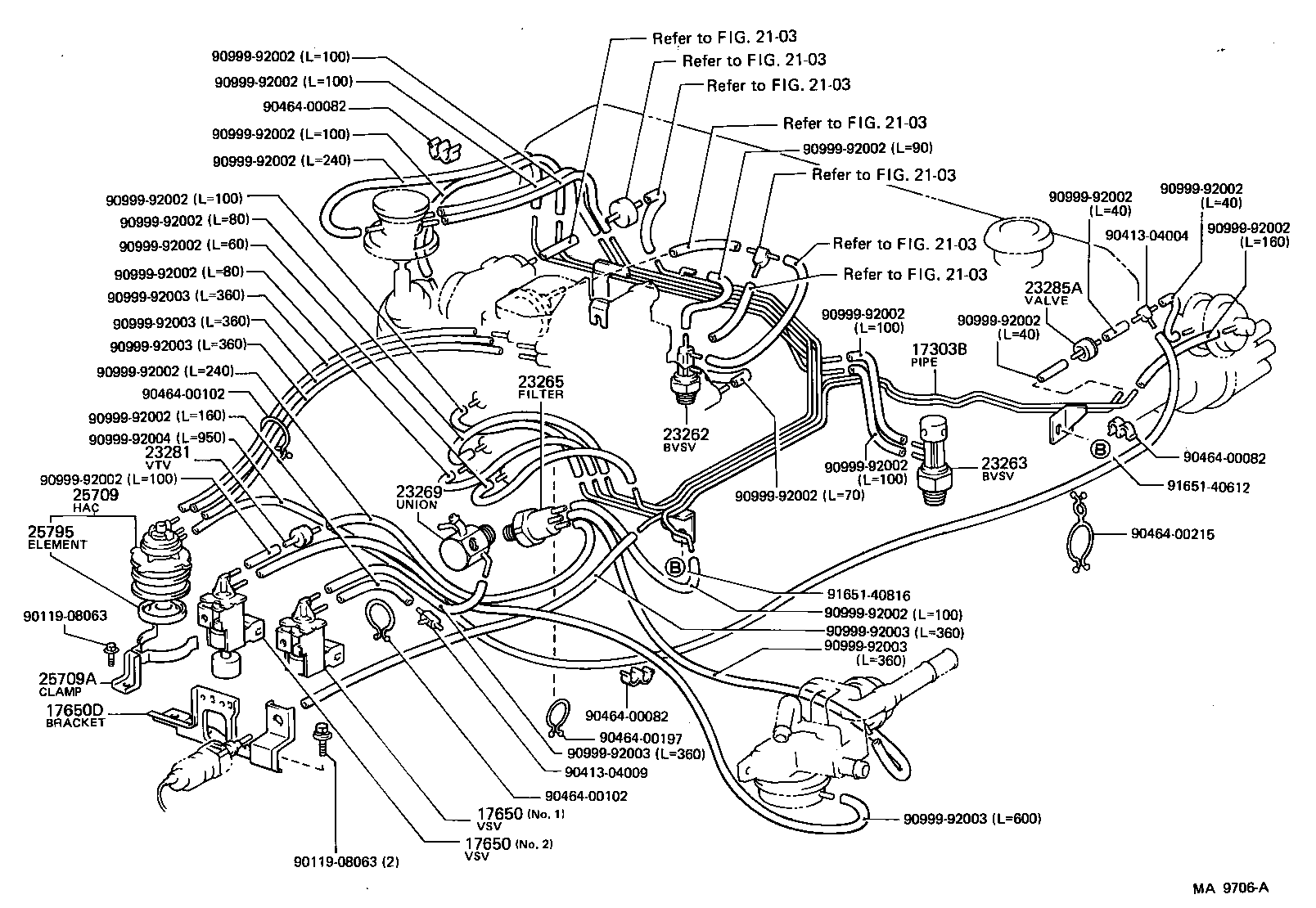

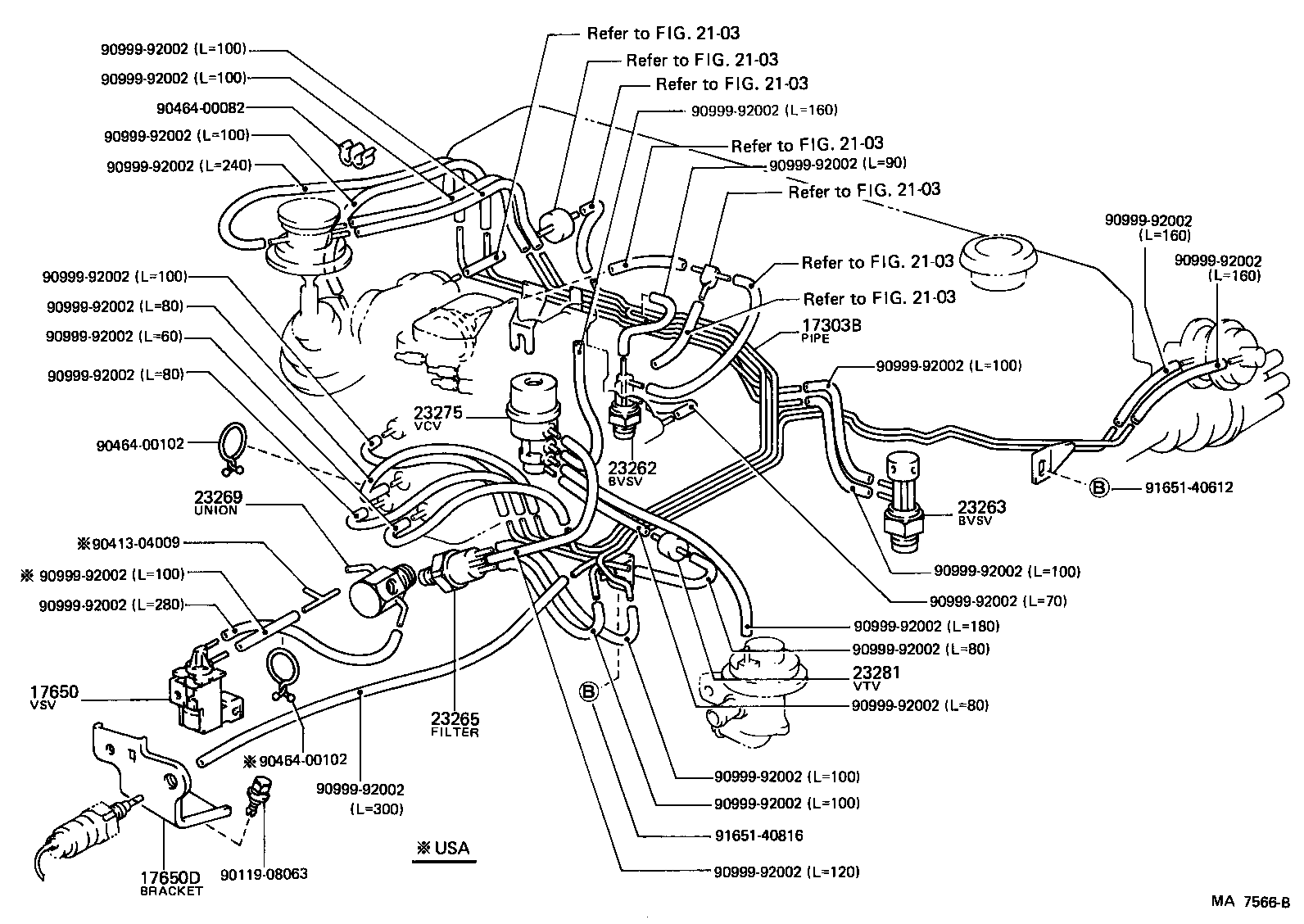

Figure MA9504B MA9504B 1983-08 → — Figure MA7070C MA7070C 1983-08 → 1984-08 Figure MA7536C MA7536C 1984-08 → 1985-08 Figure MA7537C MA7537C 1984-08 → 1987-08 Figure MA9504B MA9504B 1983-08 → — Figure MA6974B MA6974B 1983-08 → 1984-08 Figure MA6974B MA6974B 1984-03 → 1984-08 Figure MA7566B MA7566B 1984-08 → 1987-08 Figure MA9705B MA9705B 1987-08 → 1988-08 Figure MA6975A MA6975A 1983-08 → 1984-08 Figure MA7567C MA7567C 1984-08 → 1985-08 Figure MA7567C MA7567C 1985-08 → 1986-08 Figure MA9127D MA9127D 1986-08 → 1987-08 Figure MA9127D MA9127D 1987-08 → 1988-08 Figure MA7061C MA7061C 1983-08 → 1984-08 Figure MA7615C MA7615C 1984-08 → 1985-08 Figure MA7615C MA7615C 1985-08 → 1986-08 Figure MA7615C MA7615C 1986-08 → 1987-08 Figure MA9706A MA9706A 1987-08 → 1988-08 Figure MA7062B MA7062B 1983-08 → 1984-08 Figure MA7062B MA7062B 1984-03 → 1984-08 Figure MA7193A MA7193A 1983-08 → 1988-08 Figure MA6976B MA6976B 1983-08 → 1984-08 Figure MA7568B MA7568B 1984-08 → 1987-08 Figure MA7569C MA7569C 1984-08 → 1987-08 Figure MA9707B MA9707B 1987-08 → 1988-08 Figure MAC081 MAC081 1988-08 → — Figure MA8130D MA8130D 1985-01 → 1985-08 Figure MA8130D MA8130D 1985-08 → 1988-08 Figure MA8346B MA8346B 1985-08 → 1987-08 Figure MA9504B MA9504B 1983-08 → — Figure MAA599B MAA599B 1987-11 → —

Part groups

PNCDescription
04215 Compensator Kit, High Altitude
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17360 Tube Assy, Air
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17691 Bracket, Vacuum Control Valve, NO.1
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
25701 Valve Set, Emission Control
25709 Valve Sub-assy, High Altitude Compensator
25709A Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE)
25715 Bracket, Emission Control Valve
25730 Valve Assy, Electric Bleed Air Control
25739 Switch, Vacuum Control
25795 Element, Altitude Compensator Filter
25806 Valve Set, Pressure Control
25819 Valve Assy, Vacuum Regulating
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
