Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (MTM)

10 part groups · 7 illustrations

Illustrations

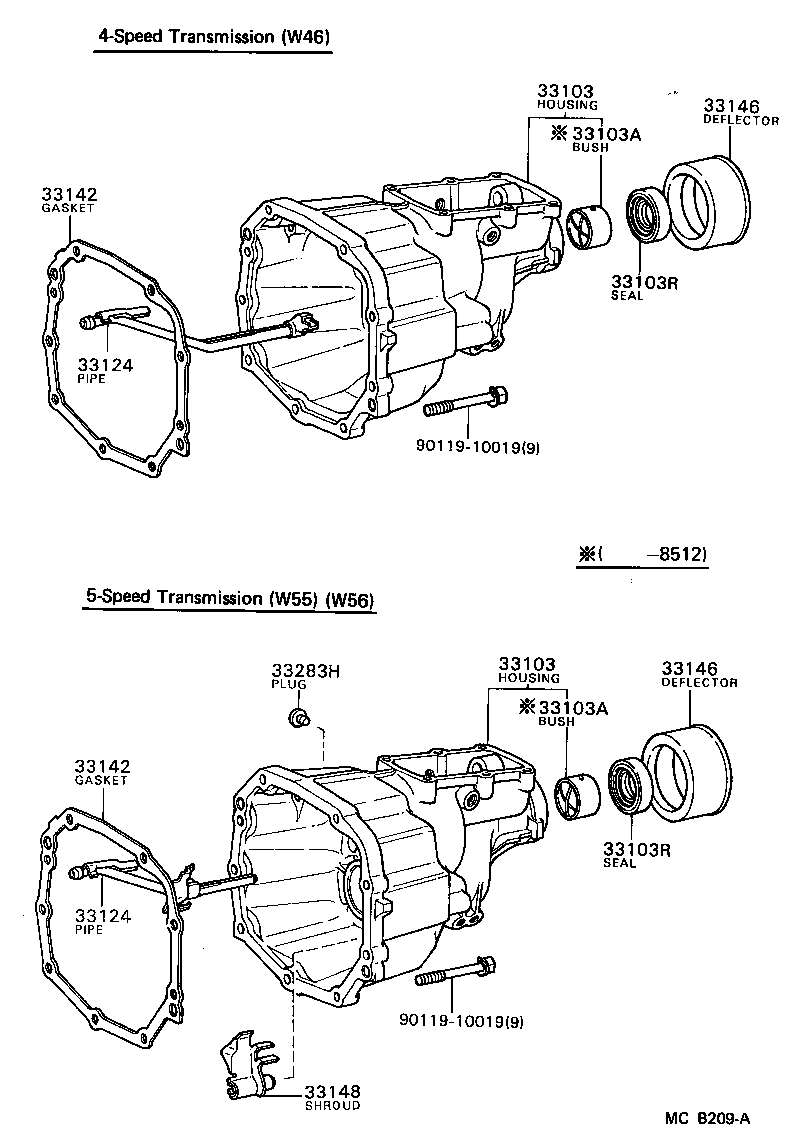

Figure MCA270 MCA270 1983-08 → 1984-08 Figure MCA270 MCA270 1984-08 → 1985-08 Figure MCB209A MCB209A 1984-08 → 1985-08 Figure MCB209A MCB209A 1985-08 → — Figure MCC144 MCC144 1985-08 → — Figure MC8825C MC8825C 1983-08 → — Figure MC8825C MC8825C 1987-08 → 1988-08

Part groups

PNCDescription
33103 Housing Sub-assy, Extension(MTM)
33103A Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103K Seal Kit, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103R Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33123D Receiver, Case Cover Oil(MTM)
33124 Pipe, Oil Receiver(MTM)
33142 Gasket, Extension Housing(MTM)
33146 Deflector, Extension Housing Dust(MTM)
33148 Shroud, Gear, NO.1
33283H Plug, W/Head Straight Screw
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
