Toyota 4-Runner Truck
1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe
Discontinued model
Data version 1989-05

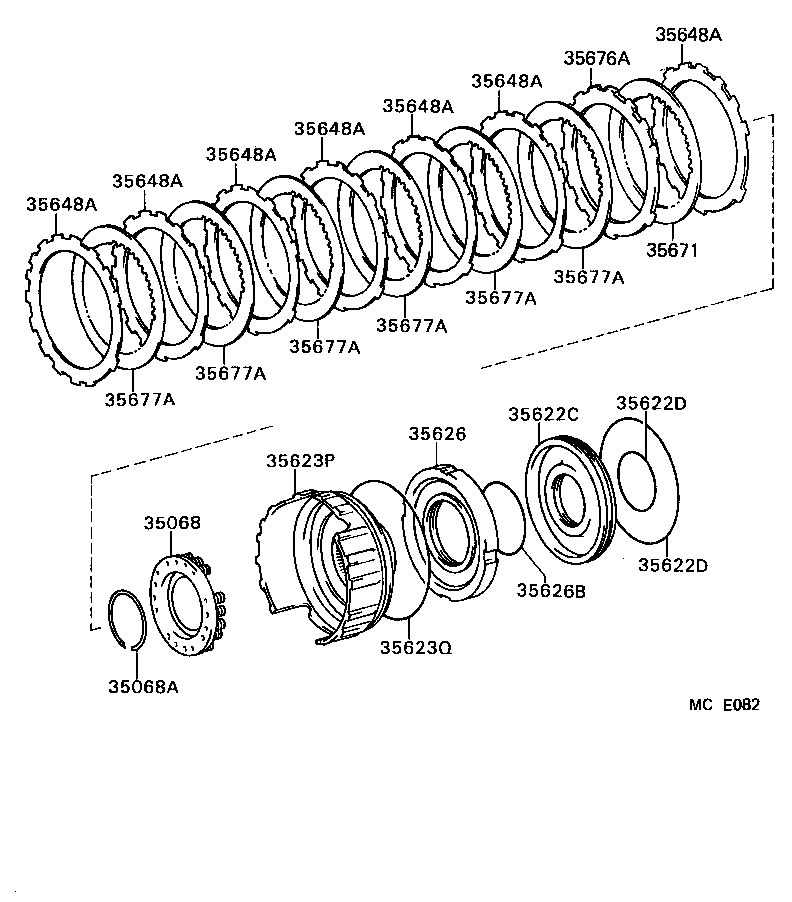

Brake NO.3, 1ST & Reverse Brake (ATM)
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35068 | Spring Sub-assy, 1ST & Reverse Brake Return |
| 35068A | Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING) |
| 35622 | Piston, Brake, NO.2 |
| 35622A | Ring (FOR BRAKE PISTON OUTER) |
| 35622B | Ring (FOR BRAKE PISTON INNER) |
| 35622C | Piston, 1ST & Reverse Brake, NO.1 |
| 35622D | Ring, O (FOR 1ST & REVERSE BRAKE PISTON NO.1) |
| 35623 | Piston, Brake, NO.3 |
| 35623A | Ring, O (FOR BRAKE PISTON NO.3 ) |
| 35623B | Spring (FOR BRAKE PISTON RETURN) |
| 35623C | Seat, Brake Return Spring |
| 35623D | Ring, Shaft Snap (FOR BRAKE) |
| 35623P | Piston, 1ST & Reverse Brake, NO.2 |
| 35623Q | Ring, O (FOR 1ST & REVERSE BRAKE PISTON NO.2) |
| 35626 | Sleeve, Brake Reaction |
| 35626A | Ring (FOR BRAKE REACTION SLEEVE OUTER) |
| 35626B | Ring (FOR BRAKE REACTION SLEEVE INNER) |
| 35648A | Plate, Clutch (FOR 1ST & REVERSE BRAKE) |
| 35666 | Tube, Brake Apply |
| 35666A | Plate, Clutch (FOR BRAKE) |
| 35666B | Disc, Clutch (FOR BRAKE) |
| 35666C | Plate, Clutch Pressure (FOR BRAKE) |
| 35671 | Plate, Brake Cushion |
| 35676A | Flange, Brake (FOR 1ST & REVERSE BRAKE) |
| 35677A | Disc, Clutch (FOR 1ST & REVERSE BRAKE) |
| 35707 | Race Sub-assy, 1 Way Clutch, Inner |
| 35707A | Ring, Hole Snap (FOR 1 WAY CLUTCH INNER RACE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
