Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

181 part groups · 13 illustrations

Illustrations

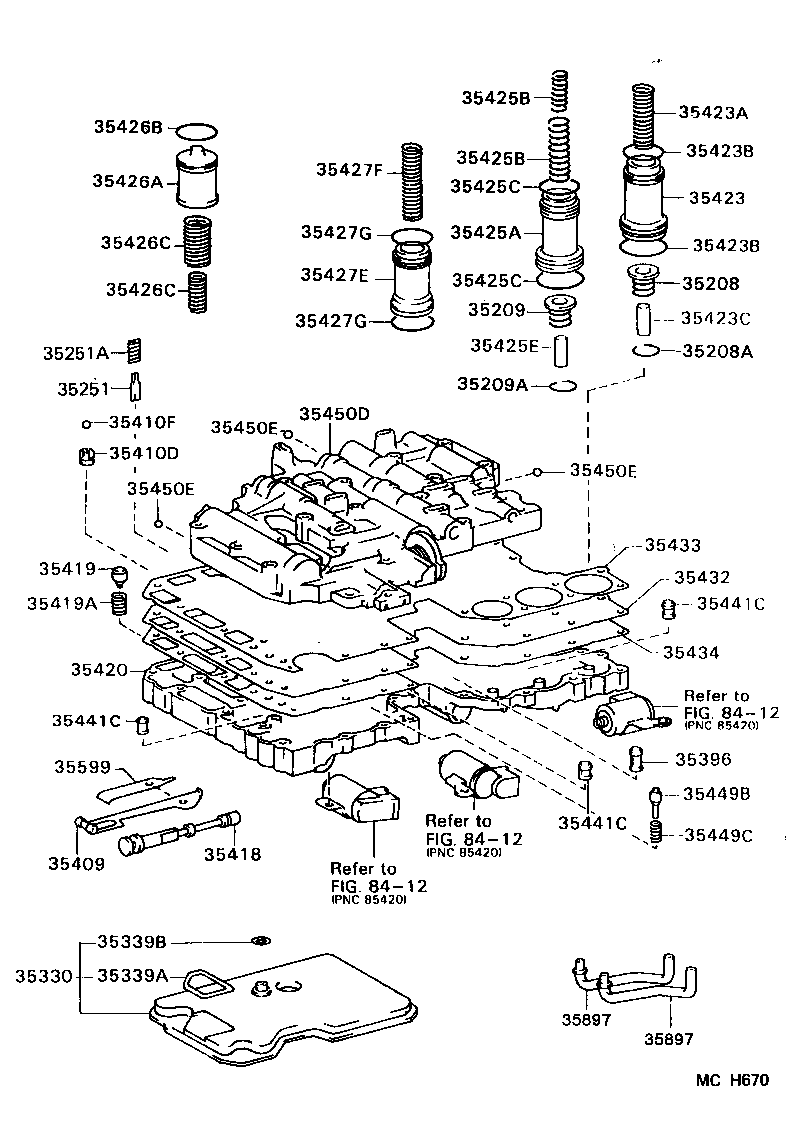

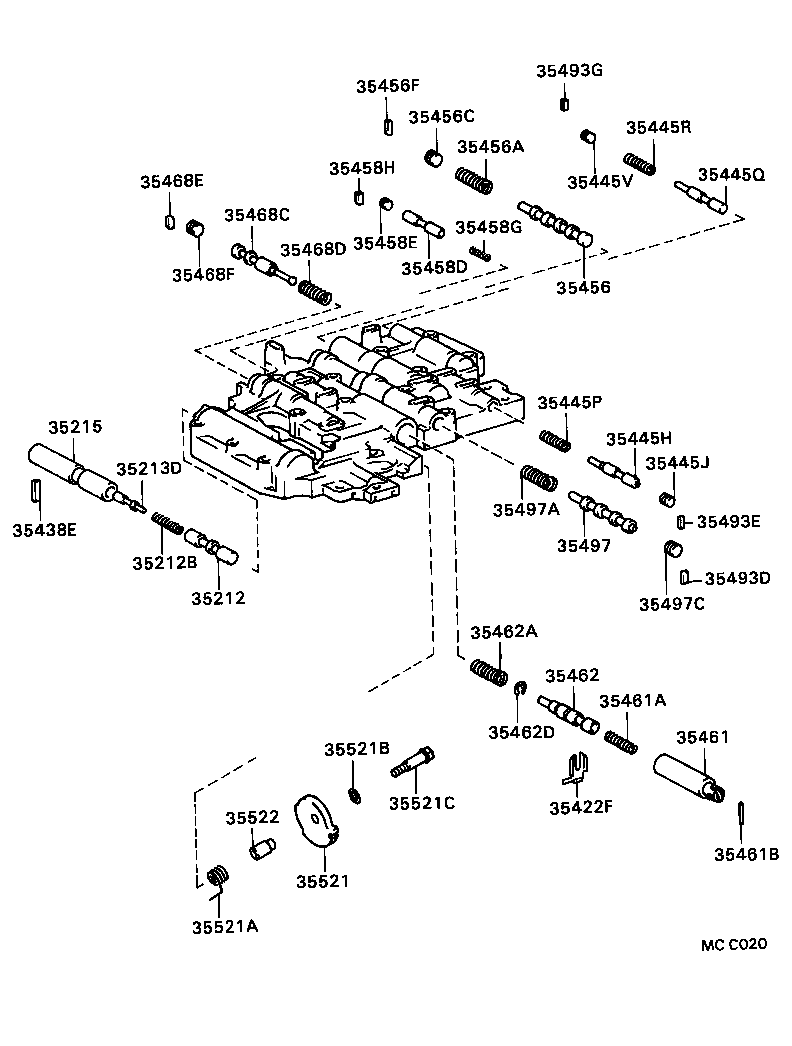

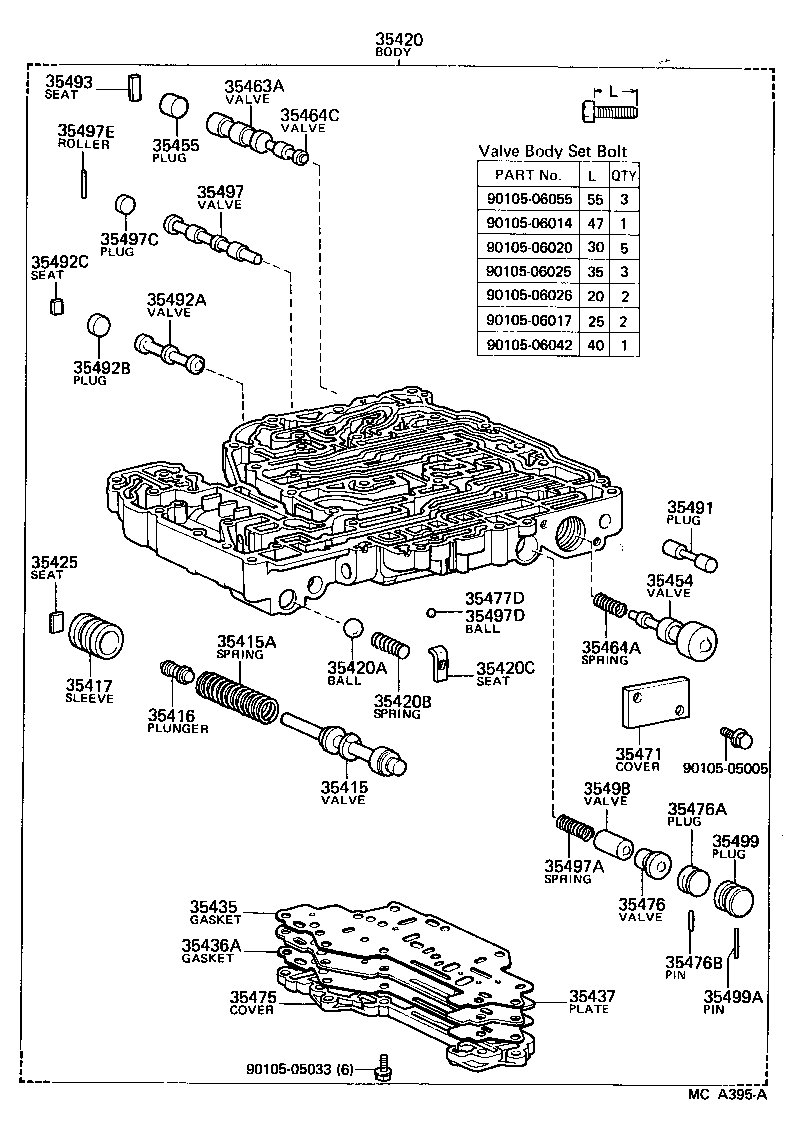

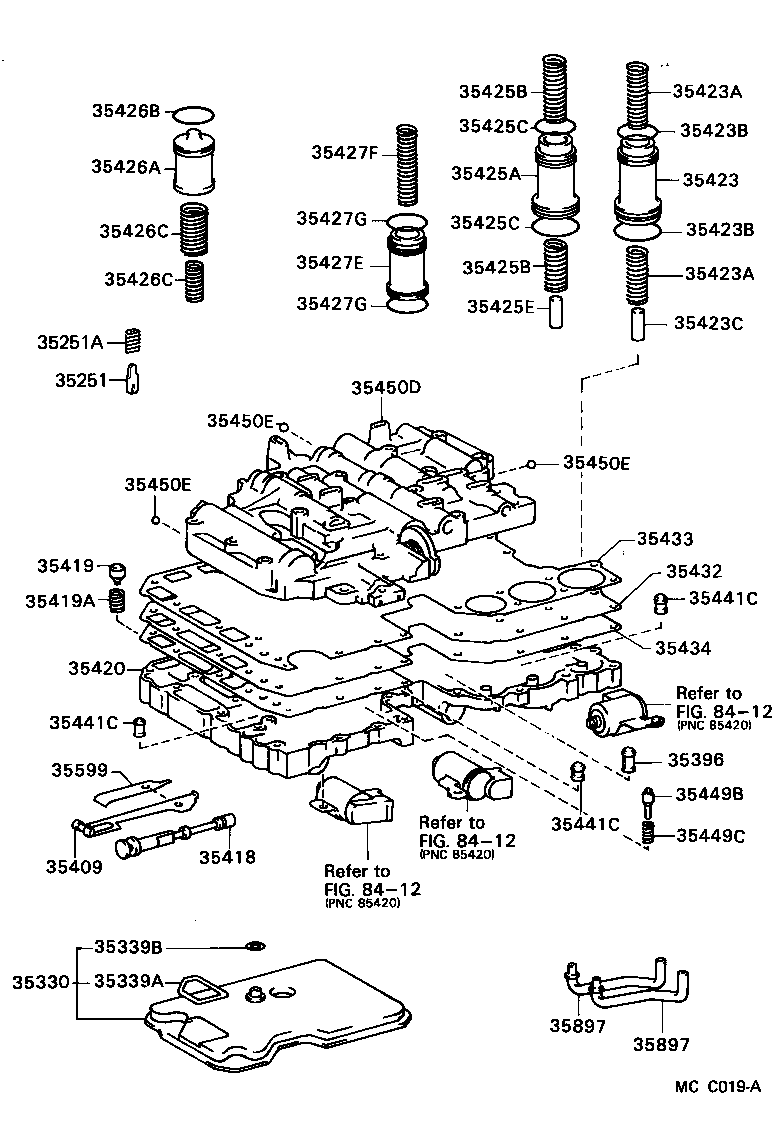

Figure MCD017A MCD017A 1983-08 → — Figure MCA395A MCA395A 1983-08 → — Figure MCA292C MCA292C 1983-08 → — Figure MCC019A MCC019A 1985-01 → 1986-08 Figure MCC046B MCC046B 1985-01 → — Figure MCC046B MCC046B 1987-11 → 1988-08 Figure MCH670 MCH670 1988-08 → — Figure MCC020 MCC020 1985-01 → — Figure MCC020 MCC020 1987-11 → — Figure MCC021 MCC021 1985-01 → — Figure MCC021 MCC021 1987-11 → — Figure MCC022 MCC022 1985-01 → — Figure MCC022 MCC022 1987-11 → —

Part groups

PNCDescription
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209 Spring Sub-assy, C-2 Accumulator
35209A Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35212 Valve, Lock UP Relay
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213D Plunger, Lock UP Relay Valve
35215 Sleeve, Lock UP Relay Valve
35250 Body Assy, Check Ball
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35303 Strainer Sub-assy, Oil
35330 Strainer Assy, Valve Body Oil
35336A Gasket, Oil Strainer Spacer
35338 Spacer, Oil Strainer
35339 Gasket, Oil Strainer
35339A Gasket, Oil Strainer, NO.1
35339B Gasket, Oil Strainer, NO.2
35348 Bracket, Oil Strainer, NO.1
35349 Bracket, Oil Strainer, NO.2
35396 Strainer, Throttle Oil
35409 Spring Sub-assy, Manual Detent
35410D Valve, Check
35410F Ball (FOR CHECK VALVE)
35415 Valve, Pressure Regulator
35415A Spring, Compression (FOR PRESSURE REGULATOR VALVE)
35415F Valve, Primary Regulator
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417 Sleeve, Pressure Regulator Valve
35417A Sleeve, Primary Regulator Valve
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35420 Body Assy, Lower Valve
35420A Ball (FOR PRESSURE RELIEF)
35420B Spring (FOR PRESSURE RELIEF)
35420C Seat (FOR PRESSURE RELIEF)
35420D Ball (FOR LOWER VALVE BODY)
35420E Spring (FOR LOWER VALVE BODY)
35421 Piston, Accumulator, NO.1
35421A Spring, Compression (FOR ACCUMULATOR PISTON NO.1)
35421D Ring (FOR ACCUMULATOR PISTON NO.1)
35421E Ring (FOR ACCUMULATOR PISTON NO.1)
35421F Piston, Accumulator, NO.2
35421G Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35421H Ring (FOR ACCUMULATOR PISTON NO.2)
35421J Ring (FOR ACCUMULATOR PISTON NO.2)
35421P Piston, Accumulator, NO.3
35421Q Spring, Compression (FOR ACCUMULATOR PISTON NO.3)
35421R Ring (FOR ACCUMULATOR PISTON NO.3)
35421S Ring (FOR ACCUMULATOR PISTON NO.3)
35422F Stopper, Valve Vibrating
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35423C Pin, Straight (FOR B-2 ACCUMULATOR PISTON)
35425 Seat, Pressure Regulator Valve Sleeve
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35425E Pin, Straight (FOR C-2 ACCUMULATOR PISTON)
35426A Piston, C-0 Accumulator
35426B Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35427E Piston, B-0 Accumulator
35427F Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G Ring, O (FOR B-0 ACCUMULATOR PISTON)
35428C Plug, Pressure Reducing
35428D Clip (FOR PRESSURE REDUCING PLUG)
35430 Body Assy, Rear Upper Valve
35430A Ball (FOR REAR UPPER VALVE BODY)
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35435 Gasket, Valve Body Plate, NO.3
35436A Gasket, Valve Body Plate, NO.4
35437 Plate, 3-4 Shift Valve Separator
35438D Seat, Accumulator Control Valve Spring
35438E Seat, Lock UP Relay Valve Spring
35440 Body Assy, Front Upper Valve
35440A Ball (FOR FRONT UPPER VALVE BODY)
35441C Strainer, Solenoid Oil
35444 Valve, Intermediate Modulator
35444A Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE)
35444D Valve, Release Control
35444E Plug (FOR RELEASE CONTROL VALVE)
35445 Valve, Low Modulator
35445A Spring, Compression (FOR LOW MODULATOR VALVE)
35445H Valve, 2ND Coast Modulator
35445J Plug (FOR 2ND COAST MODULATOR VALVE)
35445P Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445V Plug (FOR LOW COAST MODULATOR VALVE)
35446 Valve, Governor Modulator
35446A Spring, Compression (FOR GOVERNOR MODULATOR VALVE)
35449 Valve, Sequence
35449A Spring, Compression (FOR SEQUENCE VALVE)
35449B Valve, Pressure Relief
35449C Spring, Compression (FOR VALVE PRESSURE RELIEF)
35450D Body Assy, Upper Valve
35450E Ball (FOR UPPER VALVE BODY)
35454 Valve, Low Coast Shift
35455 Plug, 1-2 Shift Valve Low
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456D Seat (FOR 2-3 SHIFT VALVE)
35456F Key, Straight (FOR 2-3 SHIFT VALVE)
35457A Valve, Detent Regulator
35457B Spring, Compression (FOR DETENT REGULATOR VALVE)
35457C Seat (FOR DETENT REGULATOR VALVE)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35458F Seat (FOR CUT BACK VALVE)
35458G Spring, Compression (FOR CUT BACK VALVE)
35458H Key, Straight (FOR CUT BACK VALVE)
35461 Plug, Down Shift
35461A Spring, Compression (FOR DOWN SHIFT PLUG)
35461B Pin, Straight (FOR DOWN SHIFT PLUG)
35462 Valve, Throttle
35462A Spring, Compression (FOR THROTTLE VALVE)
35462C Stopper, Valve Vibrating
35462D Ring, E (FOR THROTTLE VALVE)
35463A Valve, 1-2 Shift, Lower
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464C Valve, 1-2 Shift, Upper
35464E Plug (FOR 1-2 SHIFT VALVE)
35465 Plug, Intermediate Shift Valve
35467 Valve, Intermediate Shift
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35471 Cover, Valve Body, NO.1
35472 Cover, Valve Body, NO.2
35473 Cover, Transmission Valve Body
35474 Cover, Valve Body, NO.4
35475 Cover, Valve Body, NO.5
35476 Valve, 3RD Coast Shift
35476A Plug, Straight (FOR 3RD COAST SHIFT)
35476B Pin, Locating (FOR 3RD COAST SHIFT)
35477D Ball, Check (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35479 Seat, Intermediate Shift Valve
35487B Ball, Check, NO.4
35487C Spring, Compression (FOR CHECK BALL)
35491 Plug, Reverse Brake
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492A Valve, Manual Down Timing
35492B Plug (FOR MANUAL DOWN TIMING VALVE)
35492C Seat, Valve (FOR MANUAL DOWN TIMING VALVE)
35492E Sleeve, Accumulator Control Valve
35493 Seat, Shift Valve Spring
35493A Seat, Primary Regulator Valve Plug
35493B Seat, 1-2 Shift Valve Plug
35493C Seat, Release Control Valve Plug
35493D Seat, 3-4 Shift Valve Plug
35493E Seat, 2ND Coast Modulator Valve Plug
35493G Seat, Low Coast Modulator Valve Plug
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497D Ball, Check (FOR 3-4 SHIFT VALVE)
35497E Roller, Needle (FOR 3-4 SHIFT VALVE)
35498 Valve, 3-4 Coast Shift
35499 Plug, 3-4 Shift Valve
35499A Pin, Straight (FOR 3-4 SHIFT VALVE)
35521 Cam, Throttle Valve
35521A Spring (FOR THROTTLE VALVE CAM RETURN)
35521B Washer (FOR THROTTLE VALVE CAM SET)
35521C Bolt (FOR THROTTLE VALVE CAM SET)
35522 Pin, Throttle Valve Cam
35599 Cover, Manual Detent Spring
35892 Tube, Overdrive Brake
35893A Tube, Throttle Pressure
35895 Tube, Front Clutch Apply
35897 Tube, 1ST & Reverse Brake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
