Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

23 part groups · 5 illustrations

Illustrations

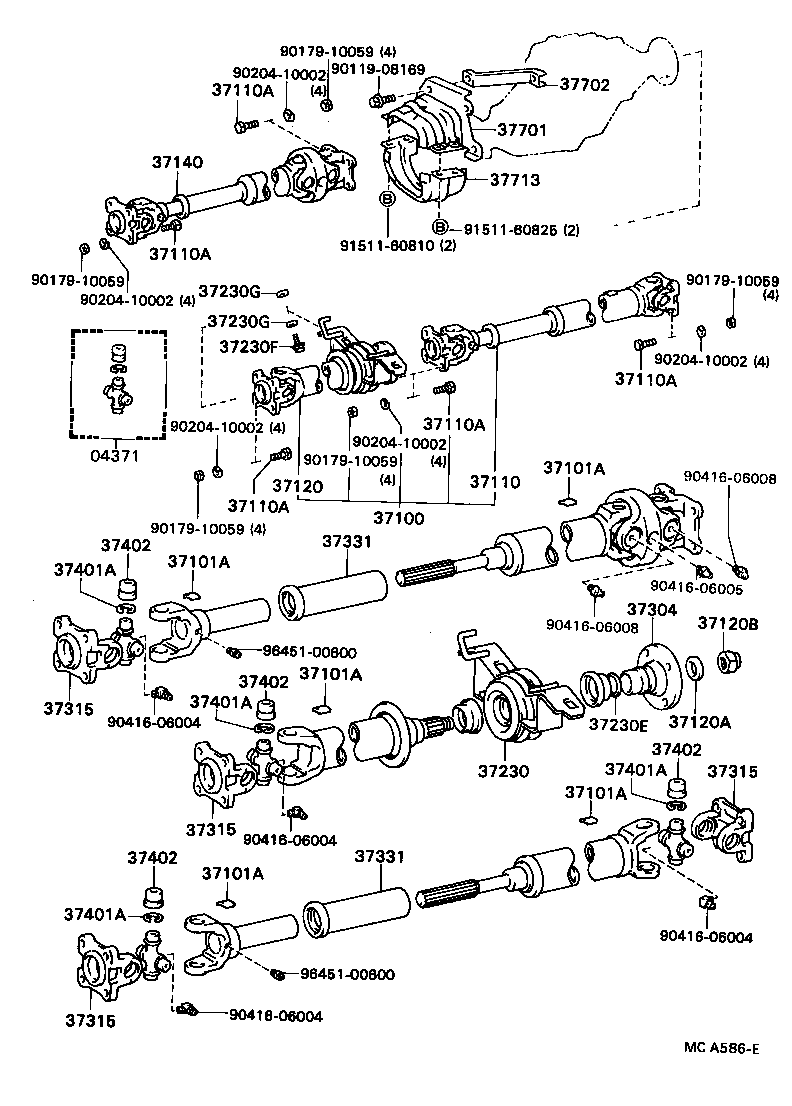

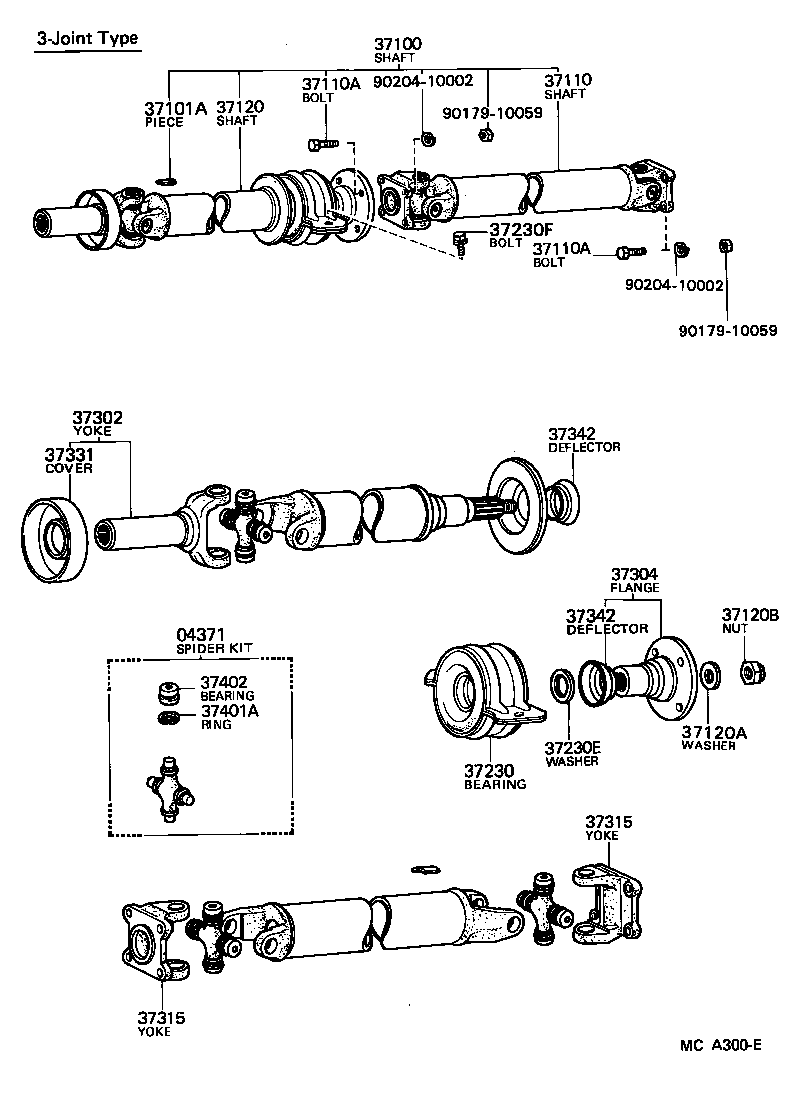

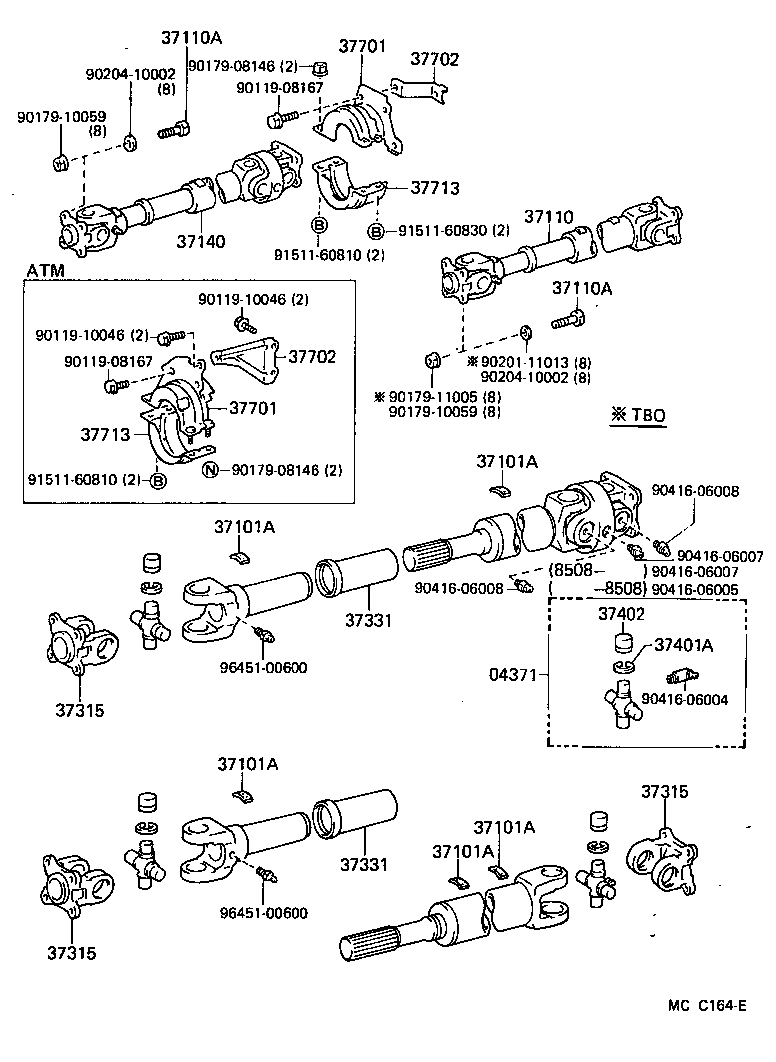

Figure MCA299C MCA299C 1983-08 → — Figure MCA300E MCA300E 1983-08 → — Figure MCC164E MCC164E 1983-08 → 1985-04 Figure MCC164E MCC164E 1985-08 → — Figure MCA586E MCA586E 1983-08 → 1985-08

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37100 Shaft Assy, Propeller W/Center Bearing
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37120A Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37140 Shaft Assy, Propeller, Front
37230 Bearing Assy, Center Support, NO.1
37230E Washer, NO.1 (FOR CENTER SUPPORT BEARING)
37230F Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
37230G Washer, NO.2 (FOR CENTER SUPPORT BEARING)
37302 Yoke Sub-assy, Universal Joint Sleeve
37304 Flange Sub-assy, Universal Joint
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37342 Deflector, Propeller Shaft Dust, NO.2
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
37701 Cover Sub-assy, Propeller Shaft Dust
37702 Stay Sub-assy, Propeller Shaft Dust Cover
37713 Cover, Propeller Shaft Dust, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
