Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

95 part groups · 15 illustrations

Illustrations

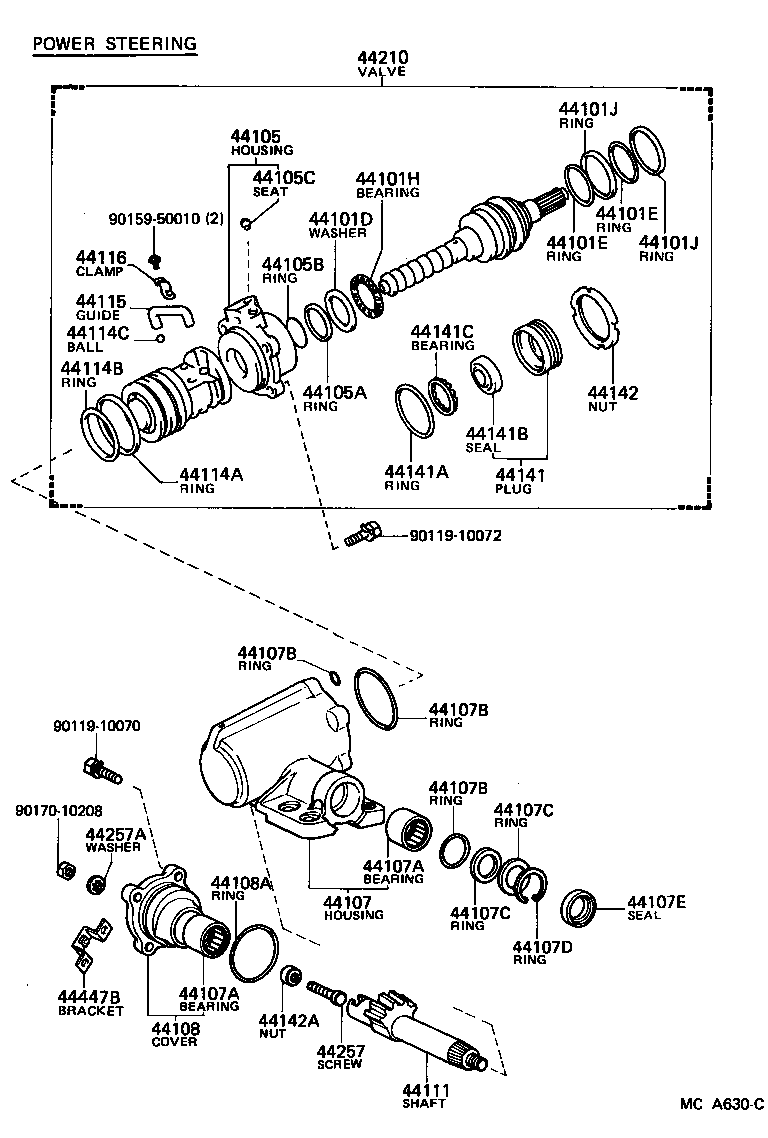

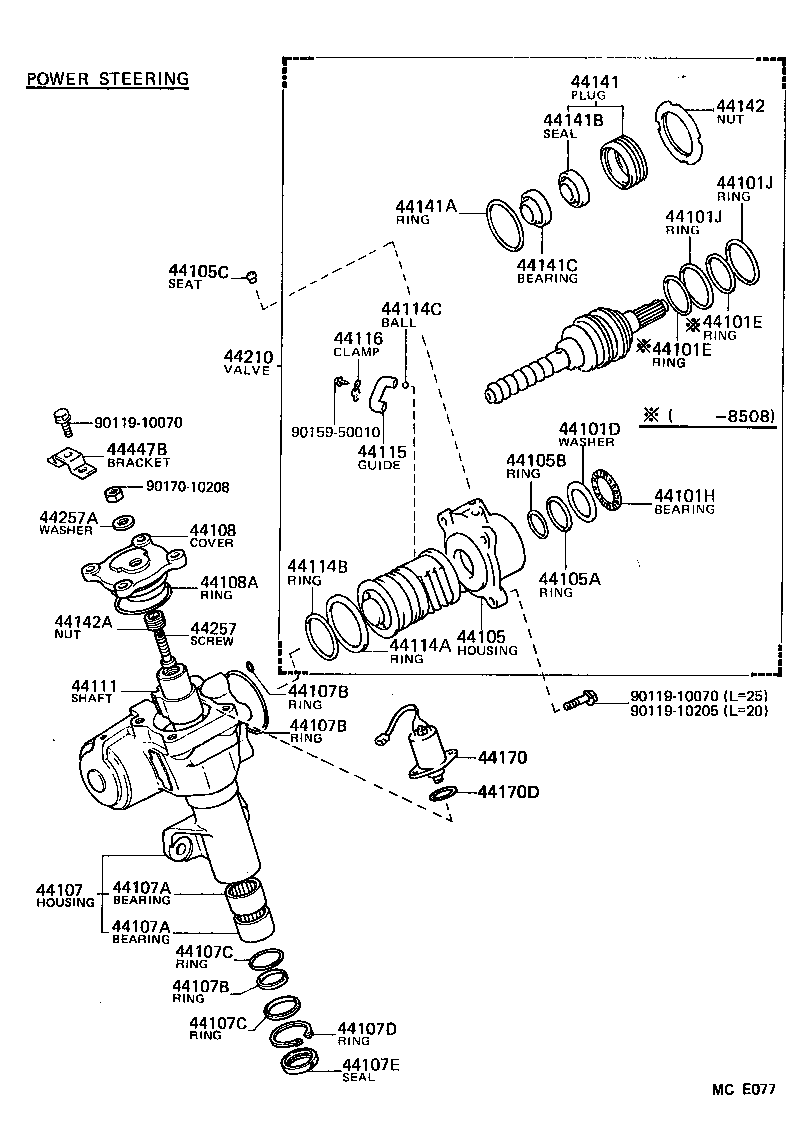

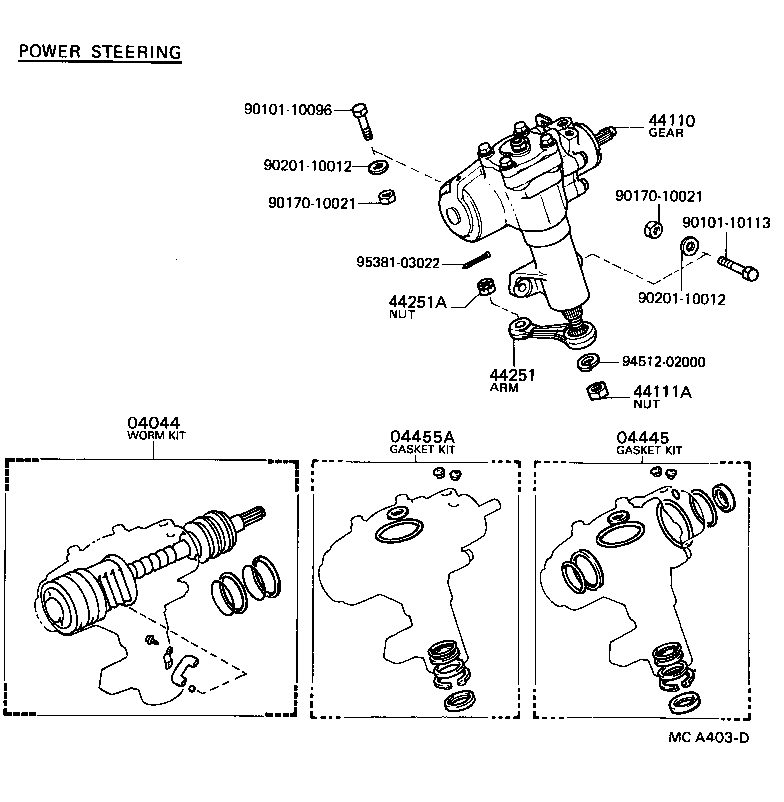

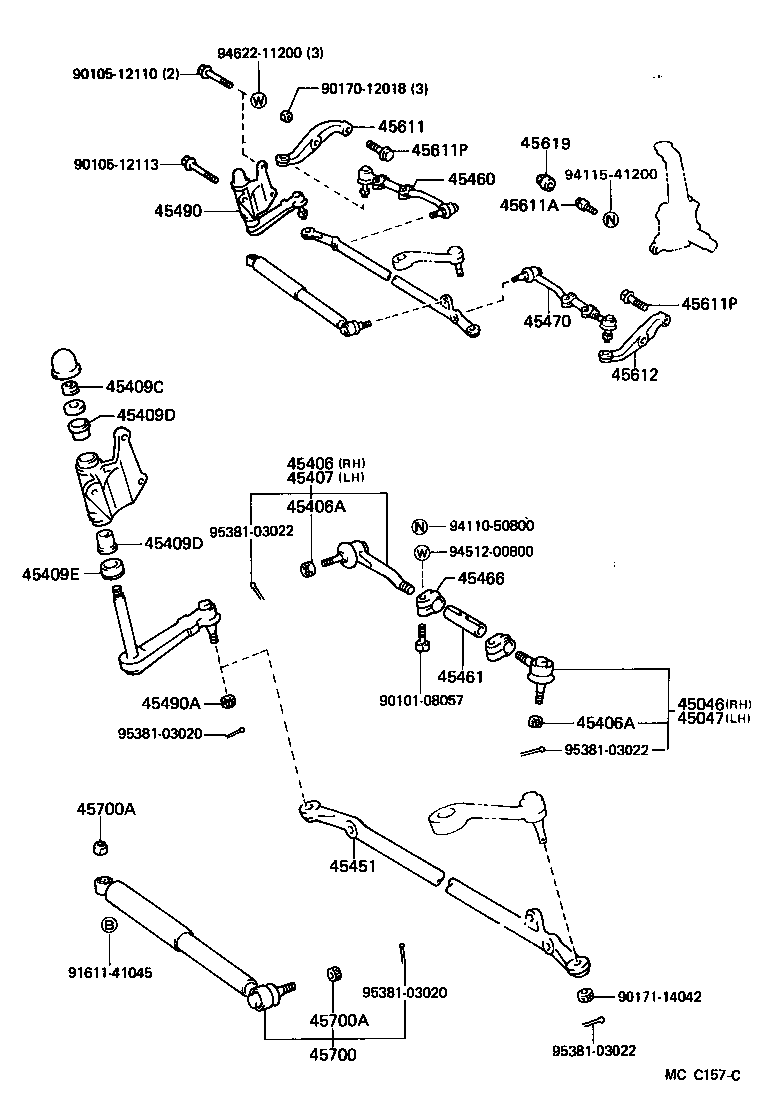

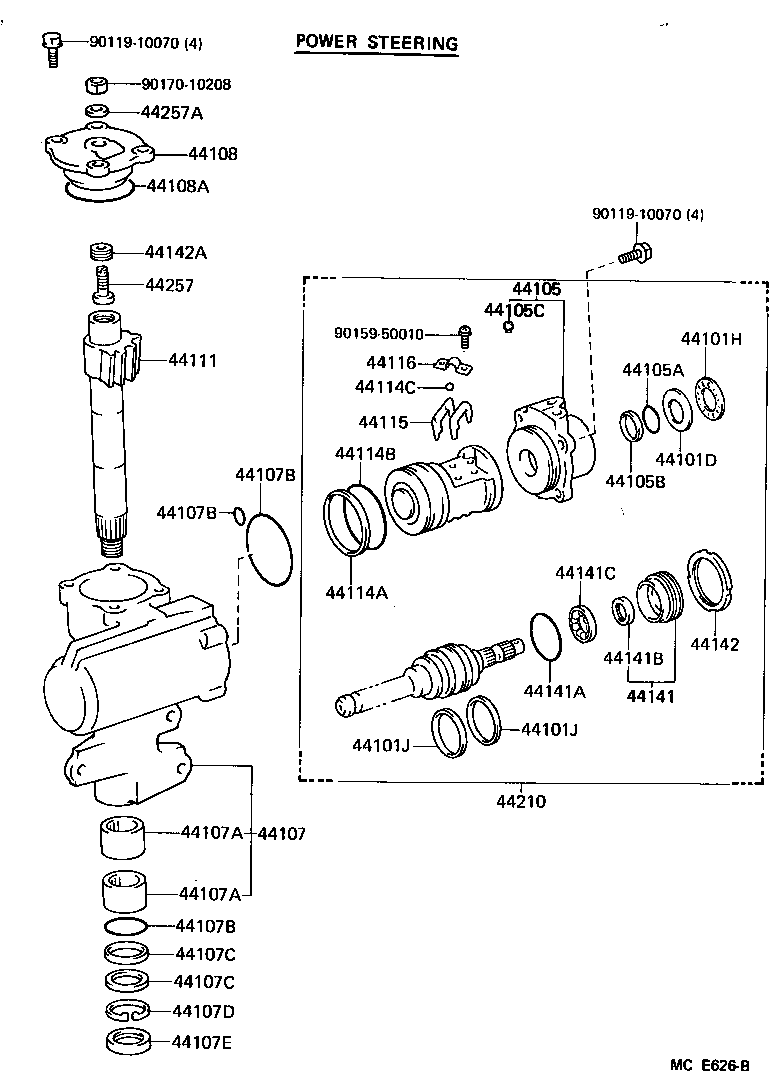

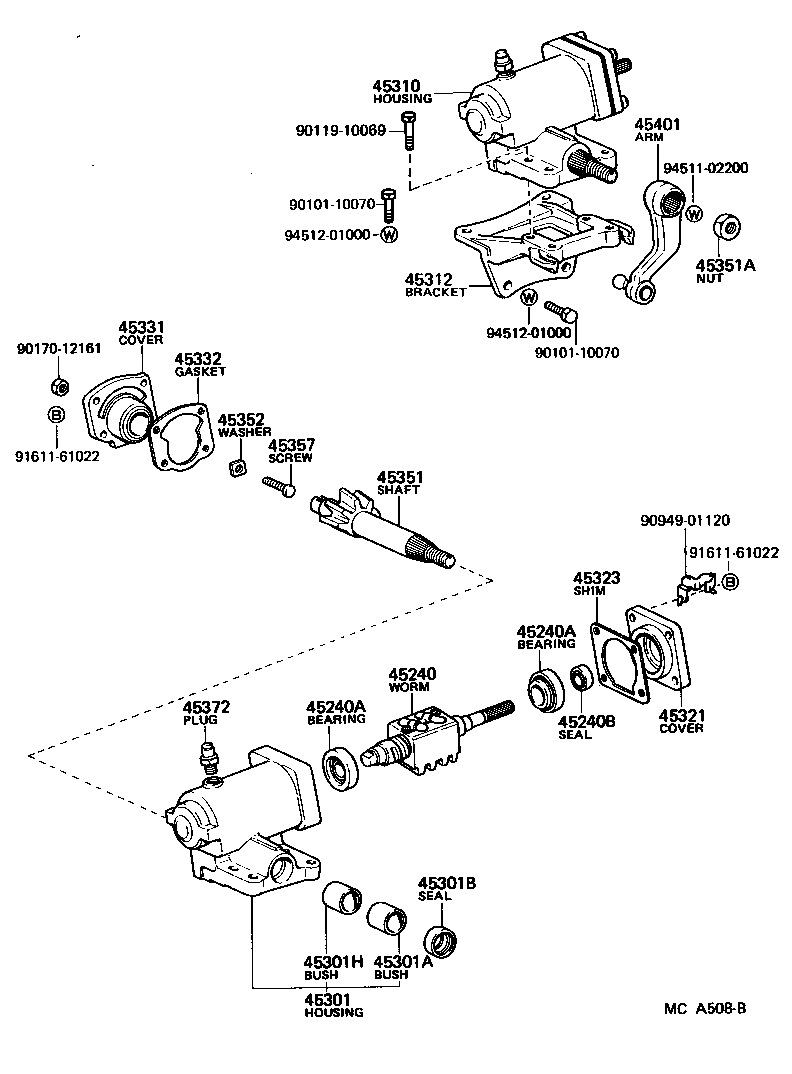

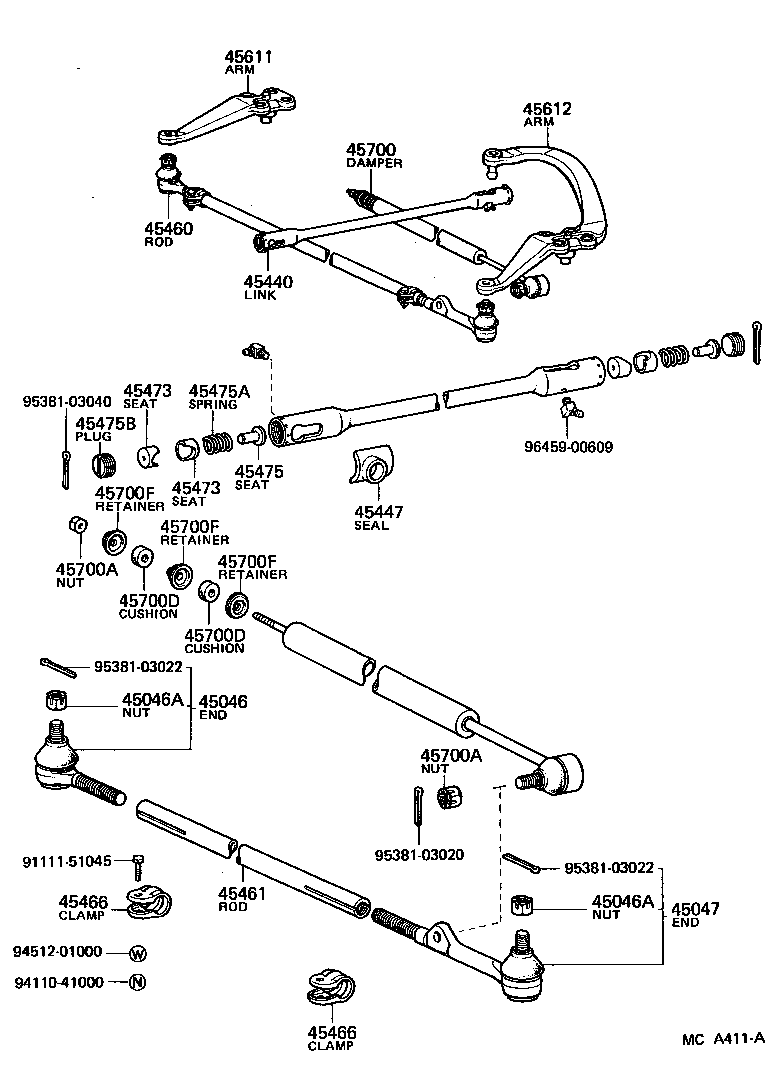

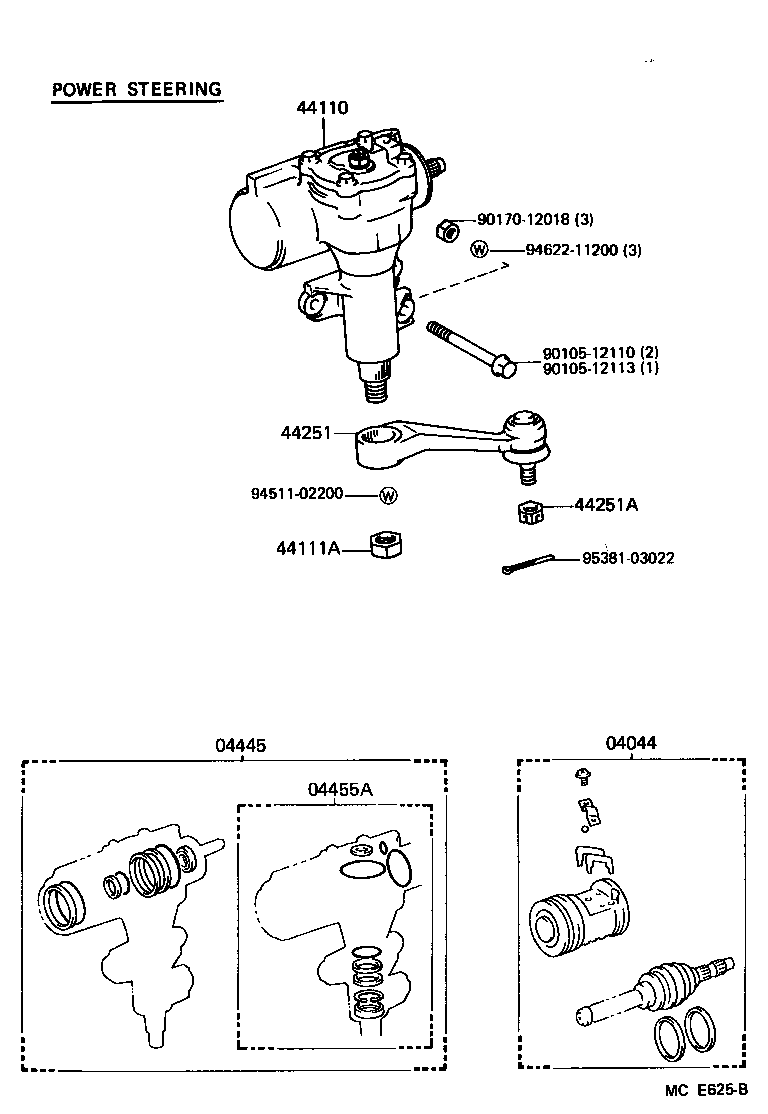

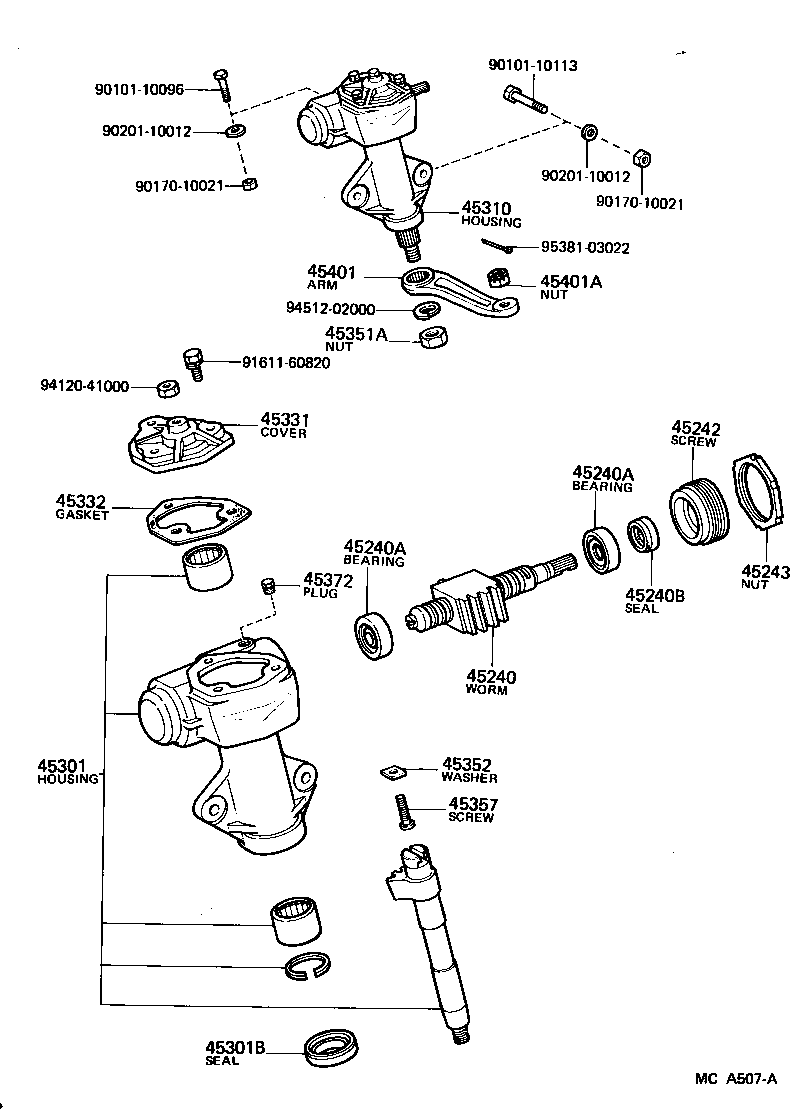

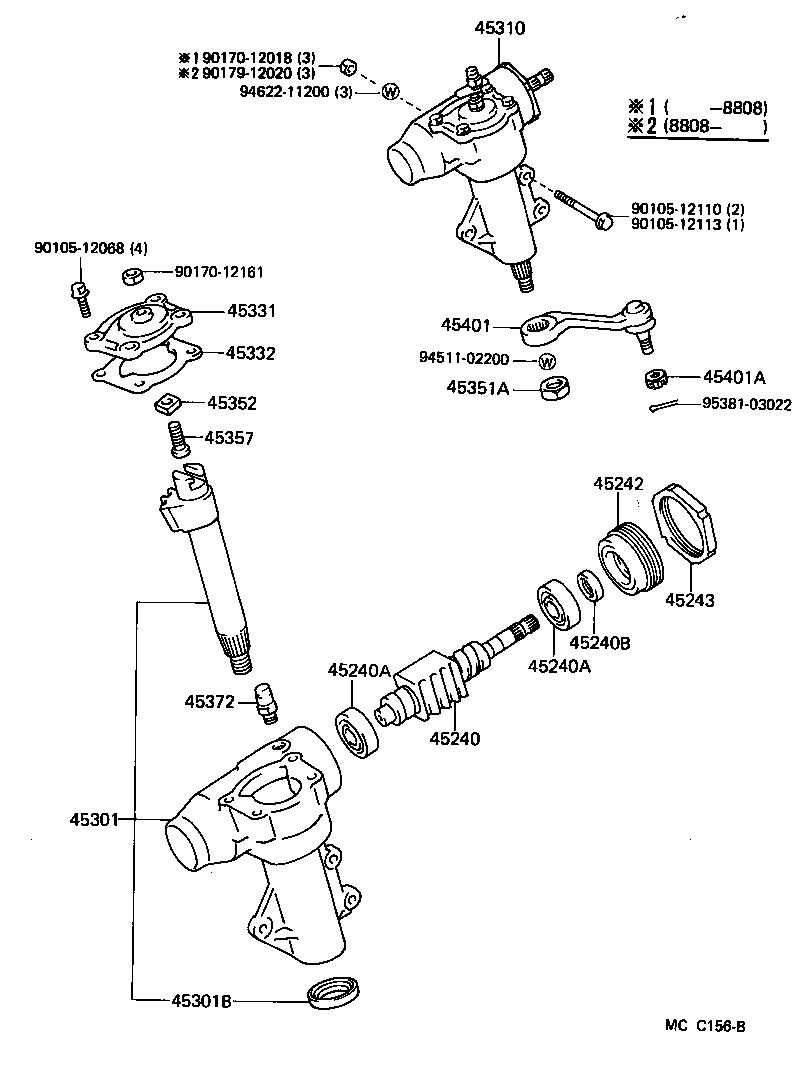

Figure MCA410B MCA410B 1983-08 → — Figure MCA507A MCA507A 1983-08 → 1986-08 Figure MCA507A MCA507A 1986-08 → — Figure MCA403D MCA403D 1983-08 → — Figure MCE077 MCE077 1983-08 → — Figure MCA411A MCA411A 1983-08 → 1985-08 Figure MCC157C MCC157C 1985-08 → — Figure MCA508B MCA508B 1983-08 → 1985-08 Figure MCC156B MCC156B 1985-08 → — Figure MCA404D MCA404D 1983-08 → 1984-08 Figure MCA404D MCA404D 1984-08 → 1985-08 Figure MCE625B MCE625B 1985-08 → — Figure MCA630C MCA630C 1983-08 → 1984-08 Figure MCA630C MCA630C 1984-08 → 1985-08 Figure MCE626B MCE626B 1985-08 → —

Part groups

PNCDescription
04044 Warm Kit, Power Steering
04445 Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
04455A Gasket Kit, Power Steering Cross Shaft Overhole
44101D Washer, Plate(FOR STEERING WORM)
44101E Ring, O(FOR STEERING WORM)
44101H Bearing, Thrust Needle Roller(FOR STEERING WORM)
44101J Ring(FOR STEERING WORM)
44105 Housing Sub-assy, Valve
44105A Ring, O(FOR VALVE HOUSING)
44105B Ring(FOR VALVE HOUSING)
44105C Seat, Union(FOR VALVE BODY HOUSING)
44107 Housing Sub-assy, Power Steering Gear
44107A Bearing, Needle Roller(FOR POWER STEERING GEAR HOUSING)
44107B Ring, O(FOR POWER STEERING GEAR HOUSING)
44107C Ring(FOR POWER STEERING GEAR HOUSING)
44107D Ring, Hole Snap(FOR POWER STEERING GEAR HOUSING)
44107E Seal, Oil(FOR POWER STEERING GEAR HOUSING)
44108 Cover Sub-assy, Side
44108A Ring, O(FOR SIDE COVER)
44110 Gear Assy, Power Steering
44111 Shaft, Cross
44111A Nut, Hexagon(FOR CROSS SHAFT TO PITMAN ARM SETTING)
44114A Ring(FOR POWER PISTON NUT)
44114B Ring, O(FOR POWER PISTON NUT)
44114C Ball(FOR POWER PISTON NUT)
44115 Guide, Ball
44116 Clamp, Ball Guide
44141 Plug, Adjuster
44141A Ring, O(FOR ADJUSTER PLUG)
44141B Seal, Oil(FOR ADJUSTER PLUG)
44141C Bearing(FOR ADJUSTER PLUG)
44142 Nut, Lock
44142A Nut, Lock, NO.1
44170 Valve Assy, Solenoid(FOR POWER STEERING)
44170D Ring, O(FOR POWER STEERING SOLENOID VALVE)
44210 Valve Assy, Power Steering Control
44251 Arm, Pitman
44251A Nut, Castle(FOR PITMAN ARM)
44257 Screw, Cross Shaft Adjusting
44257A Washer, Seal(FOR CROSS SHAFT ADJUSTING SCREW)
44447B Bracket, Hose Support, NO.1
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45240 Worm Assy, Steering
45240A Bearing(FOR STEERING WORM)
45240B Seal, Oil(FOR STEERING WORM)
45242 Screw, Worm Bearing Adjusting
45243 Nut, Worm Bearing Adjusting Screw Lock
45301 Housing Sub-assy, Steering Gear
45301A Bush OR Bearing, Sector Shaft, NO.1
45301B Seal, Oil(FOR SECTOR SHAFT)
45301H Bush OR Bearing, Sector Shaft, NO.2
45310 Housing Assy, Steering Gear
45312 Bracket, Steering Gear Housing
45321 Cover, Gear Housing End
45323 Shim, Gear Housing End Cover
45331 Cover, Sector Shaft End
45332 Gasket, Sector Shaft End Cover
45351 Shaft, Steering Sector
45351A Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352 Washer, Sector Shaft Thrust
45357 Screw, Sector Shaft Adjusting
45372 Plug, Steering Gear Housing Oil
45401 Arm Sub-assy, Pitman
45401A Nut, Castle(FOR PITMAN ARM)
45406 Rod Sub-assy, Tie, RH
45406A Nut, Castle(FOR TIE ROD)
45407 Rod Sub-assy, Tie, LH
45409A Bolt, Hexagon(FOR IDLER ARM SUPPORT SETTING)
45409C Nut(FOR IDLER ARM SUPPORT)
45409D Bush(FOR IDLER ARM)
45409E Seal, Dust(FOR IDLER ARM SUPPORT)
45440 Link Assy, Steering Drag
45447 Seal, Drag Link Dust
45451 Rod, Steering Relay
45460 Rod Assy, Tie, RH
45461 Rod, Steering Tie
45466 Clamp, Tie Rod End
45470 Rod Assy, Tie, LH
45473 Seat, Ball Stud
45475 Seat, Steering Link Joint Spring
45475A Spring, Compression(FOR STEERING LINK JOINT)
45475B Plug, Straight Screw(FOR STEERING LINK JOINT)
45490 Arm Assy, Steering Idler
45490A Nut, Castle(FOR IDLER ARM)
45611 Arm, Steering Knuckle, RH
45611A Bolt, Knuckle Stopper
45611P Bolt(FOR STEERING KNUCKLE)
45612 Arm, Steering Knuckle, LH
45619 Cover, Knuckle Stopper
45700 Damper Assy, Steering
45700A Nut(FOR STEERING DAMPER)
45700D Cushion, Steering Damper
45700F Retainer, Steering Damper Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
