Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05

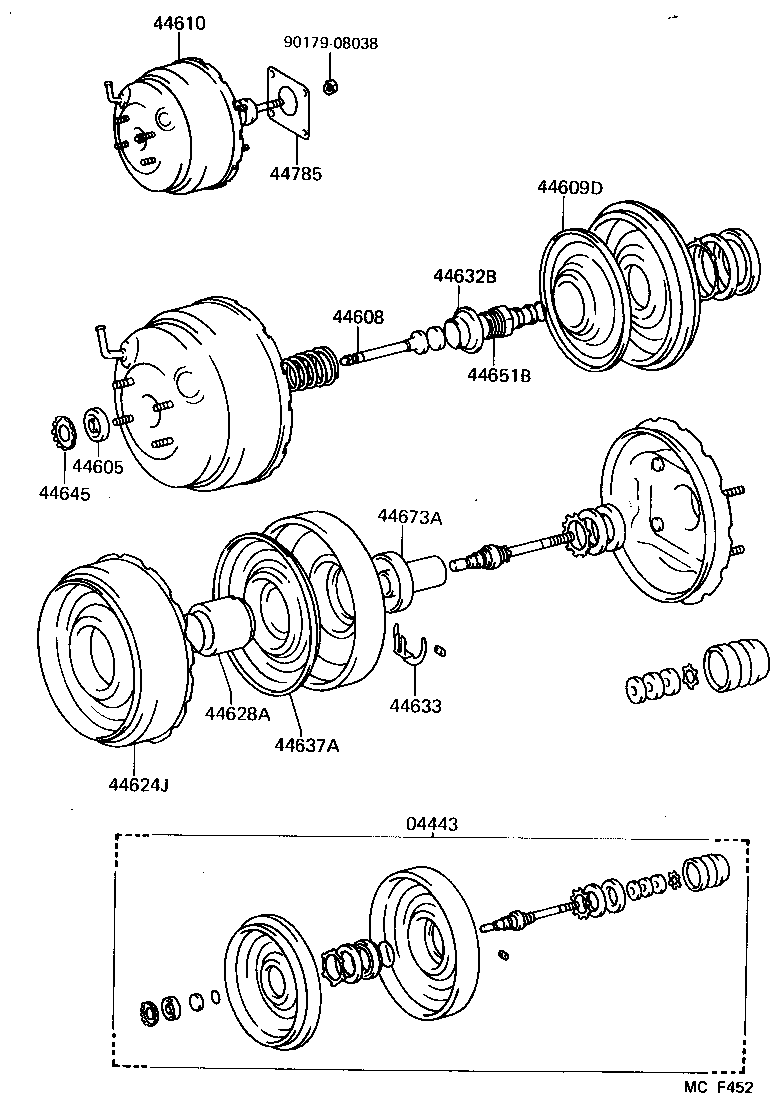

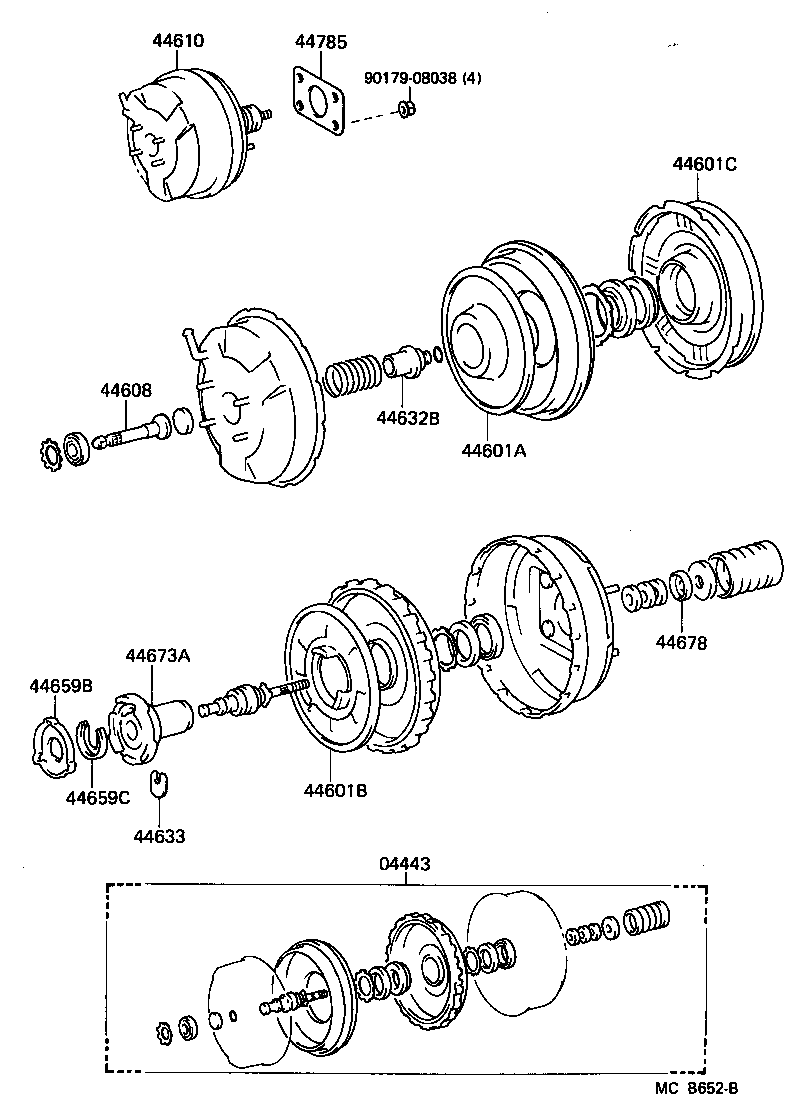

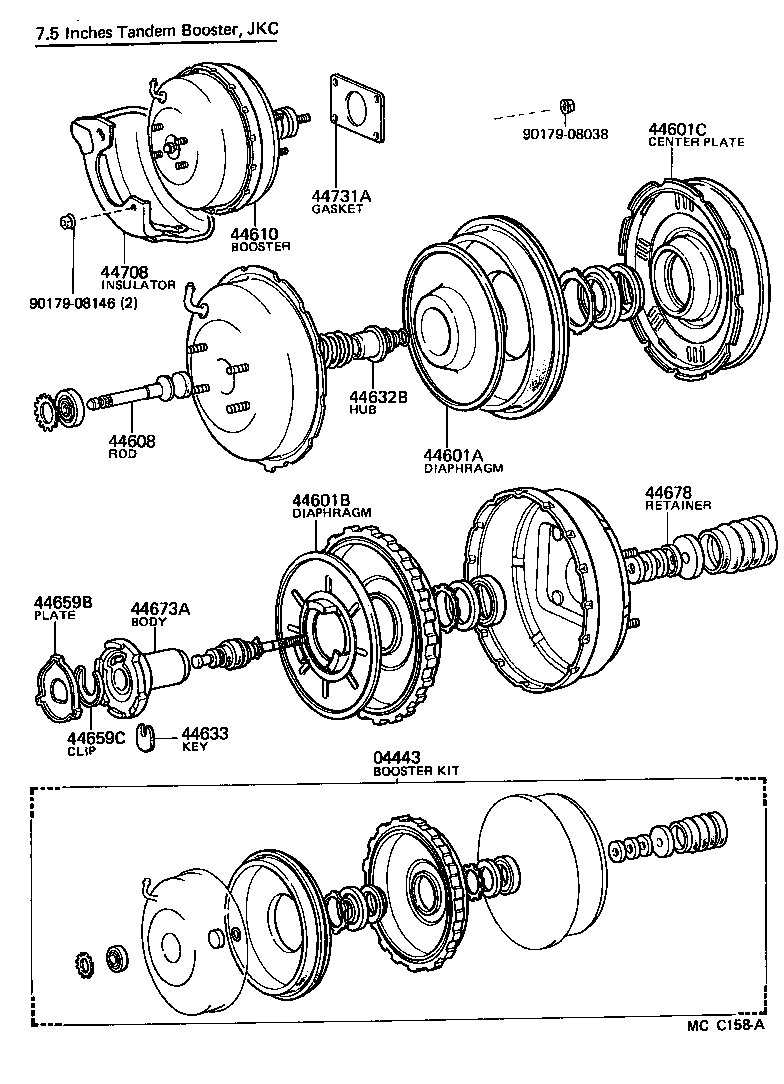

Brake Booster & Vacuum Tube

40 part groups · 8 illustrations

PNC	Description
04443	Booster Kit, Brake
44601A	Diaphragm Plate Sub-assy, Booster, Front
44601B	Diaphragm Plate Sub-assy, Booster, Rear
44601C	Center Plate Sub-assy, Booster
44605	Plate & Seal Sub-assy, Booster
44608	Push Rod Sub-assy, Booster
44609D	Plate & Retainer Sub-assy, Booster
44610	Booster Assy, Brake
44624J	Plate, Booster Center
44628A	Body, Booster Center
44632B	Hub, Booster Reaction Disk
44633	Key, Booster Valve Plunger
44637A	Plate, Booster Diaphragm
44645	Retainer, Booster Push Rod Seal
44651B	Nut, Booster
44659B	Plate, Booster Retainer
44659C	Clip, Booster
44673A	Body, Booster Valve
44678	Retainer, Booster Air Cleaner
44704	Reservoir Sub-assy, Vacuum
44708	Insulator Sub-assy, Brake Booster Heat
44730	Valve Assy, Vacuum Check(FOR BRAKE)
44730F	Union, Vacuum Hose(FOR MANIFOLD SIDE)
44731	Bracket, Brake Booster, Front
44731A	Gasket, Brake Booster Bracket
44732	Bracket, Brake Booster, Rear
44735C	Ring, Booster Bracket Stopper
44743	Union(FOR VACUUM PUMP)
44758	Bracket, Vacuum Check Valve
44761	Tube, Intake Manifold OR Vacuum Pump TO Connector
44771	Hose, Vacuum Tube Connector
44771A	Clip(FOR VACUUM TUBE CONNECTOR HOSE)
44772B	Hose, Check Valve TO Brake Booster
44772C	Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44773F	Hose, Union TO Check Valve
44773G	Clip(FOR UNION TO CHECK VALVE HOSE)
44774	Hose, Union TO Connector Tube
44774A	Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44783	Clamp, Vacuum Hose
44785	Gasket, Brake Booster

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
