Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

51 part groups · 4 illustrations

Illustrations

MBF514D 1983-08 → 1988-08

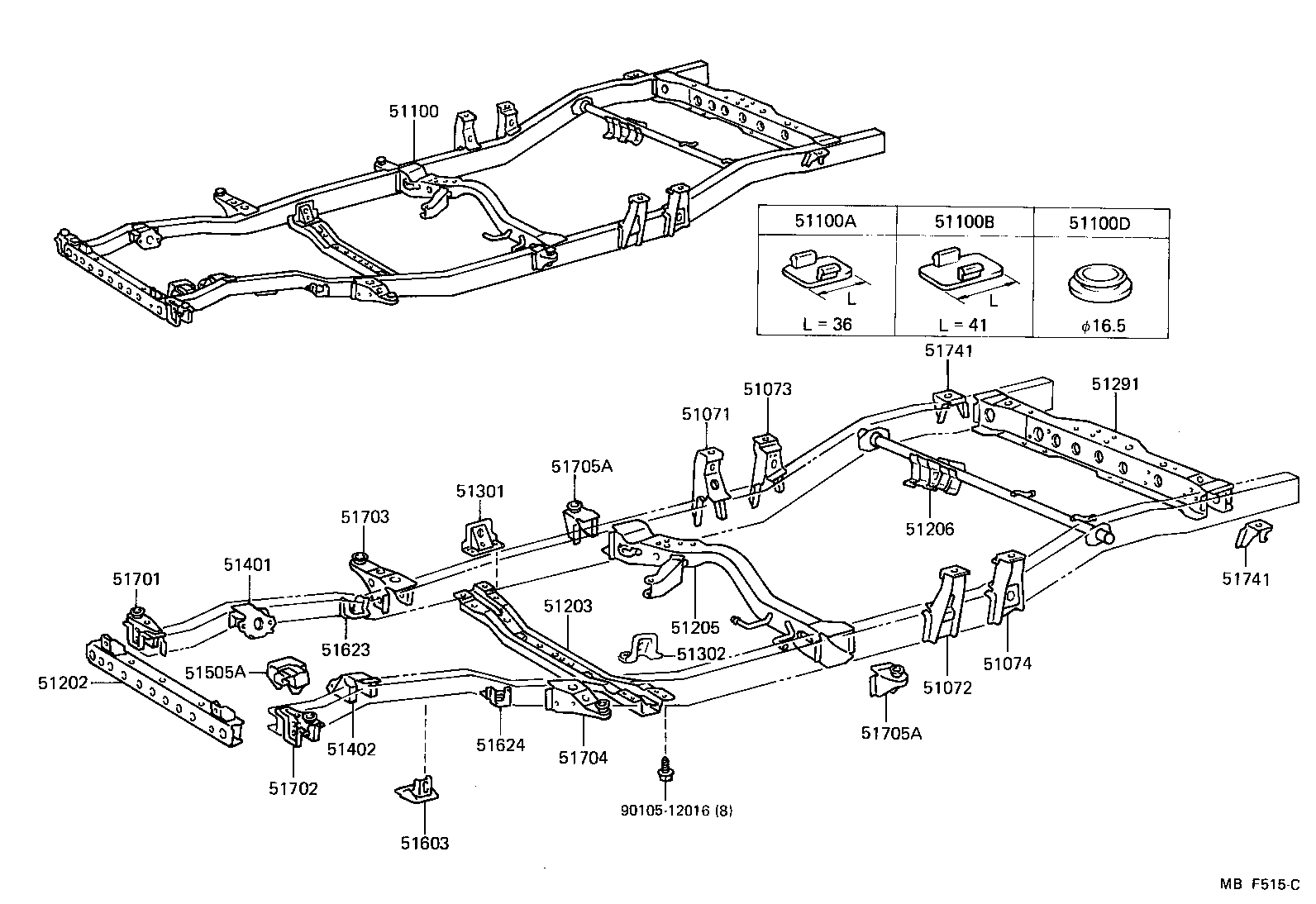

MBF515C 1983-08 → 1985-08

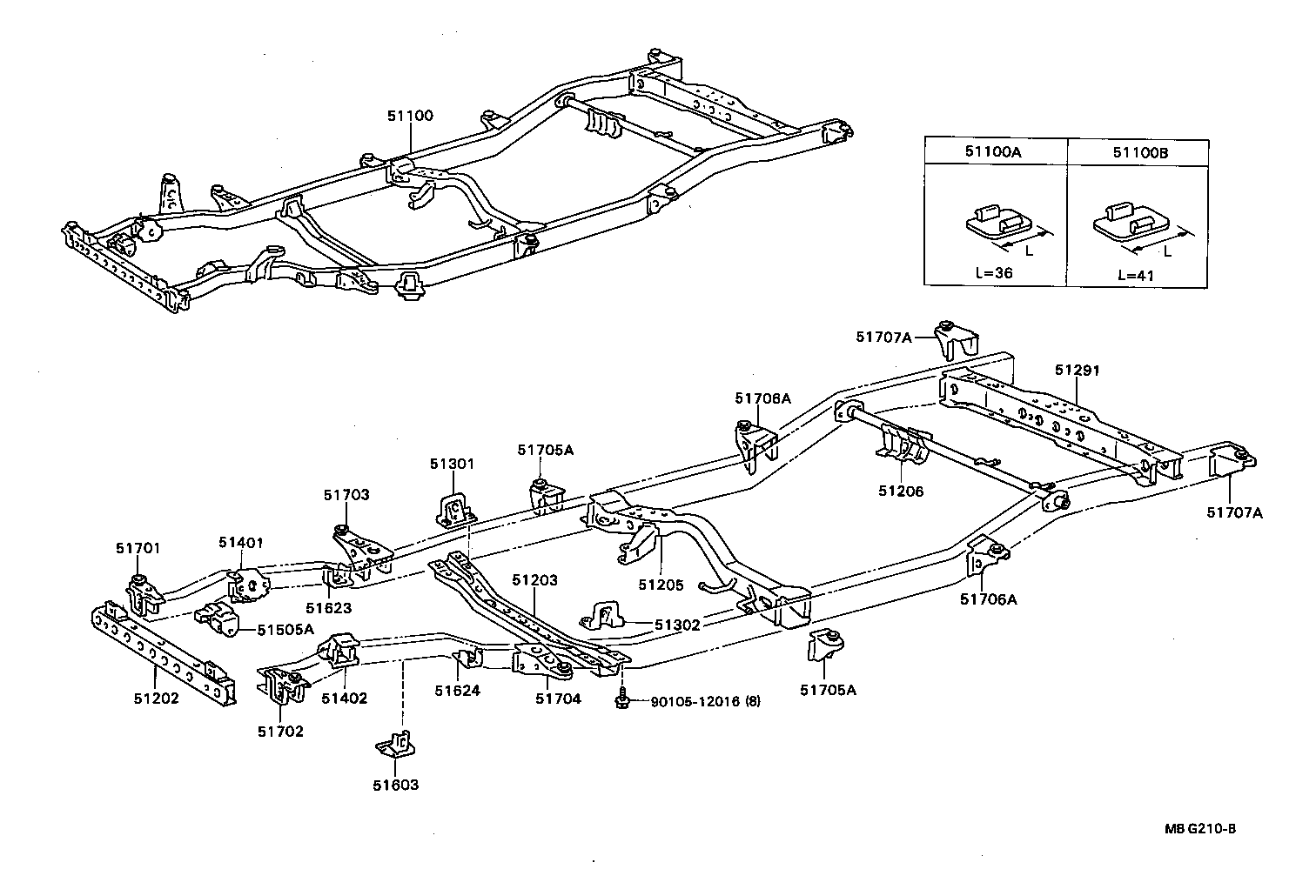

MBG210B 1984-03 → 1985-08

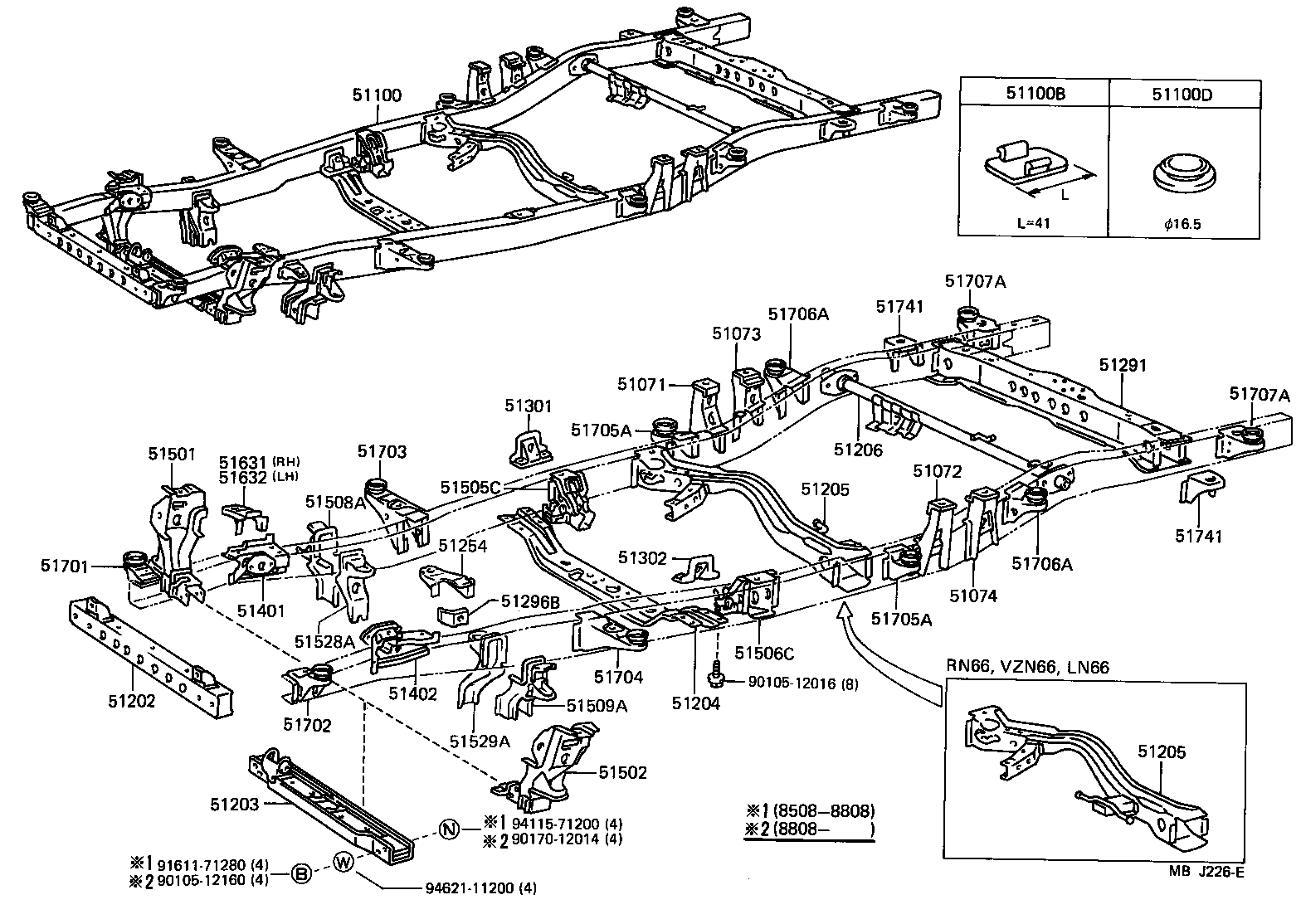

MBJ226E 1985-08 → 1989-03

Part groups

PNC	Description
51071	Bracket Sub-assy, Rear Body Mounting, NO.1 RH
51072	Bracket Sub-assy, Rear Body Mounting, NO.1 LH
51073	Bracket Sub-assy, Rear Body Mounting, NO.2 RH
51074	Bracket Sub-assy, Rear Body Mounting, NO.2 LH
51100	Frame Assy
51100A	Plug, Hole(FOR FRAME)
51100B	Plug, Hole(FOR FRAME)
51100C	Plug, Hole(FOR FRAME)
51100D	Plug, Hole(FOR FRAME)
51202	Crossmember Sub-assy, Frame, NO.1
51203	Crossmember Sub-assy, Frame, NO.2
51204	Crossmember Sub-assy, Frame, NO.3
51205	Crossmember Sub-assy, Frame, NO.4
51206	Crossmember Sub-assy, Frame, NO.5
51254	Bracket, Differential Support, LH
51291	Crossmember, Frame, Rear
51296B	Reinforcement, Differential Bracket, LH
51301	Bracket, Frame NO.2 Crossmember, RH
51302	Bracket, Frame NO.2 Crossmember, LH
51401	Bracket Sub-assy, Engine Front Mounting, RH
51402	Bracket Sub-assy, Engine Front Mounting, LH
51415	Bracket, Engine Shock Absorber
51435	Bracket, Engine Rear Mounting
51501	Support Sub-assy, Suspension Arm, RH
51502	Support Sub-assy, Suspension Arm, LH
51505A	Support Sub-assy, Upper Control Arm
51505C	Support Sub-assy, Anchor Arm, RH
51506C	Support Sub-assy, Anchor Arm, LH
51508A	Bracket Sub-assy, Lower Arm, RH
51509A	Bracket Sub-assy, Lower Arm, LH
51528A	Reinforcement, Lower Arm Bracket, RH
51529A	Reinforcement, Lower Arm Bracket, LH
51543	Bracket, Shimmy Damper
51575	Reinforcement, Suspension Arm Support, NO.1
51576	Reinforcement, Suspension Arm Support, NO.2
51591	Support, Stabilizer
51603	Bracket Sub-assy, Front Suspension Bound
51623	Bracket, Front Spring Bound Stopper, RH
51624	Bracket, Front Spring Bound Stopper, LH
51631	Stopper, Front Suspension Rebound, RH
51632	Stopper, Front Suspension Rebound, LH
51701	Bracket Sub-assy, Cab Mounting, NO.1 RH
51702	Bracket Sub-assy, Cab Mounting, NO.1 LH
51703	Bracket Sub-assy, Cab Mounting, NO.2, RH
51704	Bracket Sub-assy, Cab Mounting, NO.2 LH
51705A	Bracket Sub-assy, Cab Mounting, NO.3
51706A	Bracket Sub-assy, Cab Mounting, NO.4
51707A	Bracket Sub-assy, Cab Mounting, NO.5
51741	Bracket, Rear Body Mounting, NO.1
57107	Bracket Sub-assy, Strut Bar, RH
57108	Bracket Sub-assy, Strut Bar, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
