Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 3 illustrations

Illustrations

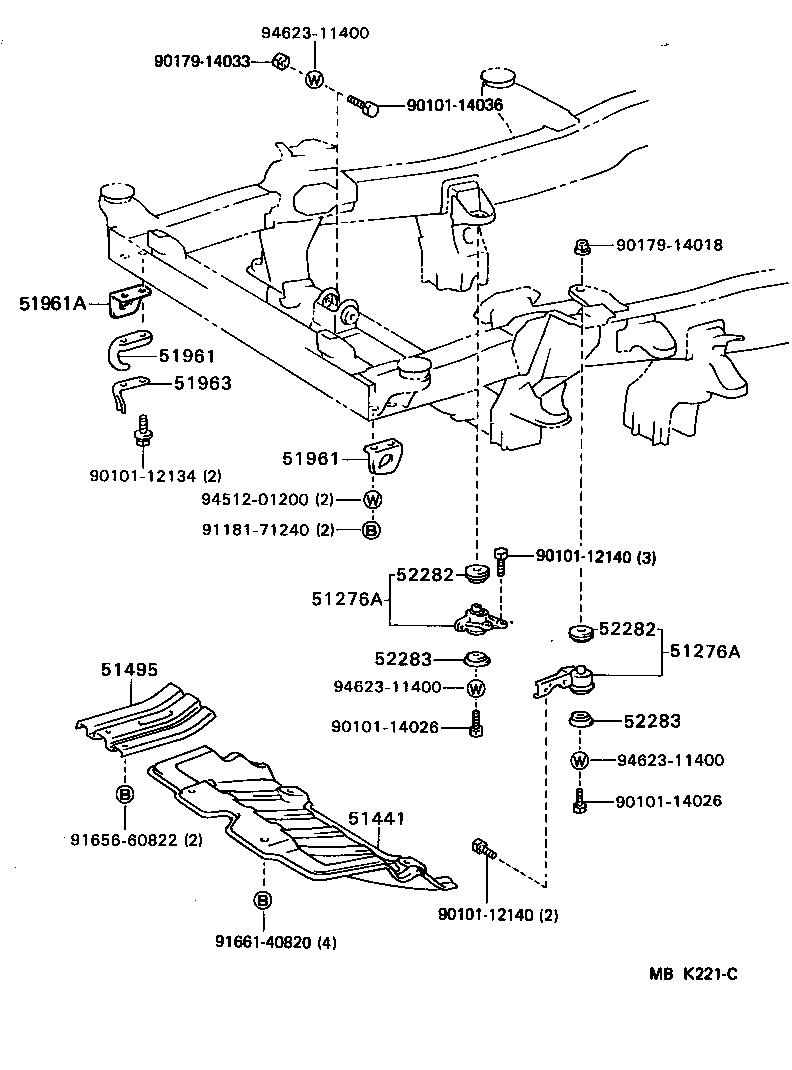

Figure MBF783D MBF783D 1983-08 → 1985-08 Figure MBF783D MBF783D 1985-08 → 1988-08 Figure MBK221C MBK221C 1985-08 → 1989-03

Part groups

PNCDescription
51276A Bracket, Differential Support
51441 Cover, Engine Under, NO.1
51495 Cover, Transmission Under
51961 Hook, NO.1
51961A Hook, NO.3
51963 Stopper, Hook Wire
52282 Stopper, Differential Support Member, Upper
52283 Stopper, Differential Support Member, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
