Factory parts data · Europe

Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 2 illustrations

Illustrations

Figure MBF524E

MBF524E 1983-08 → 1986-08

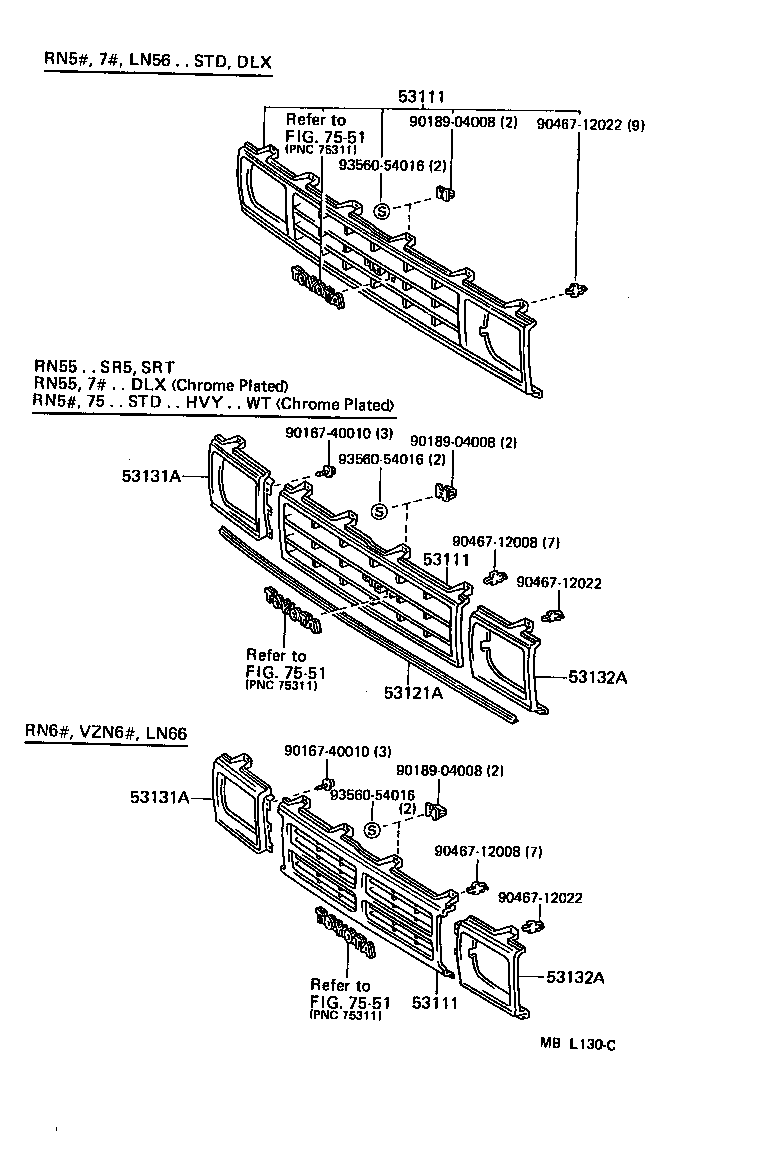

Figure MBL130C

MBL130C 1986-08 → 1989-03

Part groups

PNC	Description
53111	Grille, Radiator
53121A	Moulding, Radiator Grille
53131A	Door, Headlamp, RH
53132A	Door, Headlamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
