Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

22 part groups · 2 illustrations

Illustrations

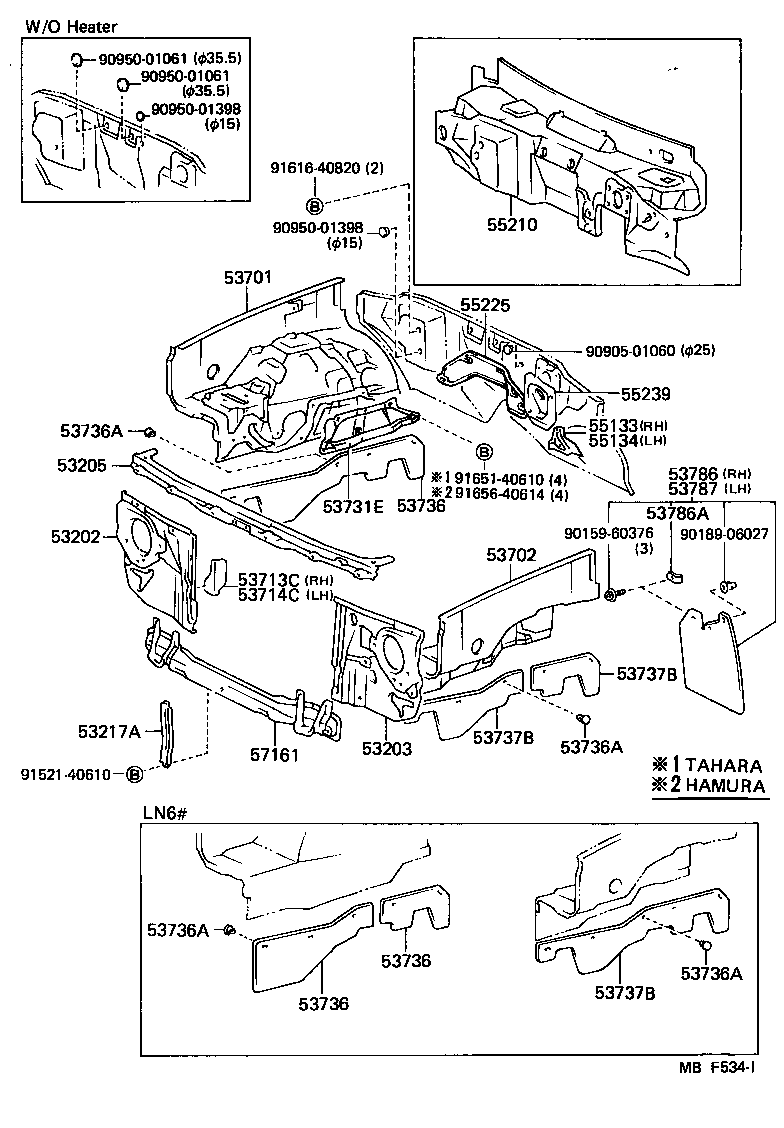

Figure MBF533H MBF533H 1983-08 → 1988-08 Figure MBF534I MBF534I 1983-08 → 1989-03

Part groups

PNCDescription
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53217A Brace, Hood Lock Support
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53713C Extension, Front Fender Apron, Front RH
53714C Extension, Front Fender Apron, Front LH
53731E Patch, Front Fender Apron
53736 Seal, Front Fender Apron, RH
53736A Clip(FOR FRONT FENDER APRON SEAL)
53737B Seal, Front Fender Apron, LH
53773A Bracket, Air Cleaner Mounting
53786 Mudguard, Front, RH
53786A Retainer(FOR FRONT MUDGUARD)
53787 Mudguard, Front, LH
55133 Plate, Front Fender Apron Set, Lower RH
55134 Plate, Front Fender Apron Set, Lower LH
55210 Insulator Assy, Dash Panel
55225 Insulator, Dash Panel Heat
55239 Silencer, Steering Column Hole Cover
57161 Crossmember, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
