Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

6 part groups · 2 illustrations

Illustrations

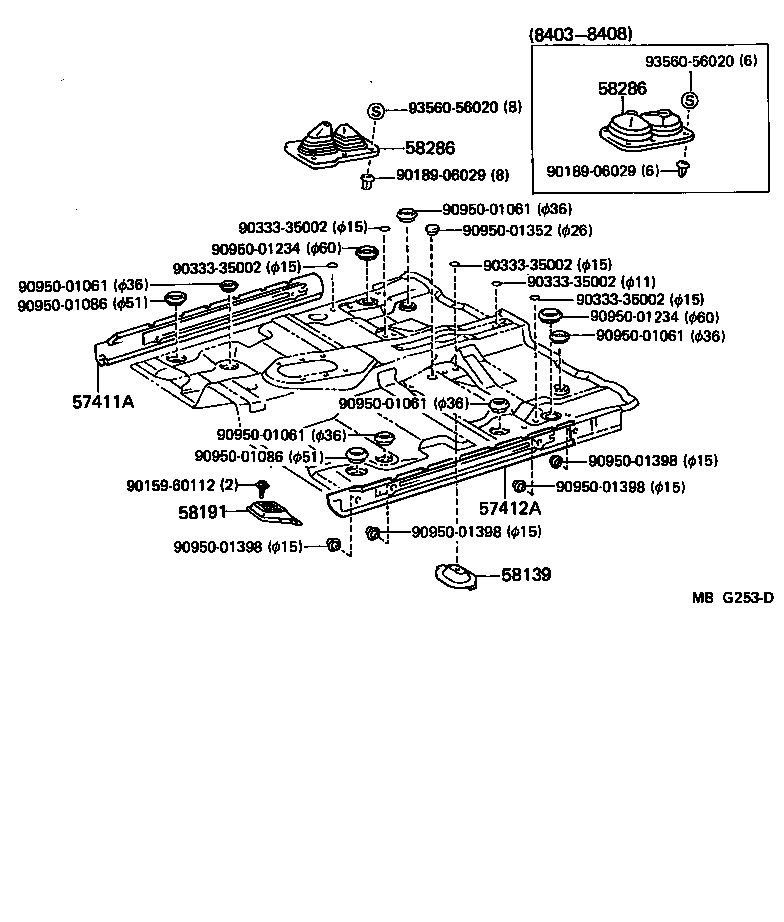

Figure 583396 583396 1983-08 → 1988-08 Figure MBG253D MBG253D 1984-03 → 1989-03

Part groups

PNCDescription
57411A Member, Floor Side, Inner RH
57412A Member, Floor Side, Inner LH
58139 Cover, Front Floor Side, Rear
58191 Footrest, Front Floor
58286 Boot, Shift & Select Lever, NO.1
58287 Retainer, Shift Lever Boot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
