Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

21 part groups · 8 illustrations

Illustrations

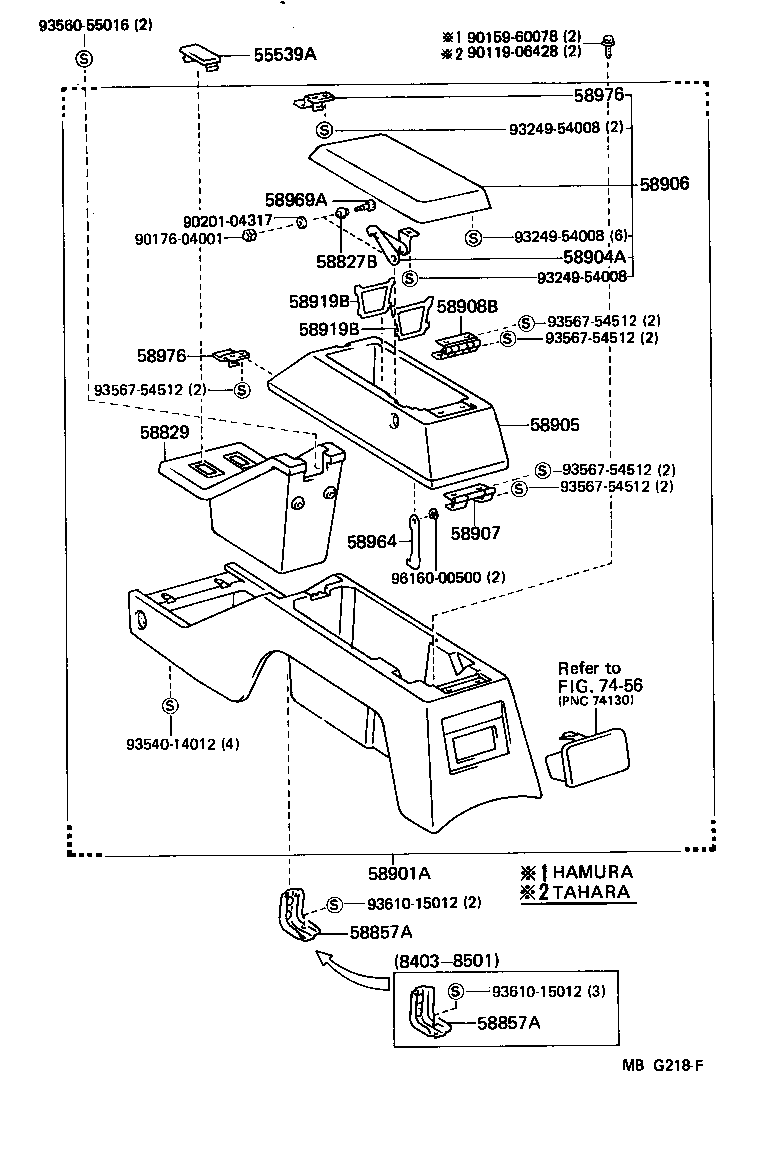

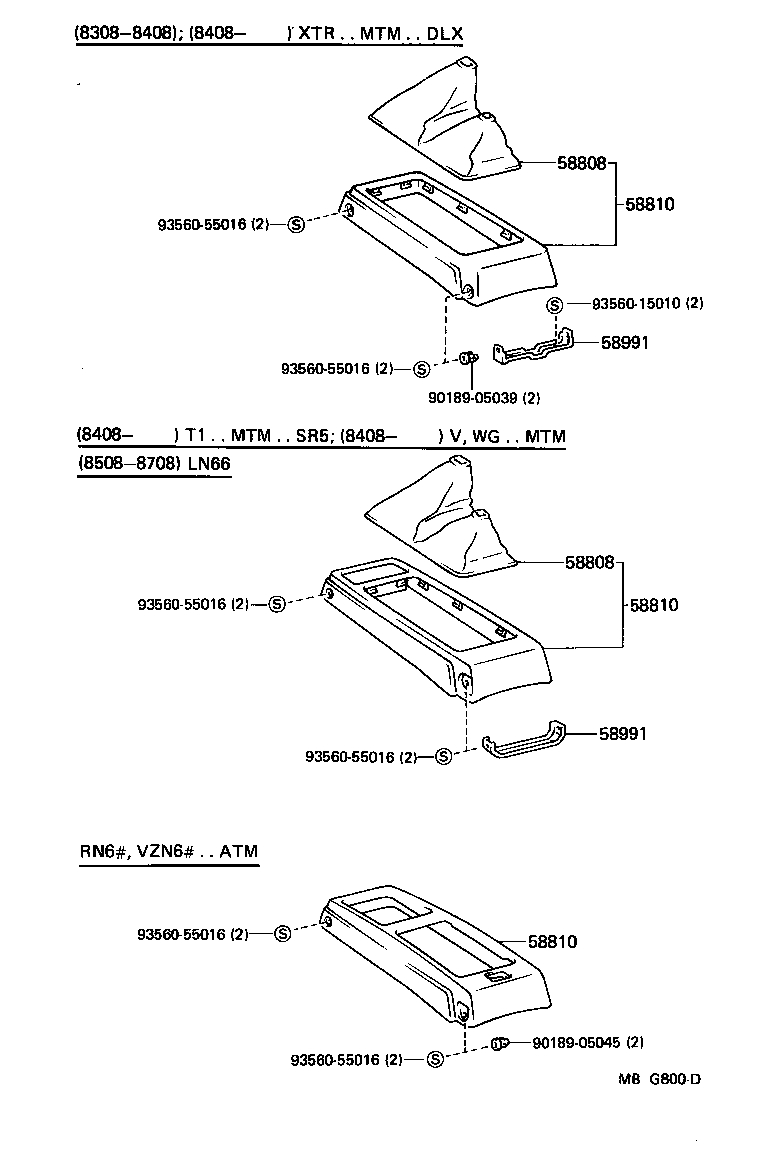

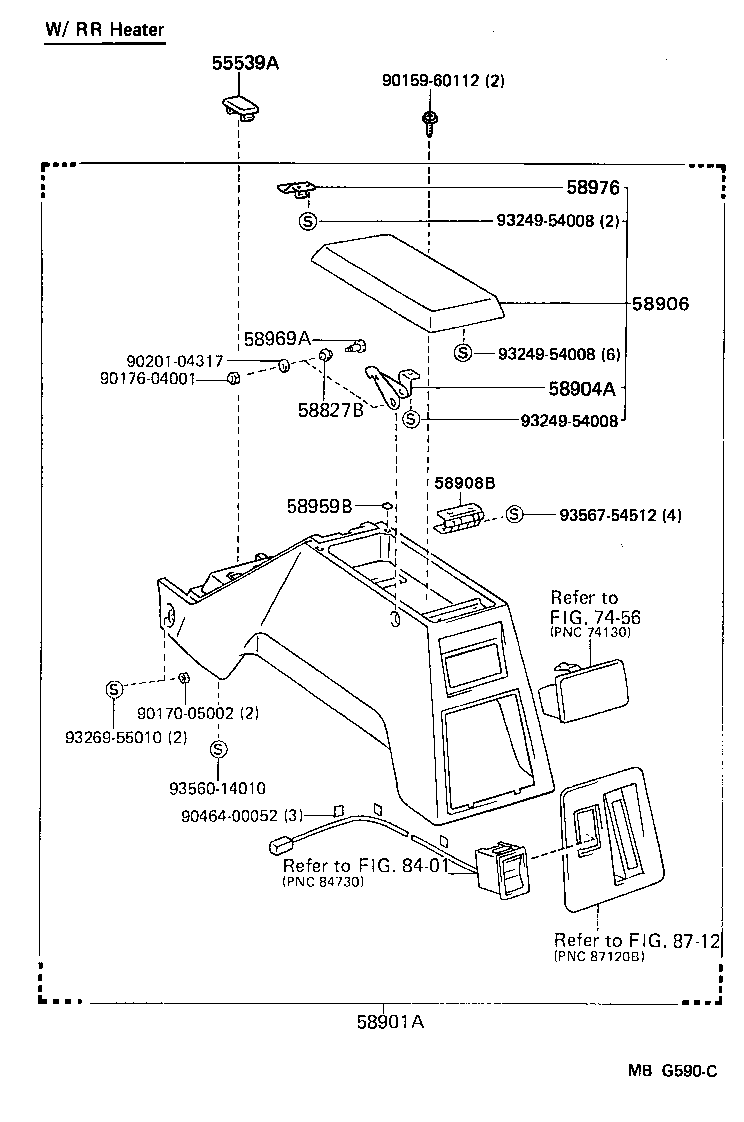

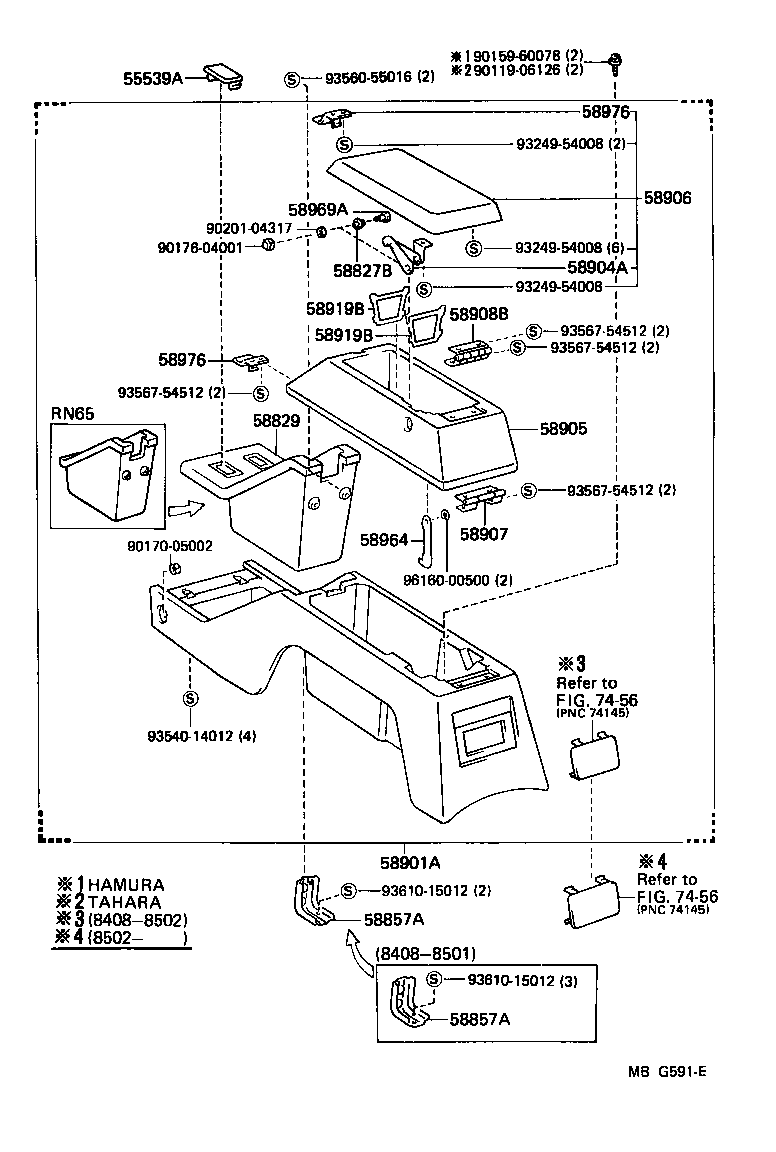

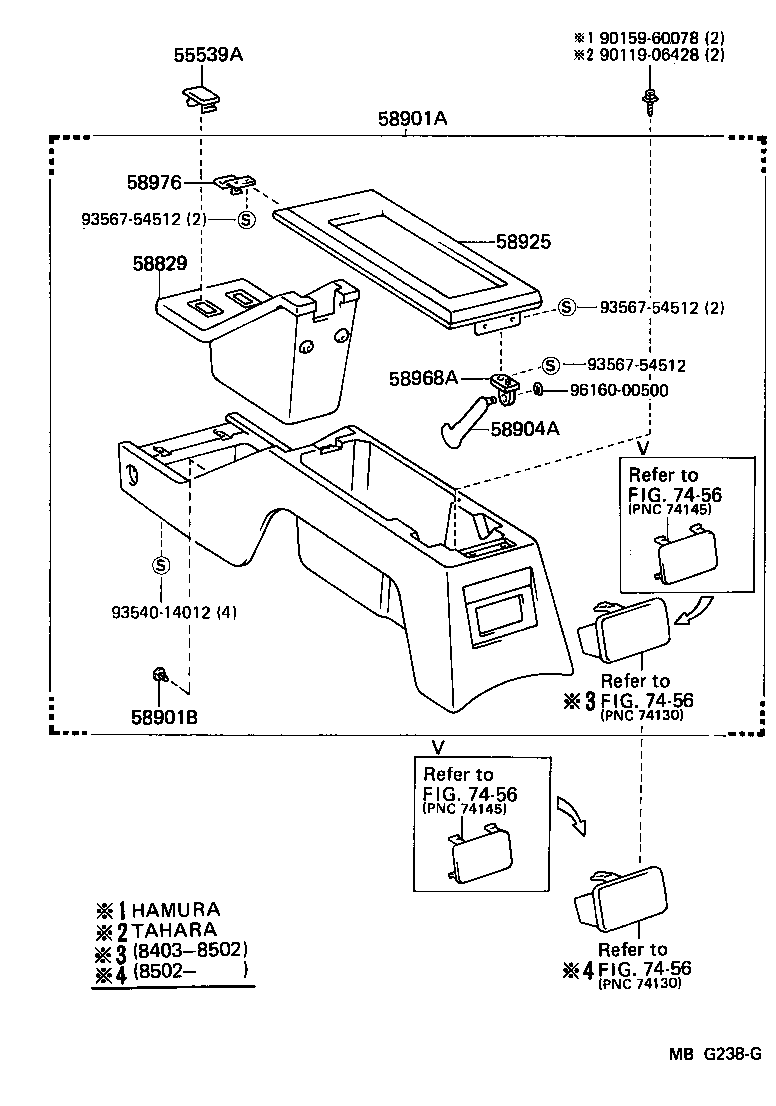

Figure MBF636C MBF636C 1983-08 → 1988-08 Figure MBG800D MBG800D 1983-08 → 1989-03 Figure MBF548H MBF548H 1983-08 → 1984-08 Figure MBF548H MBF548H 1984-08 → 1988-08 Figure MBG591E MBG591E 1984-08 → 1988-08 Figure MBG238G MBG238G 1984-08 → 1989-03 Figure MBG218F MBG218F 1984-03 → 1989-03 Figure MBG590C MBG590C 1984-03 → 1989-03

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58827B Spacer, Console Compartment Door Stopper
58829 Pocket, Console Box
58857A Bracket, Console Support, Upper NO.1
58901A Box Sub-assy, Console, Rear
58901B Plug, Hole(FOR REAR CONSOLE BOX)
58904A Stopper Sub-assy, Console Compartment Door
58905 Door Sub-assy, Console Compartment
58906 Door Sub-assy, Upper Console
58907 Hinge Sub-assy, Console Compartment Door
58908B Hinge Sub-assy, Rear Console Armrest
58919B Plate, Console Box
58925 Lid, Rear Console Armrest
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58968A Bracket, Console Door Stopper
58969A Retainer, Console Compartment Door Stopper
58976 Striker, Console Compartment Door Lock
58991 Bracket, Console Box Mounting, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
