Toyota 4-Runner Truck
1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe
Discontinued model
Data version 1989-05

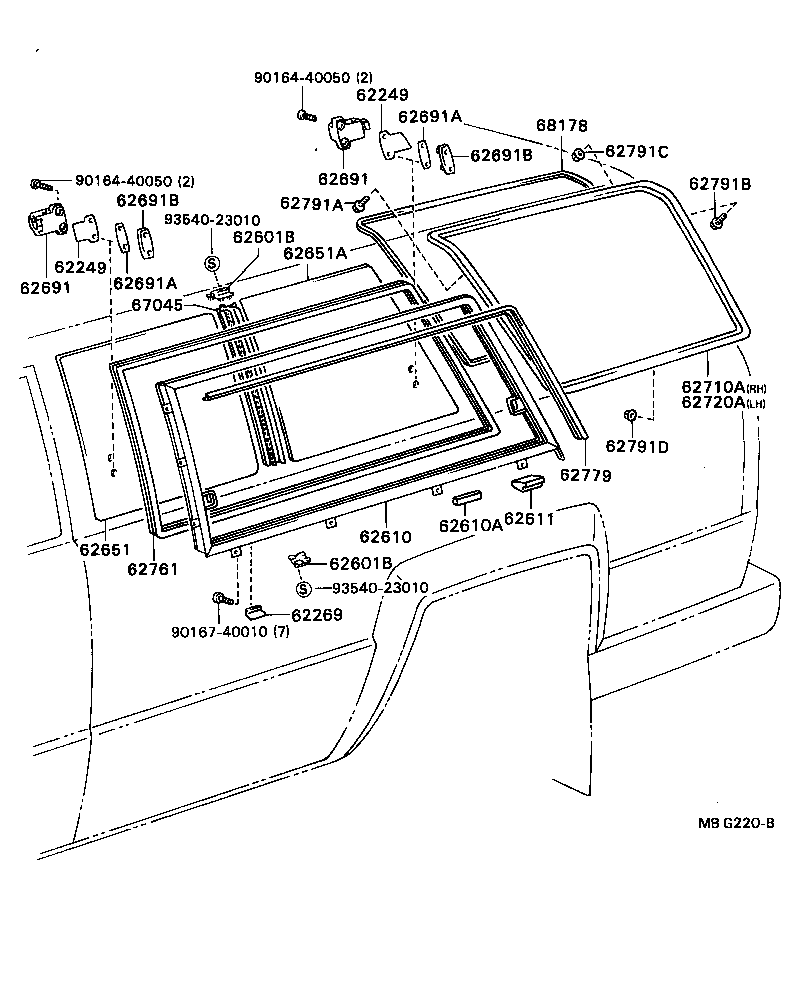

Side Window
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62249 | Plate, Side Window, RH |
| 62269 | Film, Side Window Frame, RH |
| 62601B | Guide, Side Window Inner Sash, NO.1 |
| 62610 | Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE) |
| 62610A | Packing, Side Window Outer Sash, NO.1 |
| 62611 | Spacer, Side Window Support, NO.1 |
| 62651 | Glass, Side Window, NO.1, Front (FOR SLIDE TYPE) |
| 62651A | Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE) |
| 62691 | Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE) |
| 62691A | Packing, Side Window Lock, NO.1 |
| 62691B | Retainer, Side Window Lock, NO.1 |
| 62710A | Window Assy, Quarter, RH |
| 62711 | Glass, Quarter Window, RH |
| 62712 | Glass, Quarter Window, LH |
| 62720A | Window Assy, Quarter, LH |
| 62741 | Weatherstrip, Quarter Window, RH |
| 62761 | Run, Side Window, NO.1(FOR SLIDE TYPE) |
| 62779 | Packing, Side Window Glass, NO.1 |
| 62791A | Stopper, Quarter Window Lock, Rear Front |
| 62791B | Stopper, Quarter Window Lock, Rear Rear |
| 62791C | Stopper, Quarter Window Lock, Rear Upper |
| 62791D | Stopper, Quarter Window Lock, Rear Lower |
| 67045 | Frame Sub-assy, Slide Window, Center |
| 68178 | Seal, Quarter Window NO.2 Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
