Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

20 part groups · 3 illustrations

Illustrations

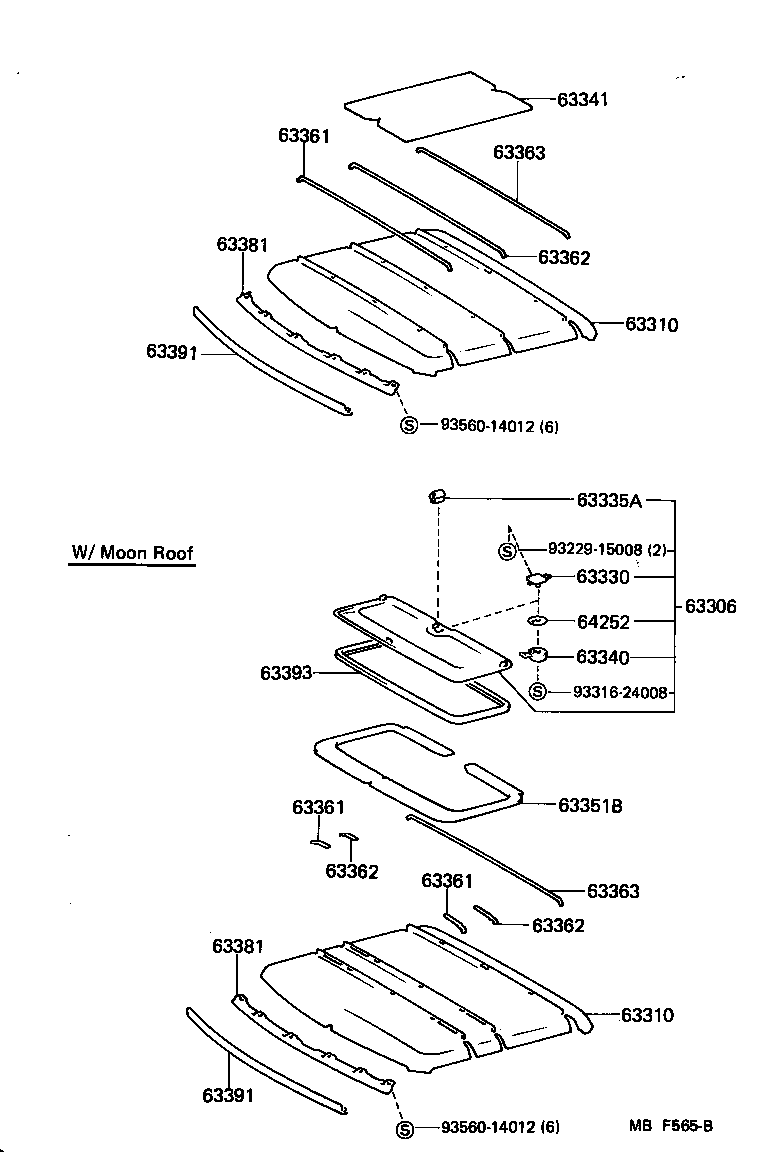

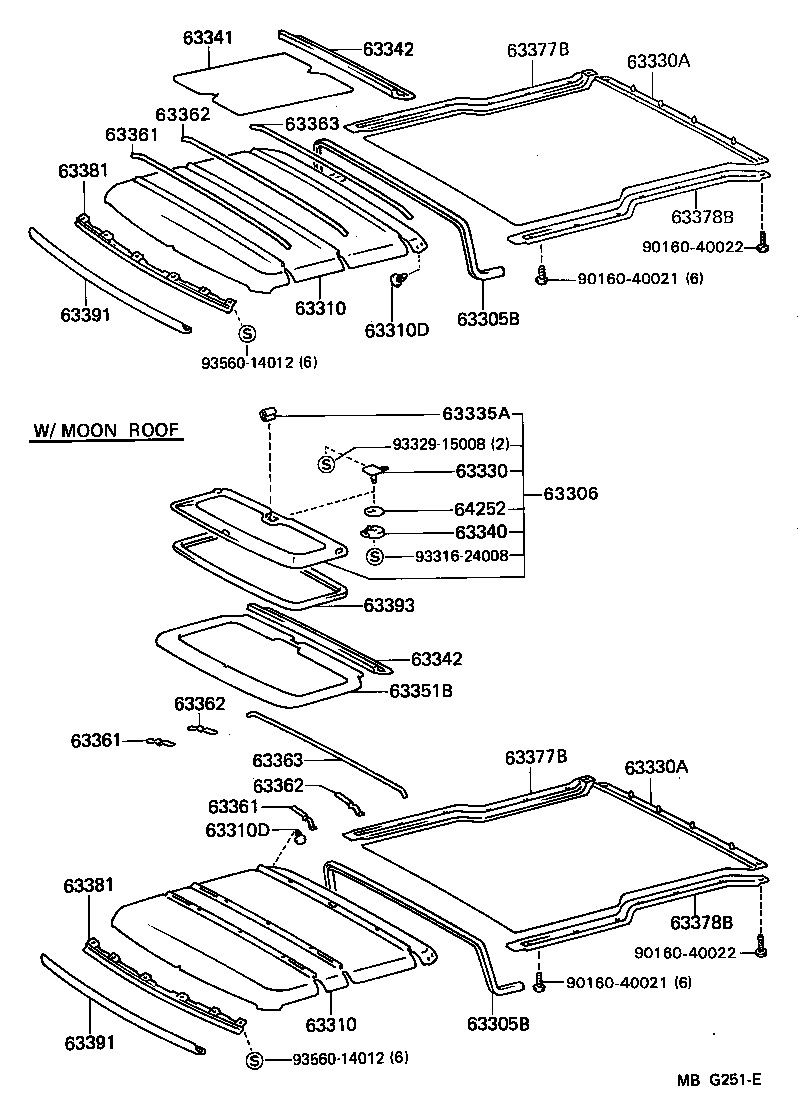

Figure MBF564B MBF564B 1983-08 → 1988-08 Figure MBF565B MBF565B 1983-09 → 1988-08 Figure MBG251E MBG251E 1984-03 → 1989-03

Part groups

PNCDescription
63305B Trim Sub-assy, Roof Headlining, Rear
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63330 Lock Assy, Sunshade Trim
63330A Headlining Assy, Roof, Rear
63335A Cushion, Sunshade Trim, NO.1
63340 Handle Assy, Sunshade Trim Lock
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63351B Pad, Roof Headlining
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63377B Moulding, Roof Headlining, Rear RH
63378B Moulding, Roof Headlining, Rear LH
63381 Retainer, Headlining, Front
63391 Trim, Roof Headlining, Front
63393 Trim, Roof Headlining, Center
64252 Spacer, Sunshade Trim
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
