Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

101 part groups · 9 illustrations

Illustrations

MBF594E 1983-08 → 1988-08

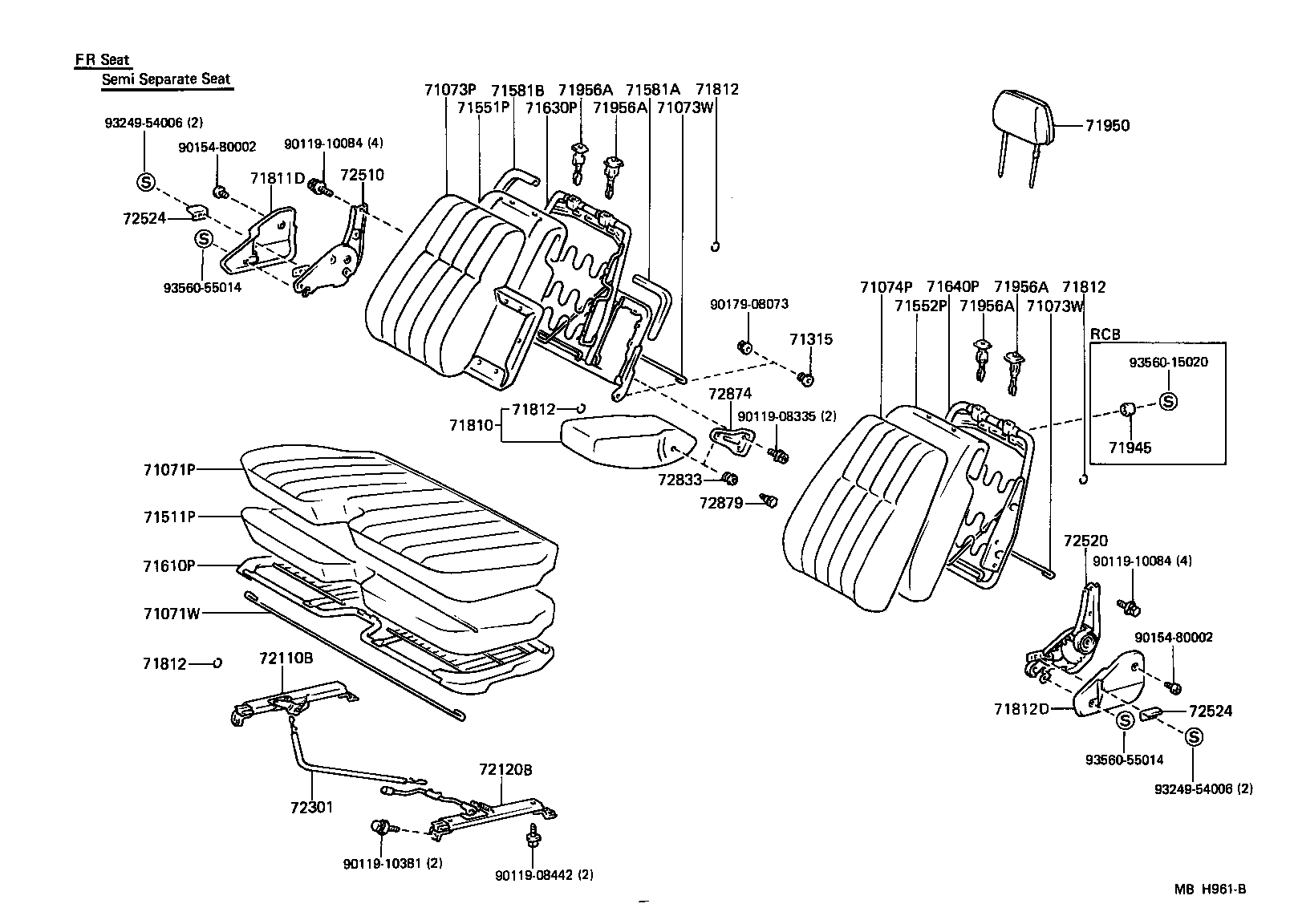

MBH961B 1985-01 → 1988-08

MBH961B 1985-08 → 1988-08

MBH961B 1986-08 → 1988-08

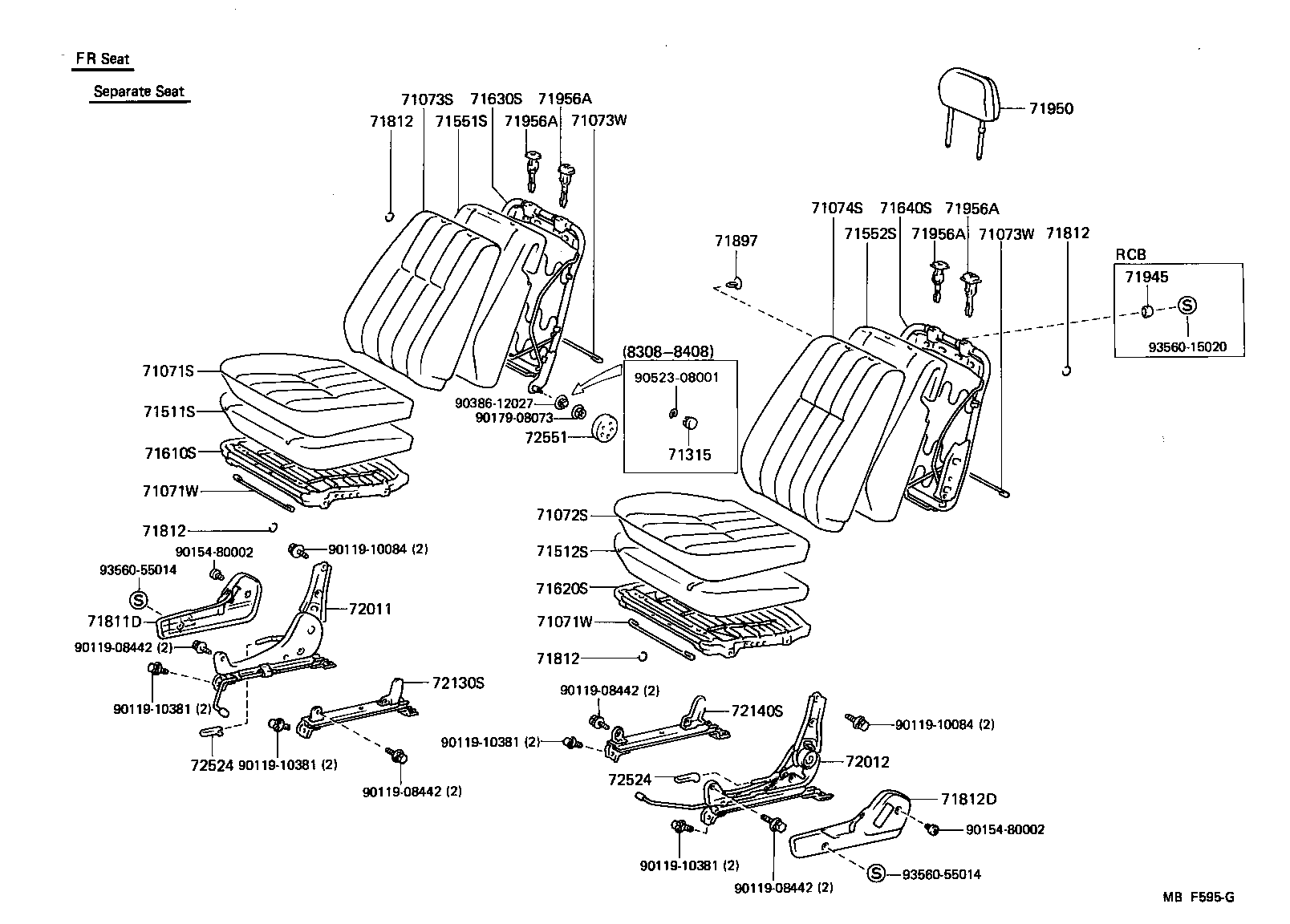

MBF595G 1983-08 → 1984-08

MBF595G 1984-08 → 1988-08

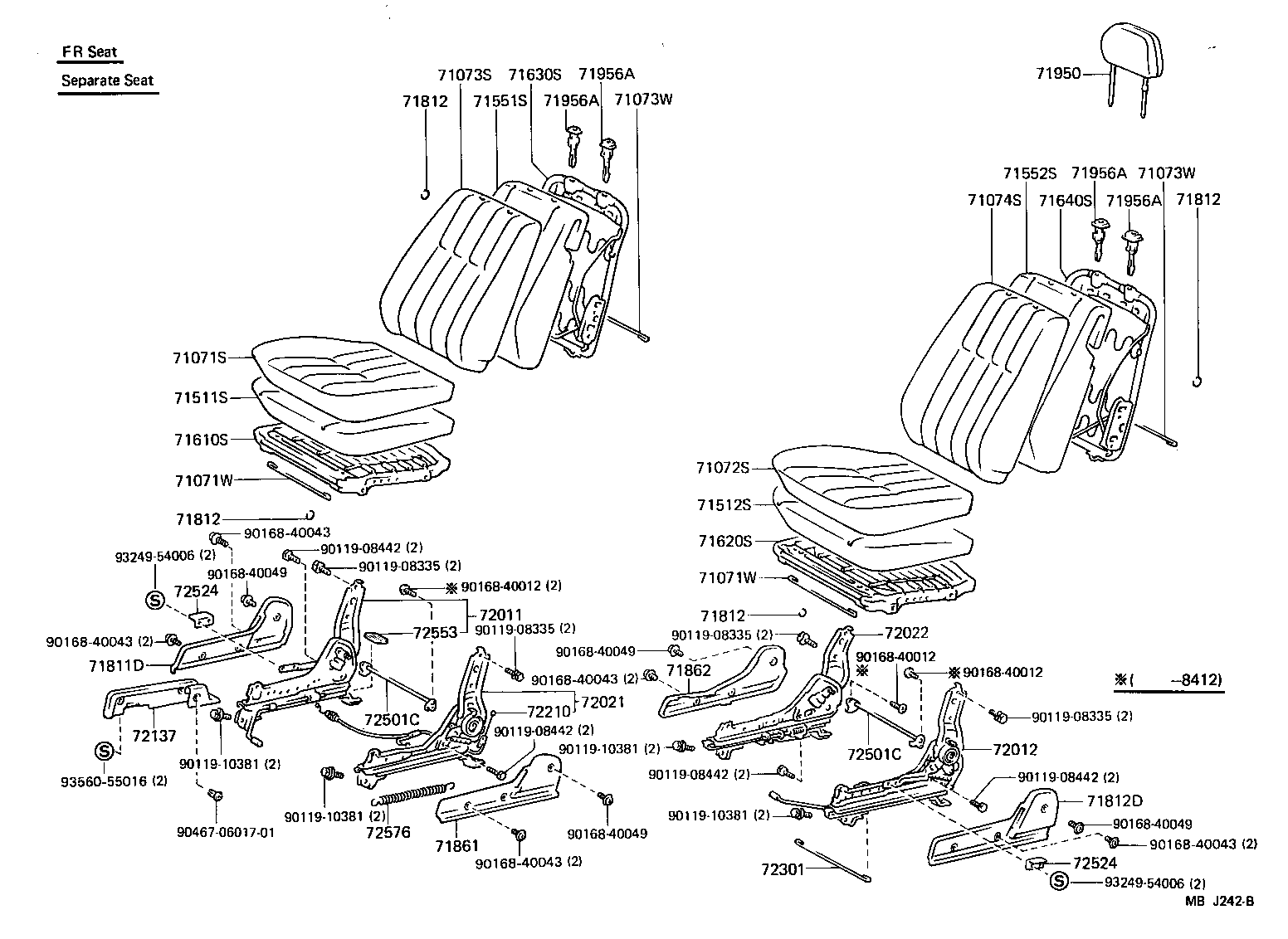

MBJ242B 1984-03 → 1989-03

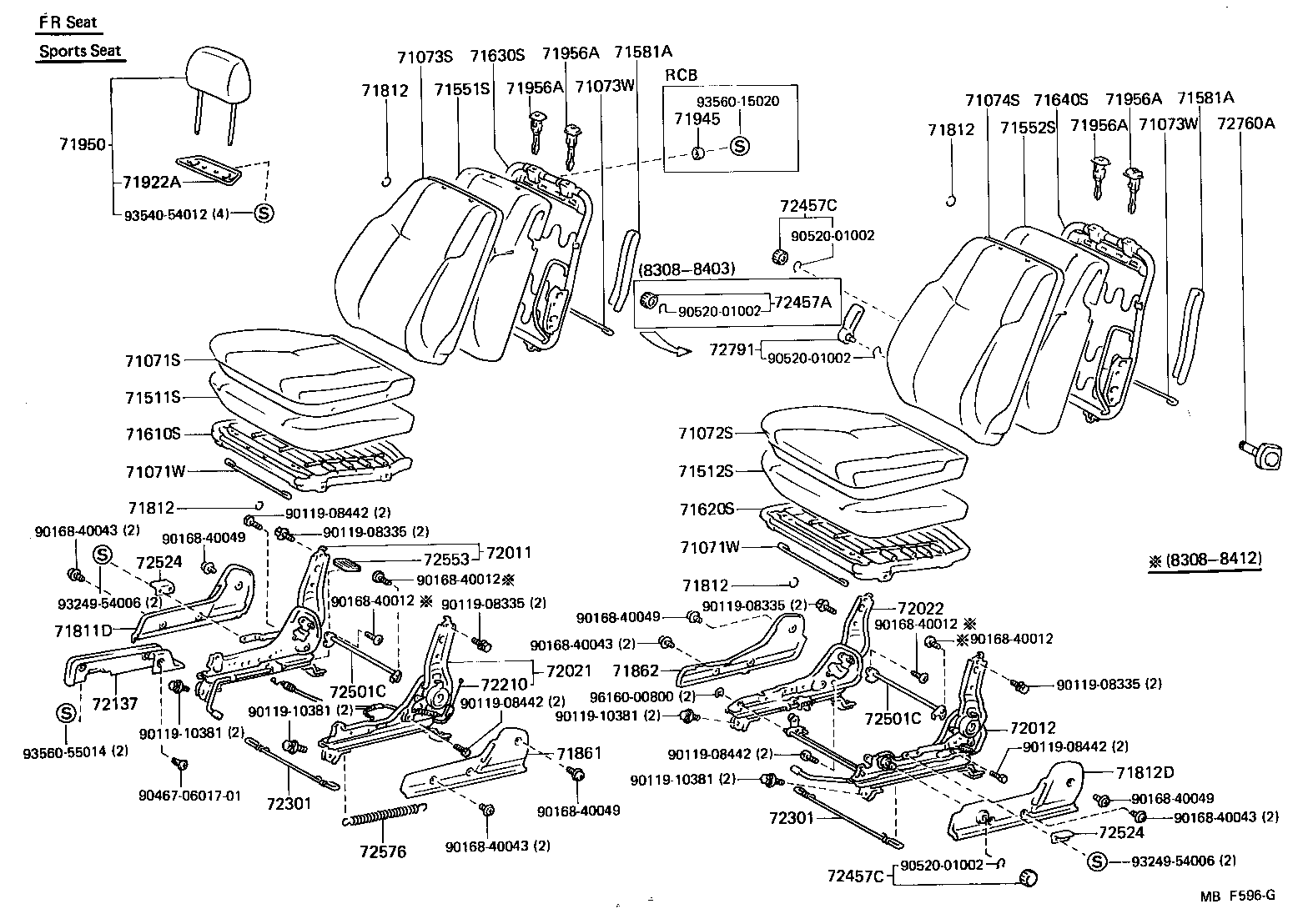

MBF596G 1983-08 → 1989-03

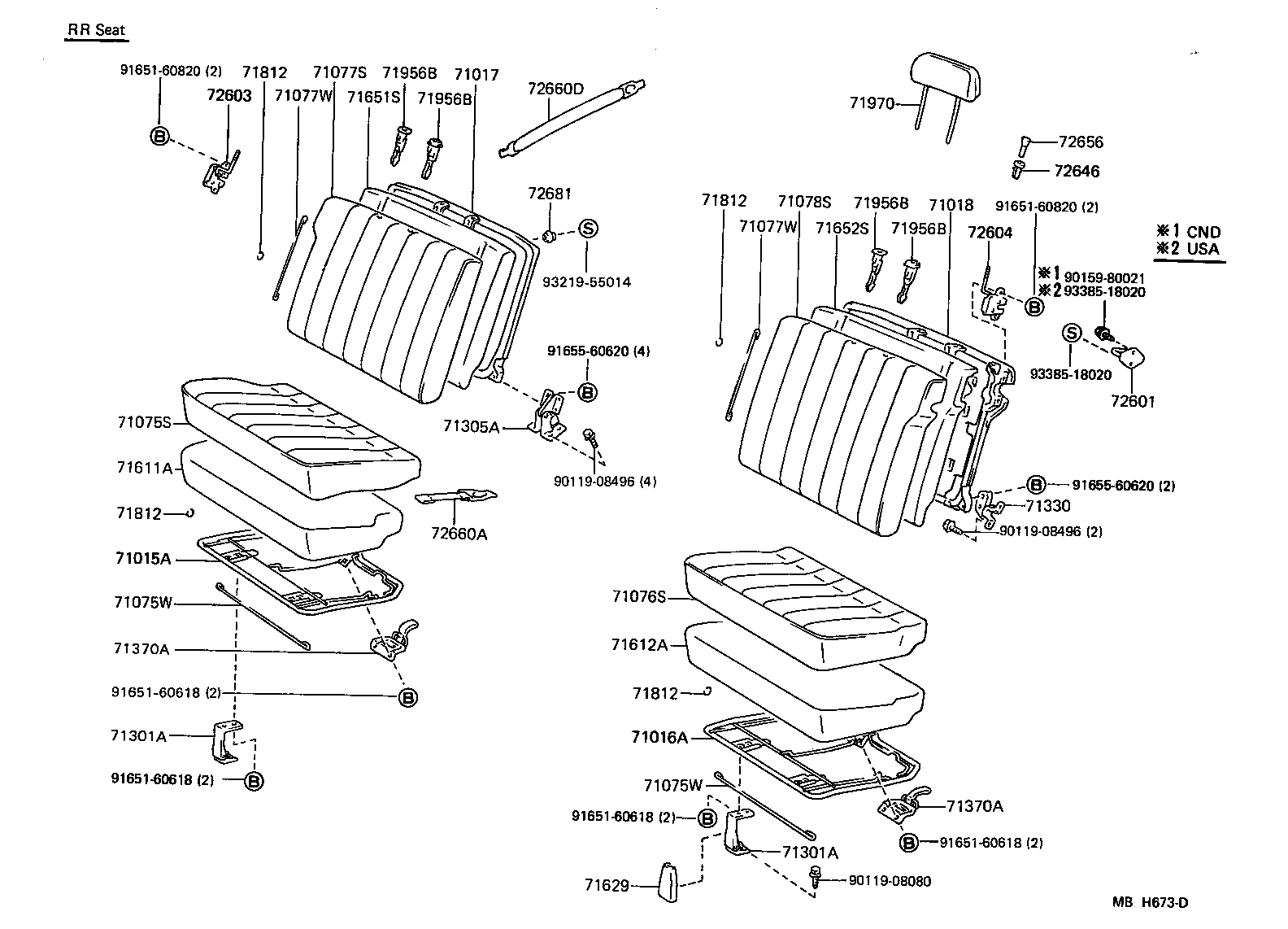

MBH673D 1984-03 → 1989-03

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71071B	Cover, Front Seat Cushion(FOR BENCH TYPE)
71071P	Cover, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071W	Wire, Front Seat Cushion Cover
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B	Cover, Front Seatback(FOR BENCH TYPE)
71073P	Cover, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073W	Wire, Front Seatback Cover
71074P	Cover, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71075W	Wire, Rear Seat Cushion Cover
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077W	Wire, Rear Seatback Cover
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71301A	Hinge Sub-assy, Rear Seat Cushion
71305A	Hinge Sub-assy, Rear Seatback, Center
71311	Pin, Front Seat Hinge
71315	Plate, Front Seat Hinge
71330	Hinge Assy, Rear Seat Cushion
71370A	Holder Assy, Rear Seat Cushion
71379A	Stopper, Front Seat Vertical Handle
71511B	Pad, Front Seat Cushion(FOR BENCH TYPE)
71511P	Pad, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551B	Pad, Front Seatback(FOR BENCH TYPE)
71551P	Pad, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552P	Pad, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71561B	Pad, Front Seatback, Upper
71581A	Pad, Front Seatback Corner, A
71581B	Pad, Front Seatback Corner, B
71587	Protector, Front Seatback Edge
71610B	Spring Assy, Front Seat Cushion(FOR BENCH TYPE)
71610P	Spring Assy, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629	Cover, Rear Seat Cushion Hinge
71630B	Spring Assy, Front Seatback(FOR BENCH TYPE)
71630P	Spring Assy, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640P	Spring Assy, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71810	Armrest Assy, Front Seat Center
71811D	Shield, Front Seat Cushion, RH
71812	Clip (FOR FRONT SEAT CUSHION COVER)
71812D	Shield, Front Seat Cushion, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71897	Hook, Seat Cover Side
71922A	Cover, Front Seat Headrest Under
71945	Bumper, Seatback
71950	Headrest Assy, Front Seat
71956A	Support, Front Seat Headrest
71956B	Support, Rear Seat Headrest
71970	Headrest Assy, Rear Seat
72011	Adjuster Sub-assy, Front Seat, Outer RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72022	Adjuster Sub-assy, Front Seat, Inner LH
72110B	Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72120B	Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72130S	Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
72137	Cover, Seat Track, Outer RH
72140S	Track Assy, LH Seat, Inner (FOR SEPARATE SEAT)
72210	Cable Assy, Seat Track Control
72301	Wire Sub-assy, Seat Track Equalizing
72457A	Knob, Seat Adjuster
72457C	Knob, Side Support Adjuster
72501C	Pipe Sub-assy, Reclining Connecting
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH
72524	Handle, Reclining Adjuster Release
72551	Cover, Reclining Hinge, NO.1
72553	Cover, Reclining Pedal
72576	Spring, Reclining Adjuster Memory
72601	Striker Sub-assy, Rear Seat Lock
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72646	Grommet, Rear Seatback Stop Button
72656	Button, Rear Seatback Stop Release
72660A	Support Assy, Rear Seat Cushion
72660D	Support Assy, Rear Seat Cushion
72681	Hook, Rear Seatback Lock, Lower
72760A	Adjuster Assy, Lumbar Support
72791	Lever, Lumbar Support
72833	Plate, Seat Center Armrest, Inner RH
72874	Bracket, Front Seat Center Armrest, LH
72879	Pin, Front Seat Armrest Set

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
