Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

14 part groups · 3 illustrations

Illustrations

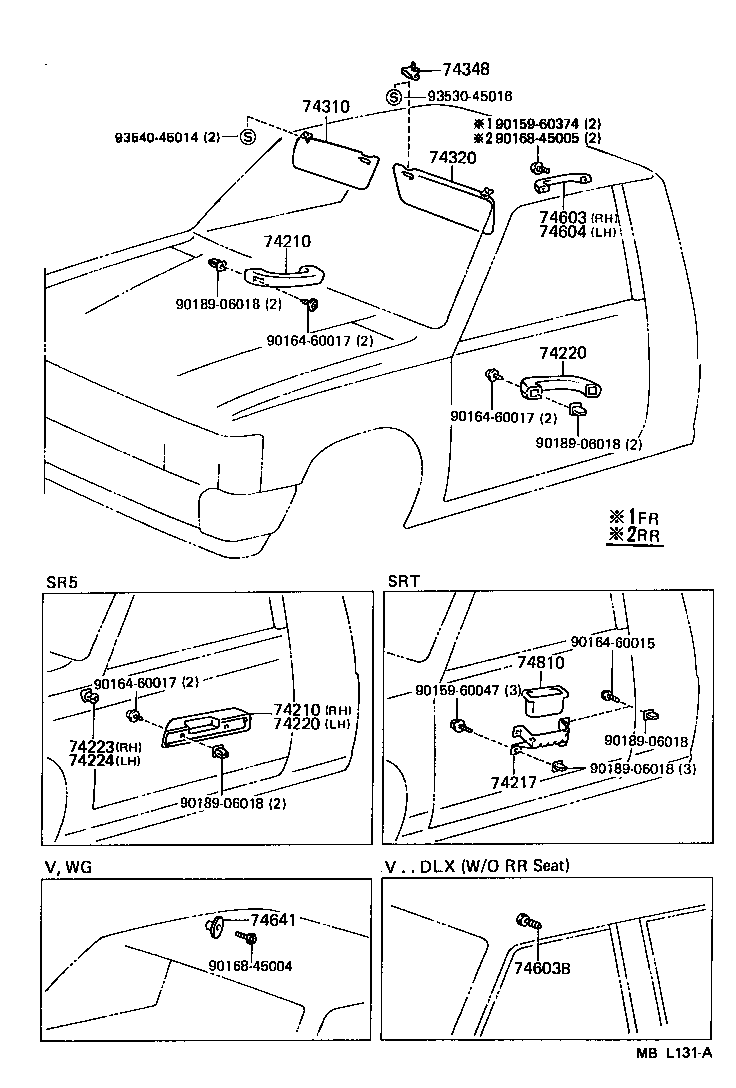

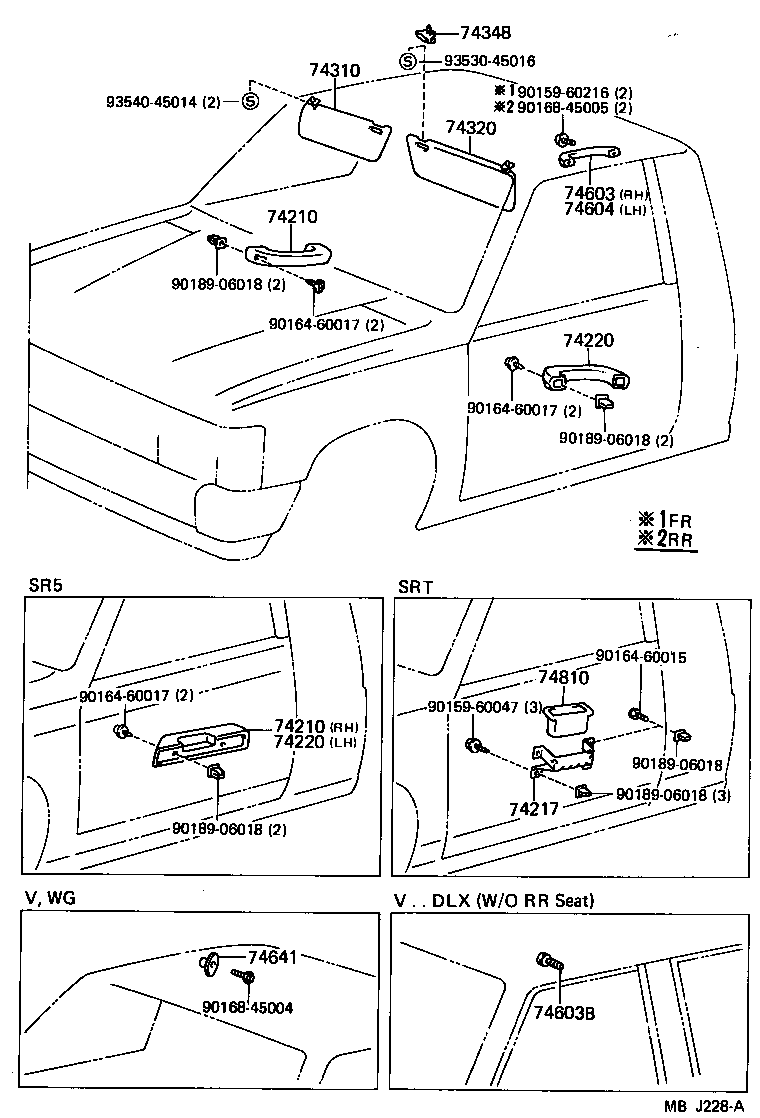

Figure MBF779F MBF779F 1983-08 → 1985-08 Figure MBJ228A MBJ228A 1985-08 → 1986-08 Figure MBL131A MBL131A 1986-08 → 1989-03

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74217 Reinforcement, Door Armrest
74220 Armrest Assy, Front, LH
74223 Cap, Door Armrest, RH
74224 Cap, Door Armrest, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74603B Clip (FOR ASSIST GRIP)
74604 Grip Sub-assy, Assist, Rear
74613 Plug, Assist Grip
74641 Hook, Coat, B
74810 Pull Assy, Door, Inside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
