Toyota 4-Runner Truck

1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

65 part groups · 8 illustrations

Illustrations

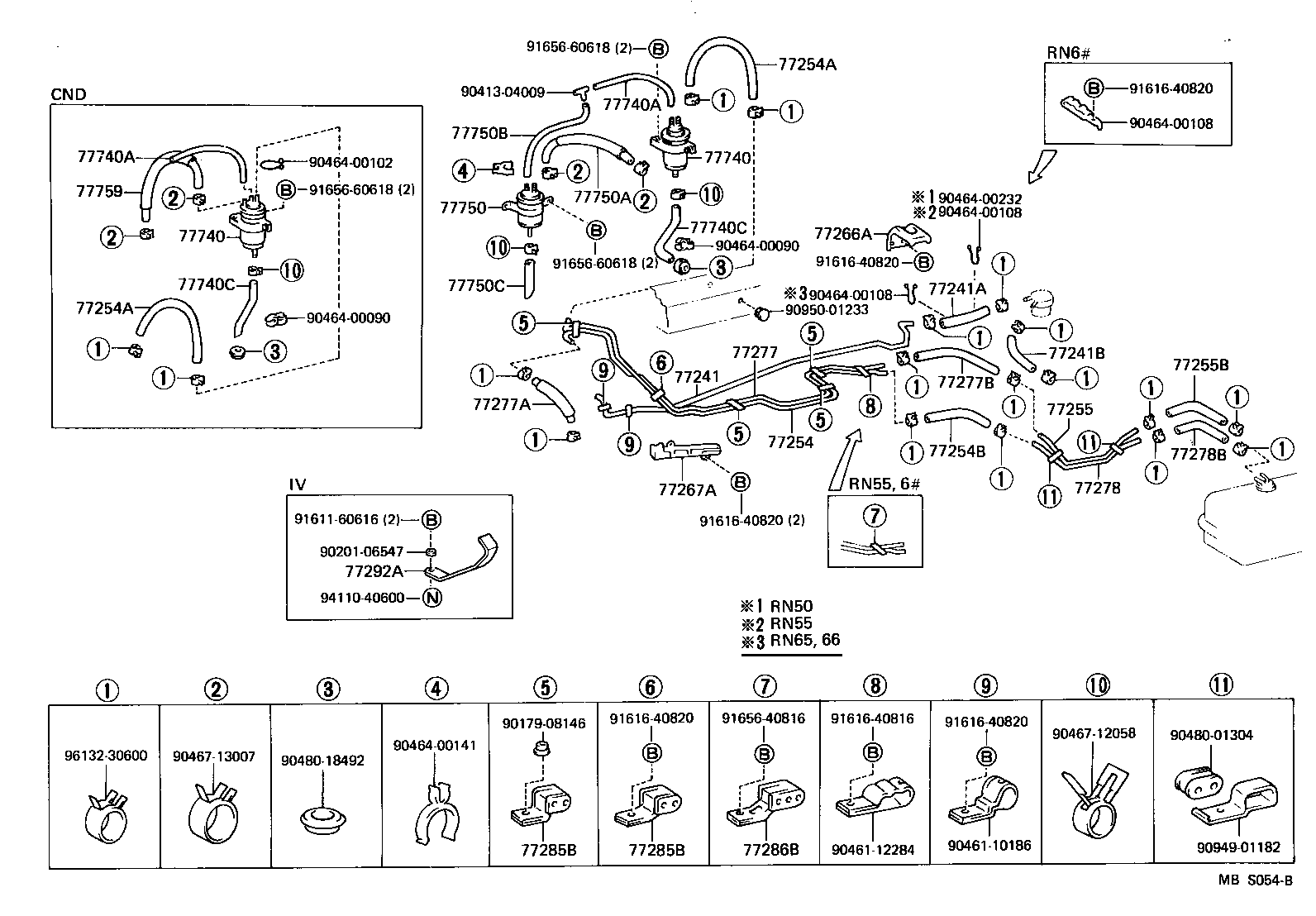

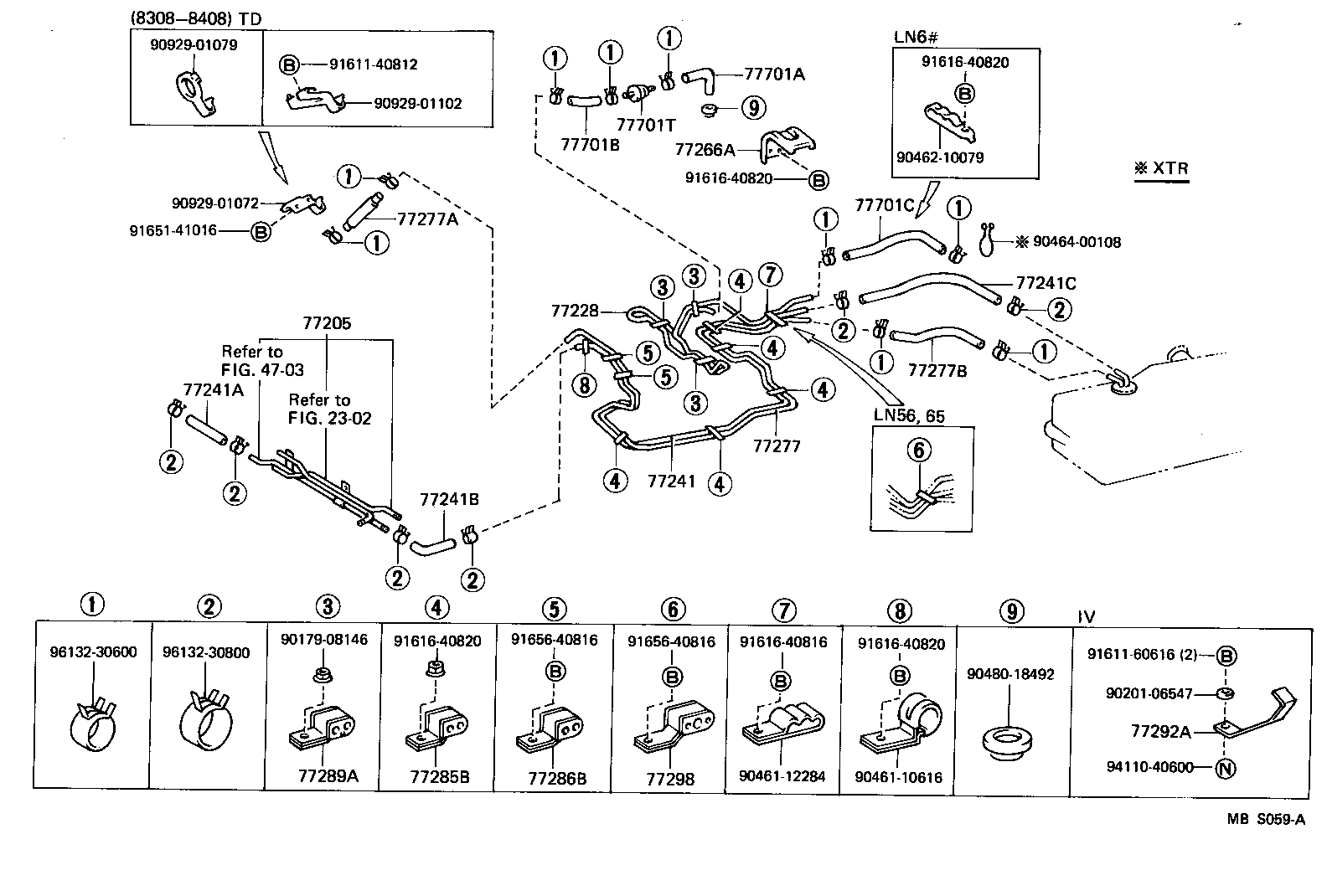

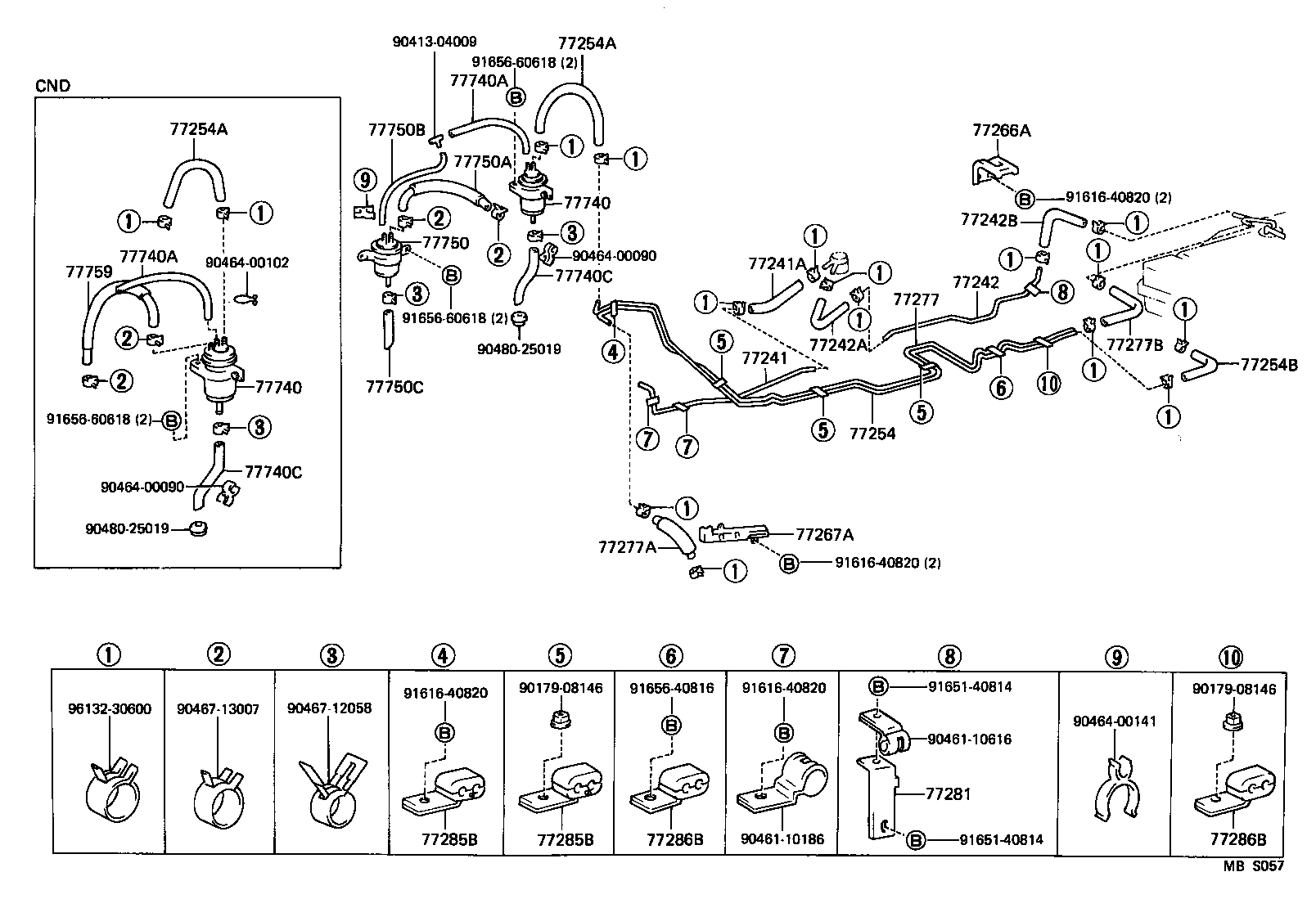

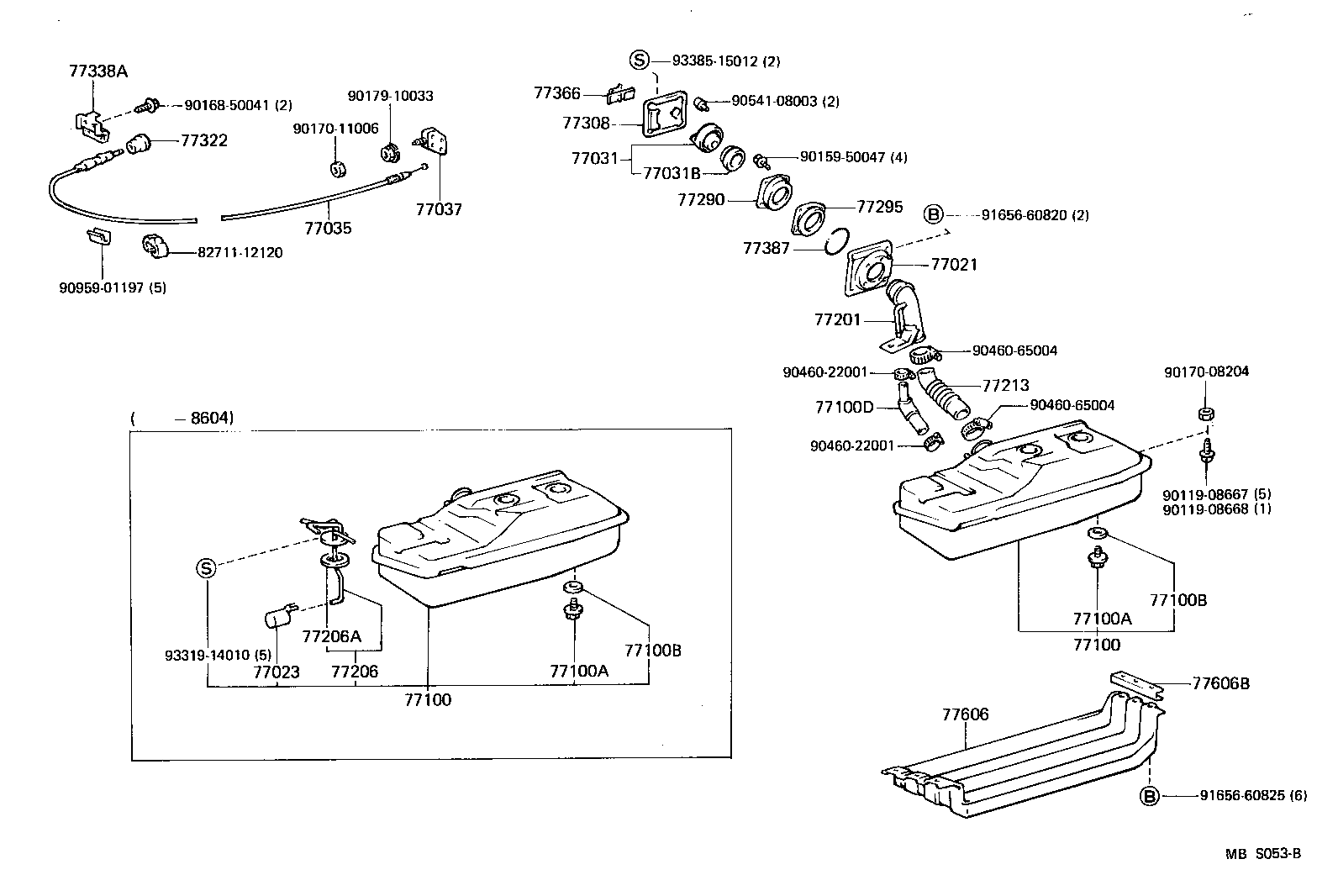

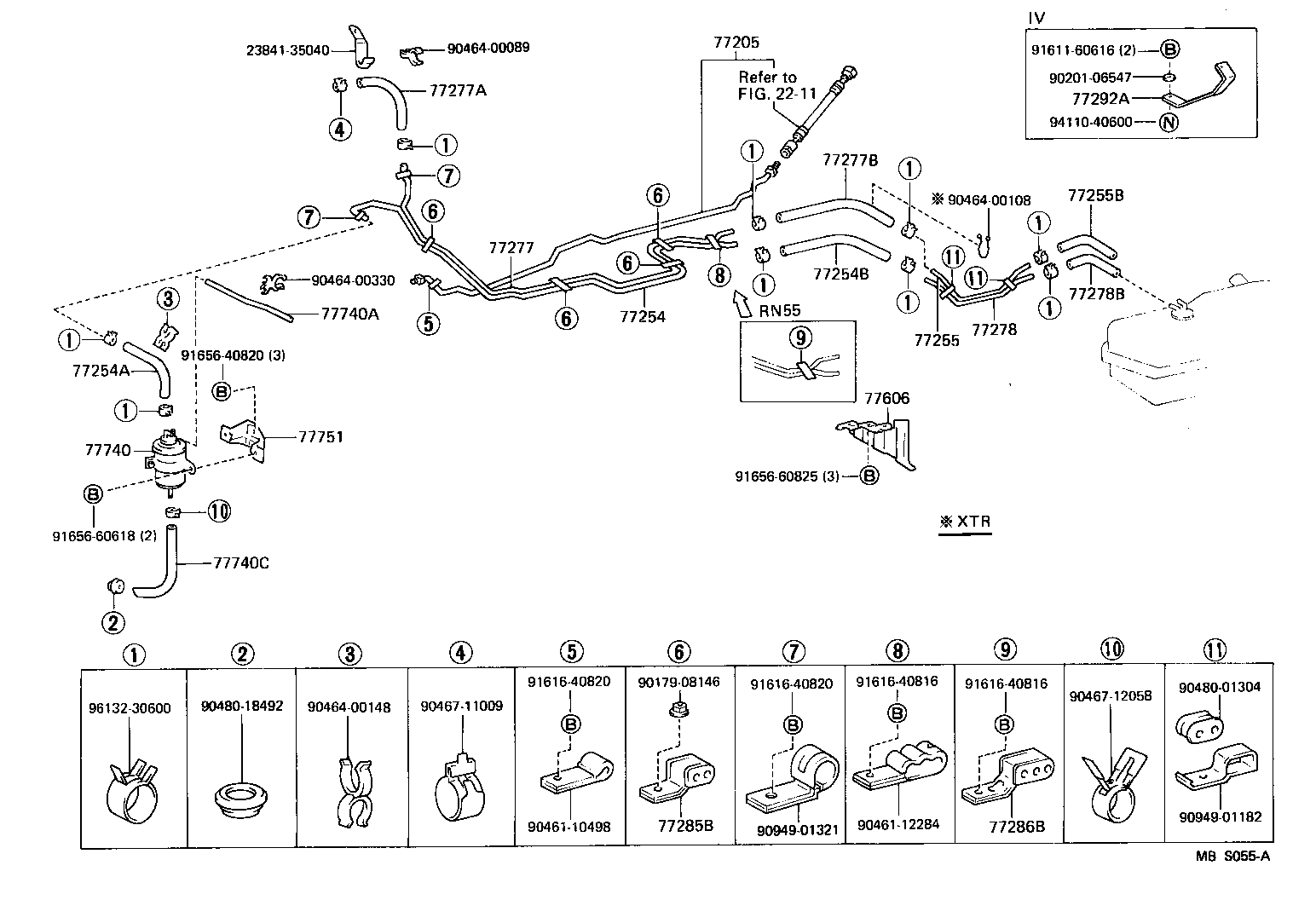

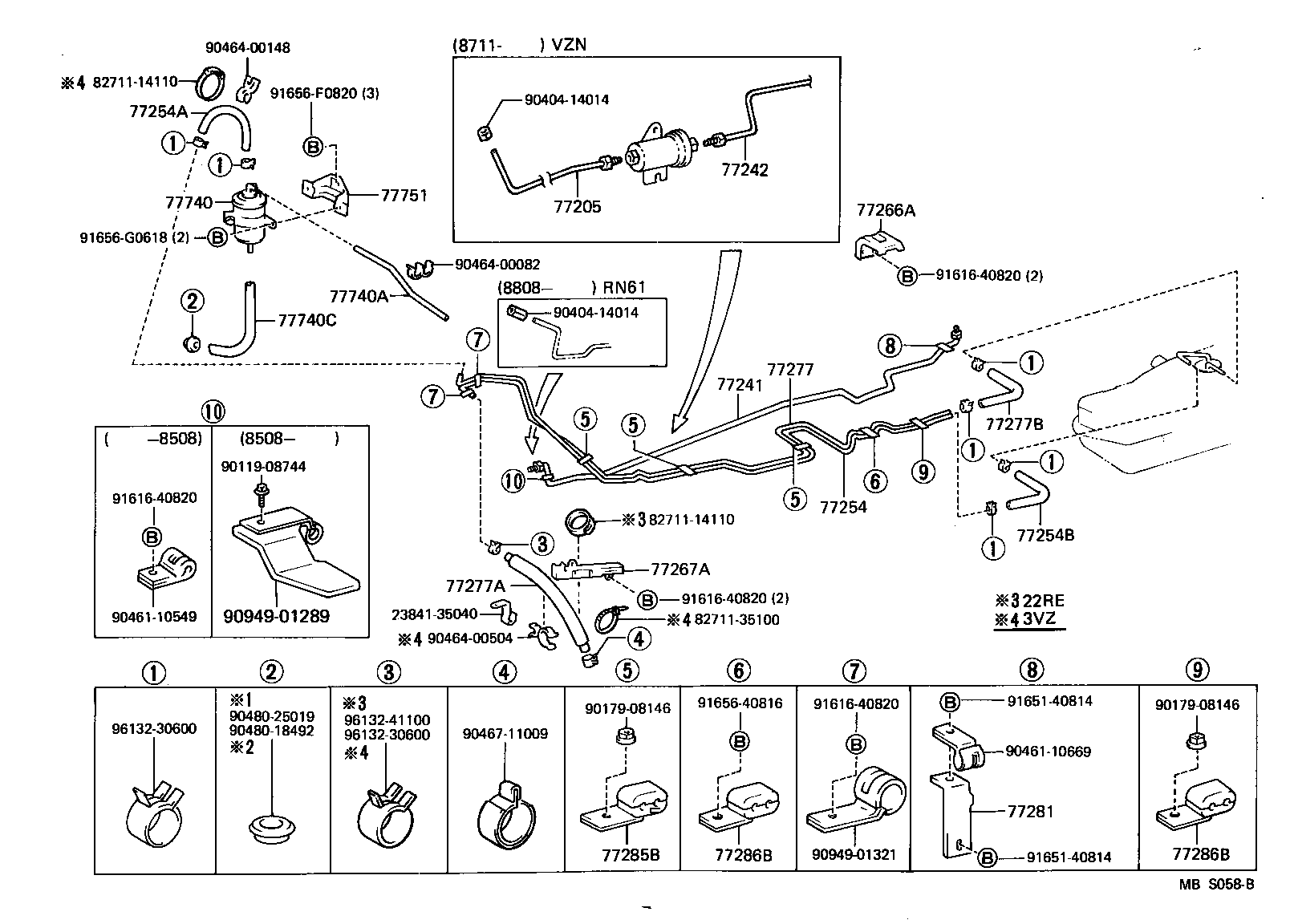

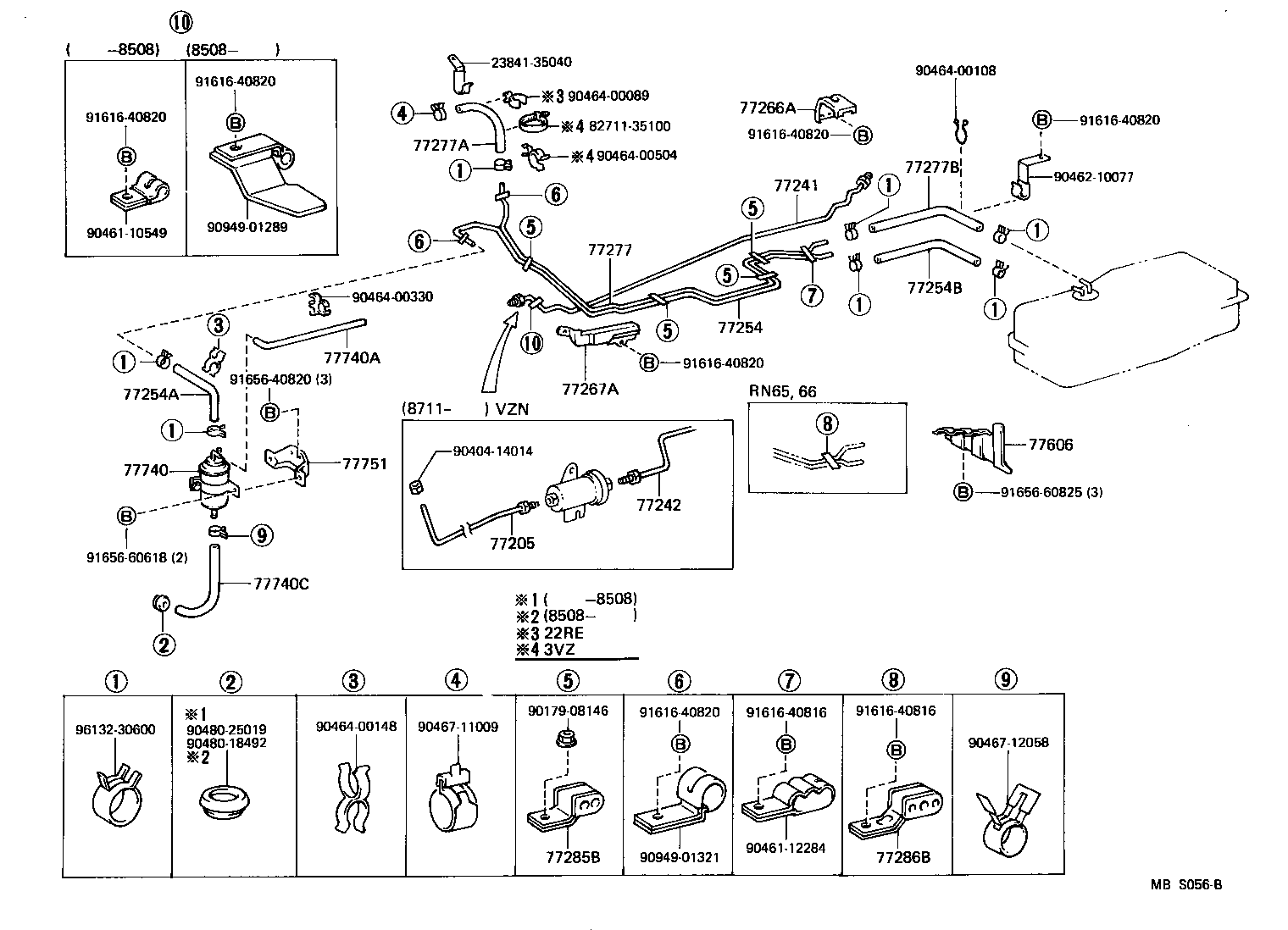

Figure MBS052 MBS052 1983-08 → 1988-08 Figure MBS053B MBS053B 1984-03 → 1989-03 Figure MBS054B MBS054B 1983-08 → 1988-08 Figure MBS055A MBS055A 1983-08 → 1988-08 Figure MBS056B MBS056B 1984-08 → 1988-08 Figure MBS057 MBS057 1984-03 → 1984-08 Figure MBS058B MBS058B 1984-08 → 1989-03 Figure MBS059A MBS059A 1983-08 → 1987-08

Part groups

PNCDescription
77021 Box Assy, Fuel Tank Inlet
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77201 Pipe Sub-assy, Fuel Tank Inlet
77205 Tube Sub-assy, Fuel Main
77206 Tube Sub-assy, Fuel Tank Suction
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77213 Hose, Fuel Tank Sub Inlet
77228 Tube, Fuel Tank Evaporation Vent, NO.2
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77241C Hose, Fuel, NO.3 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
77255 Tube, Fuel Emission, NO.2
77255B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.2)
77266A Protector, Fuel Tube, NO.1
77267A Protector, Fuel Tube, NO.2
77276 Protector, Fuel Hose
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77278 Tube, Fuel Return, NO.2
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77281 Bracket, Fuel Main Tube, NO.1
77285B Clamp, Fuel Tube W/Grommet, NO.1
77286B Clamp, Fuel Tube W/Grommet, NO.2
77289A Clamp, Fuel Tube W/Grommet, NO.3
77290 Shield Assy, Fuel Tank Filler Pipe
77292A Stay, Fuel Tank Fillar Upper Pipe
77295 Shield, Fuel Filler Pipe
77298 Clamp, Fuel Tube W/Grommet, NO.4
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77322 Knob, Fuel Tank Cap
77338A Bracket, Fuel Tank Cap Lock Control Rod
77366 Spring, Fuel Filler Opening Lid Hinge
77387 Ring, Fuel Inlet Box
77606 Protector Sub-assy, Fuel Tank, NO.1
77606B Bracket, Fuel Tank Protector, Side
77701A Hose, Fuel, NO.1 (FOR BREATHER VALVE)
77701B Hose, Fuel, NO.2 (FOR BREATHER VALVE)
77701C Hose, Fuel, NO.3 (FOR BREATHER VALVE)
77701T Valve, Check (FOR MAIN FUEL TANK)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77750 Canister Assy, Charcoal
77750A Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
77750B Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
77750C Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77759 Hose, Charcoal Canister
