Toyota 4-Runner Truck
1983-08 → 1989-03 · chassis RN5#,6#,7#,VZN6#,LN5#,6# · catalogue 671440 · Europe
Discontinued model
Data version 1989-05

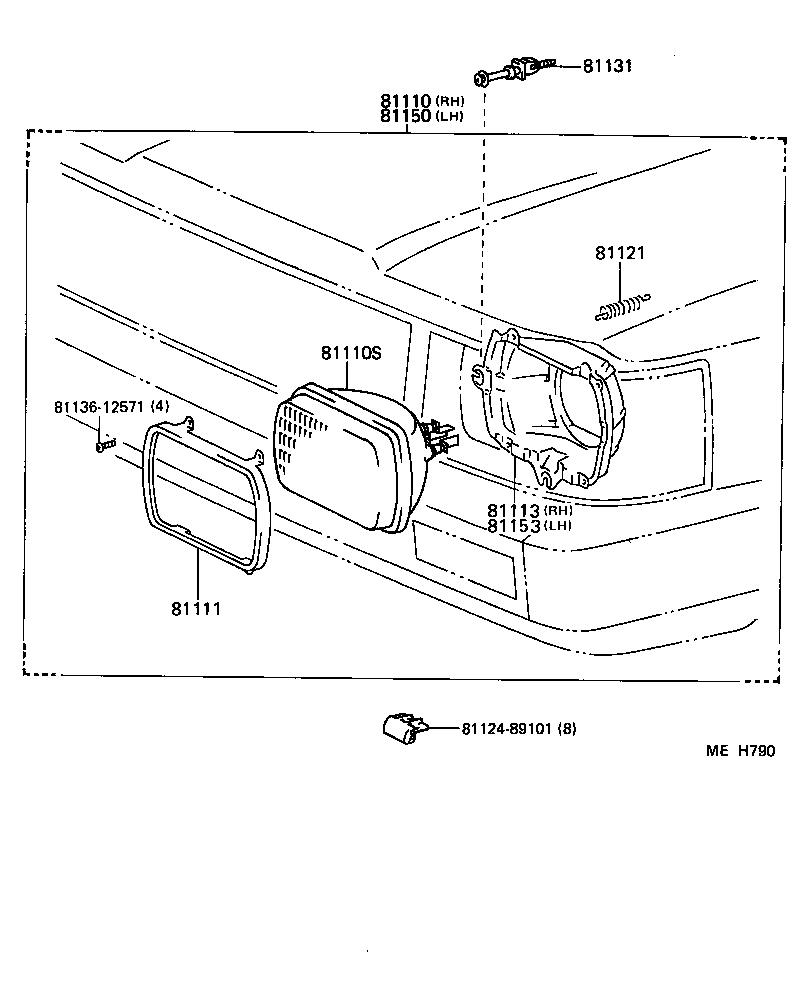

Headlamp
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04817 | Headlamp Kit, W/O Sealed Beam, RH |
| 04818 | Headlamp Kit, W/O Sealed Beam, LH |
| 81110 | Headlamp Assy, RH |
| 81110S | Sealed Beam Unit, NO.1 |
| 81111 | Ring, Sealed Beam Retaining |
| 81113 | Ring, Sealed Beam Mounting, NO.1 RH |
| 81121 | Spring, Headlamp Tension |
| 81131 | Screw, Headlamp Adjusting |
| 81150 | Headlamp Assy, LH |
| 81153 | Ring, Sealed Beam Mounting, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
